angular bevel gauge
par HGW
Fichiers imprimables (6)
-

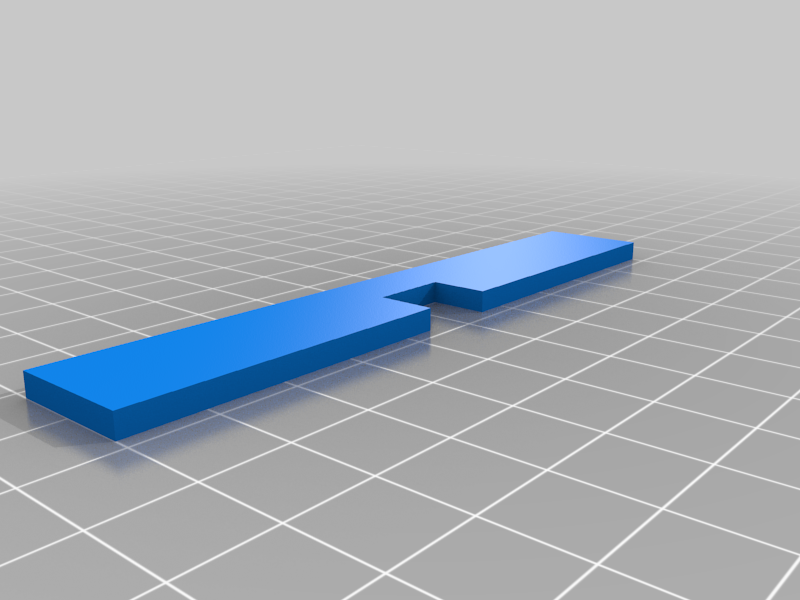

stl2xAnschlag.STL
1 Ko · 753 téléchargements
-

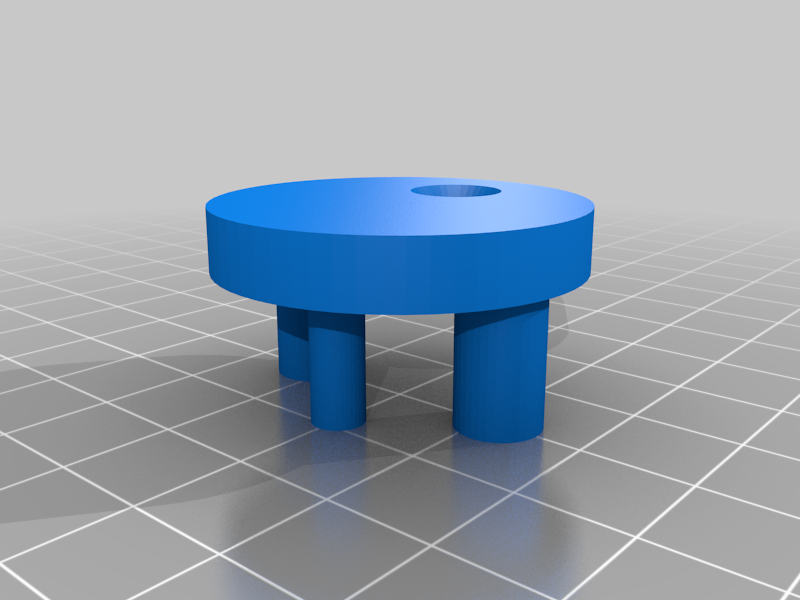

stlMittelteil.STL
44 Ko · 740 téléchargements
-

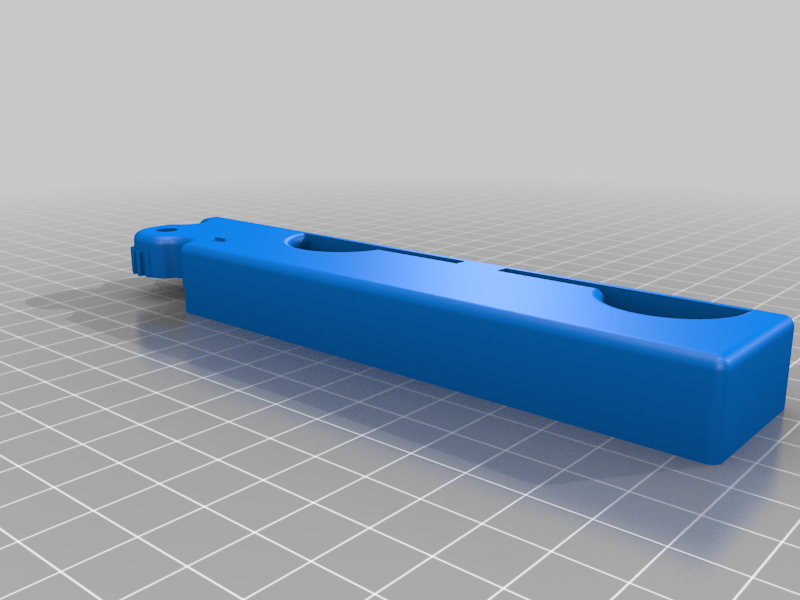

stlleg_right.STL
199 Ko · 752 téléchargements
-

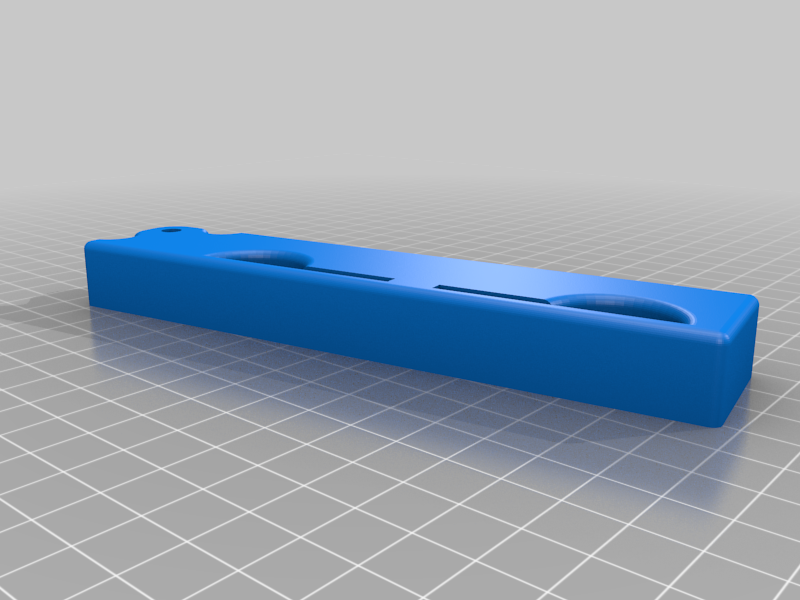

stlleg_left.STL
200 Ko · 752 téléchargements
-

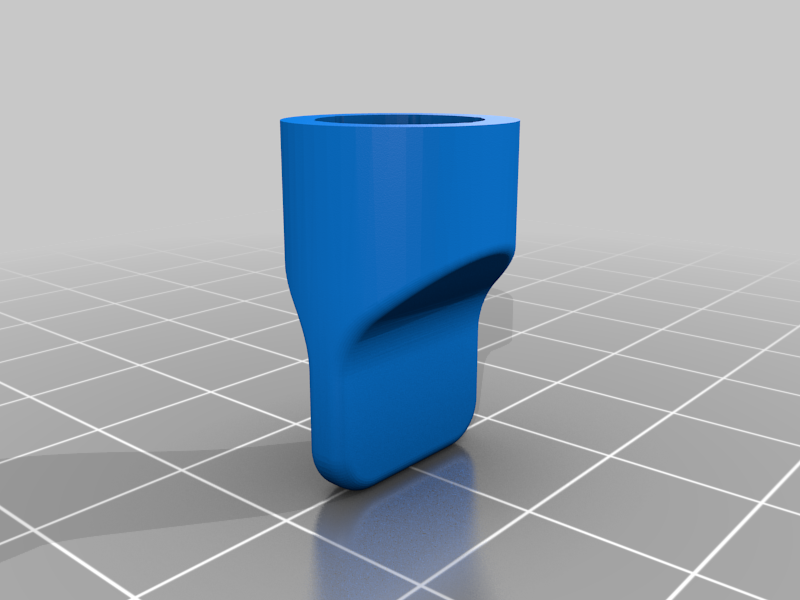

stlKnopf.STL
257 Ko · 739 téléchargements
-

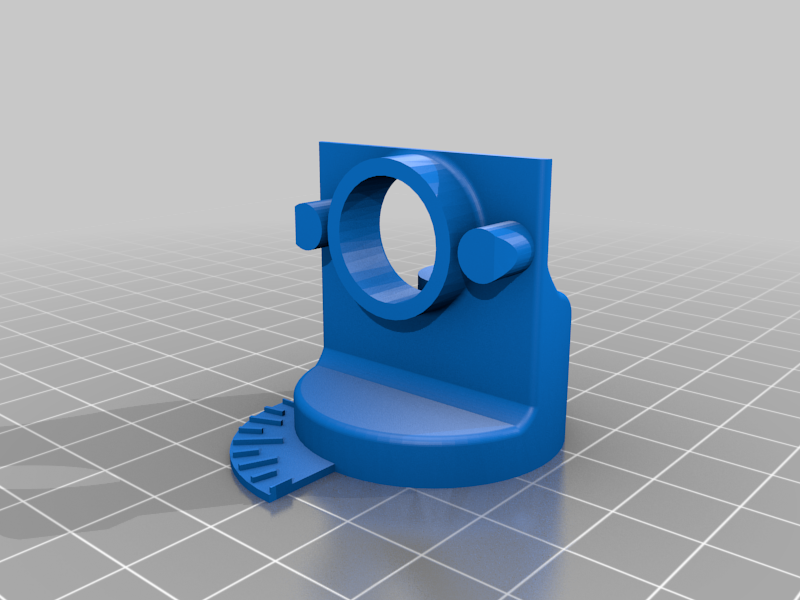

stlMittelteil_oben.STL
573 Ko · 747 téléchargements
Description
Based on an idea from: http://www.wolfcraft.com/en/products/p/measuring/1_angular_bevel_gauge/s/p/index.html
additionally needed: 1 countersunk screw M5 40mm, 1 washer, 1 nut M5, 1 magnet diameter 15mm, height 8mm
(.Unfortunately I had no other magnet. If other variables are needed, write a comment, I am trying to upload a corresponding part.)
