Lulzbot Mini Raspberry Pi Camera Mount
par nlaredo
Fichiers imprimables (9)
-
stllulzbot_mini_raspberry_pi_camera_mount_v3.stl
540 Ko · 1 495 téléchargements
-

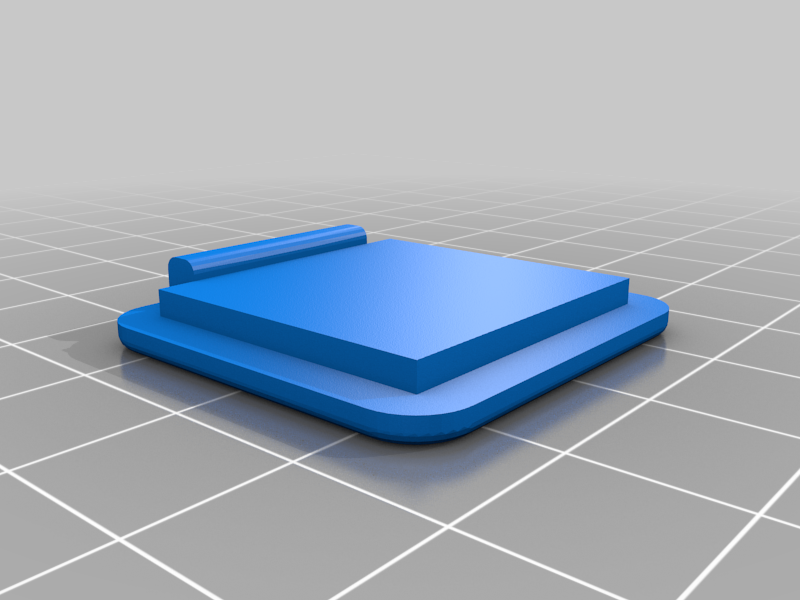

stllulzbot-rpi-rear.stl
35 Ko · 1 443 téléchargements
-

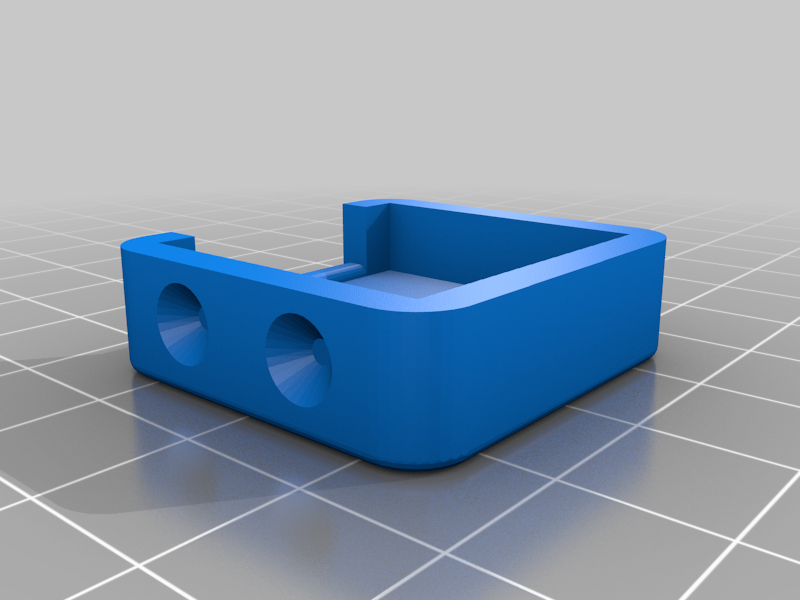

stllulzbot-rpi-front.stl
92 Ko · 1 443 téléchargements
-

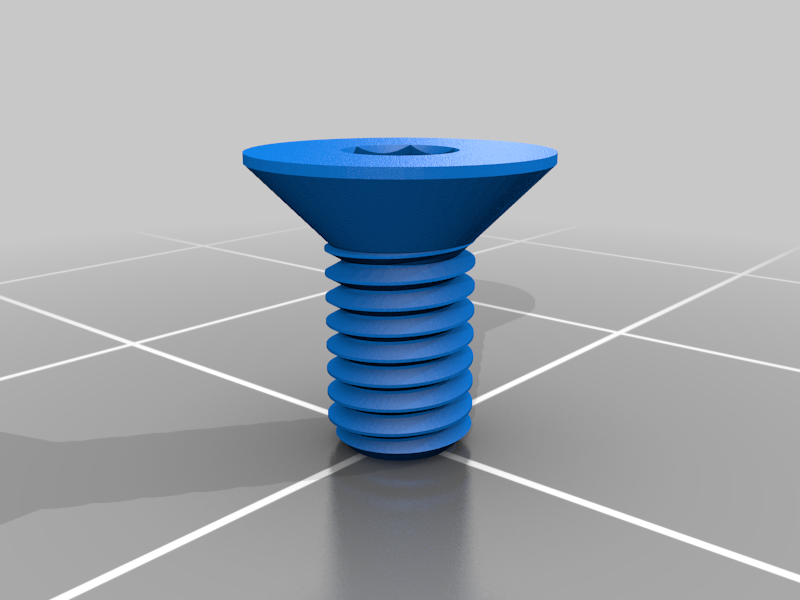

stlM3x6.stl
320 Ko · 1 425 téléchargements
-

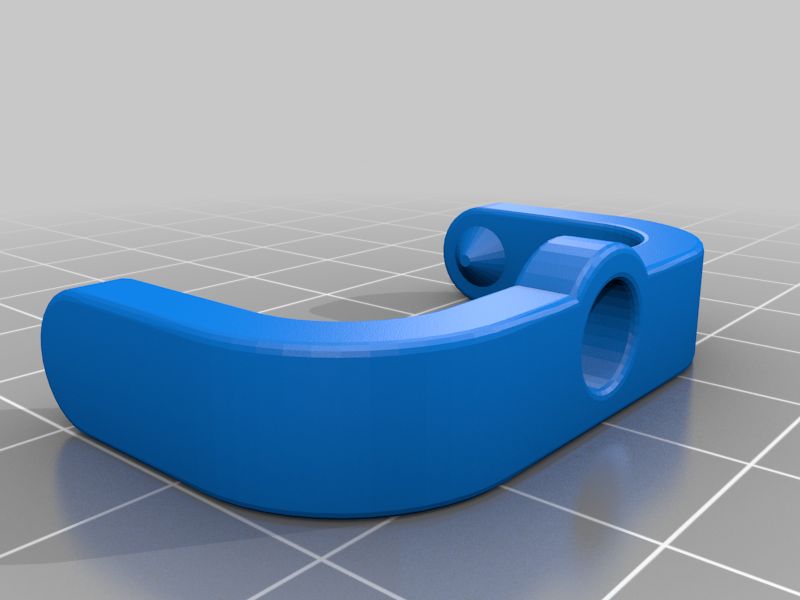

stllulzbot-rpi-swivel.stl
117 Ko · 1 431 téléchargements
-

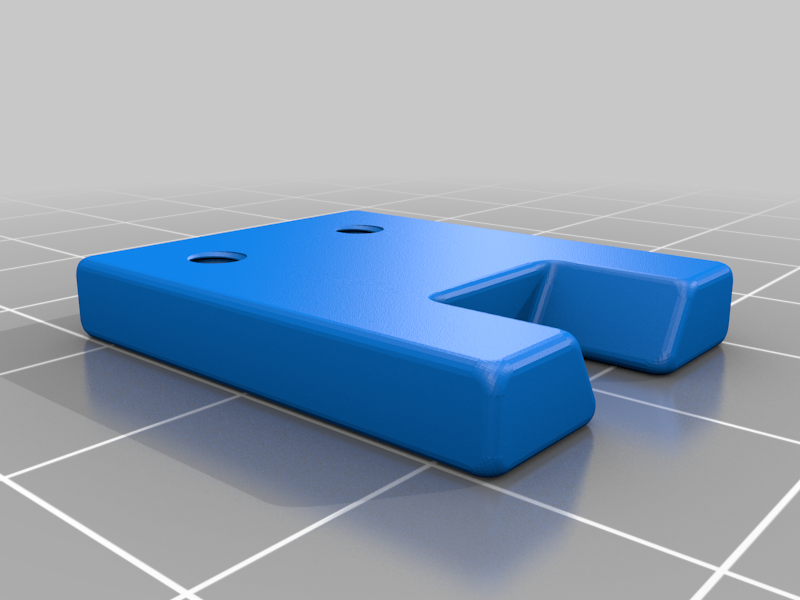

stllulzbot-rpi-dovetail.stl
459 Ko · 1 428 téléchargements
-

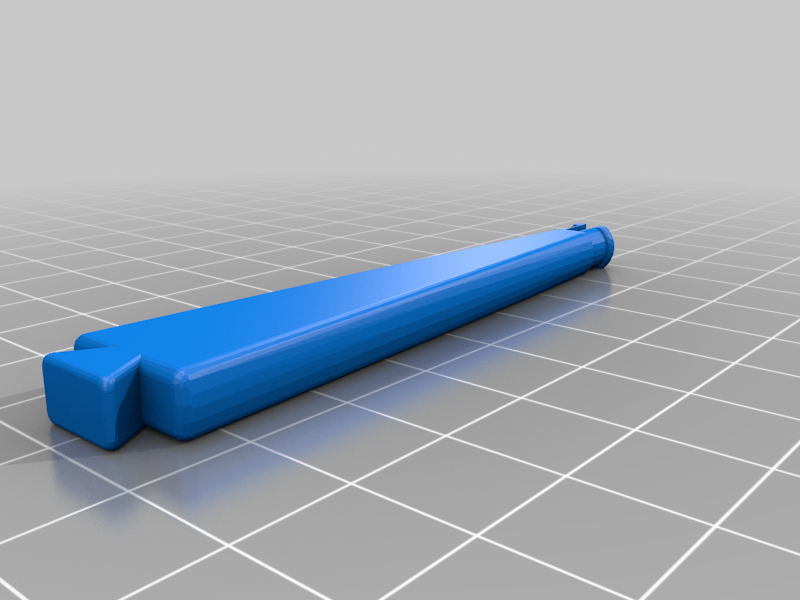

stllulzbot-rpi-tapered-upright.stl
118 Ko · 1 425 téléchargements
-

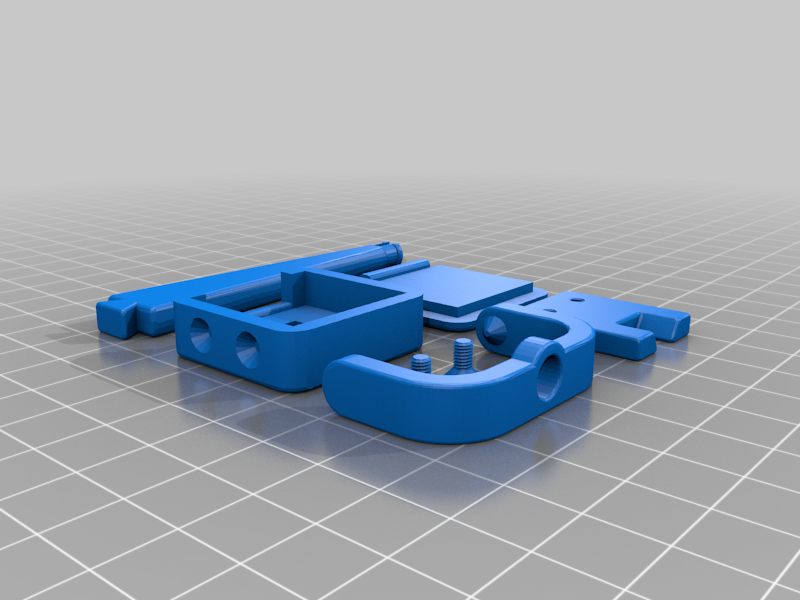

stllulzbot_mini_raspberry_pi_camera_mount_v2.stl
525 Ko · 1 431 téléchargements
-
stl
lulzbot_mini_raspberry_pi_camera_mount.stl
121 Ko · 1 470 téléchargements
Description
I modified an existing raspberry pi camera case design to hook to the two screw holes in the top of the lulzbot mini. to keep the print flat, I experimented with a dovetail attached mount rather than printing the mount as a single object. A little fiddling with a sharp knife post print was needed to make it come together. The 3mm holes were tapped with a M3x0.5 tap so that the existing lulzbot screws would hold the camera dovetail piece directly.
This thing was made with Tinkercad. Edit it online https://www.tinkercad.com/things/jTpye3jvpVx
Version 2 and onwards of this thing was made in Autodesk Fusion 360: http://a360.co/1nTJUIQ
The STL files were all laid out for printing in a single job in tinkercad at the original tinkercad address.
