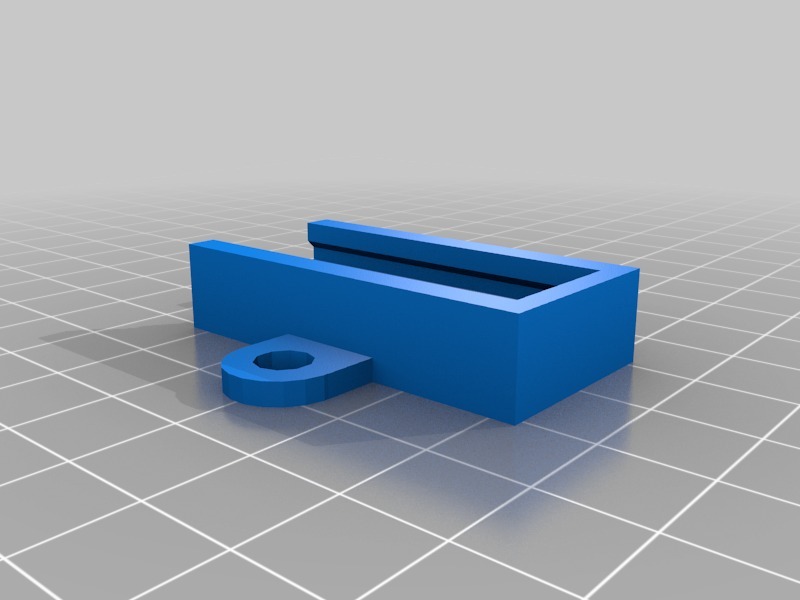

Bluetooth modem PCB holder

par johnbiehler

Fichiers imprimables (1)

  • stl

    bluetoothmate-holder.stl

    68 Ko · 1 606 téléchargements

Description

I wanted a mount to hold the SparkFun Bluetooth Mate Silver modem that I'll be using on my RepRap Prusa Mendel thanks to this:
http://www.thingiverse.com/thing:13506

I edited the OpenSCAD file for the Arduino module and adjusted it to fit the modem. I also removed the extra tabs (originally there were 6).

This should also fit the BlueSMiRF modules as well.

I set the length to be 40mm so that I'd have a little room at the end for solder points.

This is a derivative of http://www.thingiverse.com/thing:5396 as well.
