MicroPython PyBoard Box

par skgsergio

Fichiers imprimables (3)

  • stl

    micropython_pybv10_box.stl

    16 Ko · 1 063 téléchargements

    Télécharger
  • stl

    micropython_pybv10_box_mounting_holes.stl

    17 Ko · 1 100 téléchargements

    Télécharger
  • stl

    micropython_pybv10_box_simple.stl

    12 Ko · 1 044 téléchargements

    Télécharger

Description

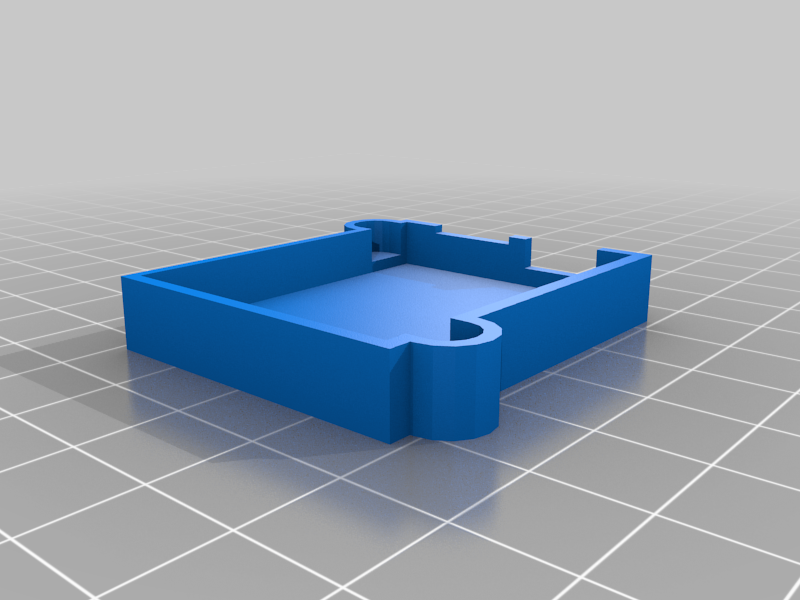

This box is made for protection of the MicroPython PyBoard in prototyping. This design is for the PYBv1.0 but the newer versions seems to have the same size although I don't have one to test it.

I've made three versions, one with mounting holes for using with two M2 screws and two without them, of this two one is a simple version and the other have two insertions in the mounting holes.

All of them have the same dimensions and are designed for an easy access to pin headers (or pins) soldered to the board.

This is my first 3D design.

Tags

#electronics #MicroPython #pyboard
