Quadcopter Frame
par Uberman789
Fichiers imprimables (5)
-

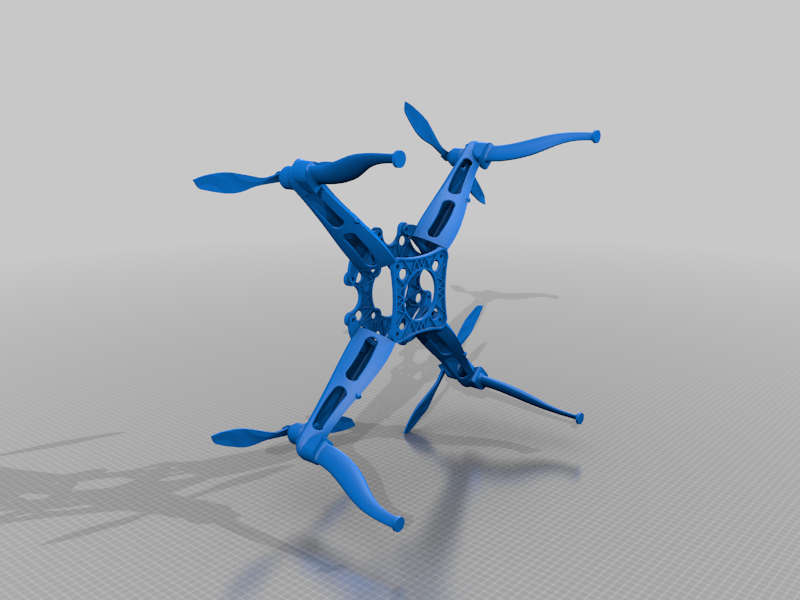

stlQuad_Problem.STL
9.7 Mo · 844 téléchargements
-

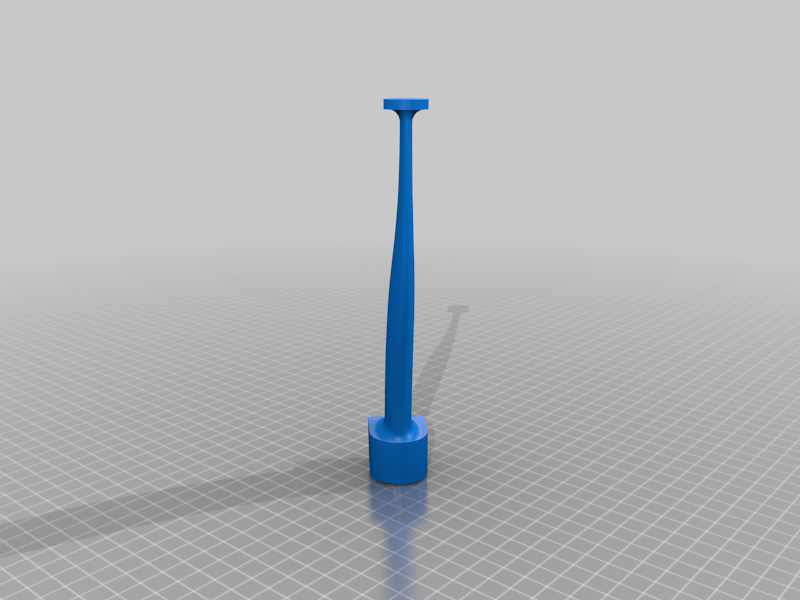

stlQuad_Leg.STL
539 Ko · 833 téléchargements
-

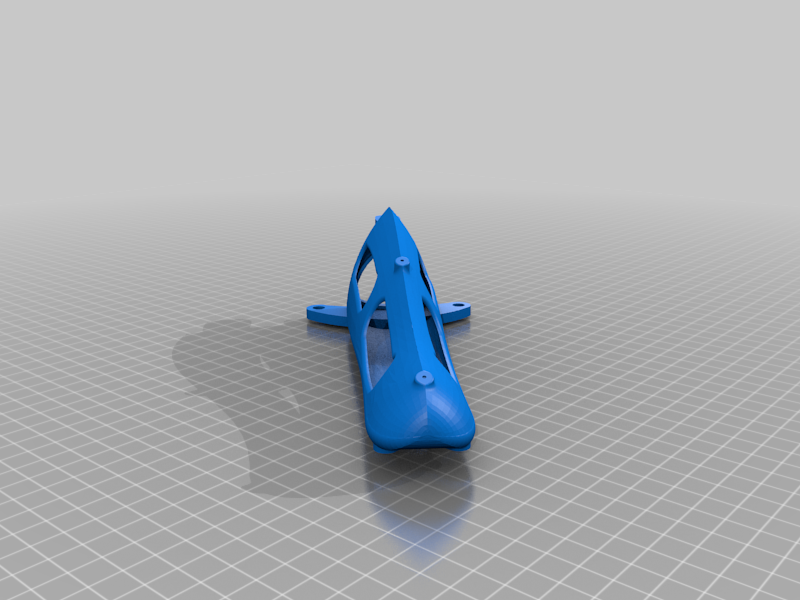

stlSingle_Arm.STL
1.3 Mo · 829 téléchargements
-

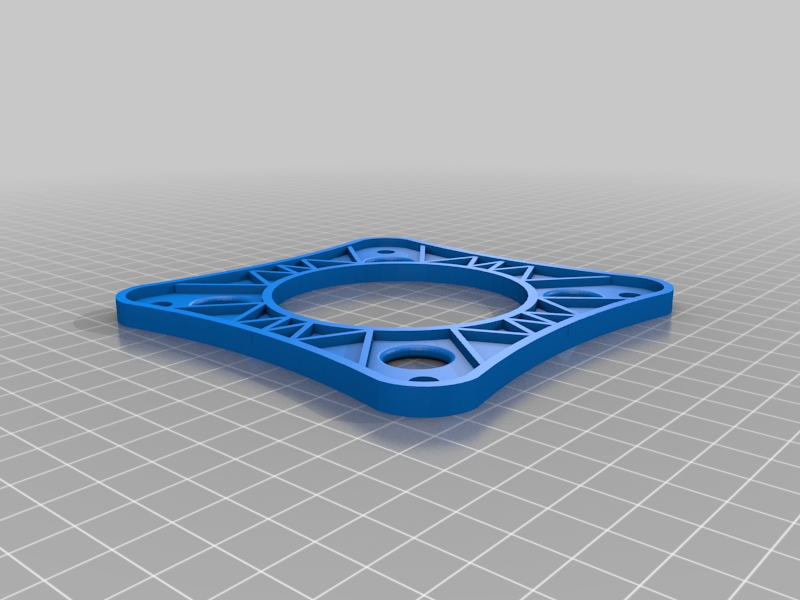

stlUpperDeckGen2.STL
895 Ko · 818 téléchargements
-

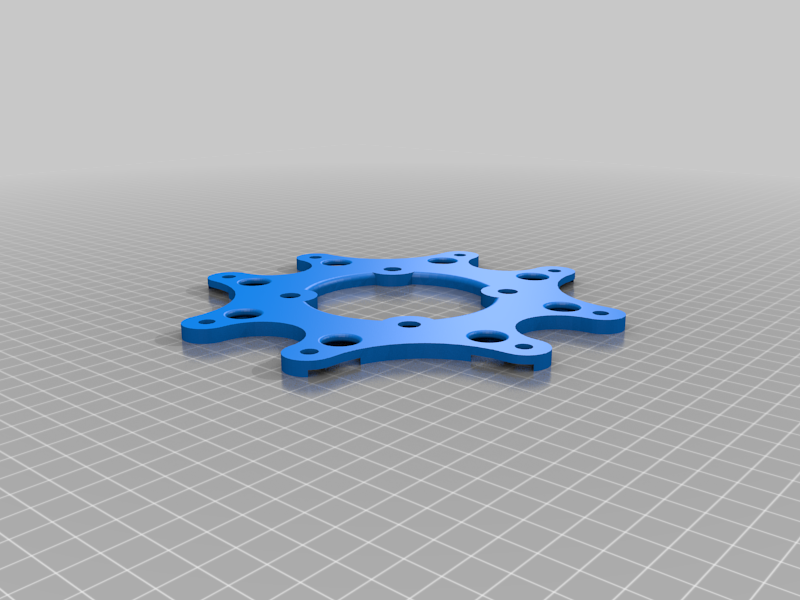

stlLower_Deck.STL
405 Ko · 817 téléchargements
Description
My Technology teacher was awarded a grant to help improve the department's STEM classes. Since one of the classes we have is a Robotics class, the teacher had the idea to build our own Quadcopter. We were able to purchase the electronic parts we needed and we made a frame working with the parts we ordered. He and I worked together to model all the different body parts in the 3D software SolidWorks. The Quadcopter is fully built and we have attached cameras to it so we will be able to get an aerial view.
