Mini quadrocopter
par KapteinQK
Fichiers imprimables (3)
-

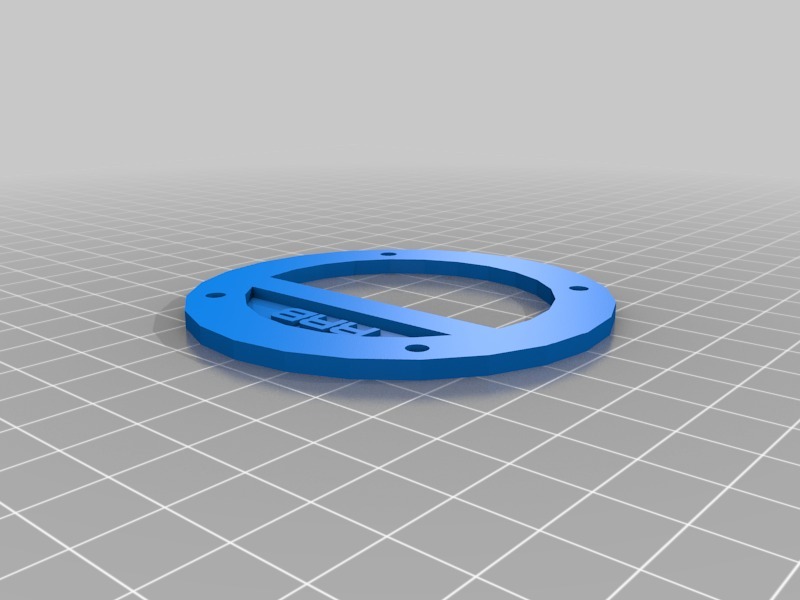

stlquad2_top_ring_106.stl
72 Ko · 918 téléchargements
-

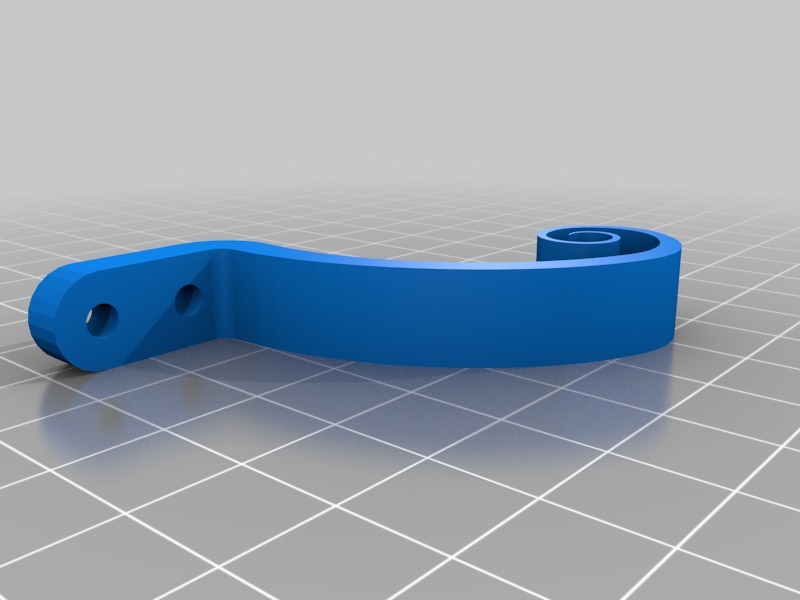

stlquad2_leg_103.stl
54 Ko · 912 téléchargements
-

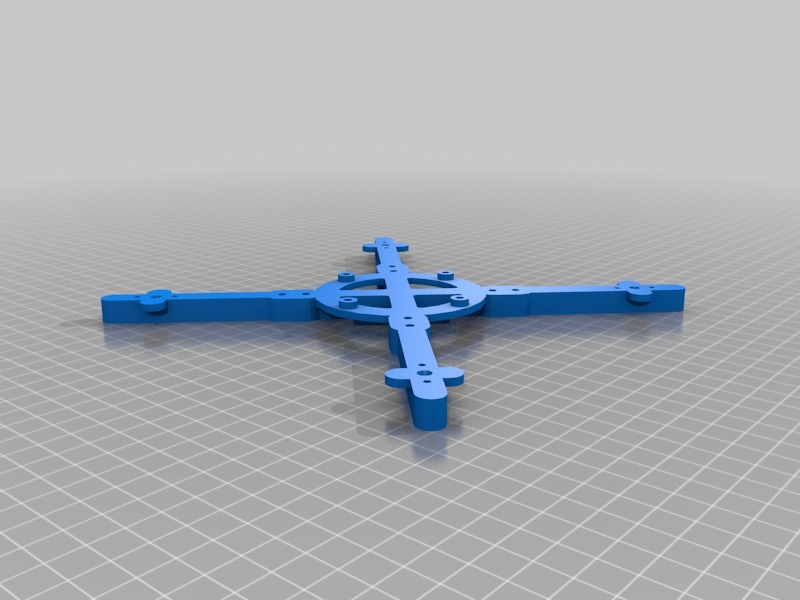

stlquad2_frame_206.stl
258 Ko · 911 téléchargements
Description
Mini quadrocopter for use with the hardware from the Turnigy Micro Quad.
Se video of it flying here. http://youtu.be/VDgsoWNljus
Hardware:
- KK2 V1.6
- Turnigy 1811-1800 motors (1811-2900 for 2 cell1000 mAh use)
- Tunigy Plush 6A ESC, Simonized.
- 3 cell 800mAh battery.
- FrSky TFR4-B reciever.
- 5X3 push-on propellers. Hole needs to be reamed to 2mm. Use CA if to loose.
Weight: 178g without battery.
