Sequential Shifter (DSD Inspired)
par LocalwarCorp
Fichiers imprimables (5)
-

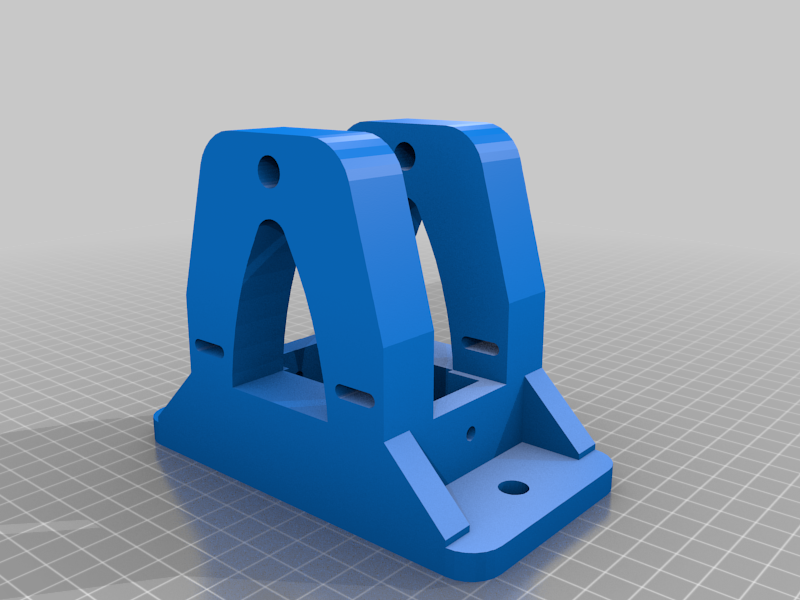

stlsecuencial_base.stl
412 Ko · 4 128 téléchargements
-

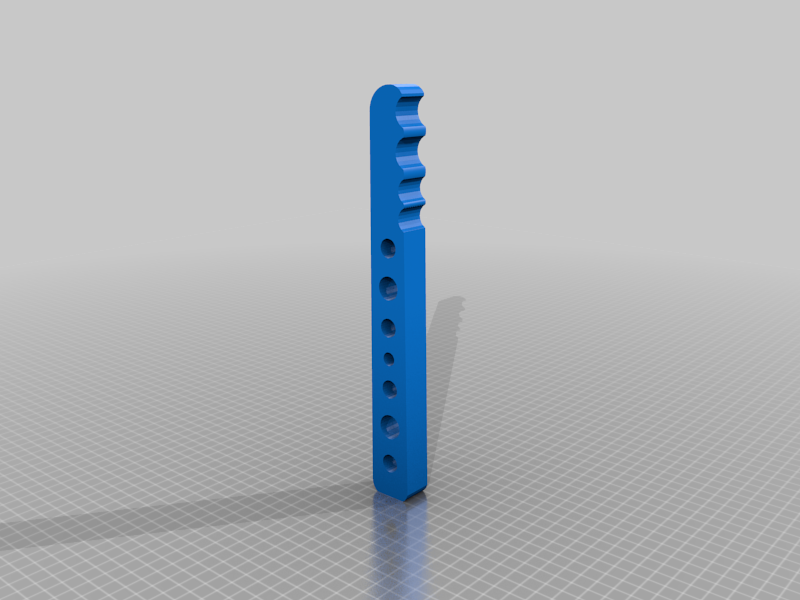

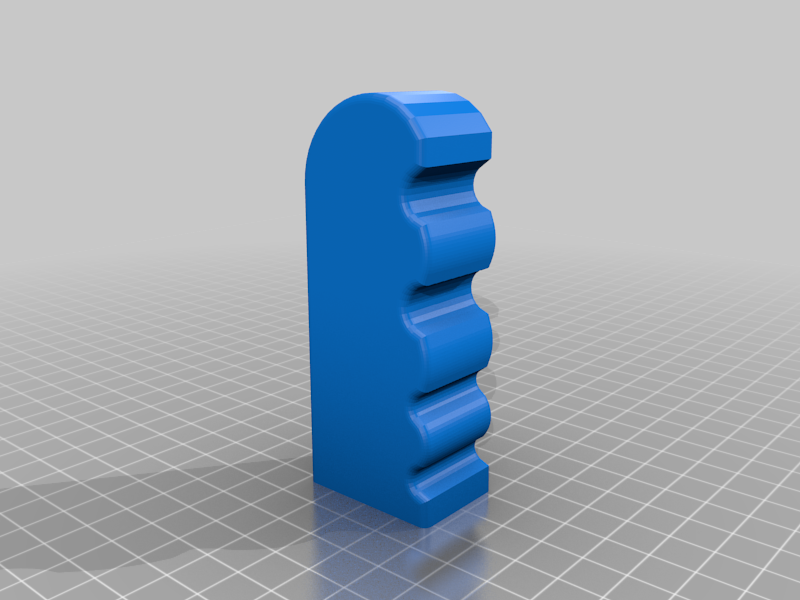

stlsecuencial_puño.stl
332 Ko · 4 094 téléchargements
-
stlsecuencial_boton.stl
88 Ko · 4 071 téléchargements
-

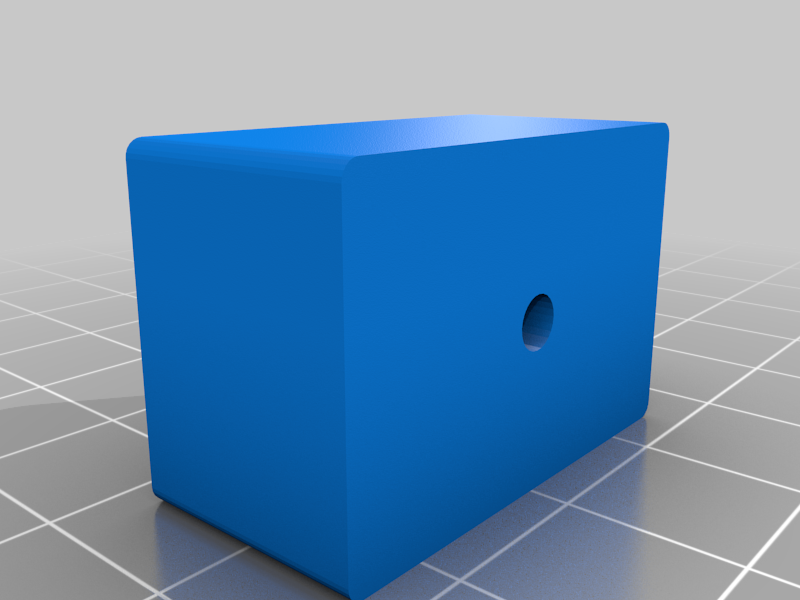

stlsecuencial_taco.stl
66 Ko · 4 086 téléchargements
-

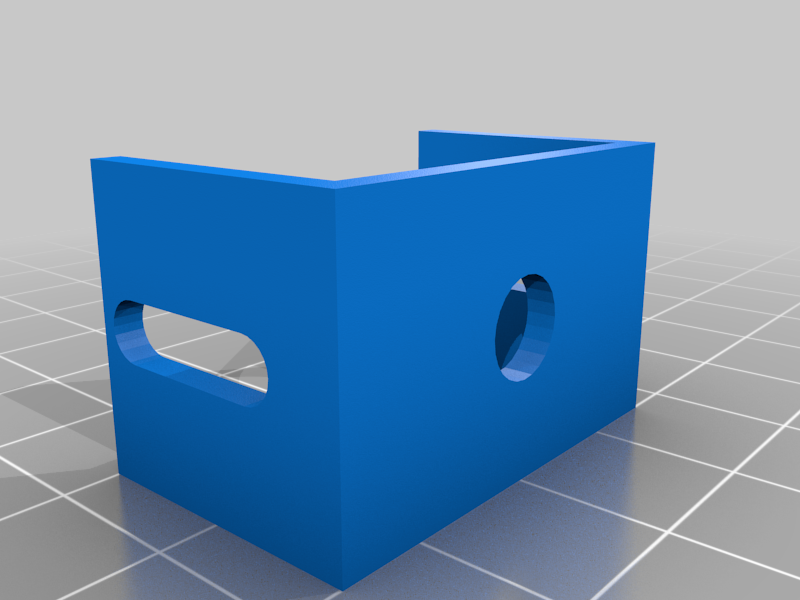

stlsecuencial_flex.stl
924 Ko · 4 062 téléchargements
Description
Sequential Shifter for simracing,highly inspired by http://www.derekspearedesigns.com/2015-dsd-pro-sequential.html
The part secuencial_taco.stl is printed on filaflex with 10% infill
Rest of parts with PLA and 30% infill
I´ve used 2 spare buttons fron Leo Bodnar http://www.leobodnar.com/shop/index.php?main_page=product_info&cPath=98_74&products_id=189
You need some M3 screws to attach secuencial_boton(print 2 of this) to secuencial_base part.
The part secuencial_taco is ready to screw if needed,but in my case is holded in place because tight fit.10% infill works well for me,you can change this value to your taste if you want a harder response.
The threaded rod and nylon nuts used for the axe are M8.You need some washers too to center the secuencial-puño inside the base.
In my case the shifter is attached to 45 mm T-slot profile with M8 T-screws and nuts.
The secuencial_puño part works well as is,but you can also print the secuencial_flex part and put the puño inside(i´ve used a hammer and a bit of patience:)
