Drawing Machine
par cyul
Fichiers imprimables (12)
-

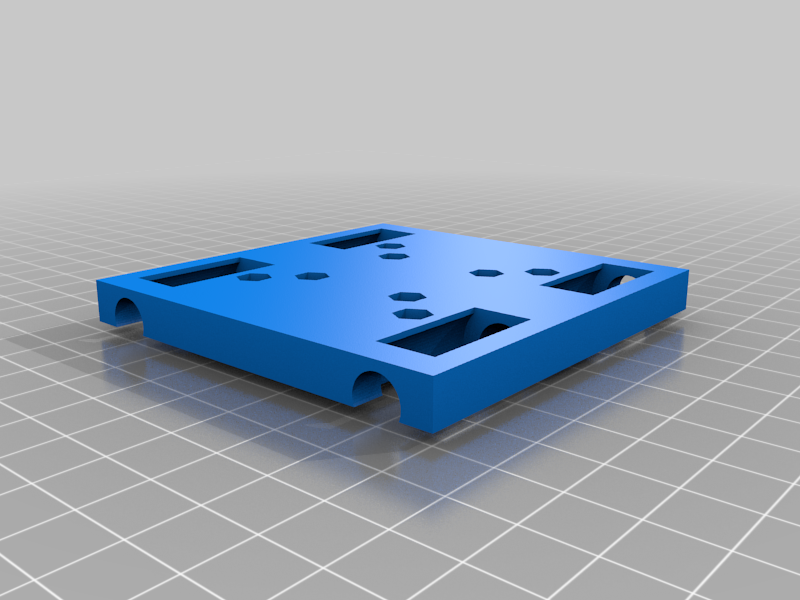

stldrawing_machine_-_base.stl
213 Ko · 69 045 téléchargements
-
stldrawing_machine_-_base_with_nuts.stl
228 Ko · 68 426 téléchargements
-

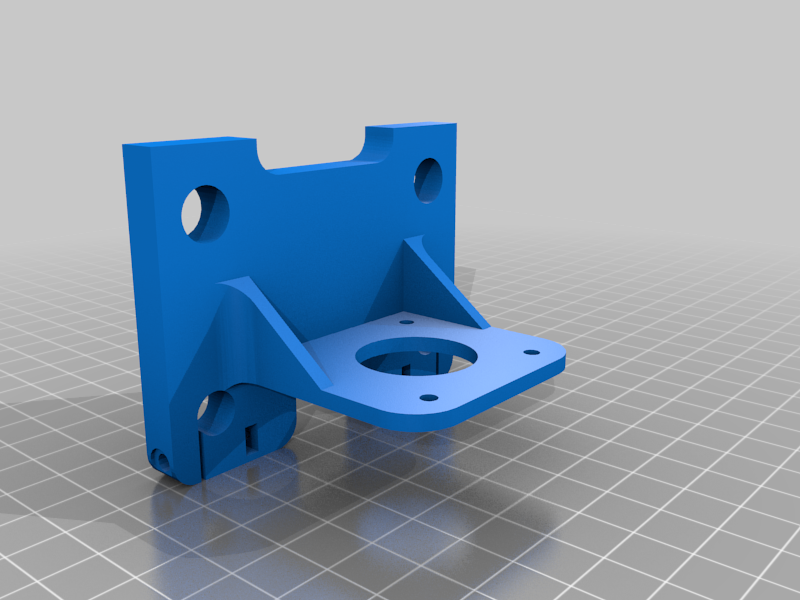

objdrawing_machine_x_motor_mount.obj
212 Ko · 68 502 téléchargements
-

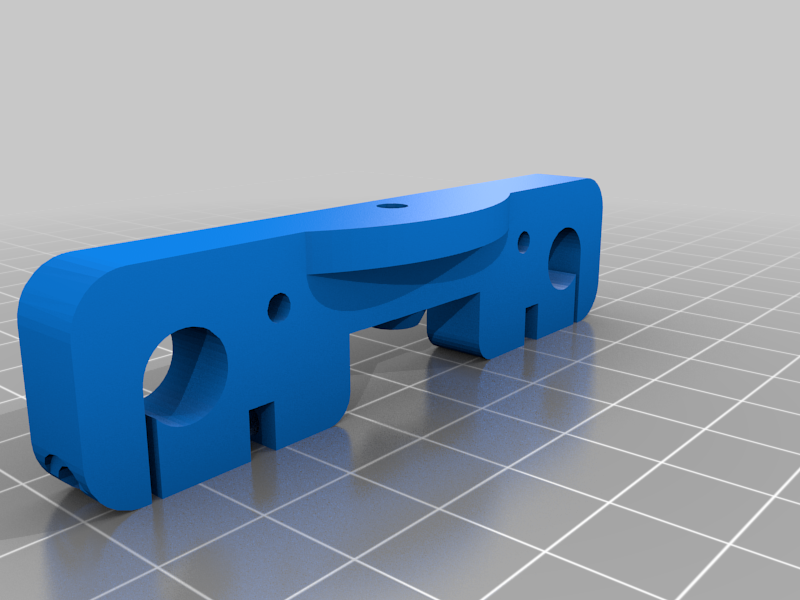

objdrawing_machine_y_end1.obj
100 Ko · 67 915 téléchargements
-
objdrawing_machine_y_end2.obj
120 Ko · 67 779 téléchargements
-
objdrawing_machine_z_stage.obj
133 Ko · 67 799 téléchargements
-

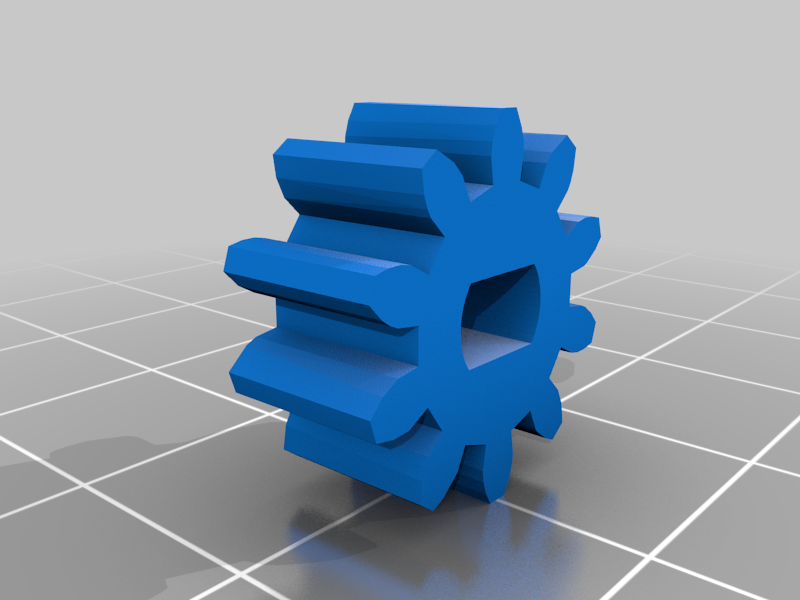

objdrawing_machine_z_gear.obj
37 Ko · 67 957 téléchargements
-

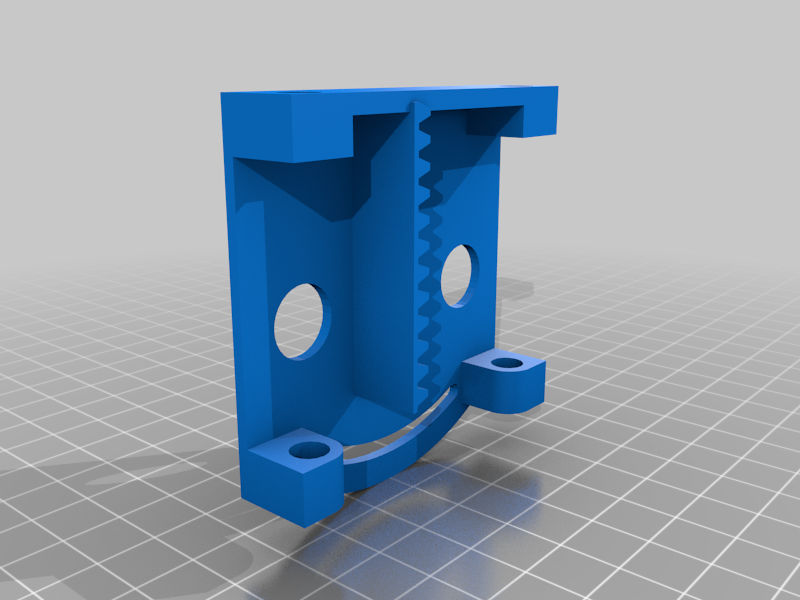

objdrawing_machine_z_stage_face.obj
220 Ko · 67 812 téléchargements
-
objdrawing_machine_z_pen_holder.obj
83 Ko · 67 778 téléchargements
-
objdrawing_machine_y_end2_v2.obj
192 Ko · 67 374 téléchargements
-
objdrawing_machine_z_stage_face_v2.obj
160 Ko · 67 354 téléchargements
-
objdrawing_machine_-_lm6uu_z_stage.obj
297 Ko · 67 125 téléchargements
Description
My take on Misan's drawing machine. I made one with a grbl controller and a CNC shield and adapted Misan's parts to be 3D printed.
Please read Misan's instructions as well.
The drawing machine is a small three axis robot that controls a pen or any drawing implement over a canvas. It is a complete open source design and aims to teach the basics of robotics.
Budget for one is about 80$. You will need a 3D printer.
The Z stage does not use a servo, as in Misan's machine, but rather one of those cheap 28BYJ stepper motors you can find for 1.50$ on eBay.
NOTE: The photos are of the current prototype, some of the modifications to the various bits and pieces have not yet been tested.
If you have a question, first search in the Comments section. If you can't find an answer, then ask in a Comment. I will answer as fast and as much as I can.
And please, share your makes!
