Door Slide Guide
par innomind
1 / 3
Fichiers imprimables (1)
-
stlDOOR_SLIDE_GUIDE.STL
2.2 Mo · 985 téléchargements
Description

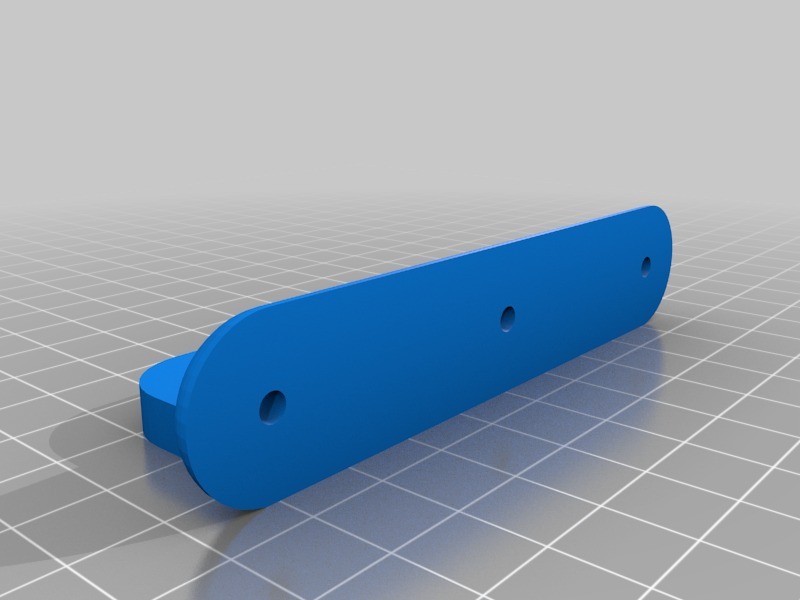

This is a door slide guide that I designed in Solidworks. It uses three M3 holes for the screws to go into the floor to guide sliding doors in line. Print two of them to attach to the floor for both doors hanging parallel to each other.
This door guide is 100mm long, 20mm wide, and 30mm tall.
