3D Printed Hexacopter

par wtn

Fichiers imprimables (7)

  • stl

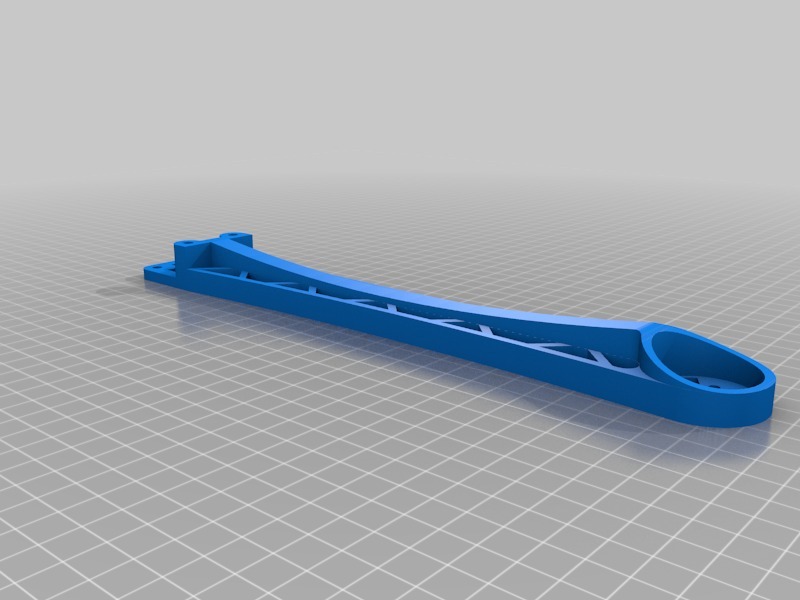

    hex_arm.stl

    827 Ko · 7 328 téléchargements

    Télécharger
  • stl

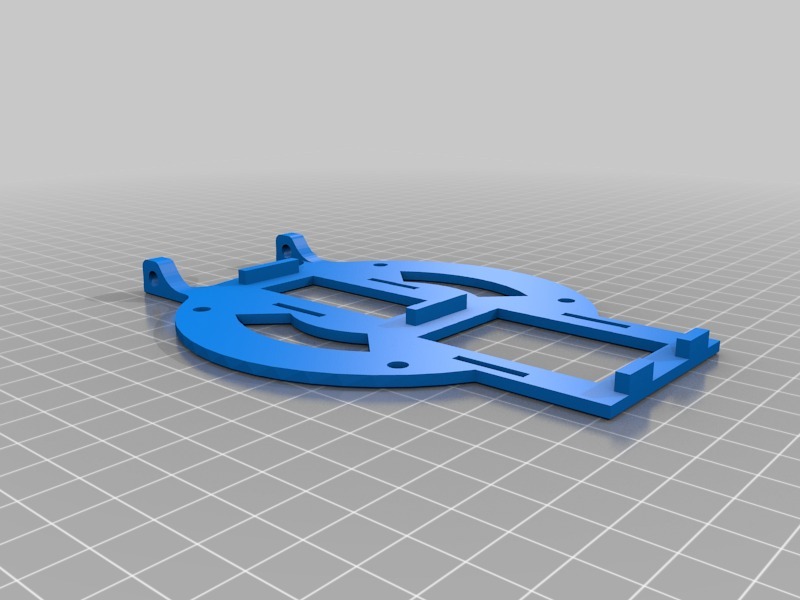

    hex_fpv_deck.stl

    911 Ko · 6 805 téléchargements

    Télécharger
  • stl

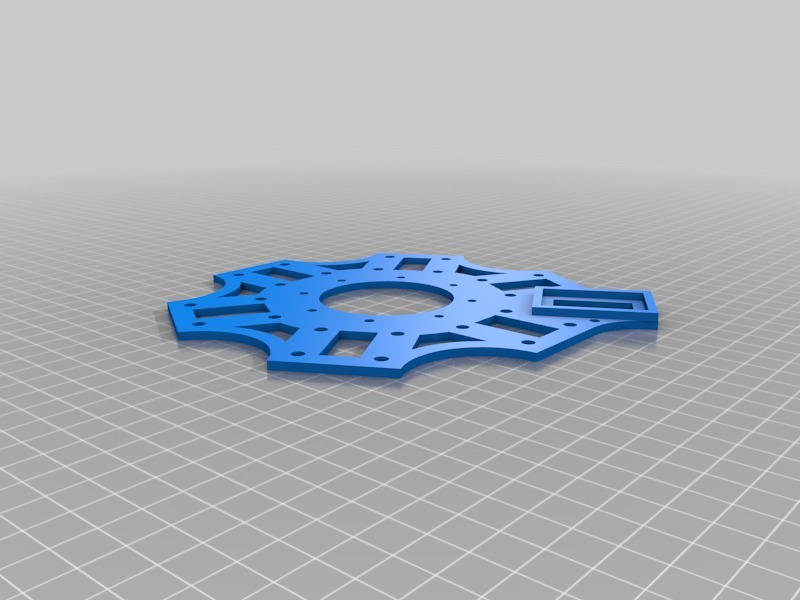

    hex_mid_deck.stl

    2.6 Mo · 6 831 téléchargements

    Télécharger
  • stl

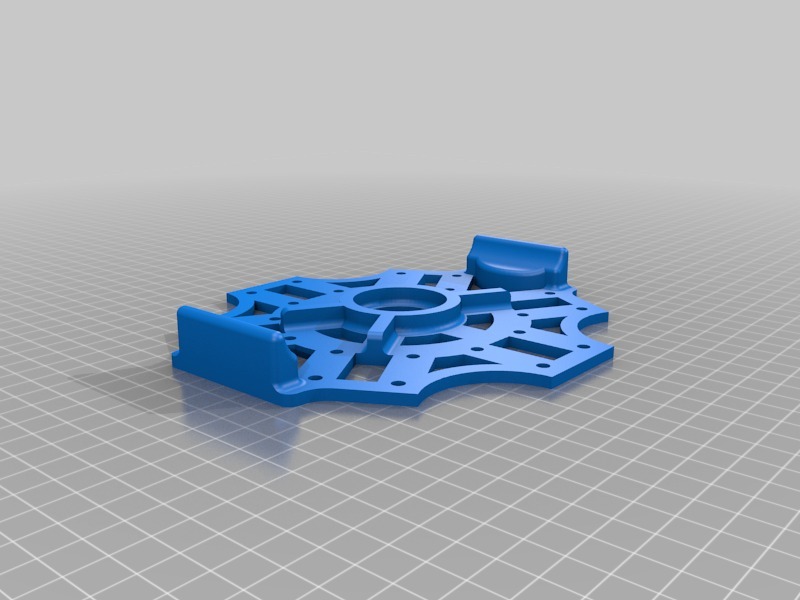

    hex_bottom_deck.stl

    6.7 Mo · 6 865 téléchargements

    Télécharger
  • stl

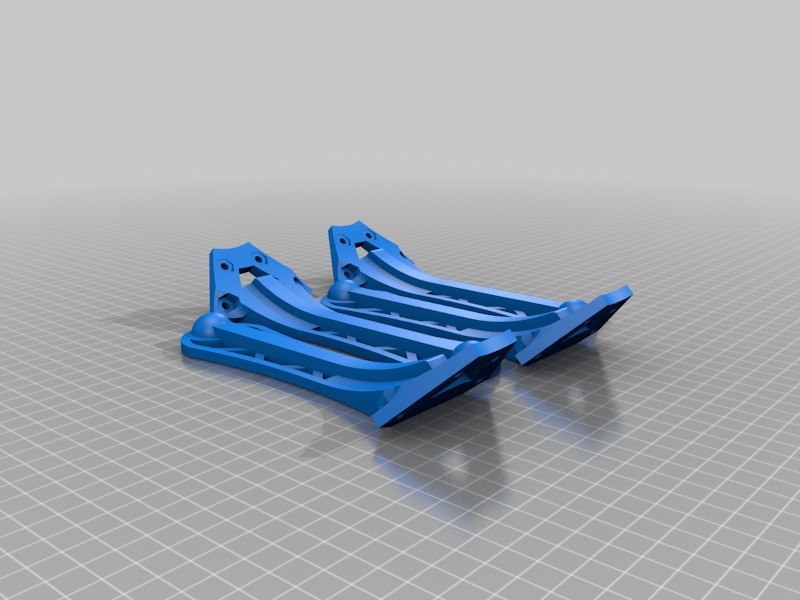

    hex_legs.stl

    7.2 Mo · 6 909 téléchargements

    Télécharger
  • stl

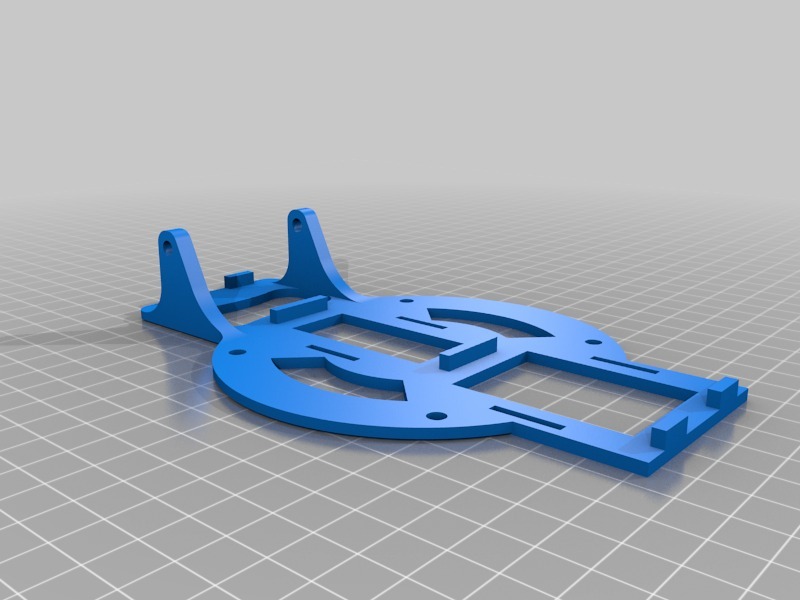

    hex_fpv_deck_v2.stl

    598 Ko · 6 712 téléchargements

    Télécharger
  • stl

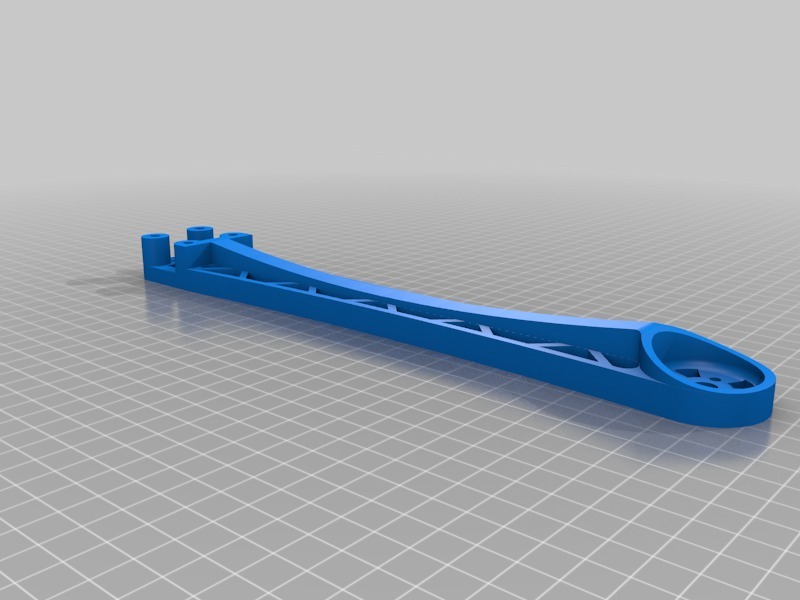

    quad_long_arm_v2.stl

    2.3 Mo · 6 844 téléchargements

    Télécharger

Description

This Hexacopter is based off of my Quadcopter designs.
(Which are based off of MikeyB's Quadcopter.)

Changes from the previous design include:

  • 2 more arms, for a total of 6
  • Longer arms,
  • Better landing gears
  • Overall redesigns for improved usability

The hexacopter was printed on an UltiMax DYI 3D printer because the arms do not fit on many printers, and I needed larger print bed.
http://www.ultibots.com/ultimax-3d-printer-diy-kit/

Just added V2 files for stronger arms, and better camera mounting. Don't use original arms as the motor mountings could fail.

Video:
http://www.youtube.com/watch?v=c8x9KdXuLNM

Tags

#3d-printed #Alibre #drone #fpv #hexacopter #multi-rotor #RC #robotics
