Adjustable height shim

par papergeek

Fichiers imprimables (4)

  • stl

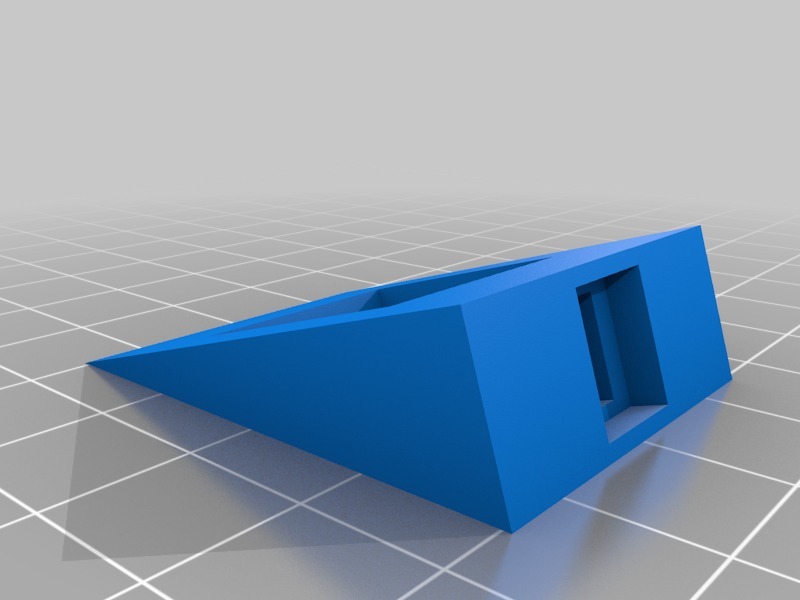

    adjustable-shim-1.5in.stl

    14 Ko · 5 463 téléchargements

    Télécharger
  • stl

    adjustable-shim-1.5in-16mm.stl

    15 Ko · 5 457 téléchargements

    Télécharger
  • stl

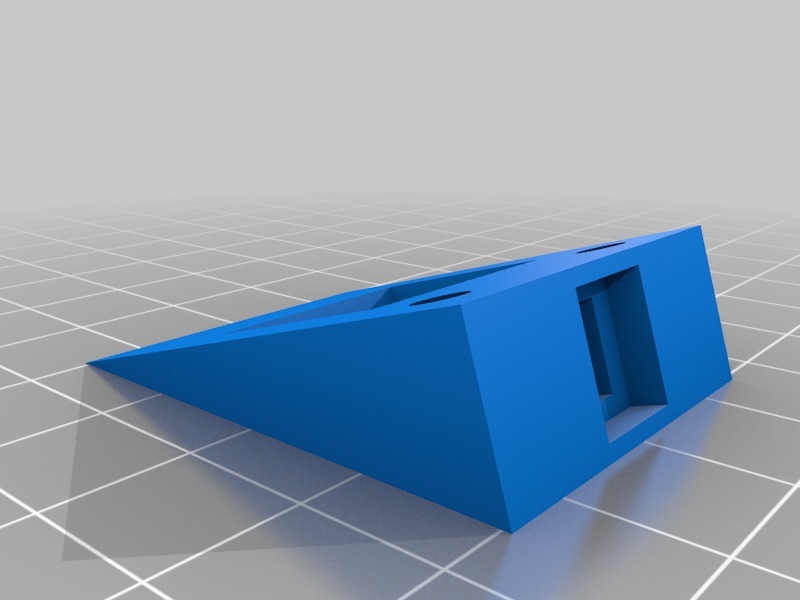

    adjustable-shim-1in-12mm-2hole.stl

    185 Ko · 5 427 téléchargements

    Télécharger
  • stl

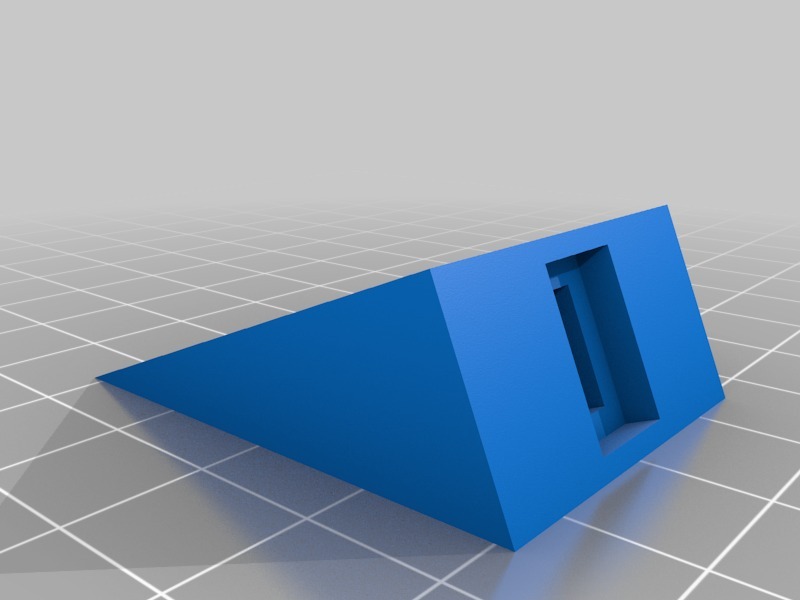

    adjustable-shim-1.5in-16mm-2hole.stl

    186 Ko · 5 377 téléchargements

    Télécharger

Description

This shim can be adjusted up to around 125% its original height using a screwdriver. Each shim requires two of the pieces printed the same size, plus a #6-32 machine screw and hex nut set of an appropriate length. See instructions for details.

This can be used for furniture making (I developed it to fine-tune drawer slide rails), for leveling, etc.

Version 3 adds the option of screw holes so one or both sides can be attached - may be useful for woodworking applications.

Tags

#customizer #shim
