Super Strong Ceiling Hook

par Gazorpa

Fichiers imprimables (4)

  • stl

    Ceiling_Hook_3.stl

    10.3 Mo · 2 298 téléchargements

  • stl

    Ceiling_Hook_2.stl

    8 Mo · 1 950 téléchargements

  • stl

    Ceiling_Hook_1.stl

    12.3 Mo · 1 979 téléchargements

  • stl

    Ceiling_Hook_1_Half.stl

    6.4 Mo · 1 908 téléchargements

Description

A beefy and attractive hook for a million uses, such as hanging bird feeders.

Designed to use whatever screws you have around the house, #10 pan head or wood screws. Countersunk hole hides the head and guides the screw home.

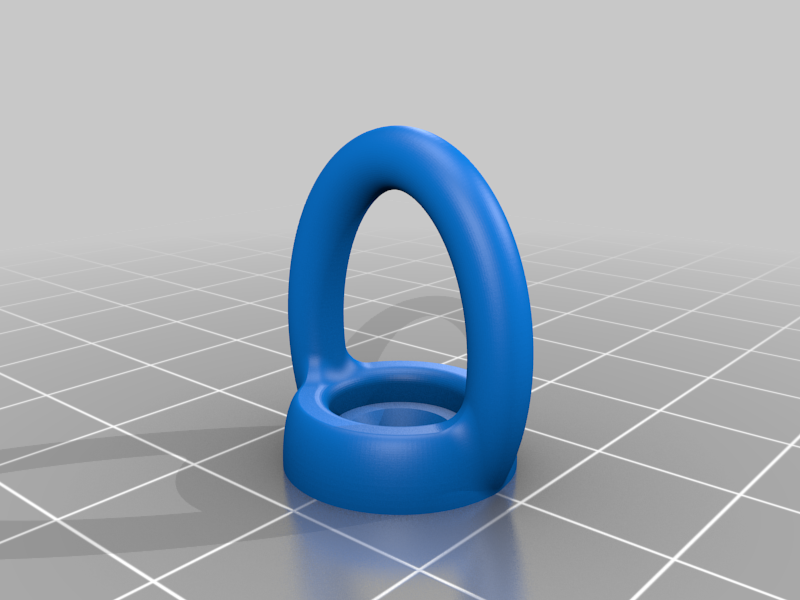

Ceiling_Hook_1 is most attractive due to its symmetry, but doesn't print well because of overhangs in both orientations. Also it's hard to get a screw into it. Shown here in case anybody wants to improve on it.

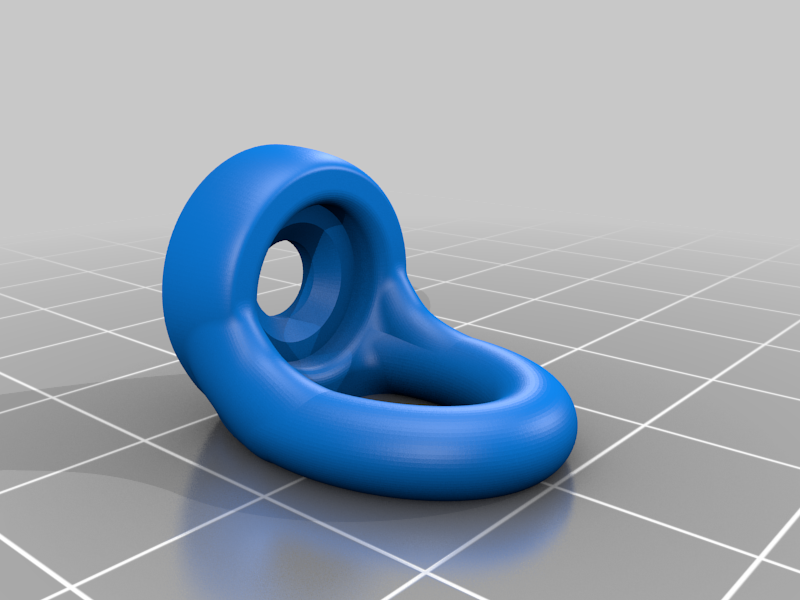

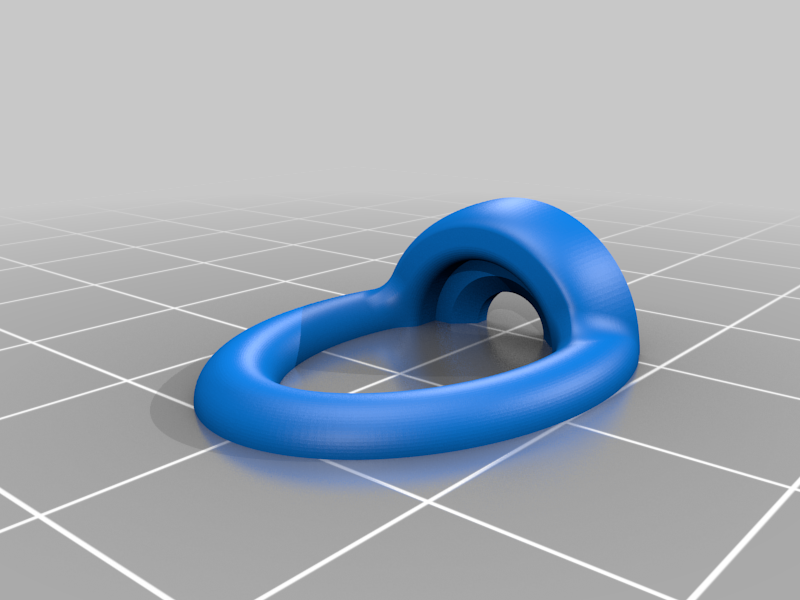

Ceiling_Hook_2 is asymmetric and designed for printing. Overhangs are reduced to printable angles. The loop is offset so a screw goes in easily. Still suffers from bridging defects, and has a weakness at the intersection of parts.

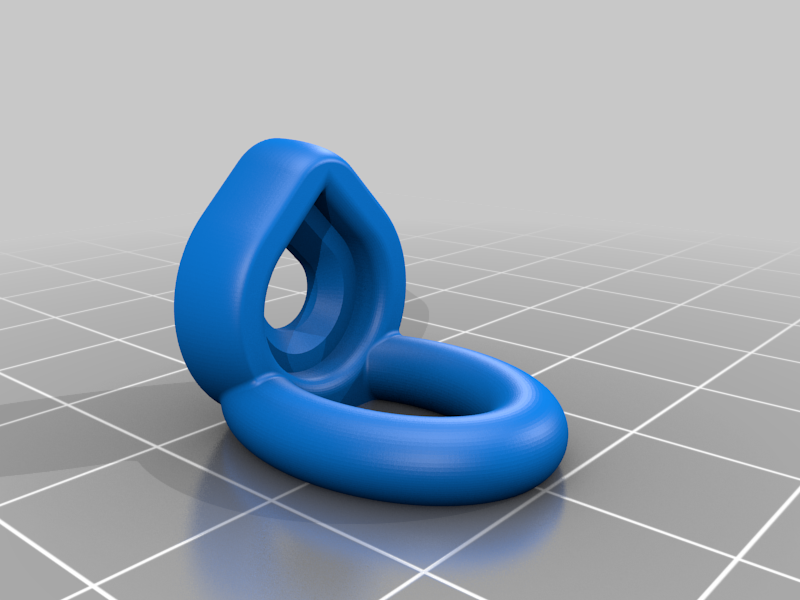

Ceiling_Hook_3 adds reinforcement to the intersection of parts, and reverts to a circular base. Unsupported overhang is still a minor issue, but the hook is super strong. I recommend this version until I or somebody else has a Eureka moment and improves it.
