Kossel Mini Hexagonal Base V2
par loidolt
Fichiers imprimables (6)
-

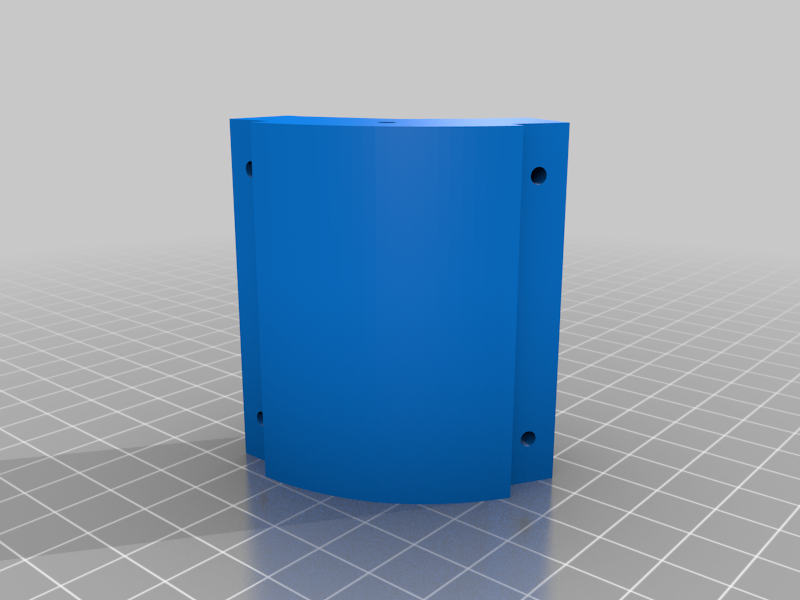

stlCornerBlock.stl
69 Ko · 2 407 téléchargements
-

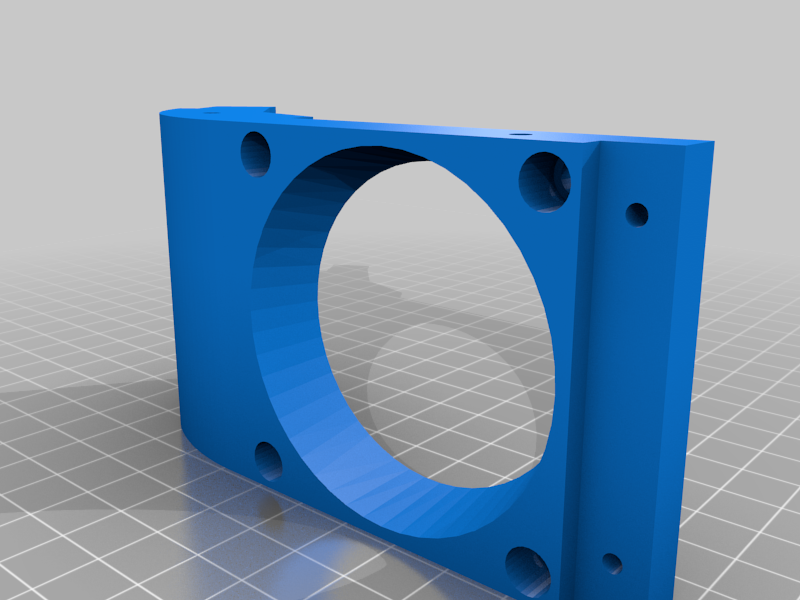

stlCornerBlockFan.stl
116 Ko · 2 395 téléchargements
-
stlMountingBracket.stl
61 Ko · 2 389 téléchargements
-

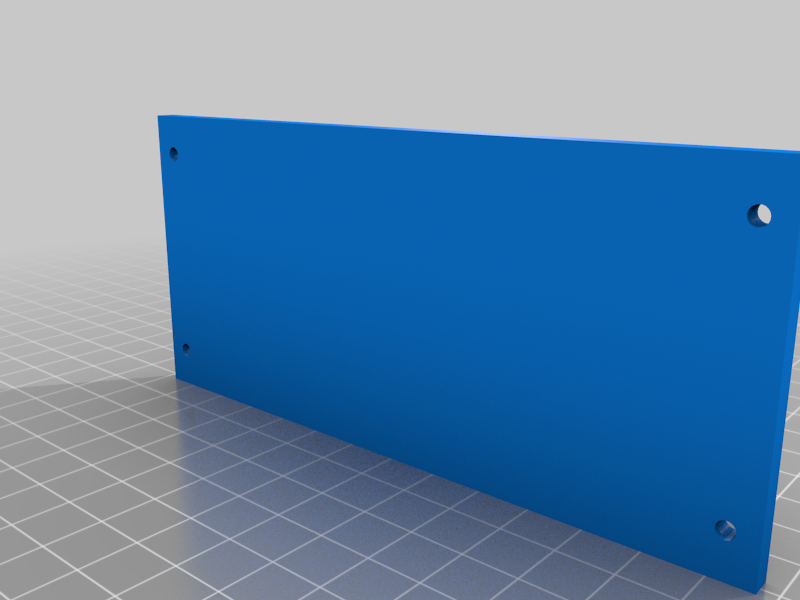

stlLongPanel.stl
126 Ko · 2 389 téléchargements
-

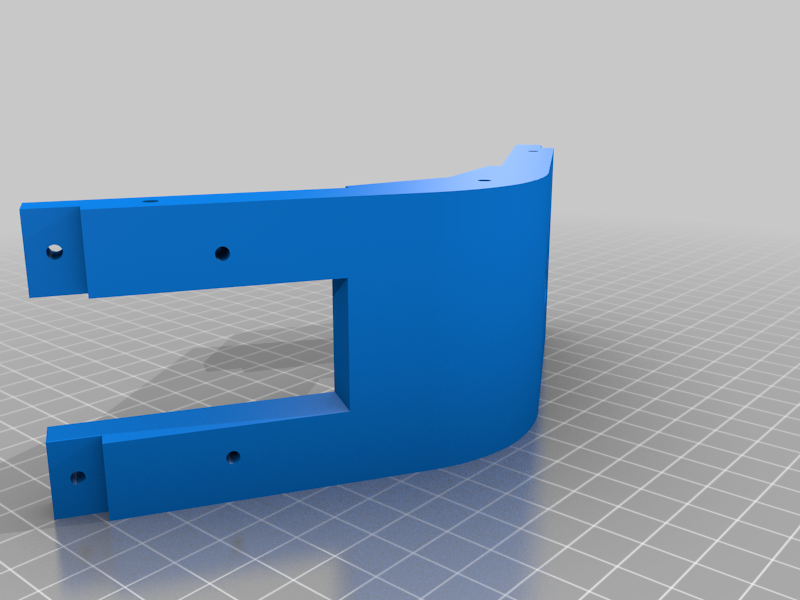

stlCornerBlockPowerInletUSB.stl
98 Ko · 2 409 téléchargements
-

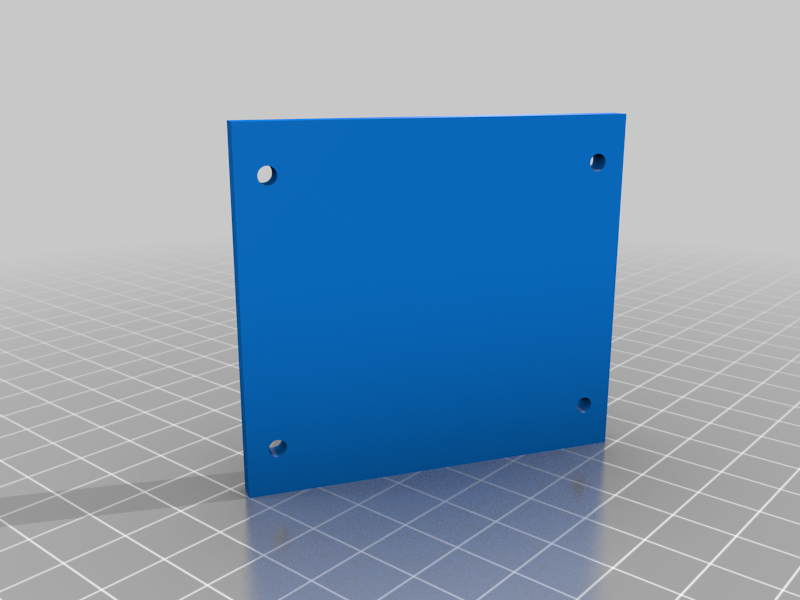

stlShortPanel.stl
125 Ko · 2 399 téléchargements
Description
This project and it's continued support have moved to Josef Prusa's https://www.printables.com/. I will no longer be updating items here, and may not respond to comments or questions.
Please visit the link below for the latest version:
https://www.printables.com/model/157149-kossel-mini-hexagonal-base-v2
Summary
In my struggle to contain the wire and visual mess of my Kossel Mini printers, I designed this base.
**Version 2 Features:
-Separate side panels for easy maintenance
-Smaller corner pieces for faster printing and less wasted material
-More flexibility for add-ons and modifications
-Easier assembly
Designed to fit almost any Kossel Mini style printer up to 220 mm build platform diameter, smaller sizes will work just fine as well. The use of brackets to attach the printer to the base allows very flexible sizes and configurations.
The model shows a Smoothieboard, though there is plenty of room for a RAMPS 1.4 or most other printer control boards in that space instead.
You will need a saw, drill and some patience or a CNC/ laser cutter for the top and bottom sheets that complete the base as well as the bed support and insulation circle. 1:1 scale SVG files are included for all of those pieces. You can either print them out and cut around them or load up your CAM software of choice. The removable panels can either be cut or printed, your preference, files are provided for either option.
Thanks! Please let me know if you have any questions!
