Flightcase clasp
par Kenyer
Fichiers imprimables (4)
-

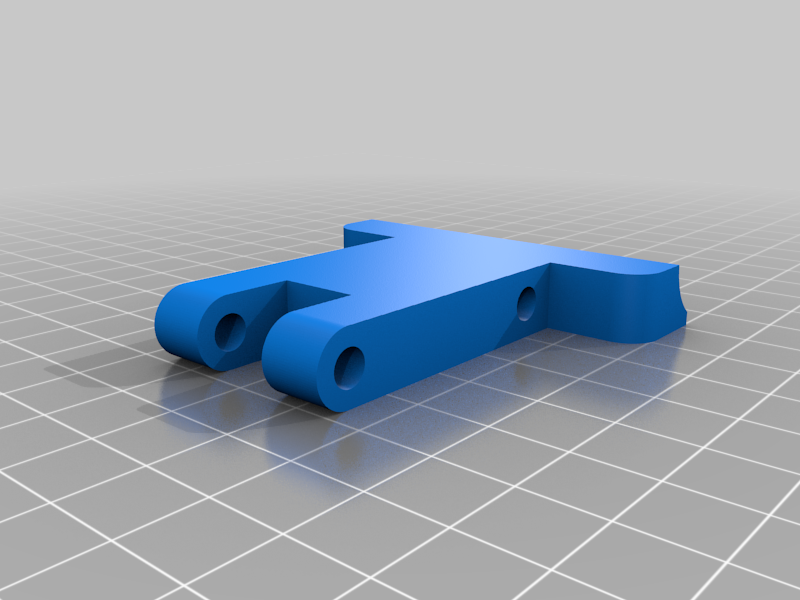

stlclasp_lever.stl
123 Ko · 3 072 téléchargements
-

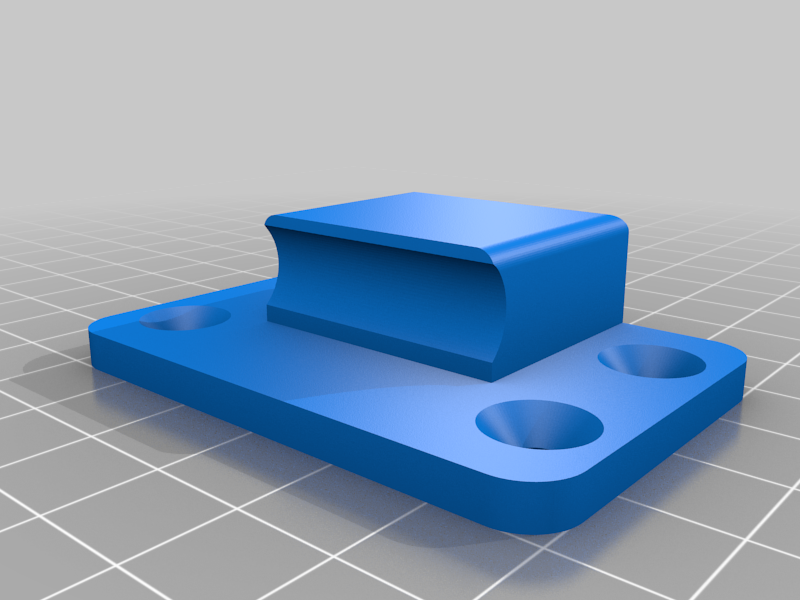

stlclasp_clasp.stl
148 Ko · 3 068 téléchargements
-

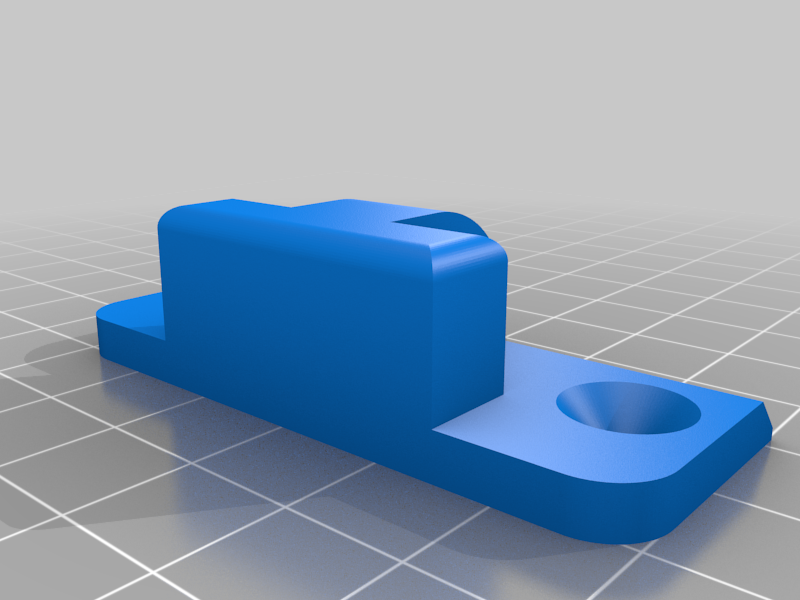

stlclasp_hinge.stl
115 Ko · 3 083 téléchargements
-

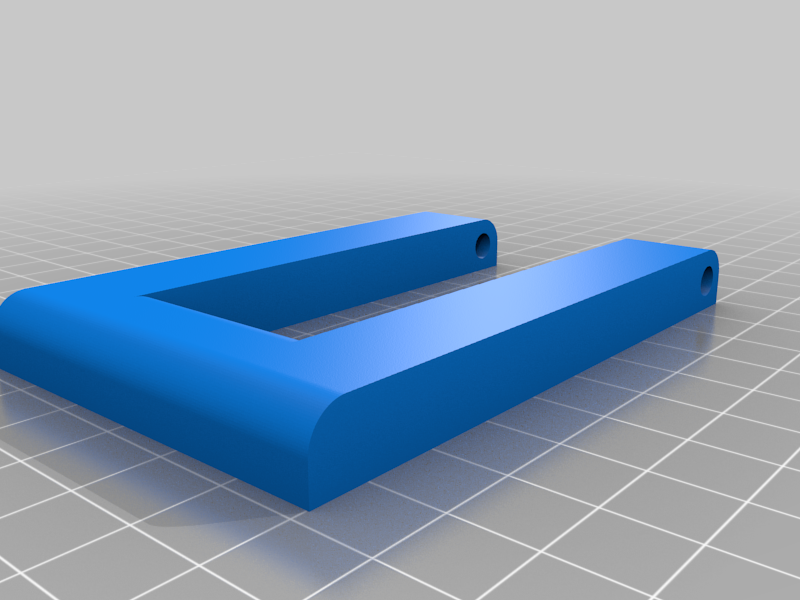

stlclasp_handle.stl
142 Ko · 3 059 téléchargements
Description
A lock (clasp) to close a wooden case.
Use a M4 threaded wire with a length of 30 mm to connect the 'handle' to the 'hinge'. You can force or screw it in te hole in te hinge that is just smaller to hold it in place.
Use a M4 threaded wire with a length of 70 mm and 2 M4 lock nuts to connect the 'handle' to the 'lever'.
