Raspberry Pi Camera Arm

par BennyL

Fichiers imprimables (3)

  • stl

    raspberry_pi_camera_arm_adapter.stl

    122 Ko · 2 266 téléchargements

    Télécharger
  • stl

    raspberry_pi_camera_arm_square.stl

    186 Ko · 2 230 téléchargements

    Télécharger
  • stl

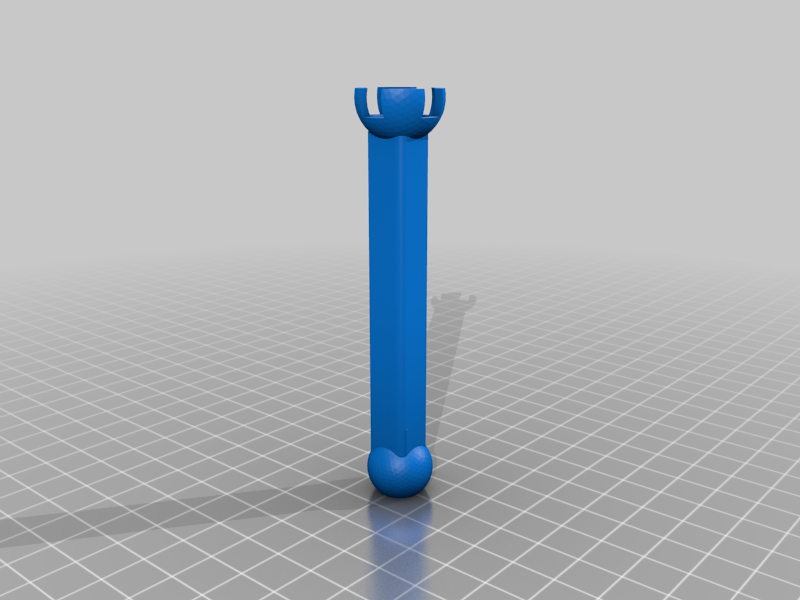

    raspberry_pi_camera_arm.stl

    227 Ko · 2 232 téléchargements

    Télécharger

Description

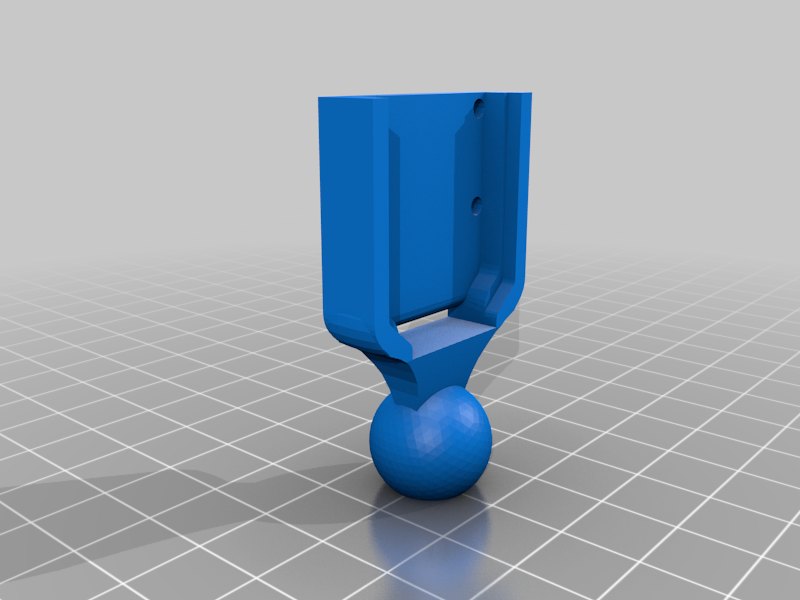

This is a remix project of a Raspberry Pi camera Arm. Instead of requiring bolts to attach the three pieces, each piece is connected via a ball joint, requiring no additional hardware.

This design allows the the arm to swivel and tilt with great degree.

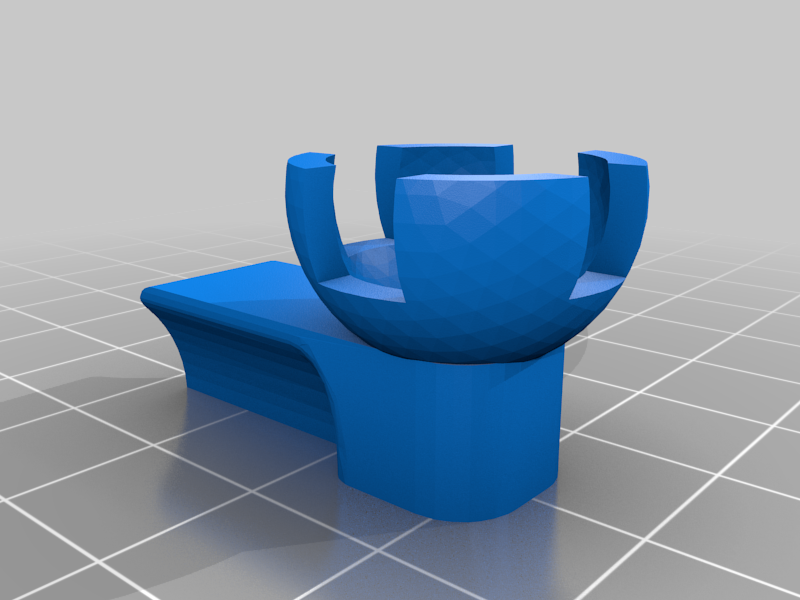

The four grooves surrounding the receiving end of the joint allow the arm to tilt further past the top edge, by aligning the corner of the arm into the middle of the space (see the first picture).

This design can be edited using Tinkercad - https://tinkercad.com/things/9WGoSMfpmMw.

Tags

#camera #Raspberry Pi
