Eachine E010 FPV

par Diymik

Fichiers imprimables (4)

Description

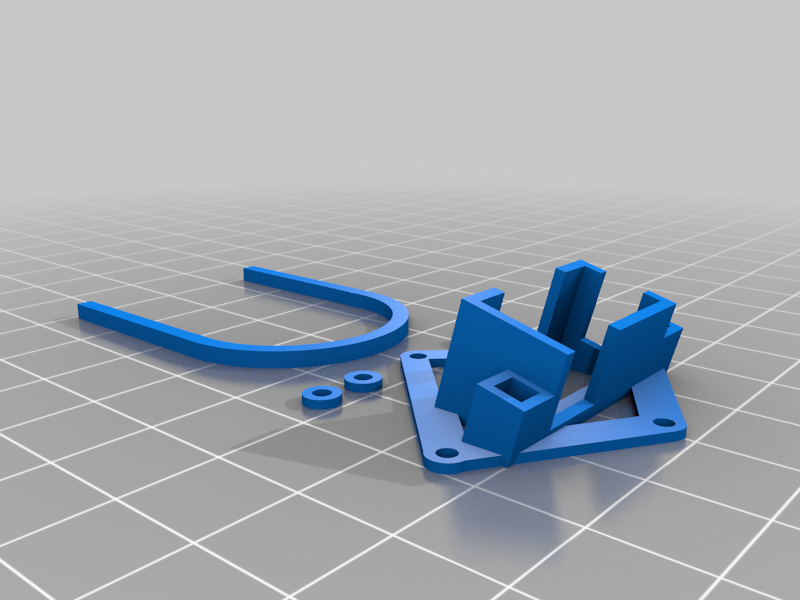

This is a mini fpv mount for the E010: http://www.banggood.com/Eachine-E010-Mini-2_4G-4CH-6-Axis-Headless-Mode-RC-Quadcopter-RTF-p-1066972.html?rmmds=myorder
And the Eachine mini fpv set: http://www.banggood.com/Eachine-TX01-Super-Mini-AIO-5_8G-40CH-25MW-VTX-600TVL-14-Cmos-FPV-Transmitter-p-1088374.html?rmmds=myorder

All of these mini fpv sets are slightly different, so i made one to suit the one i got.
This has a 15deg tilt.

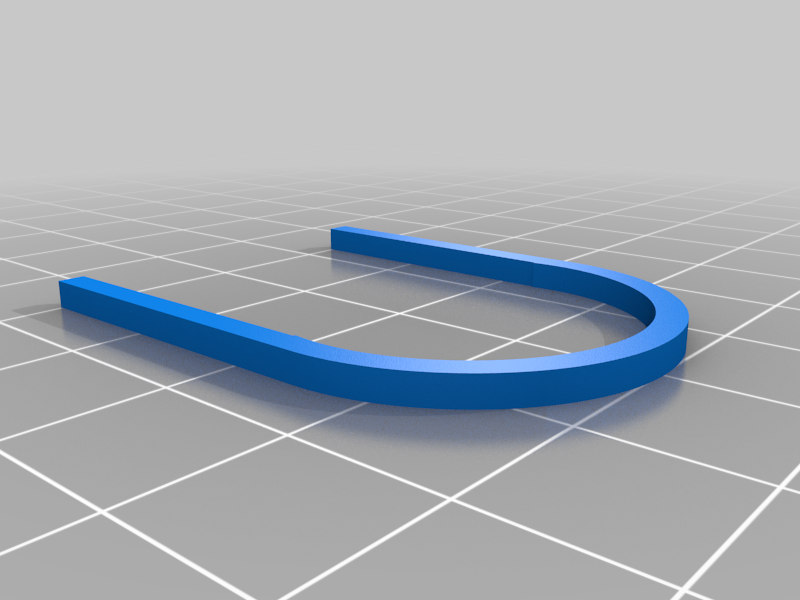

The hoop is a little bit of a loose fit, so you don't have to trim it to get it in, use a little glue to keep it in there.

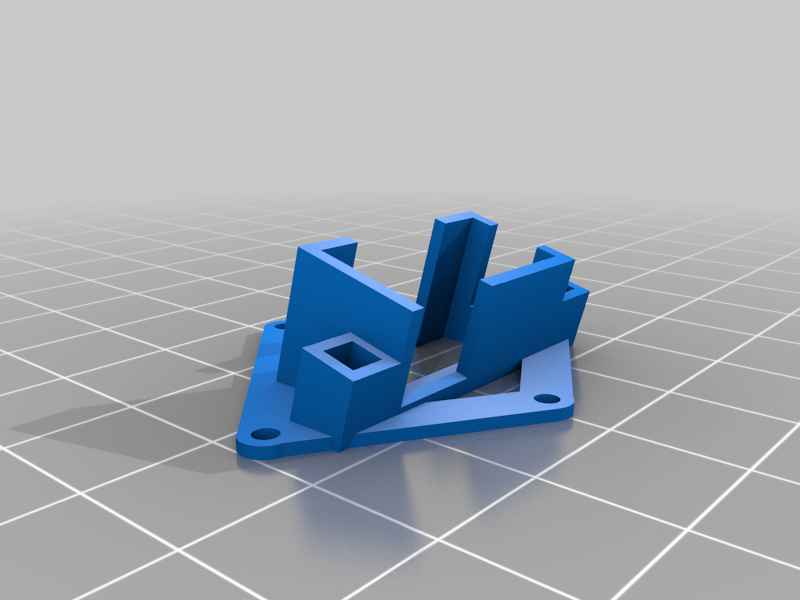

The fpv unit is a little loose as well, use a little glue to keep it in there.

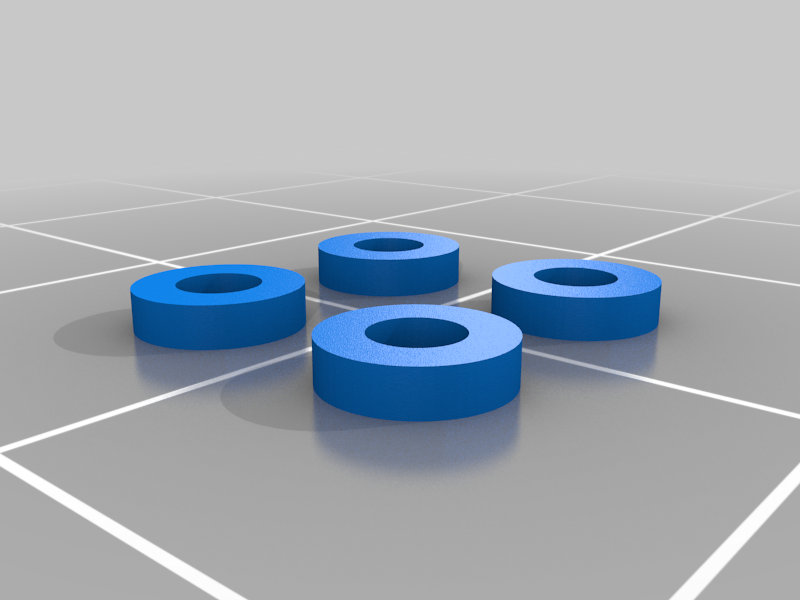

The 4 spacers give it clearance off the circuit board.
You will need to find another 2 tiny screws so you can have all 4 points secured.
