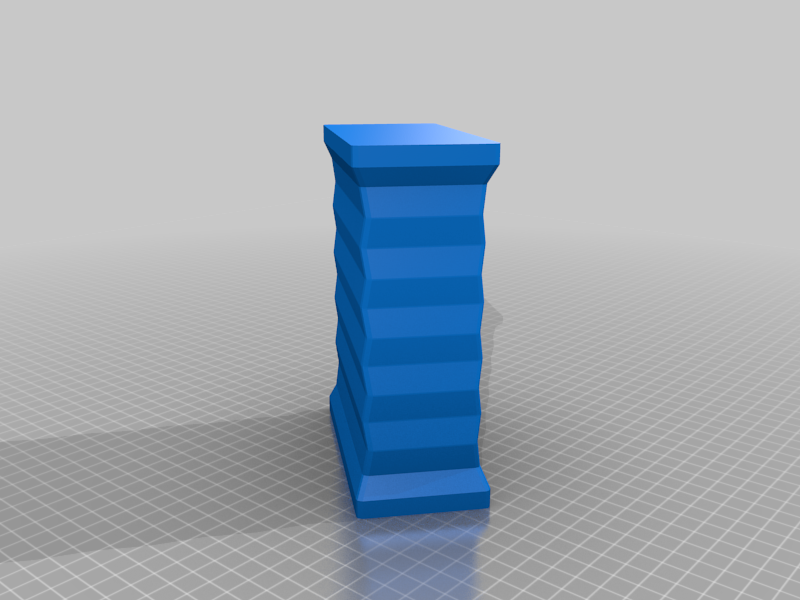

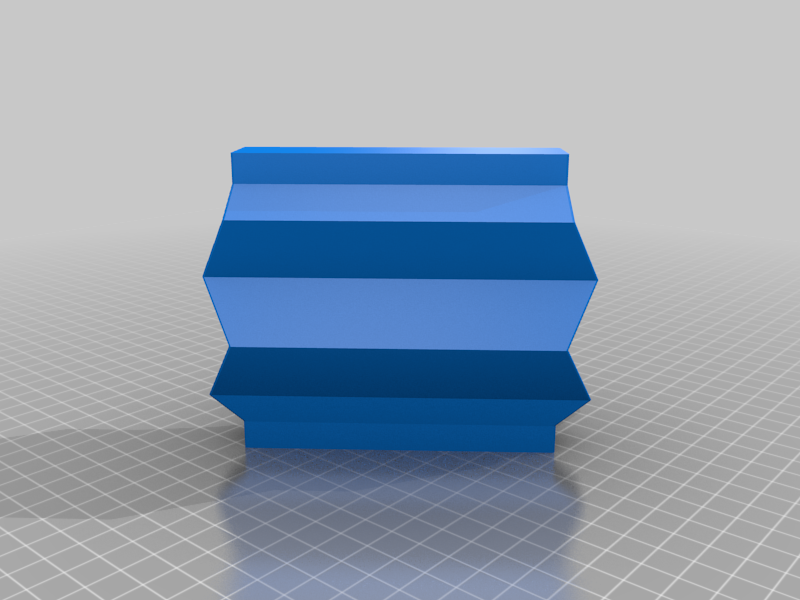

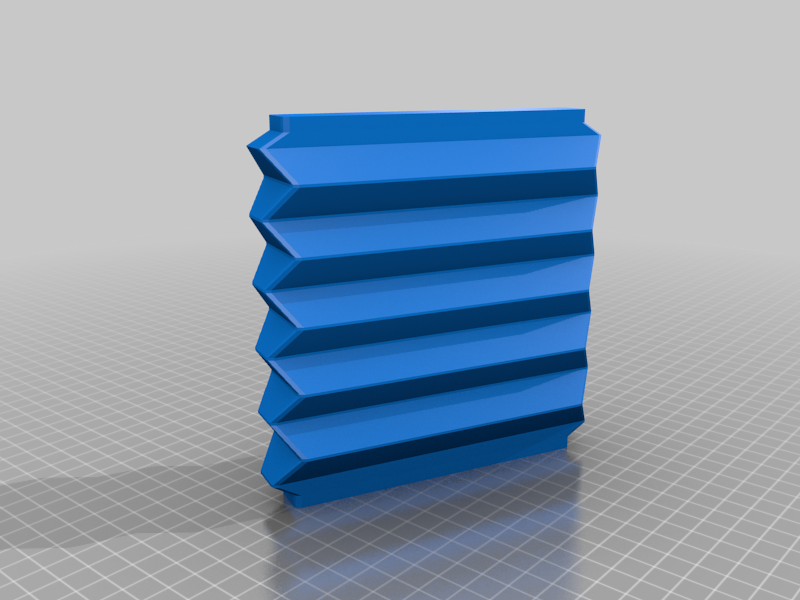

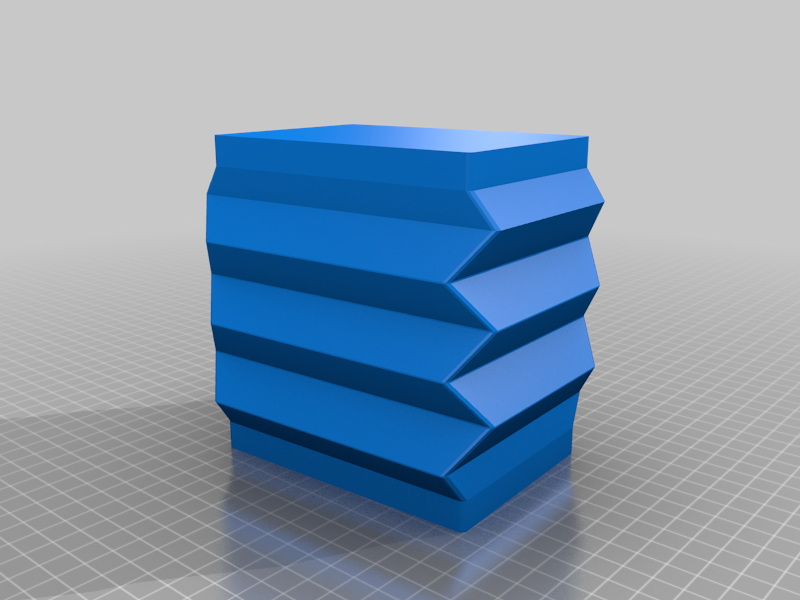

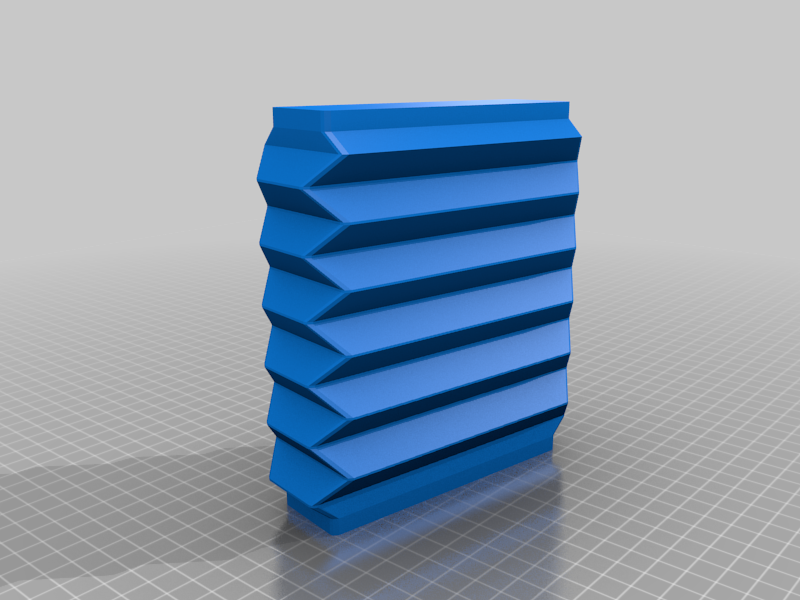

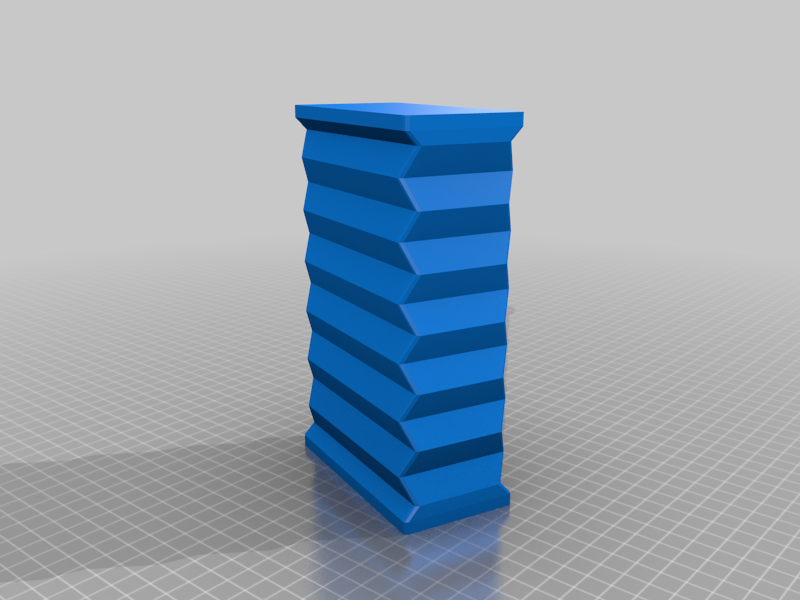

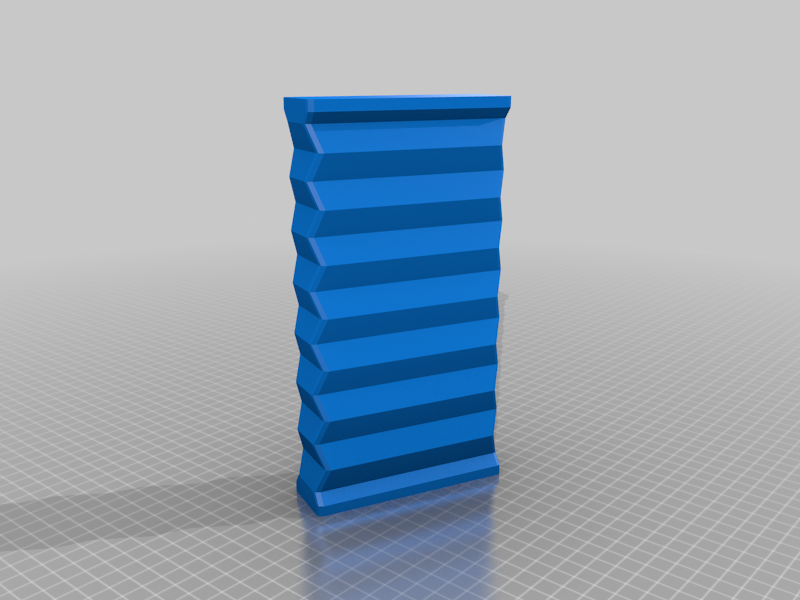

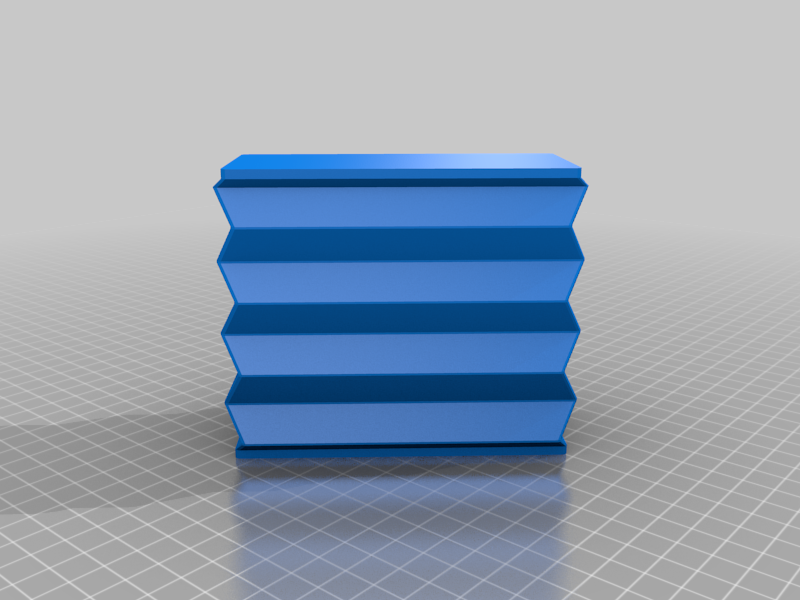

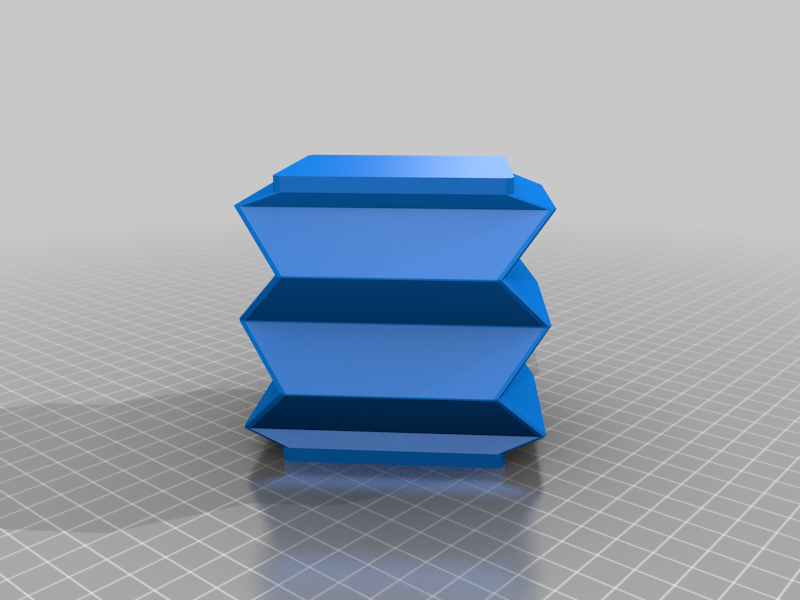

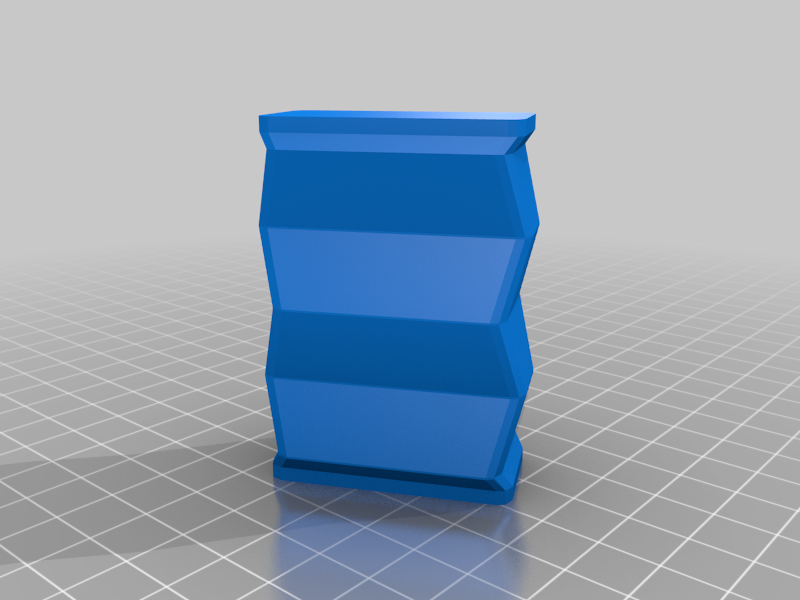

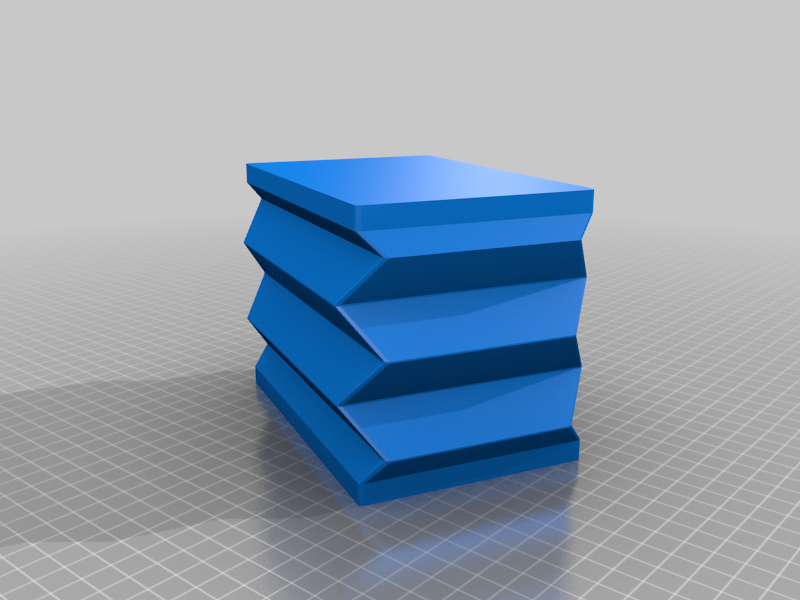

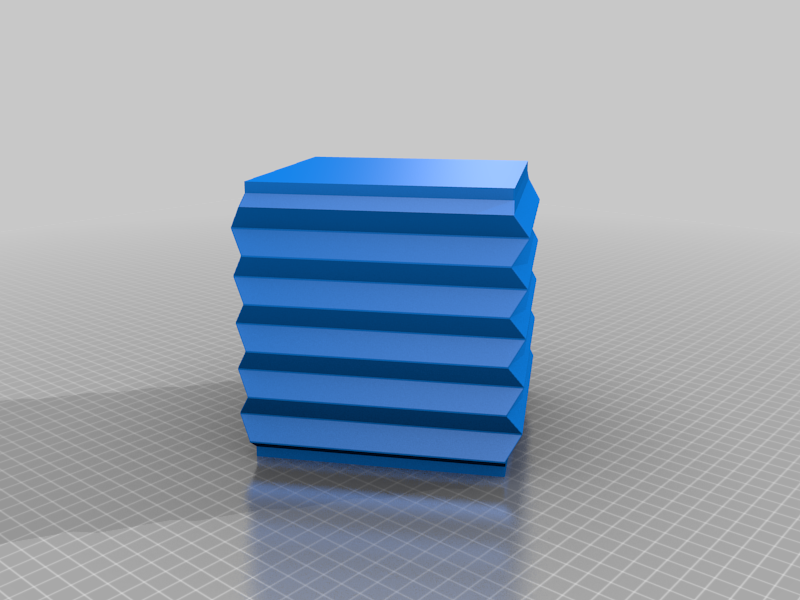

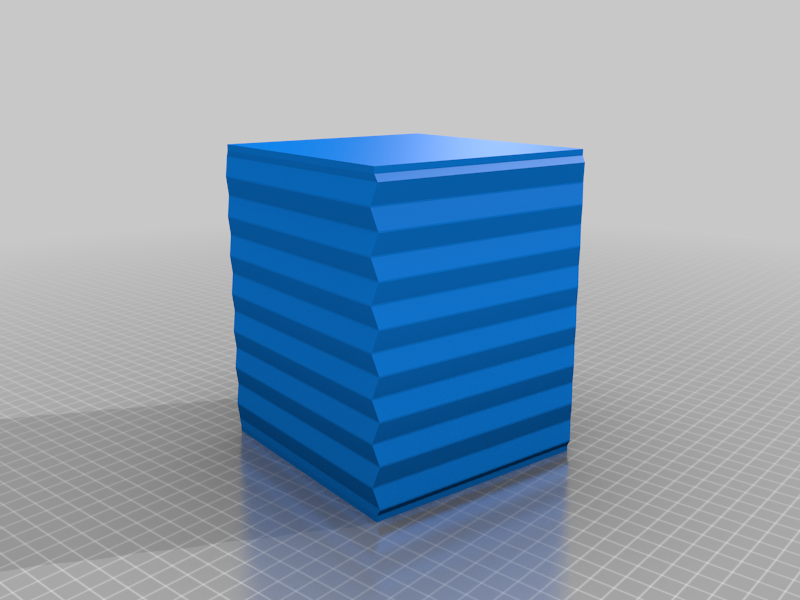

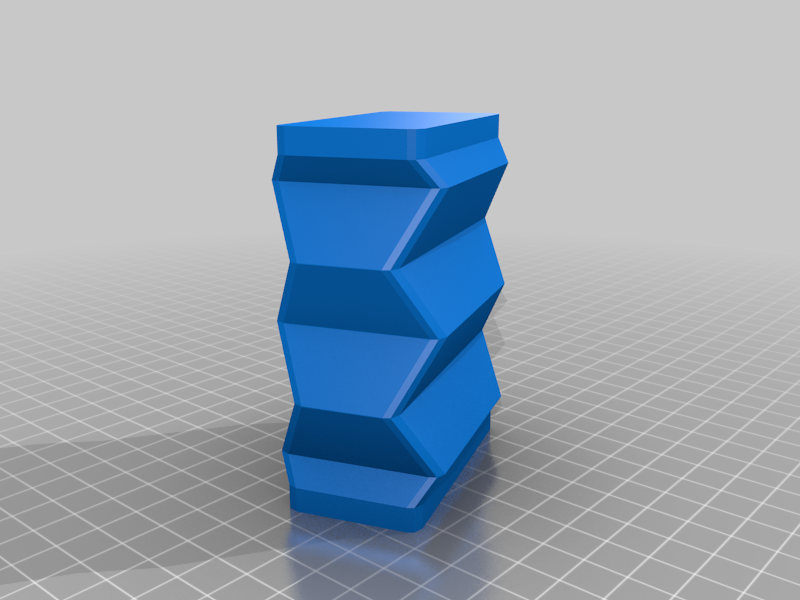

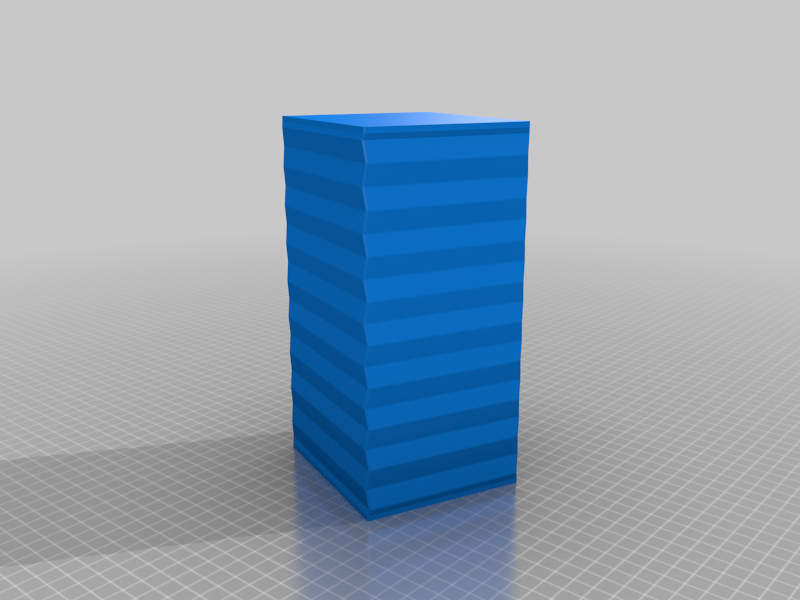

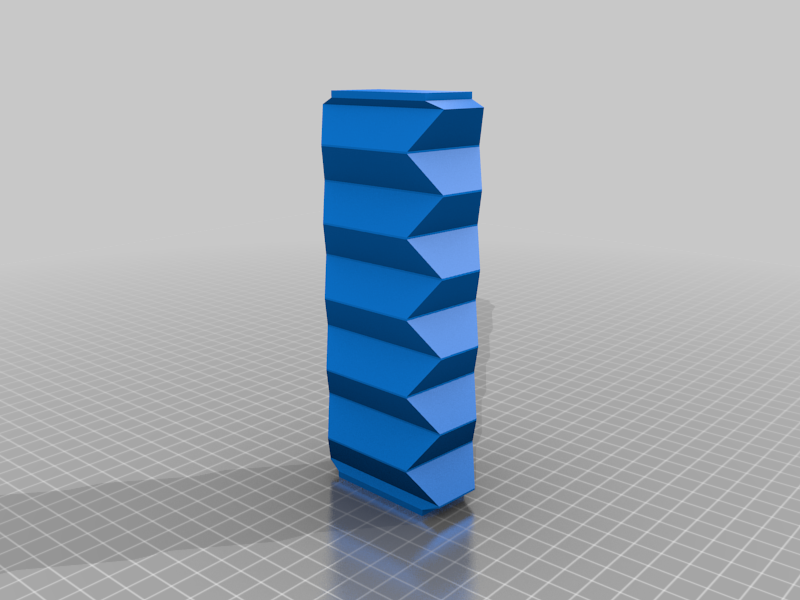

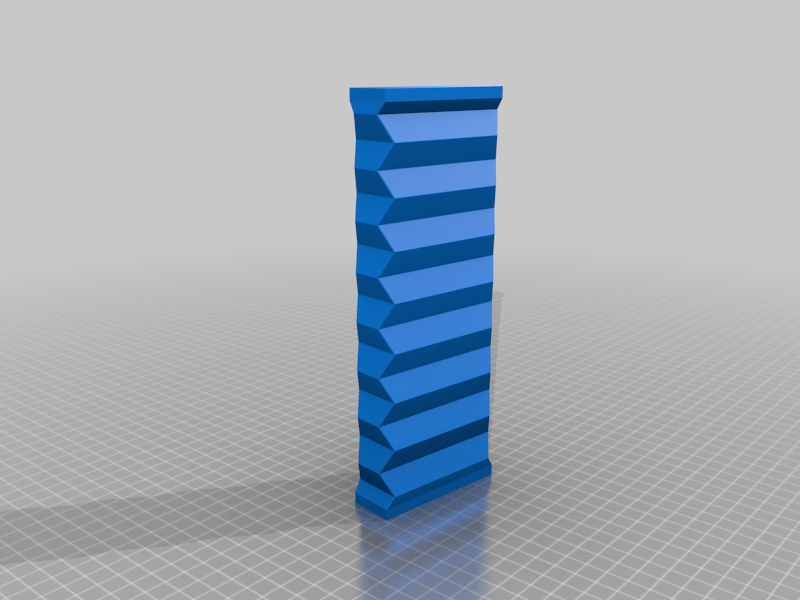

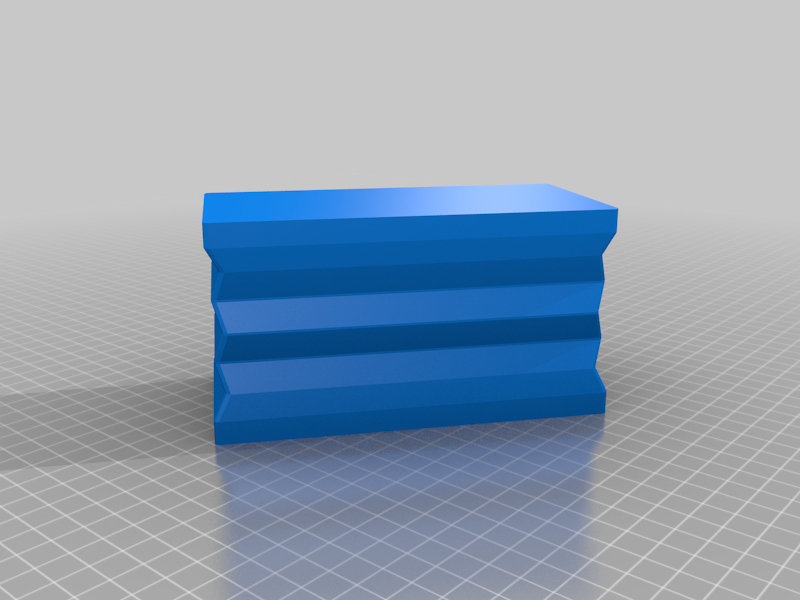

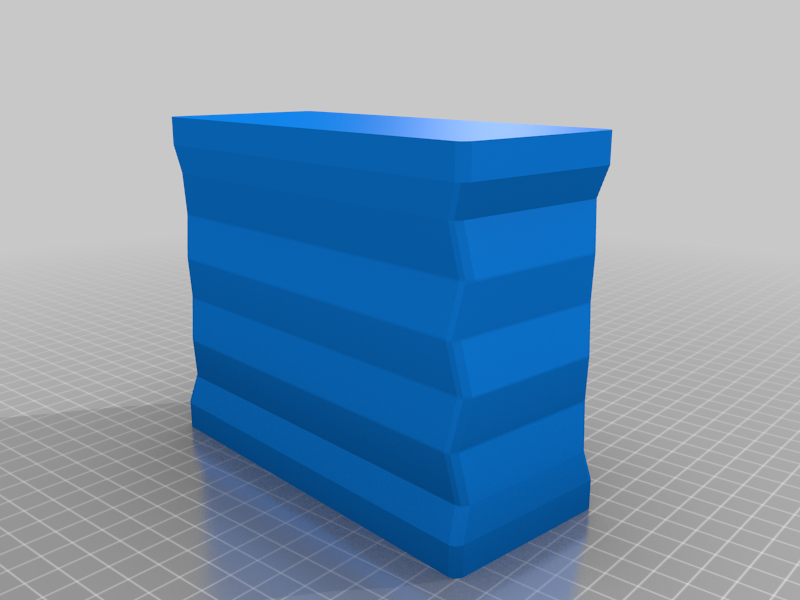

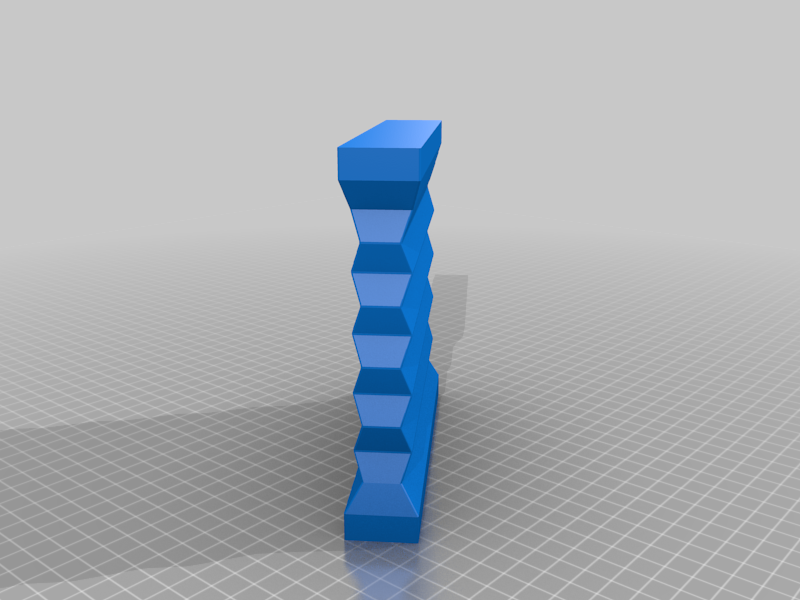

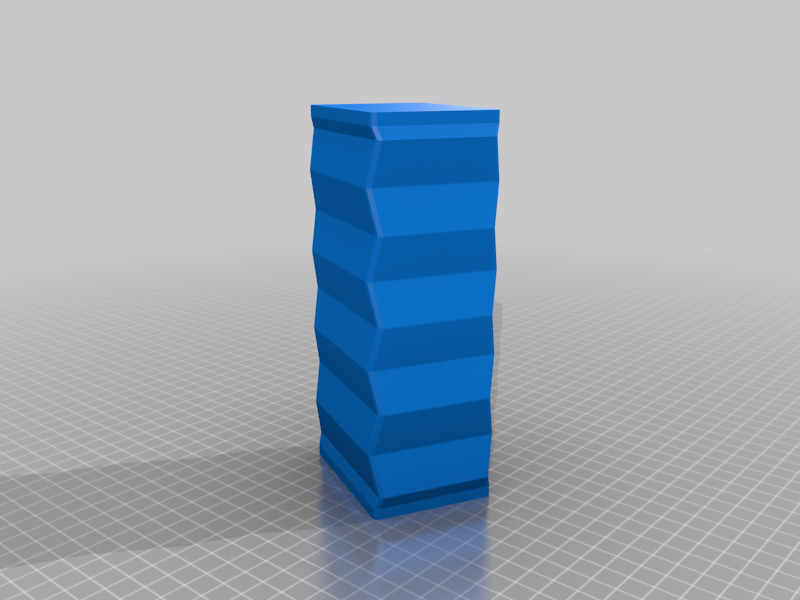

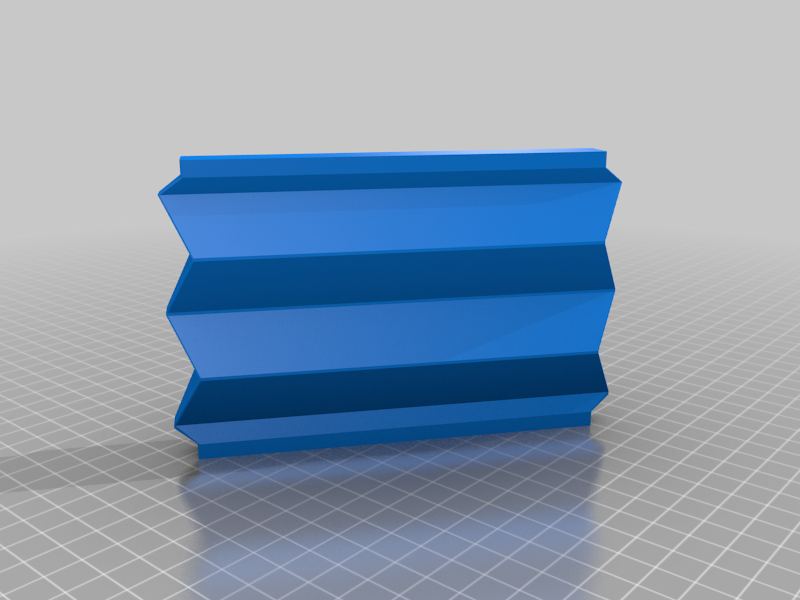

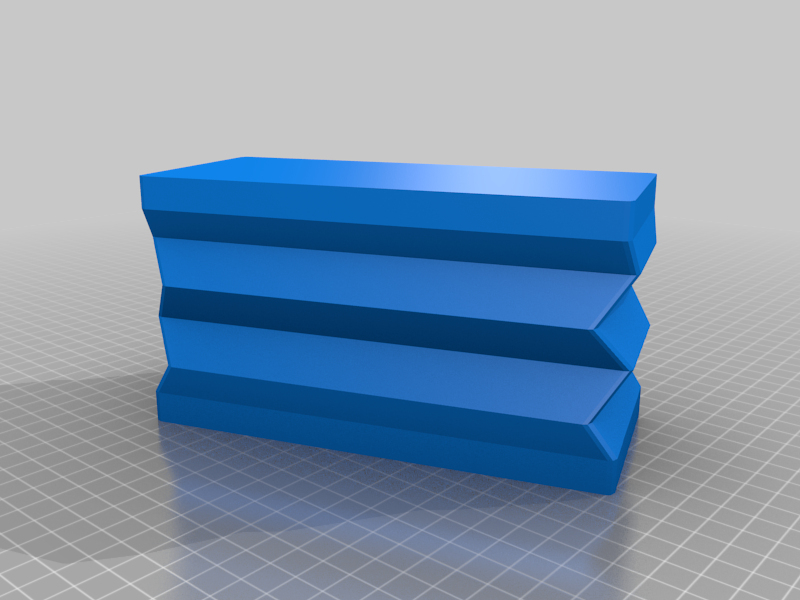

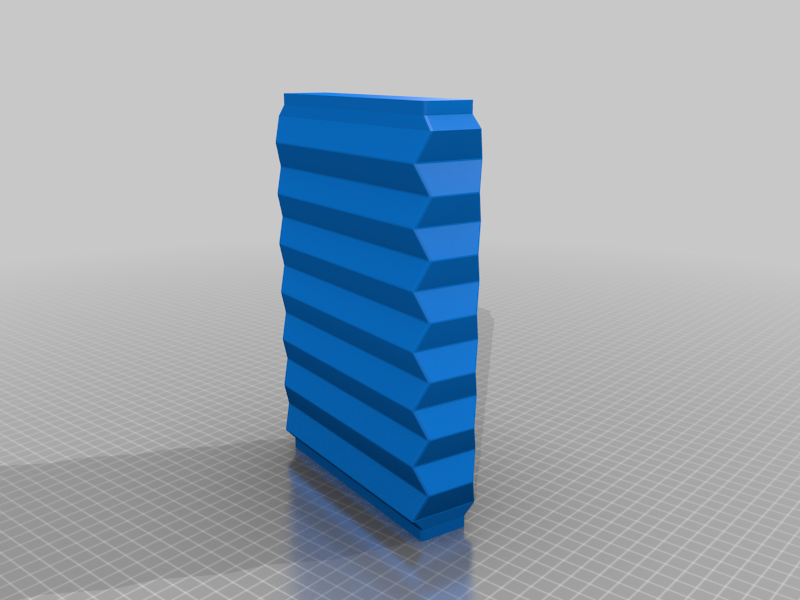

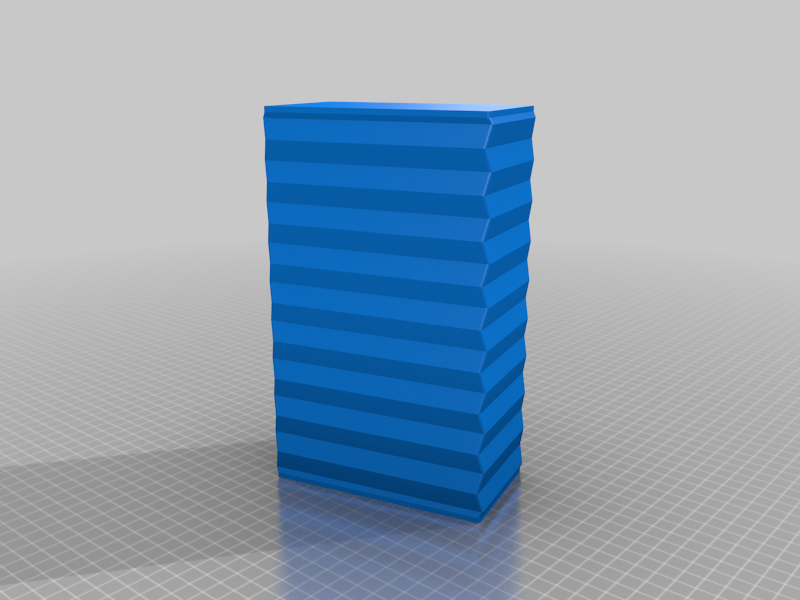

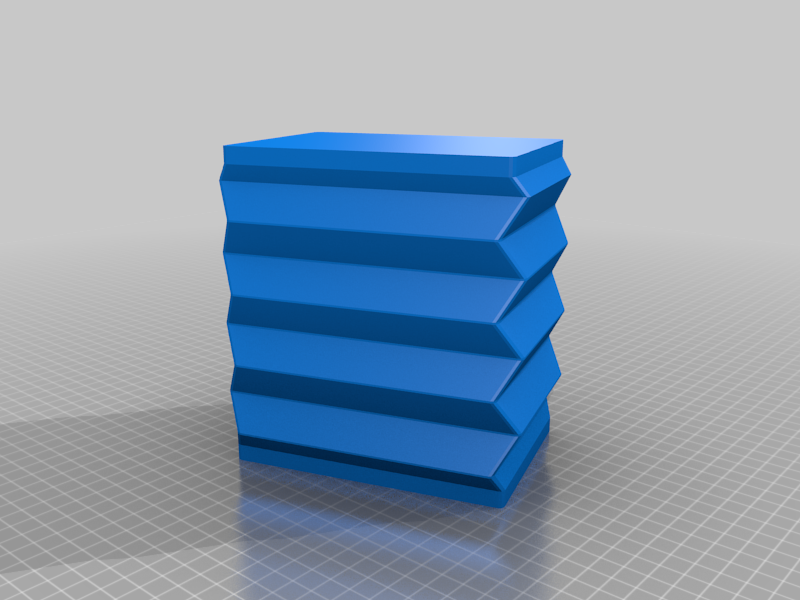

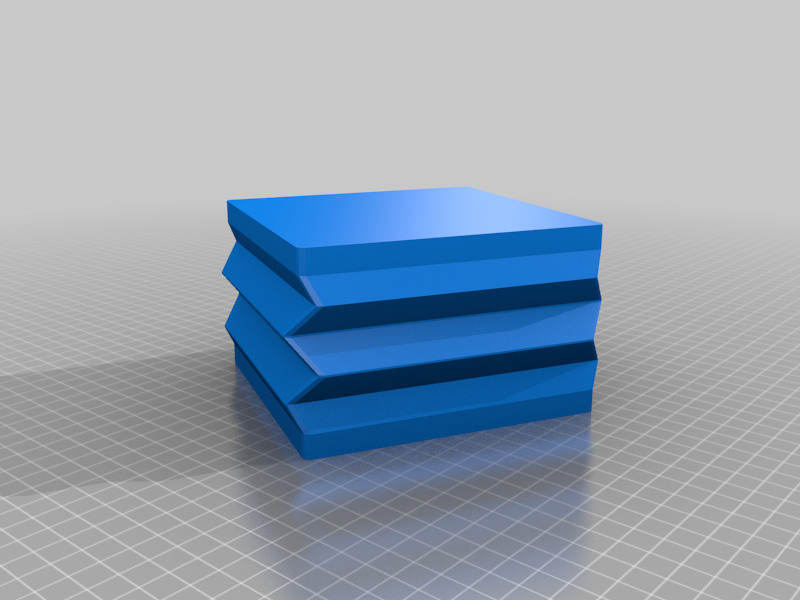

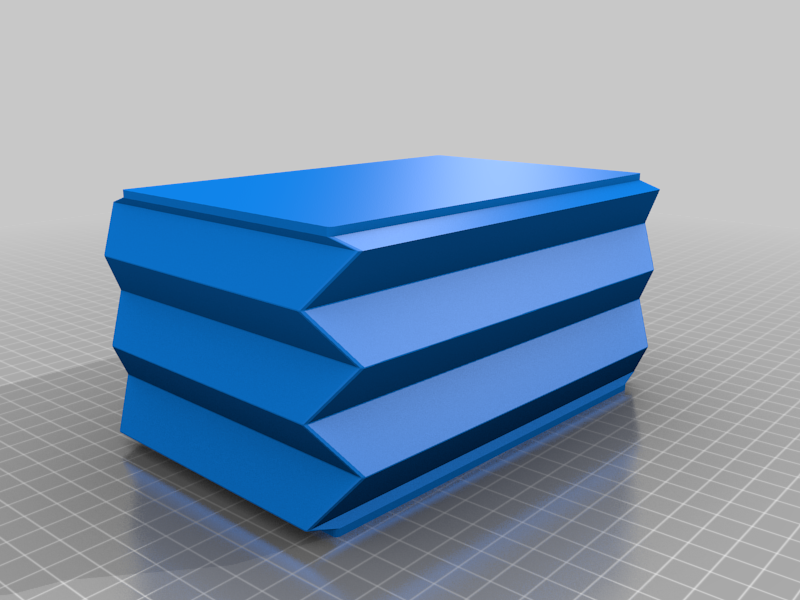

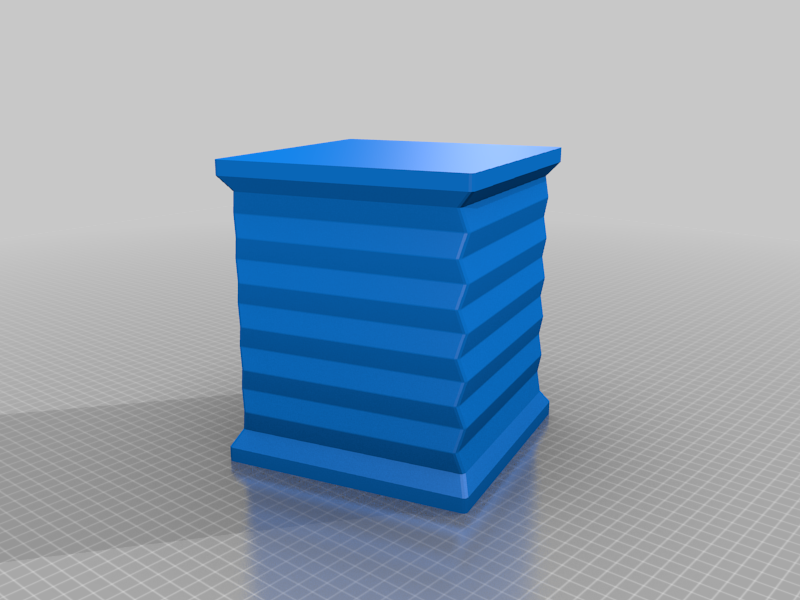

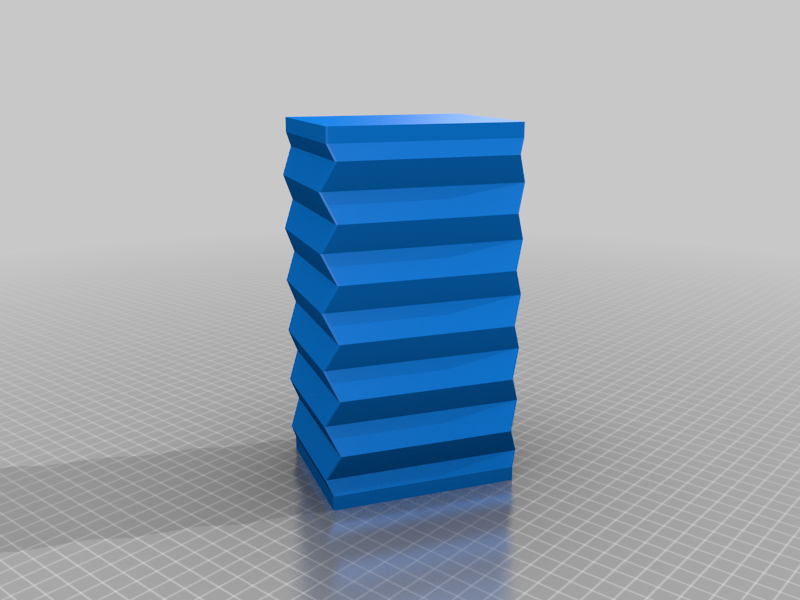

Customizable Protective Bellows
par Torleif
Fichiers imprimables (30)
-
stlbellowsrnd8391.stl
149 Ko · 3 159 téléchargements
-
stlbellowsrnd22437.stl
77 Ko · 3 106 téléchargements
-
stlbellowsrnd16291.stl
234 Ko · 3 104 téléchargements
-
stlbellowsrnd24100.stl
114 Ko · 3 118 téléchargements
-
stlbellowsrnd30102.stl
58 Ko · 3 083 téléchargements
-
stlbellowsrnd29474.stl
89 Ko · 3 102 téléchargements
-
stlbellowsrnd23181.stl
180 Ko · 3 091 téléchargements
-
stlbellowsrnd28249.stl
161 Ko · 3 094 téléchargements
-
stlbellowsrnd2579.stl
164 Ko · 3 083 téléchargements
-
stlbellowsrnd18468.stl
189 Ko · 3 087 téléchargements
-
stlbellowsrnd17184.stl
114 Ko · 3 107 téléchargements
-
stlbellowsrnd2768.stl
68 Ko · 3 081 téléchargements
-
stlbellowsrnd3178.stl
77 Ko · 3 096 téléchargements
-
stlbellowsrnd1066.stl
161 Ko · 3 085 téléchargements
-
stlbellowsrnd2459.stl
76 Ko · 3 087 téléchargements
-
stlbellowsrnd1186.stl
80 Ko · 3 087 téléchargements
-
stlbellowsrnd2683.stl
76 Ko · 3 072 téléchargements
-
stlbellowsrnd5102.stl
62 Ko · 3 070 téléchargements
-
stlbellowsrnd12442.stl
128 Ko · 3 084 téléchargements
-
stlbellowsrnd9279.stl
197 Ko · 3 086 téléchargements
-
stlbellowsrnd1149.stl
143 Ko · 3 077 téléchargements
-
stlbellowsrnd7231.stl
66 Ko · 3 071 téléchargements
-
stlbellowsrnd13476.stl
246 Ko · 3 061 téléchargements
-
stlbellowsrnd15229.stl
141 Ko · 3 070 téléchargements
-
stlbellowsrnd14488.stl
89 Ko · 3 070 téléchargements
-
stlbellowsrnd19468.stl
143 Ko · 3 059 téléchargements
-
stlbellowsrnd20209.stl
77 Ko · 3 060 téléchargements
-
stlbellowsrnd4250.stl
207 Ko · 3 070 téléchargements
-
stlbellowsrnd6278.stl
153 Ko · 3 071 téléchargements
-
stlbellowsrnd21342.stl
123 Ko · 3 054 téléchargements
Description
Quick and dirty code with few protections.
Print in vase mode with some not to brittle plastic
Don't go crazy with radius and stick to steps even divisible to height.
As usually i appreciate reports of successful prints especially in flex type materials .
x = 25; // bellows inner measurement
y = 50; // bellows inner measurement
approx_z = 100; // bellows relaxed height without sleeves
steps = 10; // number of folds
step = round(aprox_z / steps);
z=step*steps; // exact height
ext = 1.5; // fold horizontal extension multipler
radi = 1; //
verticalsegment = 0.2; // vertical segment between folds
sleeve = 20; // Sleeve at ends
sleeve_ext = 0; // Sleeve horizontal extension (multiplied by sleeve value added to x/y)
Huge thanks to Elstak for Verification and this nice video https://youtu.be/jIlPBB8f2_I
https://openscadsnippetpad.blogspot.com/
