Flashlight Clamp
par walter
Fichiers imprimables (7)
-

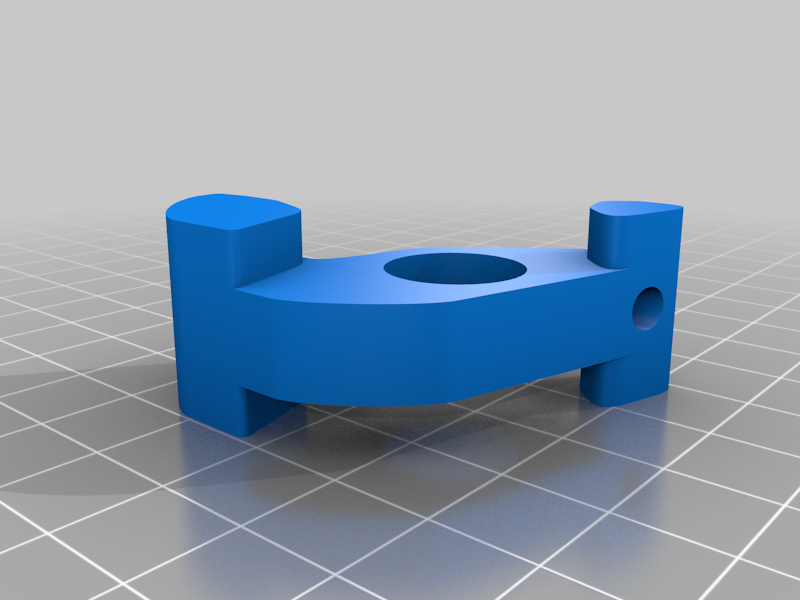

stl14.8mm_Flashlight_Clamp_-_Lower_Jaw.stl
221 Ko · 2 775 téléchargements
-

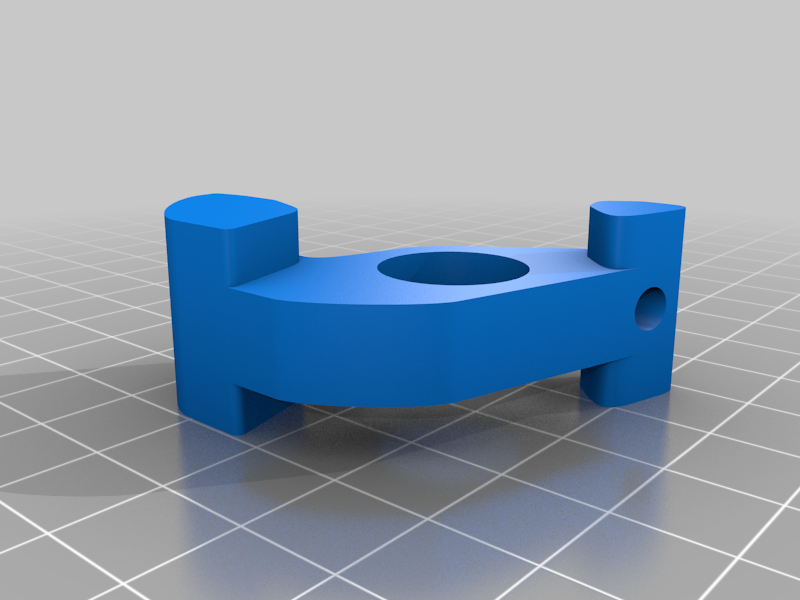

stl13.9mm_Flashlight_Clamp_-_Lower_Jaw.stl
216 Ko · 2 766 téléchargements
-

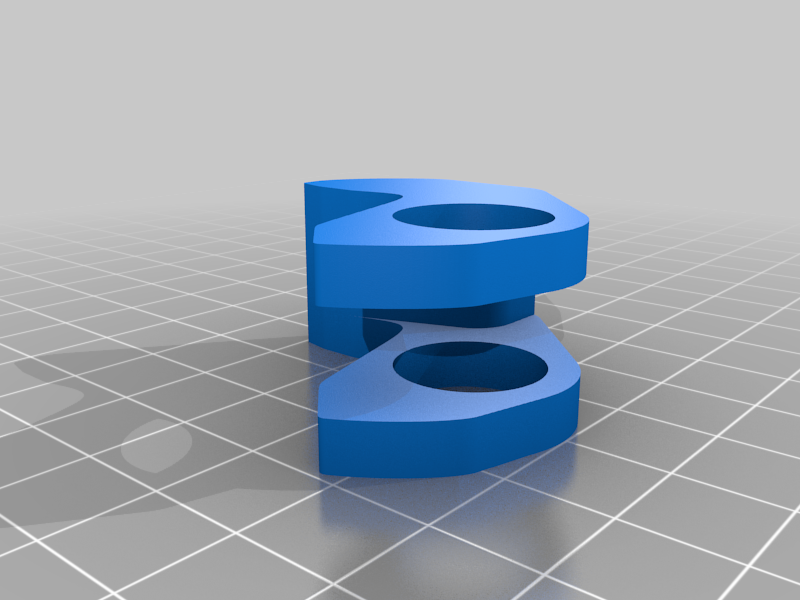

stl13.9mm_Flashlight_Clamp_-_Upper_Jaw.stl
2.1 Mo · 2 772 téléchargements
-

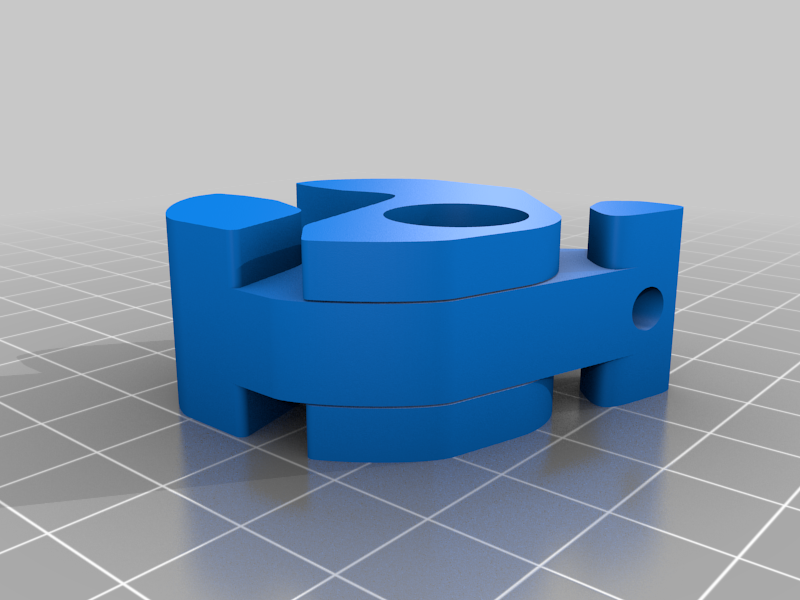

stl13.9mm_Flashlight_Clamp.stl
2.3 Mo · 2 767 téléchargements
-

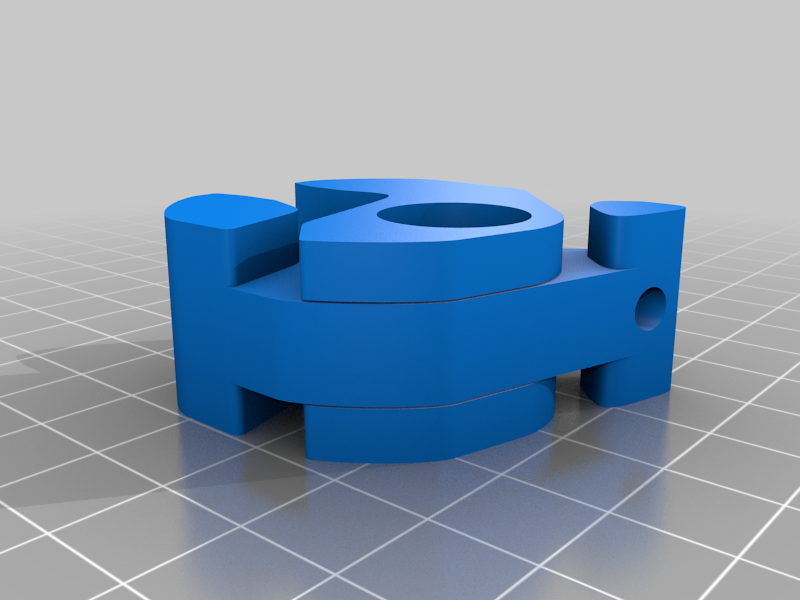

stl14.8mm_Flashlight_Clamp.stl
2.3 Mo · 2 763 téléchargements
-

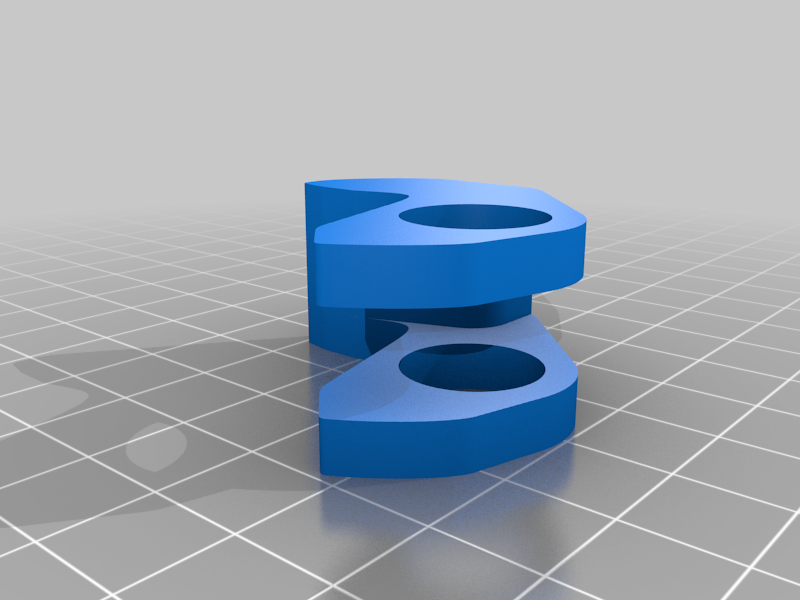

stl14.8mm_Flashlight_Clamp_-_Upper_Jaw.stl
2.1 Mo · 2 764 téléchargements
-

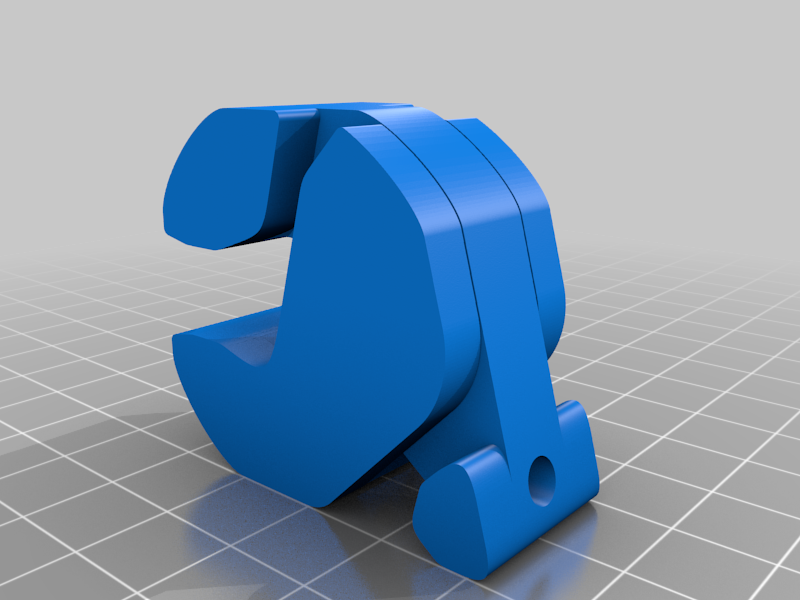

stlOne_Piece_Clamp.stl
2.3 Mo · 3 009 téléchargements
Description
Small flashlight clamp, designed to attach a AAA flashlight to a skateboard deck. The flashlight works as the hinge and is needed to hold the clamp together. It's inspired by and works Similarly to the Kant Twist* clamps that I use with my BoXZY CNC. There's also a one piece version that can be used as a normal clamp.
I used support material on all of the pictured prints and used thread taps to add the M4 and M5 threads.
Parts:
- ThorFire AAA Flashlight* - 13.6mm
- County Comm AAA flashlight (not sure which version) - 14.5mm
- M4 button socket cap screw - 10mm or shorter
- M5 screw - 25mm or shorter
Printer:
Design:
- Onshape - check out the branches for the different versions
Filaments:
- Atomic Filament Pastel Lilac PLA
- Atomic Filament Maize Yellow PLA
- Atomic Filament Pearlescent Blue PLA
- Atomic Filament Glow in the Dark PETG
- Atomic Filament Transparent Aqua PETG
*affiliate link
