eachine tx03 housing
par Lefty9
Fichiers imprimables (10)
-
stltx03_mk1.stl
438 Ko · 2 553 téléchargements
-
stltx03_mk2.stl
653 Ko · 2 506 téléchargements
-
stltx03_mk3.stl
653 Ko · 2 502 téléchargements
-
stltx03_mk1_15_degrees.stl
349 Ko · 2 528 téléchargements
-
stltx03_mk1_20_degrees.stl
343 Ko · 2 500 téléchargements
-
stltx03_housing_mk3_15_degrees.stl
572 Ko · 2 503 téléchargements
-
stltx03_housing_mk3_20_degrees.stl
553 Ko · 2 502 téléchargements
-
stltx03_mk1_15_degrees_30.5mm.stl
311 Ko · 2 483 téléchargements
-
stltx03_mount_25_degree_base_45_rotation.stl
591 Ko · 1 830 téléchargements
-
stltx03_30.5mm_25degrees.stl
654 Ko · 1 829 téléchargements
Description

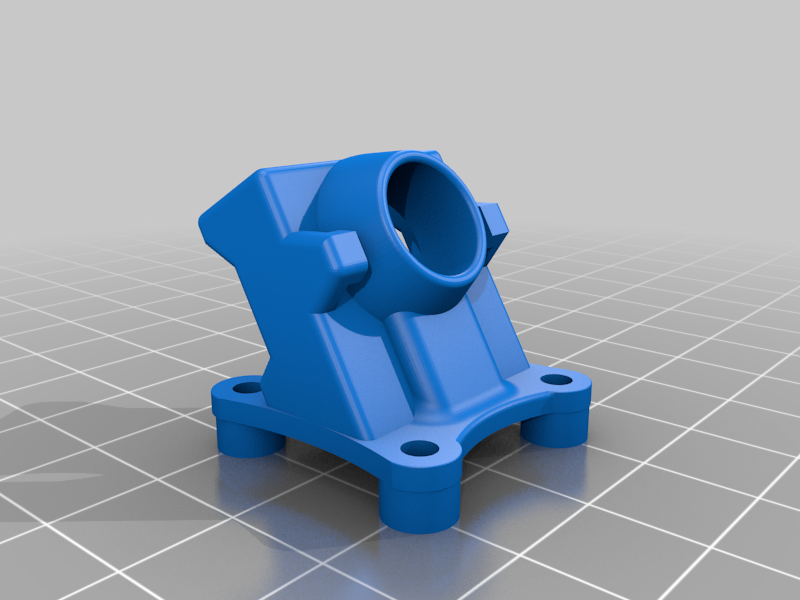

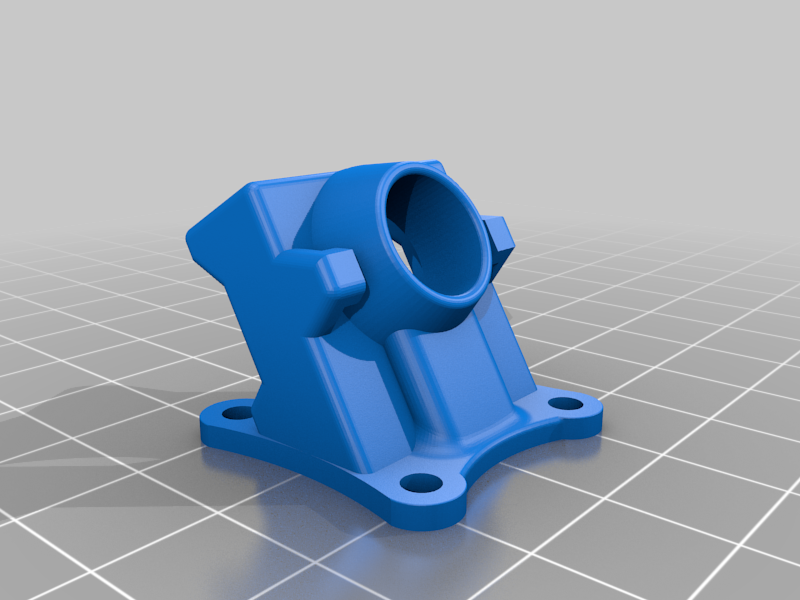

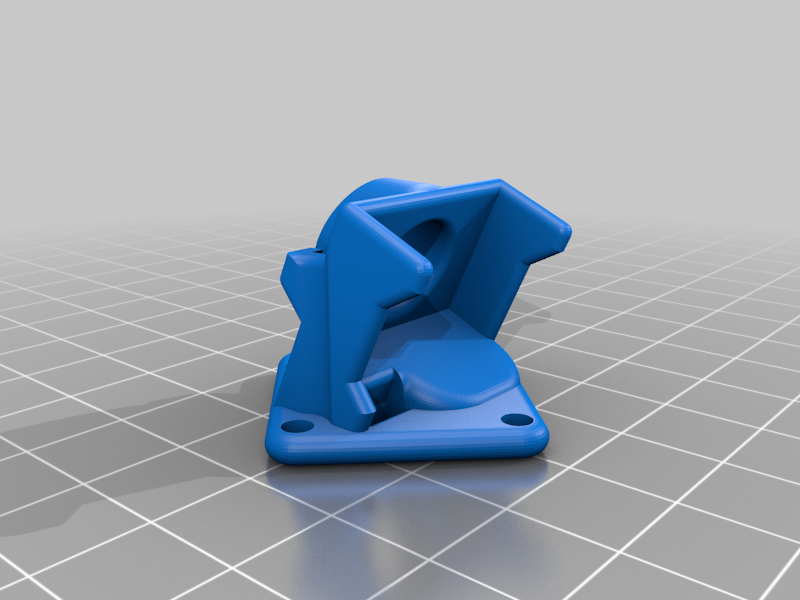

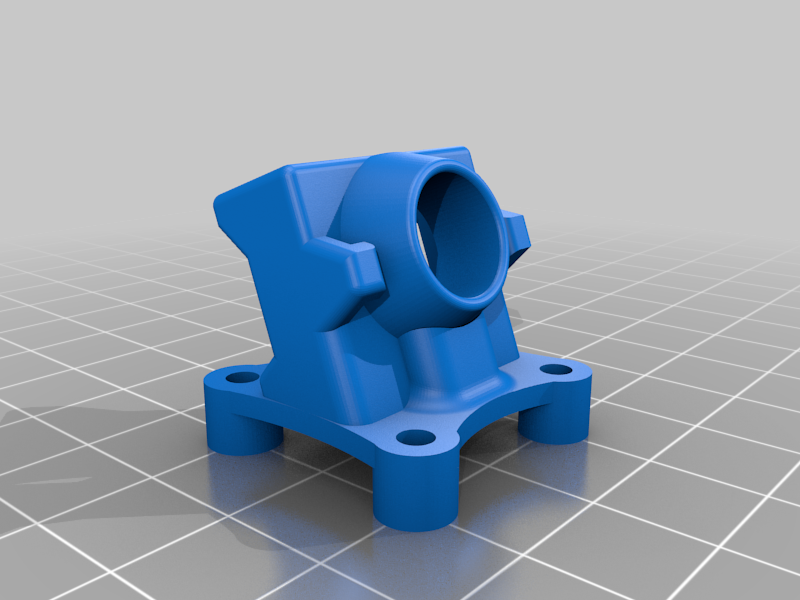

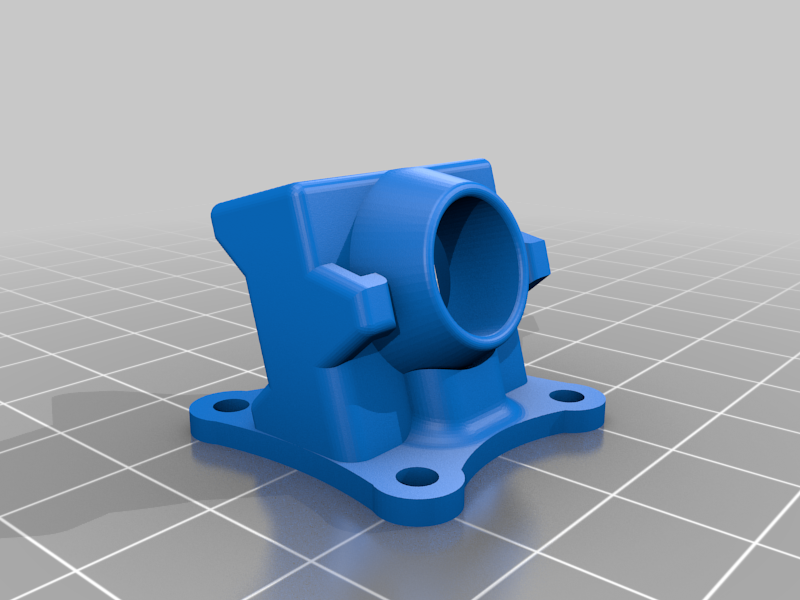

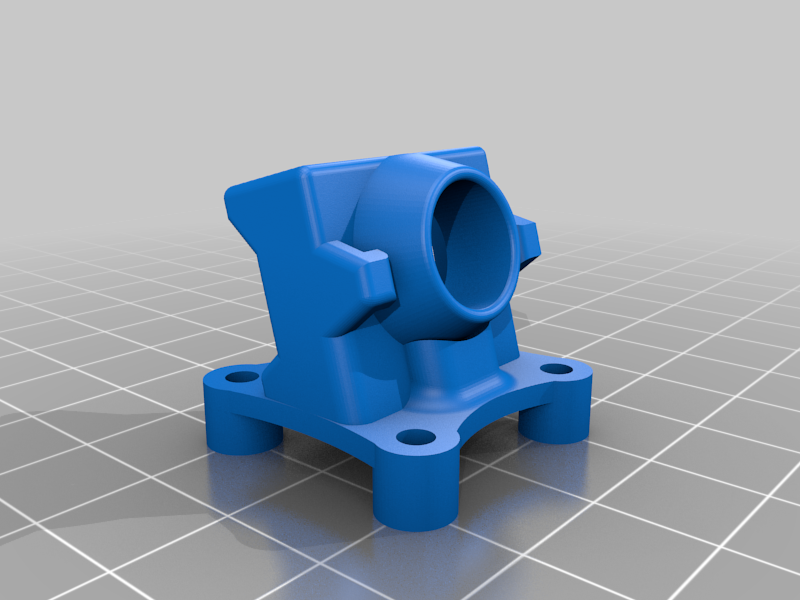

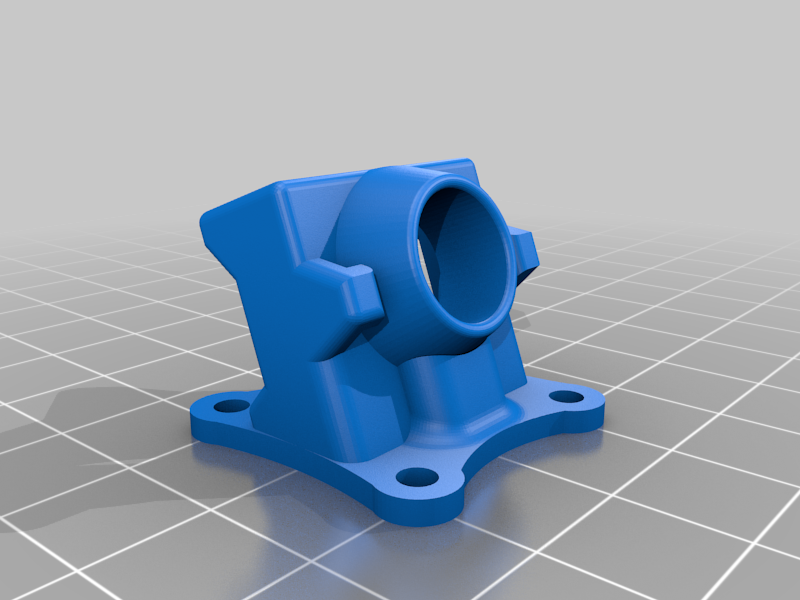

Housings for the eachine tx03 aio camera. Tx01 and tx02 should fit as well. Camera angle is fixed at 30 degrees.
The mounting pattern is 20mm x 20mm.
THe mk2 version has 2.8mm holes for flexible filaments snug fit. The mk1 and mk3 have 3mm holes.
Although the camera fits quite tight inside , I added slots for a rubber band for extra security.
I personally prefer petg for this thing. For mk2 and mk3 I suggest supports from ground.
edit : added 15 and 20 degrees in mk1 and mk3 , requested by scrub_AUT.

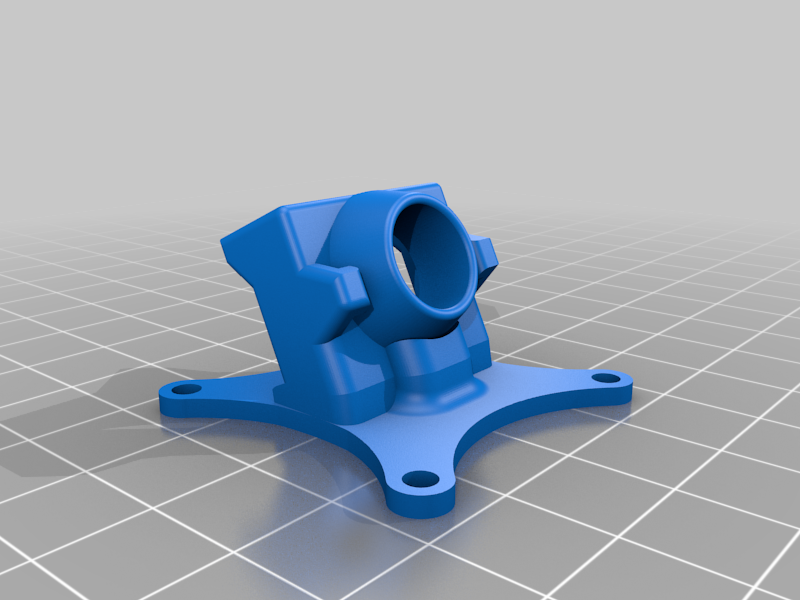

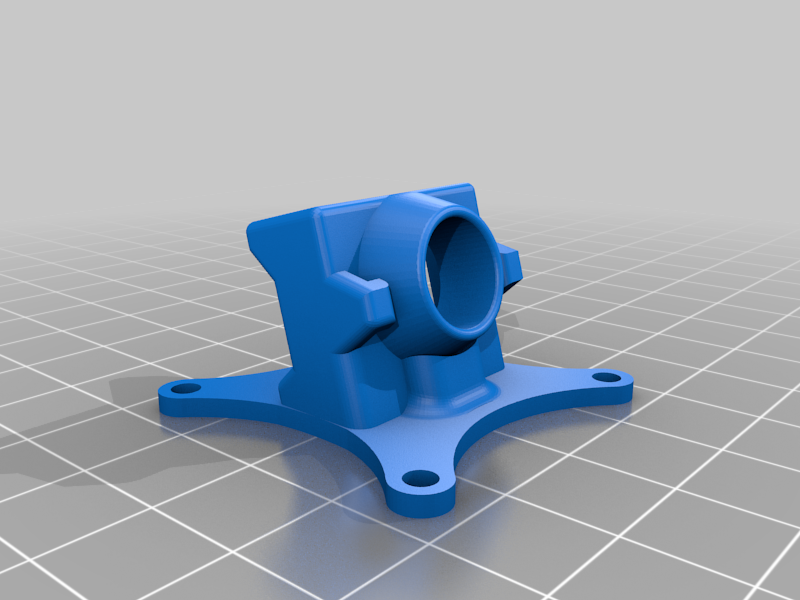

edit2 : added mk1 15 degrees 30.5x30.5mm mount, requested by Macaca.
edit3: added a 25 degree on a 45 degree rotated base.
Enjoy!
