20x20 stack camera mount
par JBee_FPV
Fichiers imprimables (3)
-

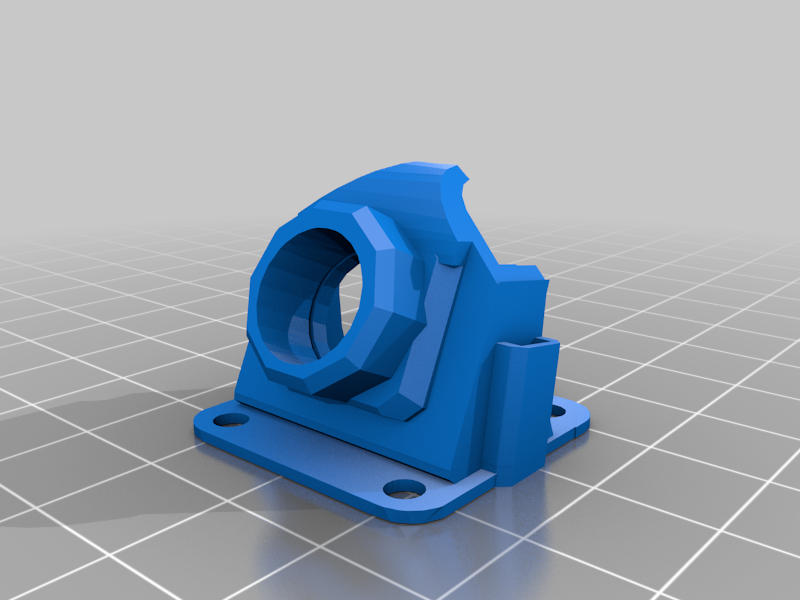

stl20x20_TopCam.stl
518 Ko · 1 279 téléchargements
-

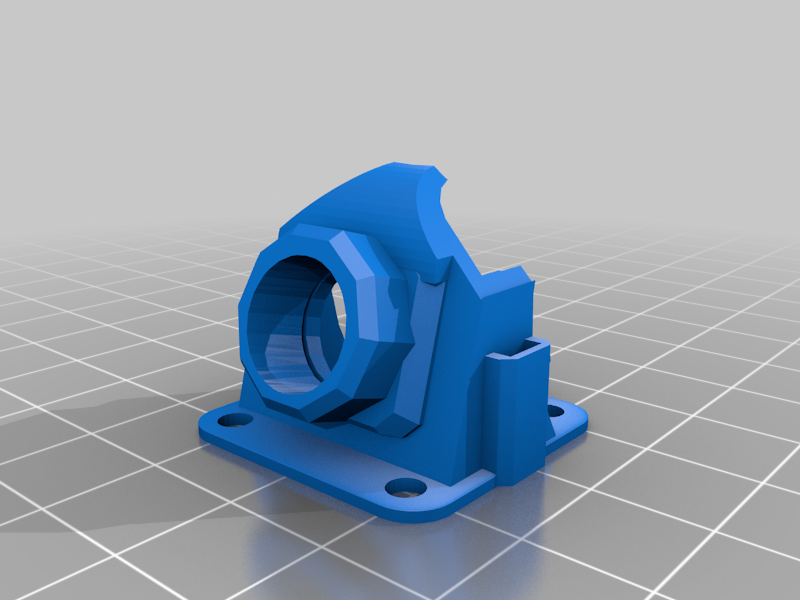

stl20x20_topcam_MOAR_tilt.stl
108 Ko · 1 248 téléchargements
-

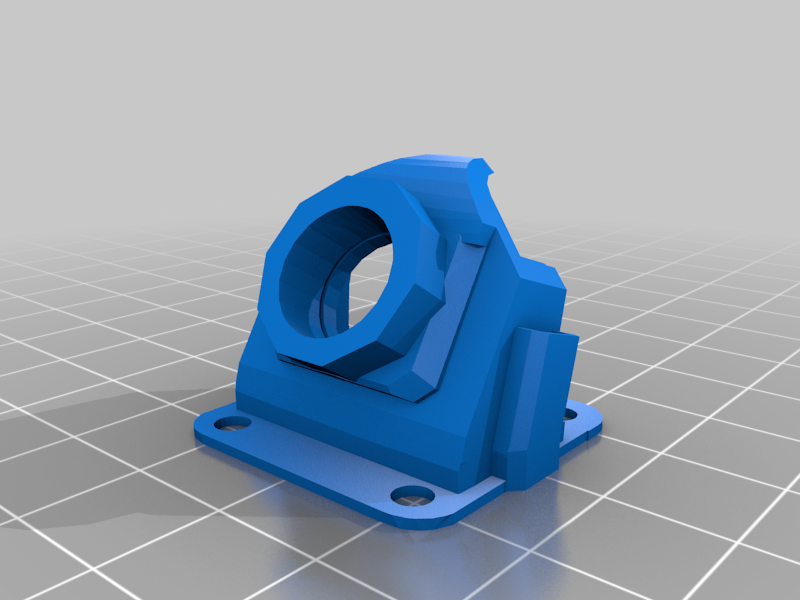

stl20x20_topcam_AIO_30.stl
118 Ko · 1 254 téléchargements
Description
*update - added 30 degree AIO version by request
Versatile camera mount for 20x20 stack microquads:
-Offers great protection for lens and electronics
-Fits both AIO (TX03 / FX798T) and separate camera and VTX (e.g. VTX03) or split AIO
-Double tie wrap holes for antenna mounting or cloverleaf protection.
-Top mounted design; does not limit prop size
I use this on the KT100 frame on top of the Pico BLX. It does need some spacers (not included) to lift it a few millimeters because of the USB port, I use 2 small rubber O-rings on each screw as seen in the pictures.
