Mini servo gripper
par jjshortcut
Fichiers imprimables (8)
-

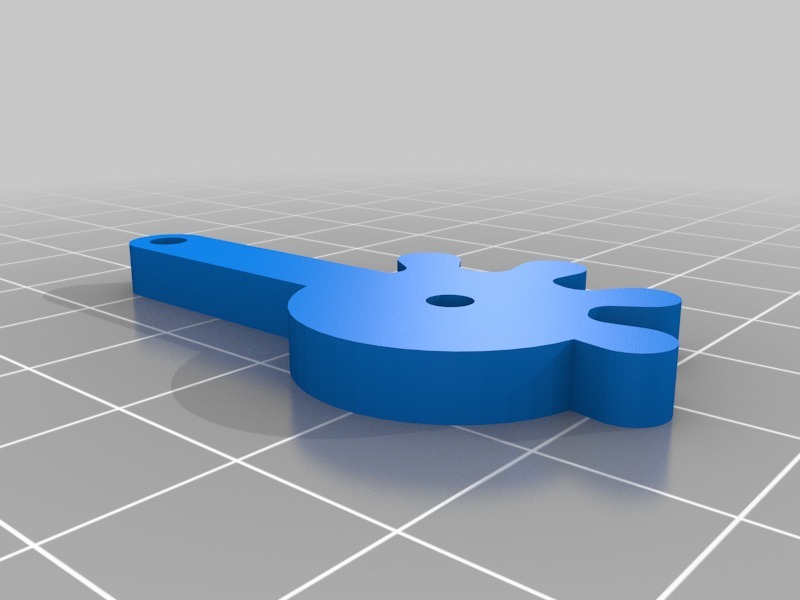

stlGearsleft.STL
54 Ko · 35 398 téléchargements
-

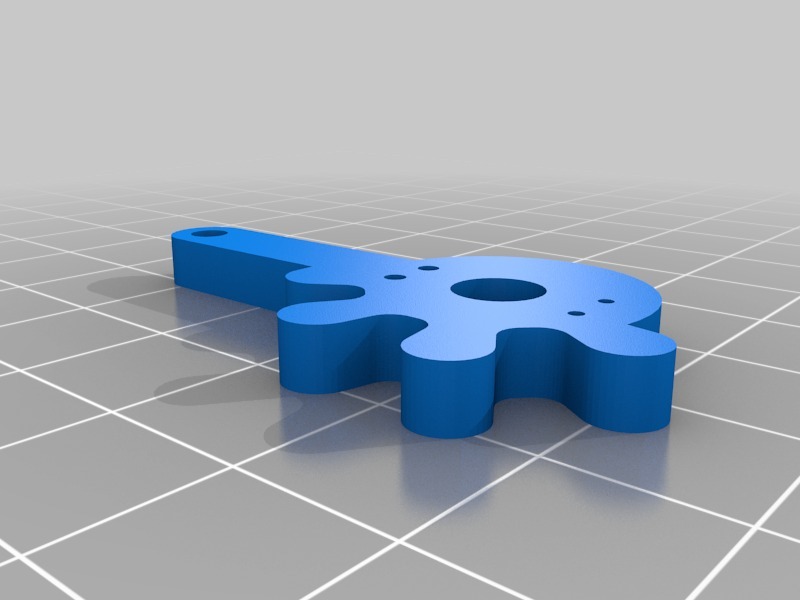

stlGearsright.STL
94 Ko · 34 705 téléchargements
-

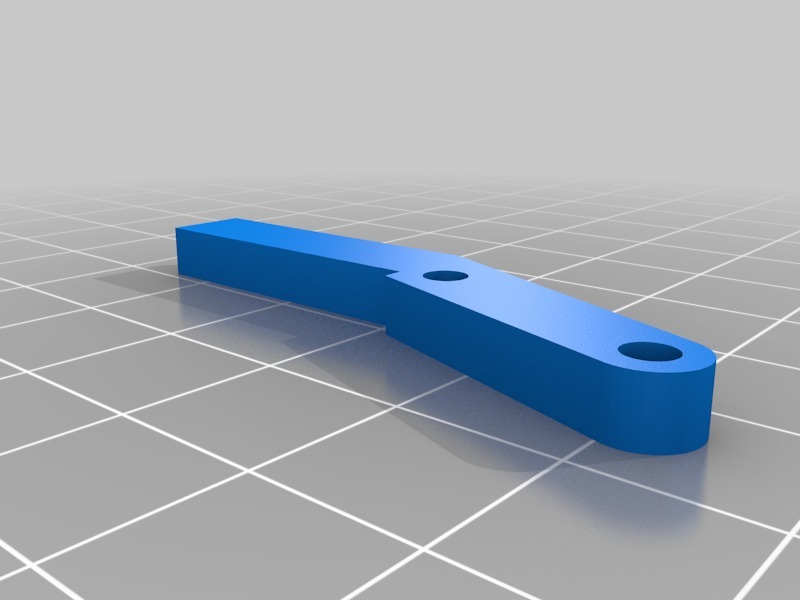

stlGrippart.STL
20 Ko · 34 495 téléchargements
-

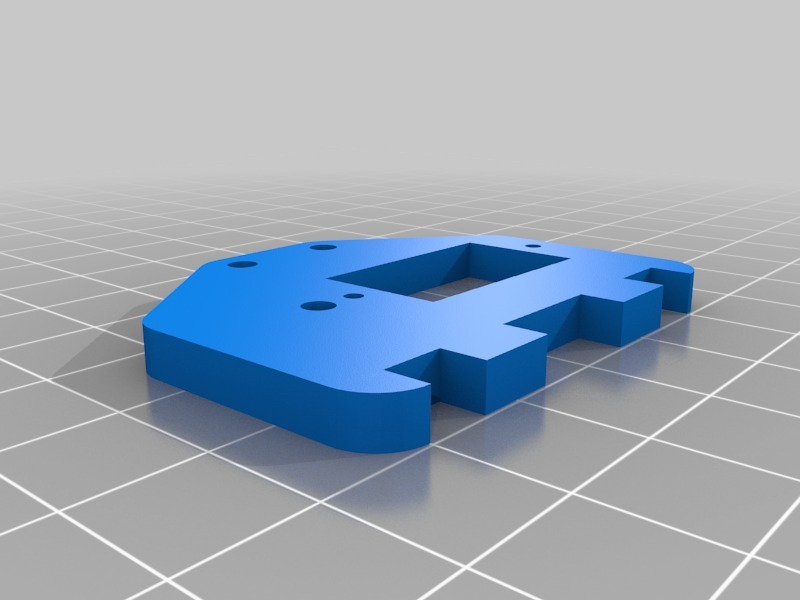

stlGripperservoplate.STL
58 Ko · 34 572 téléchargements
-

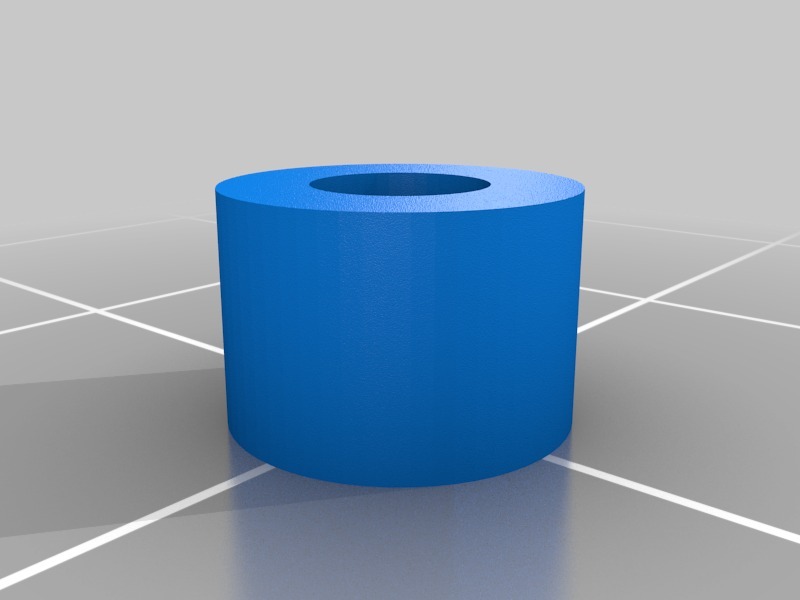

stlLiftgears.STL
20 Ko · 34 305 téléchargements
-

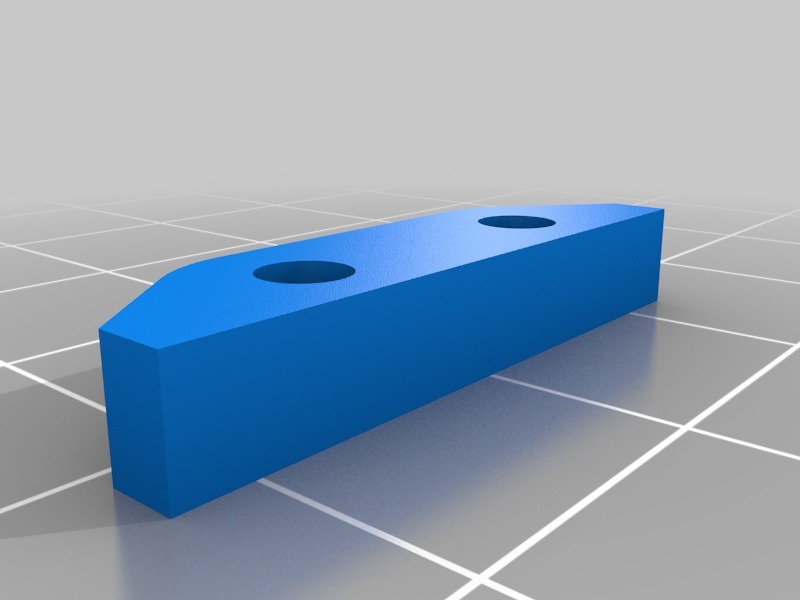

stlLiftparallelbar.STL
18 Ko · 34 235 téléchargements
-

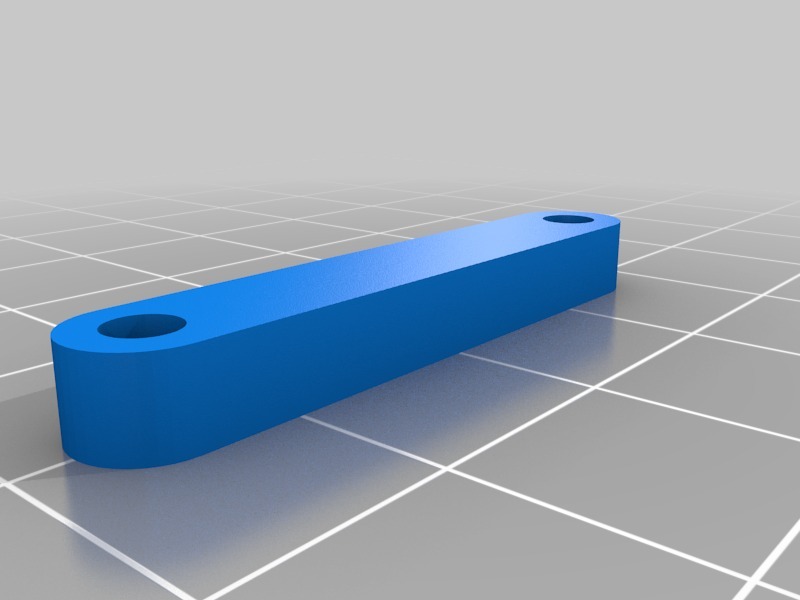

stlParallelbar.STL
23 Ko · 34 325 téléchargements
-

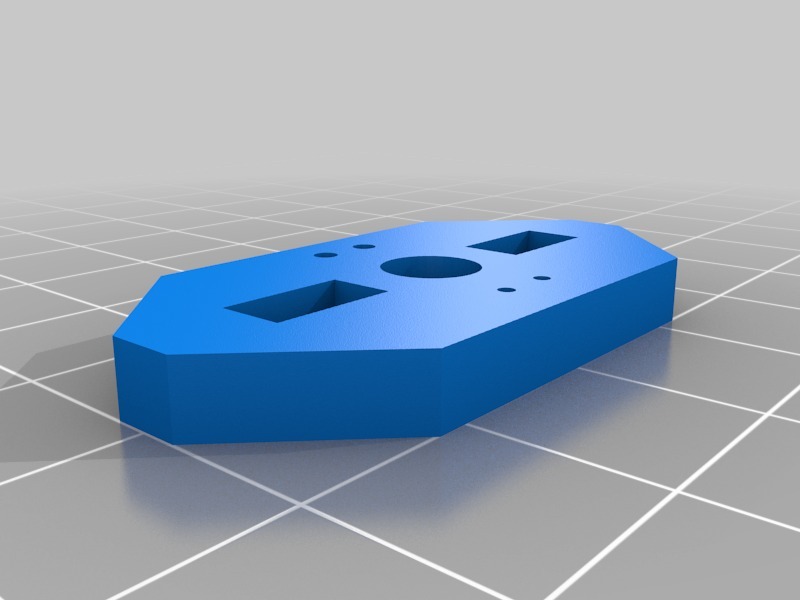

stlServoconnector.STL
56 Ko · 34 409 téléchargements
Description
A gripper compatible with a mini servo I used the Topline ES-05 JR, I milled it with a 3-axis cnc machine but its also printable. Made of 4mm hardboard.
A little video:
http://www.youtube.com/watch?v=7CUNx4kPw6w
For more pictures and info:
http://jjshortcut.wordpress.com/2010/04/19/my-mini-servo-grippers-and-completed-robotic-arm/
