Bench Dog Clamp Insert
par Elproducts
Fichiers imprimables (8)
-
stlCNC_VClampRodQI.stl
27 Ko · 9 035 téléchargements
-

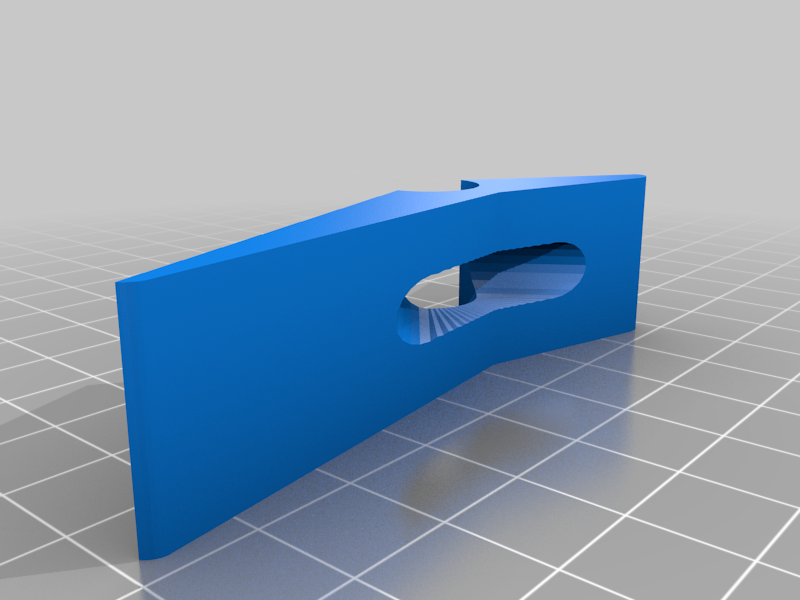

stlCNC_VClampQI.stl
134 Ko · 9 045 téléchargements
-

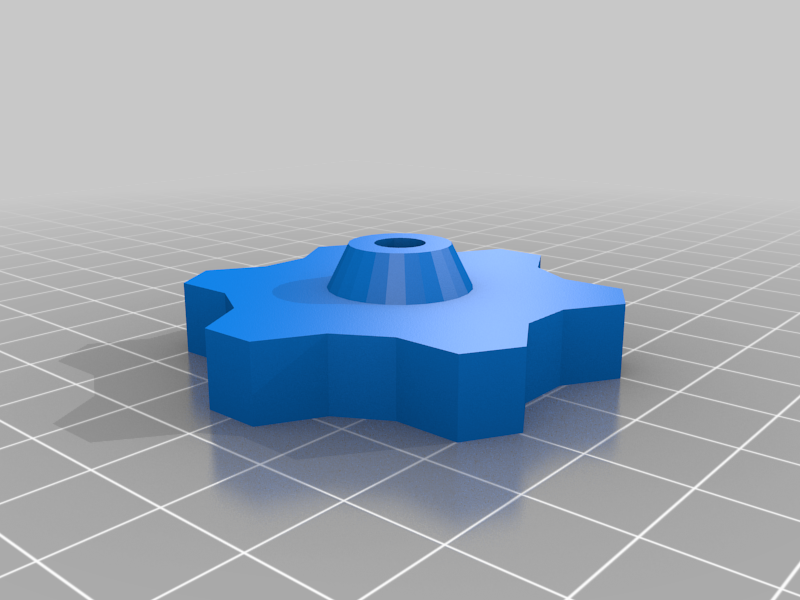

stlKnobBolt025.stl
55 Ko · 9 048 téléchargements
-

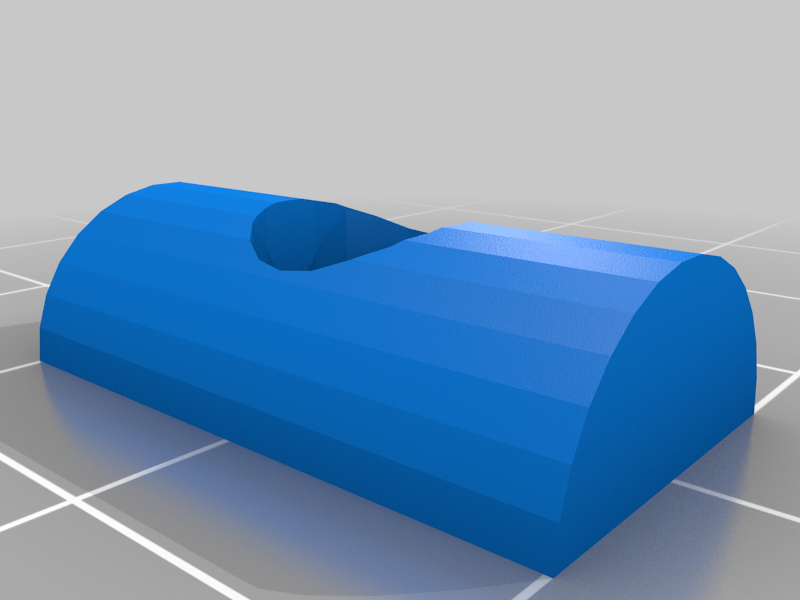

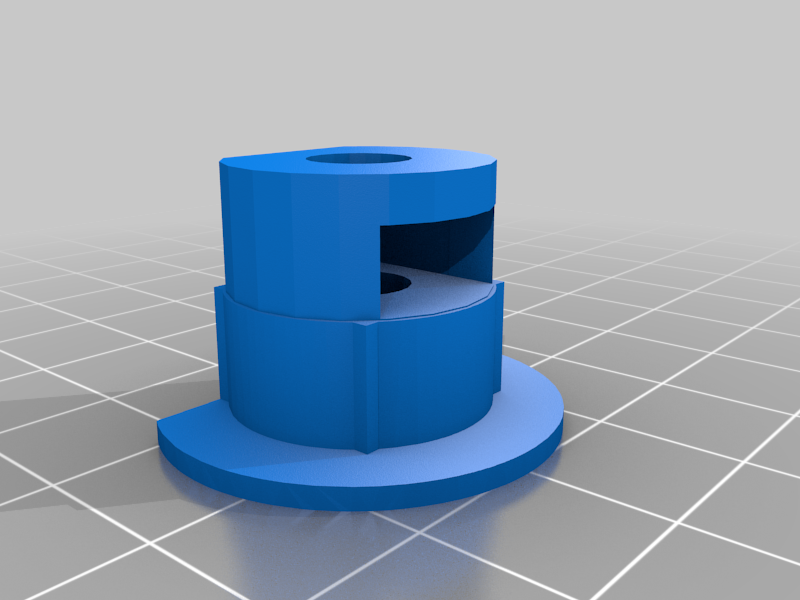

stlBenchInsert025.stl
123 Ko · 8 978 téléchargements
-

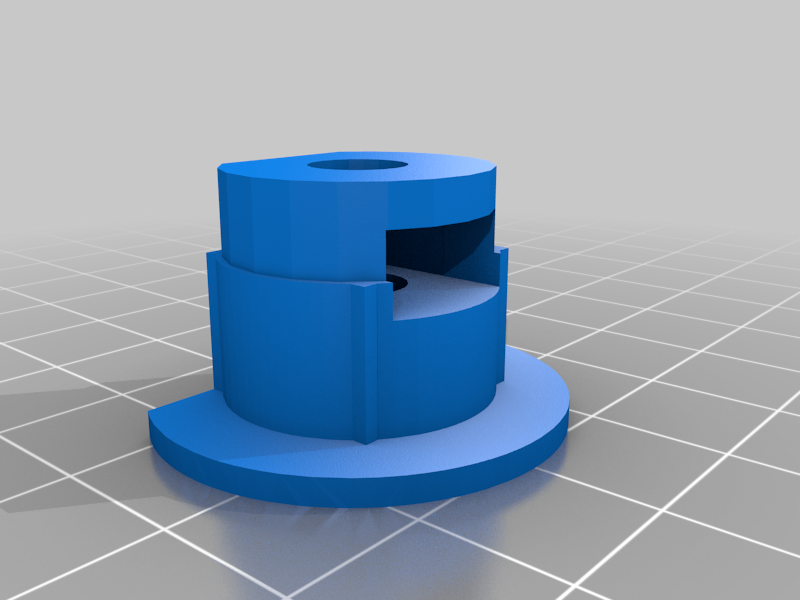

stlBenchInsertM6.stl
158 Ko · 8 985 téléchargements
-

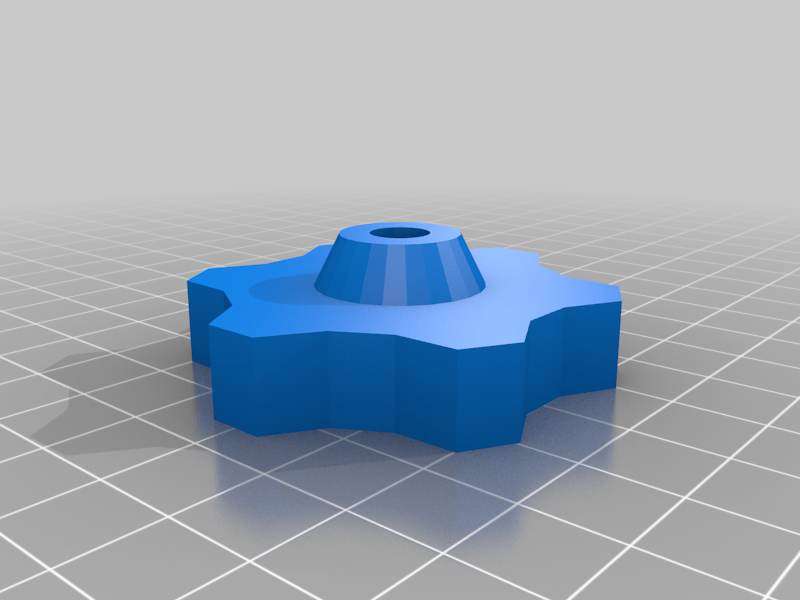

stlKnobBoltM6.stl
55 Ko · 9 004 téléchargements
-
stlWorkmateInsert.stl
37 Ko · 8 537 téléchargements
-
stlBenchInsert0.75.stl
41 Ko · 8 544 téléchargements
Description

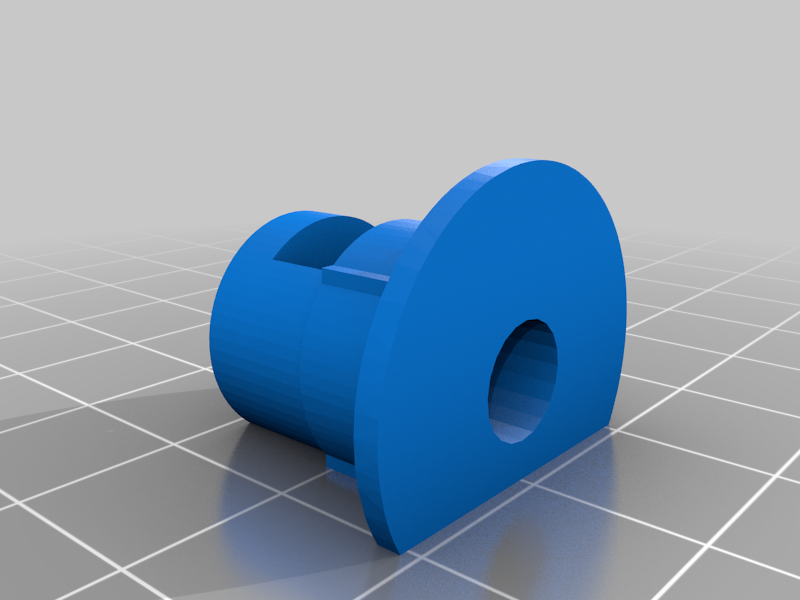

I designed plugs in tinkercad to fill the bench dog holes (5/8" holes) in my Harbor Freight Bench. I made them with a nut insert so I could screw in CNC style clamps. Details are in my video:
https://youtu.be/0opmQY5PaGM
I added an metric M6 Insert and Knob version for those outside the USA. I originally used an M6 Bolt and Nut in the first design but then couldn't find a long enough bolt (2 1/2") in metric so I changed the design to 1/4-20 since I had many of those.
12/15
I added a 3/4 inch hole insert and a 20mm insert to fit a Workmate portable bench. Details in this video.
https://youtu.be/B_lnv26OeDg
