Rad Pad USB Controller
par UpUpandAway
Fichiers imprimables (7)
-

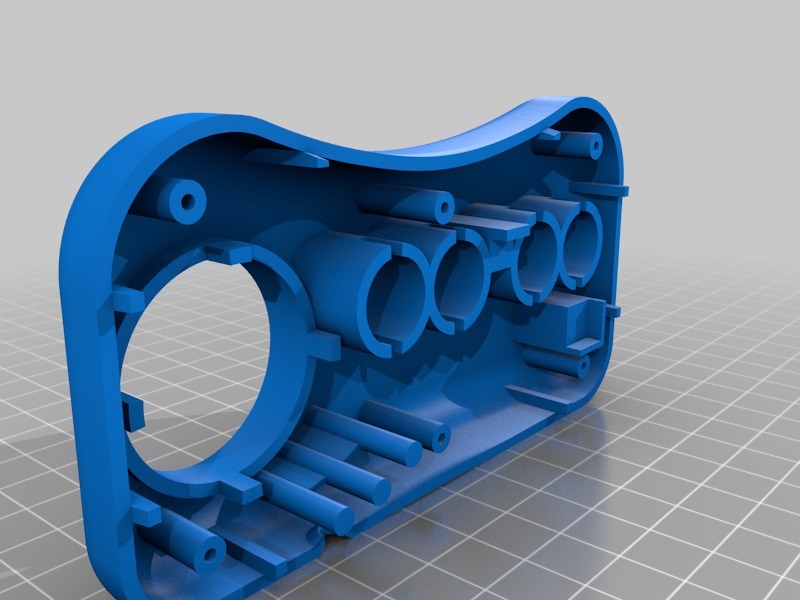

stlController_Body_Front_Half_v1.0.STL
2.8 Mo · 1 004 téléchargements
-

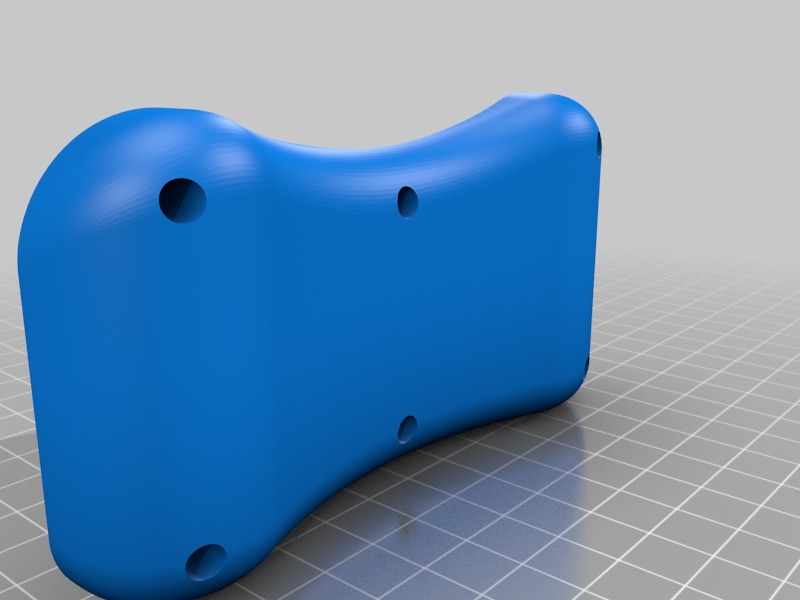

stlController_Body_Back_Half_v1.0.STL
2.6 Mo · 971 téléchargements
-

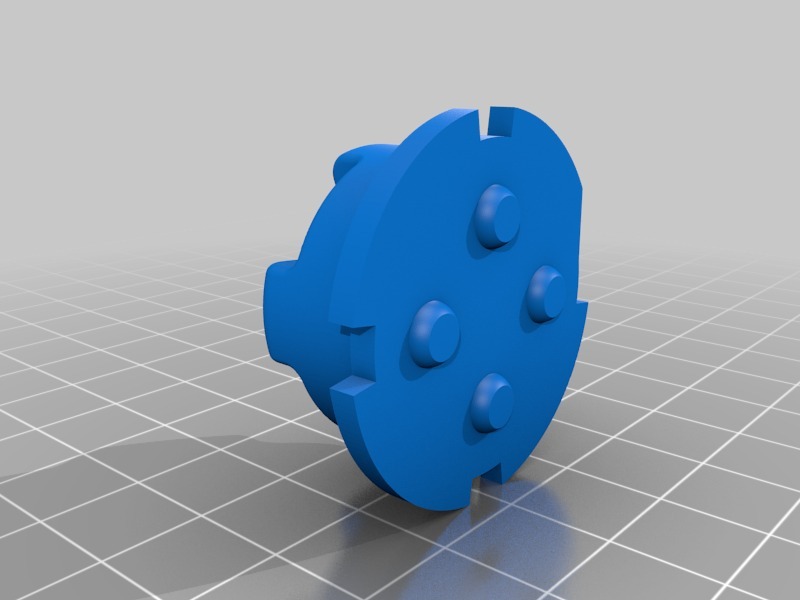

stlD-Pad_v1.0.STL
2.8 Mo · 961 téléchargements
-

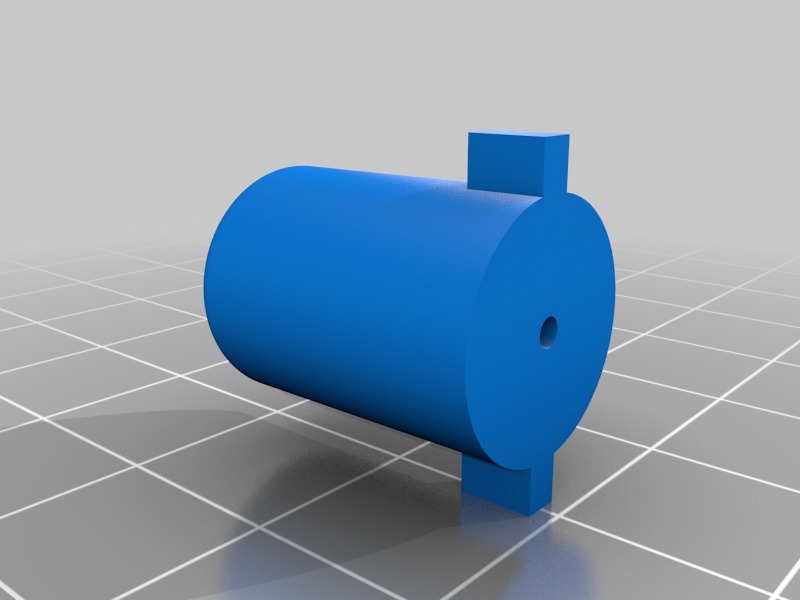

stlStart_Button_v1.0.STL
765 Ko · 932 téléchargements
-

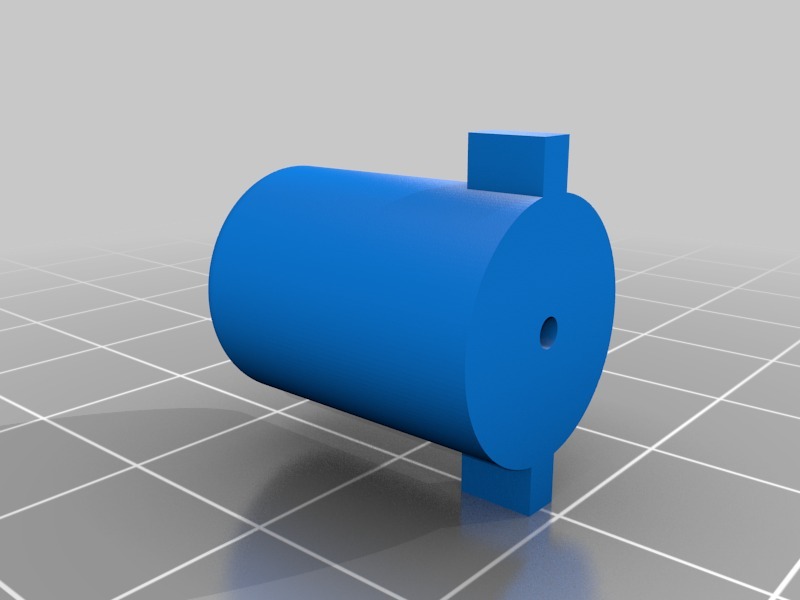

stlSelect_Button_v1.0.STL
765 Ko · 996 téléchargements
-

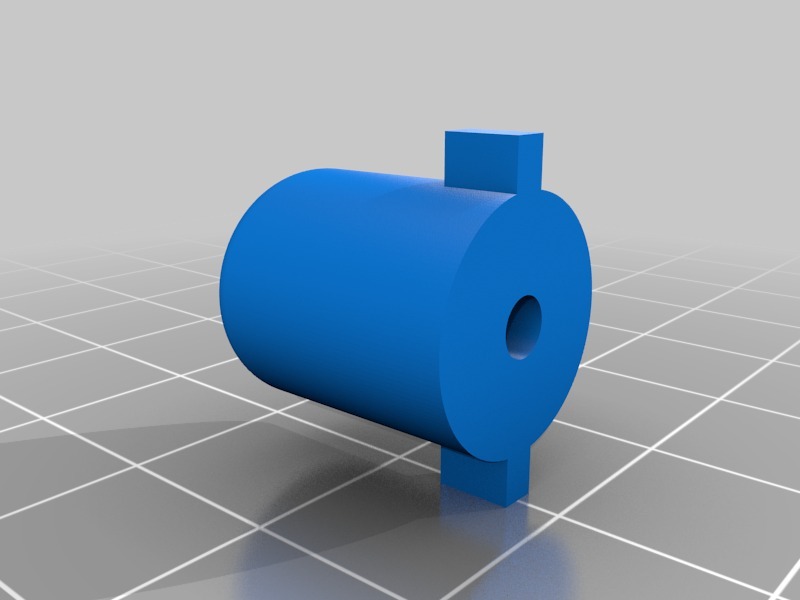

stlA_Button_v1.0.STL
753 Ko · 963 téléchargements
-

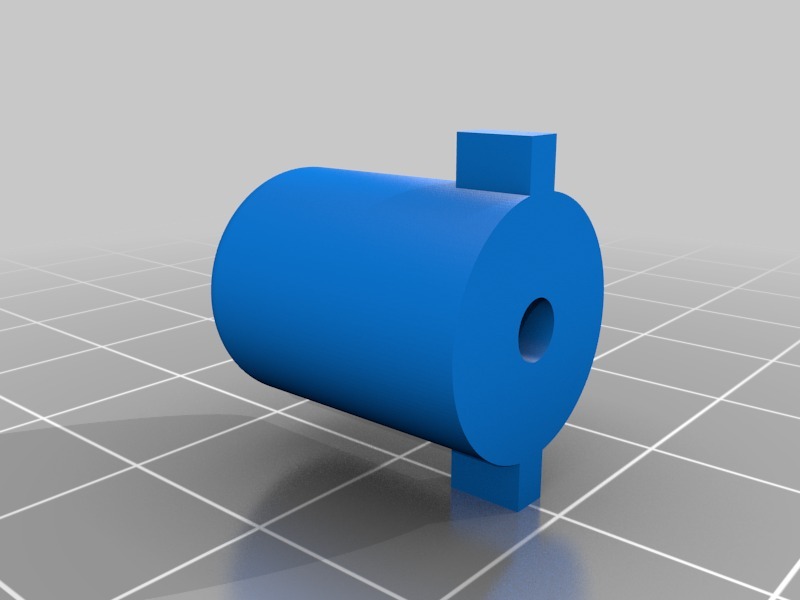

stlB_Button_v1.0.STL
792 Ko · 969 téléchargements
Description
I've always hated the incredibly uncomfortable controller of the 1985 Nintendo Entertainment System, so I thought it was time to fix that. Starting with a USB NES controller, I measured and modeled the PCB and silicon membranes and then designed a more ergonomic controller around it. The end result is a controller with much more comfortable buttons and D-pad to play NES games the right way (albeit on the computer since it's USB).
