Ghostbusters Proton Pack

par MileyORiley

Fichiers imprimables (64)

Description

I hear people are having trouble downloading all items at once I deleted every item and re-uploaded them to try and fix this

please note: you can still download them individually perfectly fine

PART OF FULL PROTON PACK BUILD - NEUTRON THROWER ALSO AVAILABLE

Thrower: https://www.thingiverse.com/thing:2442928

This is the Pack part from my 3D printed Ghostbusters Proton Pack build.

The prop was made using various measurements from the gbfans.com wiki. Changes were made to have it 3D print easily, and space was made inside for all the electronics.

Inside the Neutron Thrower is an arduino, which powers the lights. There is a sound board for the SFX, which is toggled be a small set of relays, this then powers the speakers in the back of the pack.

The output of the sound in the video on the Neutron Thrower page shows what sounds the pack can make. In the finished prop all of the wiring went down the hose and connected to power and speakers in the Proton Pack itself.

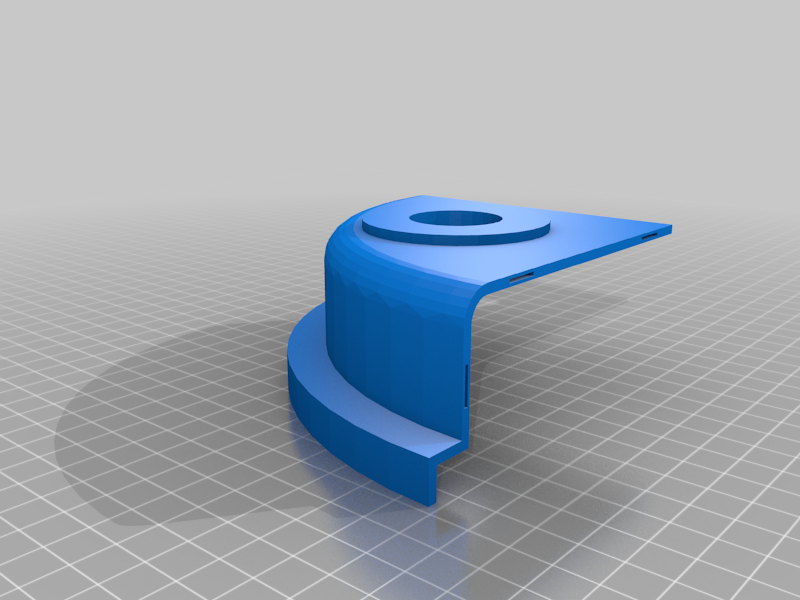

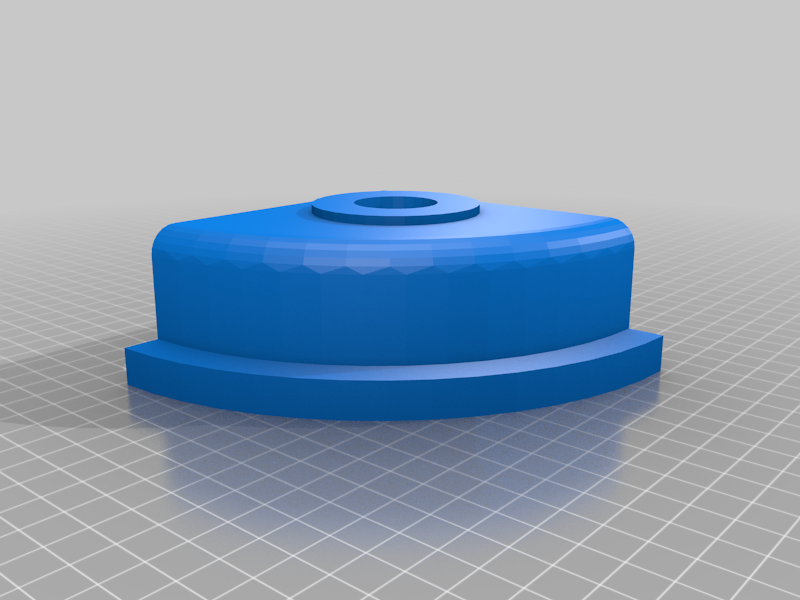

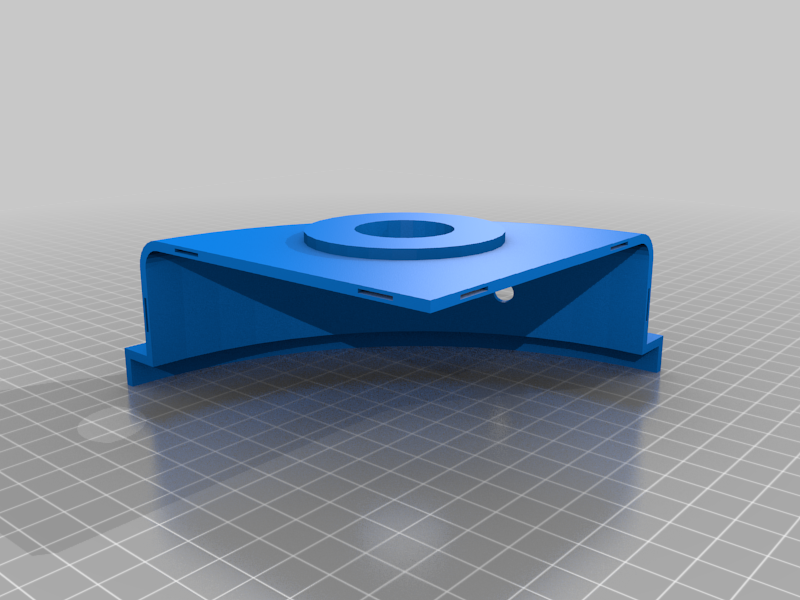

With this item I have included a parts list which should help you out, it's honestly not that hard to assemble. Most the parts should print flat on the bed in one orientation or another only the Cyclotron parts will need support material. Everything else can be orientated to be printed without.

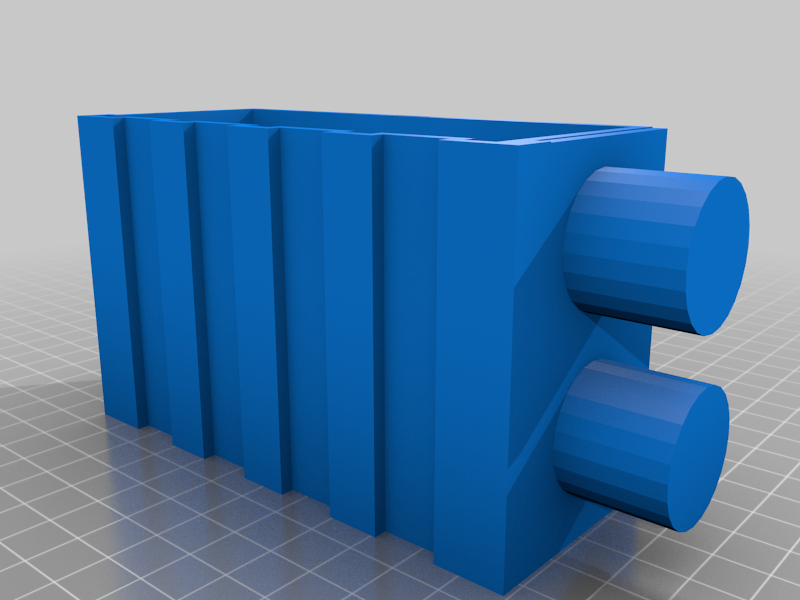

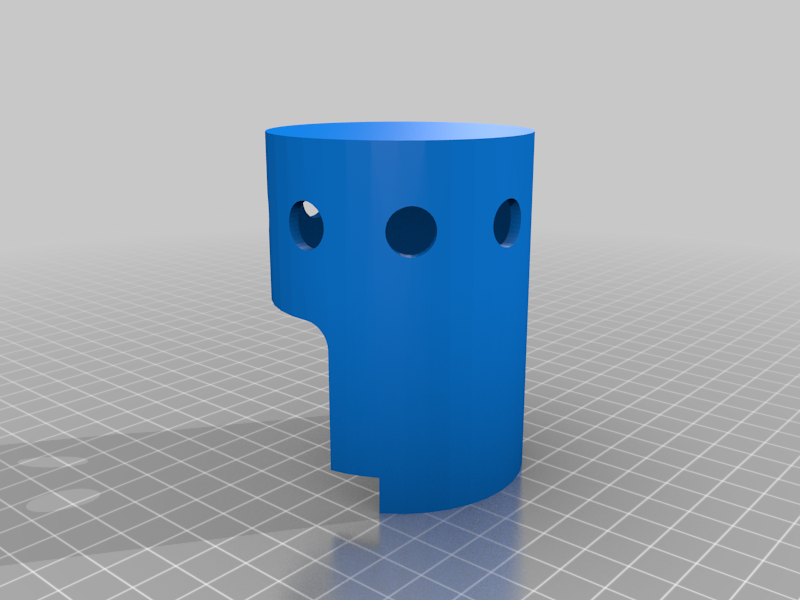

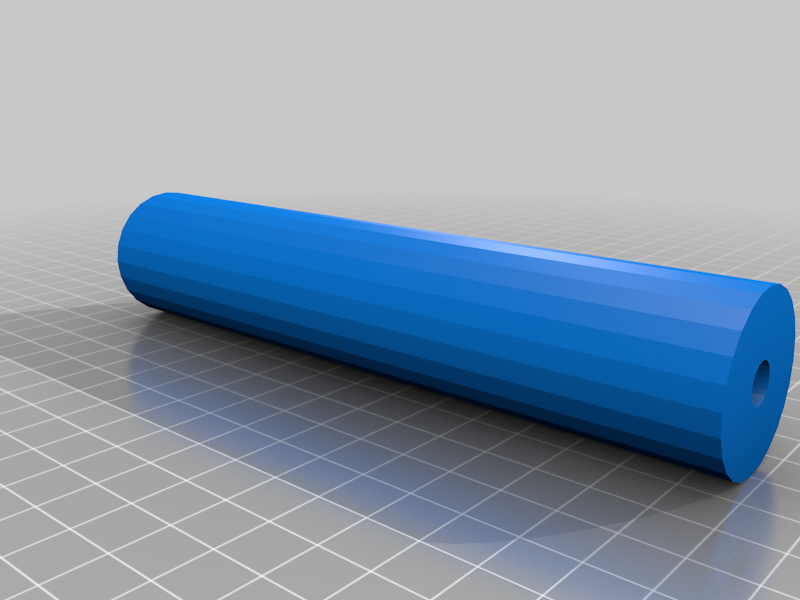

The prop is designed with holes for LEDs which sat behind opaque plastic in the Cyclotron. Lighting in the powercell came direct from blue LEDs which I have also created a mount for.

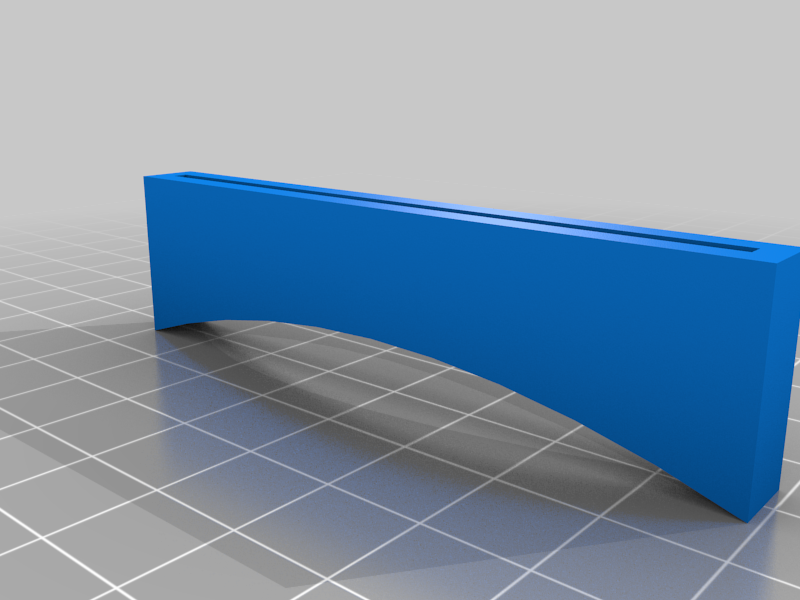

To finish the look you will need at least some wires, hose and the iconic rainbow ribbon cable. I also added machine bolts to hold parts in place and give it an industrial look.

Size wise, this was reduced by 10% as I'm a slim chap and thought the full size would look out of place. I also reduced the depth of some parts that didn't need to be so bulky to recreate the look.
