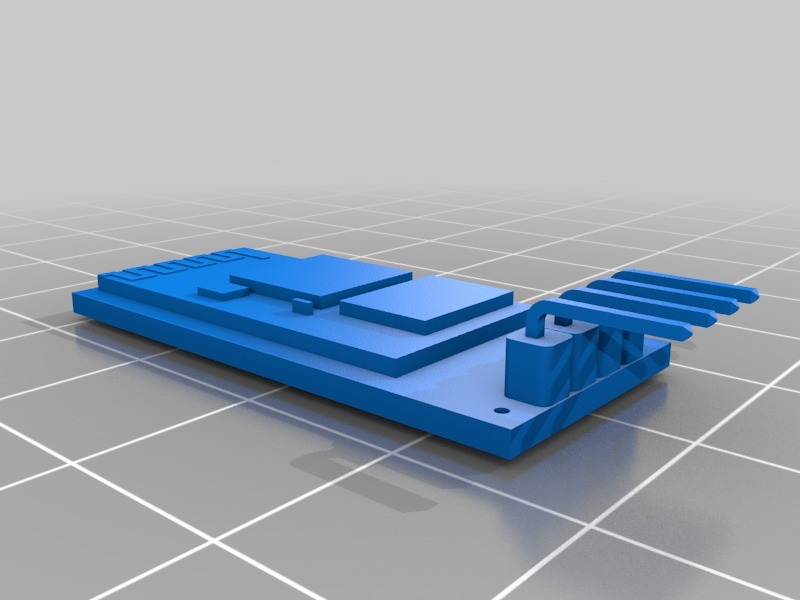

Bluetooth Module JY-MCU

par cmspooner

Fichiers imprimables (2)

  • step

    JY-MCU_Bluetooth_Board.ipt.stp

    205 Ko · 945 téléchargements

    Télécharger
  • stl

    JY-MCU_Bluetooth_Board.ipt.stl

    136 Ko · 1 003 téléchargements

    Télécharger

Description

An inexpensive Bluetooth module for Arduino. I needed one sized to make a mount for one so i modeled it.

Update 2/21/14: Fixed Minor pin spacing; making it fully compatible with my Arduino Uno model: http://www.thingiverse.com/thing:253463

Tags

#arduino #bluetooth #board #HC-05 #HC-06 #Inventor #ipt #JY-MCU #model #STEP #stl #stp
