DIY Z Probe Hypercube Evolution
par chanders
Fichiers imprimables (6)
-

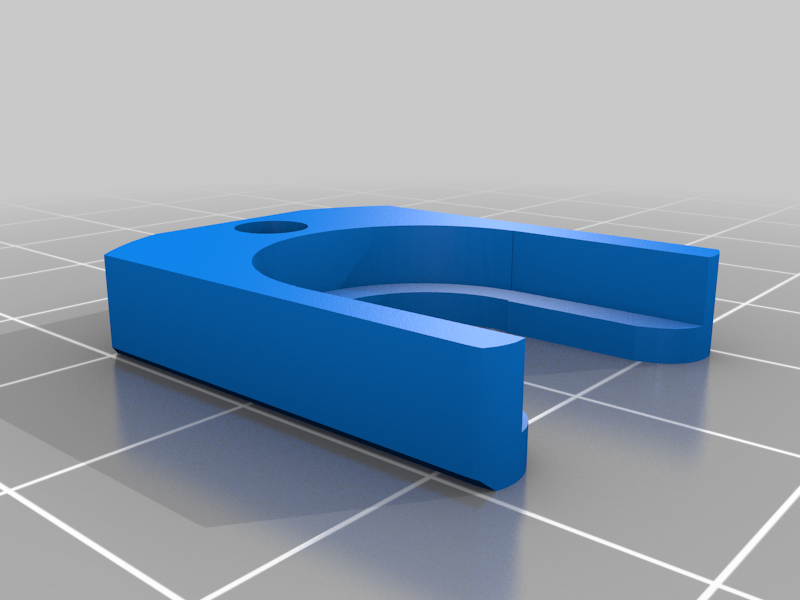

stlE3D_V6_Clip_1.0.stl
34 Ko · 1 472 téléchargements
-
stlExtruder_Mount_1.0.stl
250 Ko · 1 487 téléchargements
-

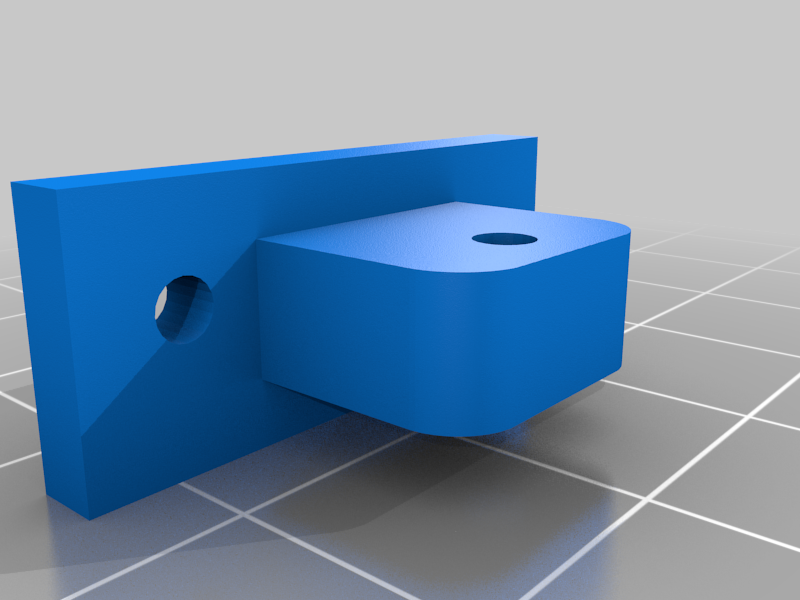

stlScrew_Contact_Holder_1.0.stl
39 Ko · 1 468 téléchargements
-
stlFan_Duct_1.0.stl
56 Ko · 1 465 téléchargements
-
stlBlower_Bracket_1.0.stl
89 Ko · 1 463 téléchargements
-

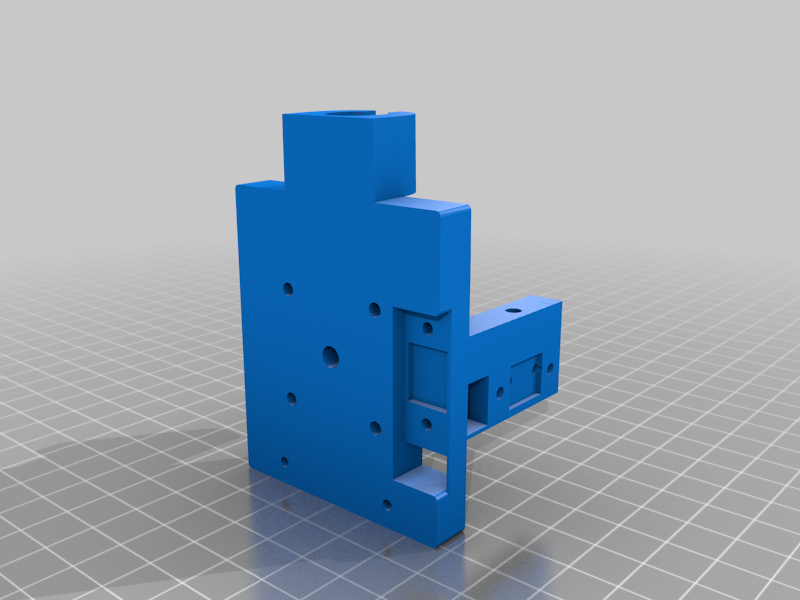

stlHotend_Mount_1.0.stl
123 Ko · 1 472 téléchargements
Description
DIY Z-Probe for Hypercube Evolution.
You can use
- Mechanical endstop
- Optical Endstop
- Metal contact
Wire up your endstop into your Z-min (using Marlin) and configure as a Z-Probe.
The Screw Contact Holder is to be used if you are going with option 3 above.
Please post up a MAKE if you made one or remixed it.
