Switchbox V5 - Hinged
par Zippitybamba
Fichiers imprimables (7)
-

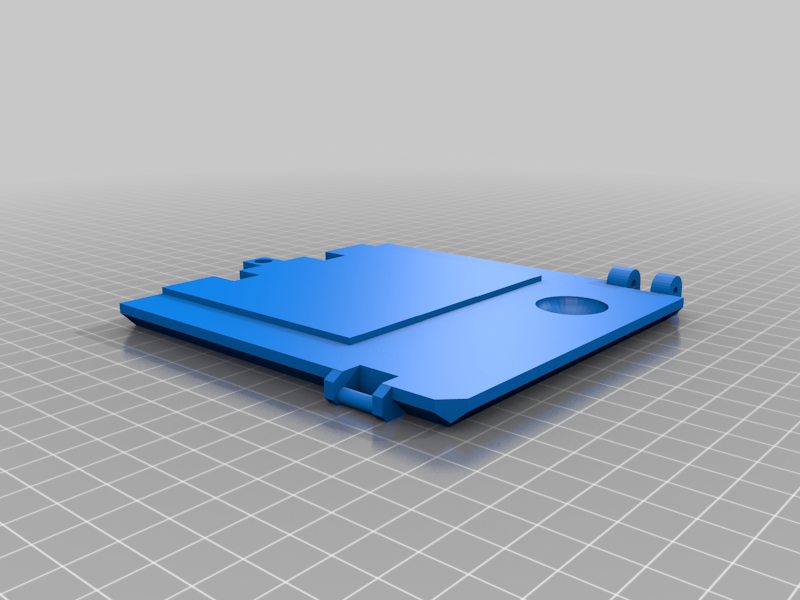

stlLid_Right_V5.stl
151 Ko · 9 413 téléchargements
-

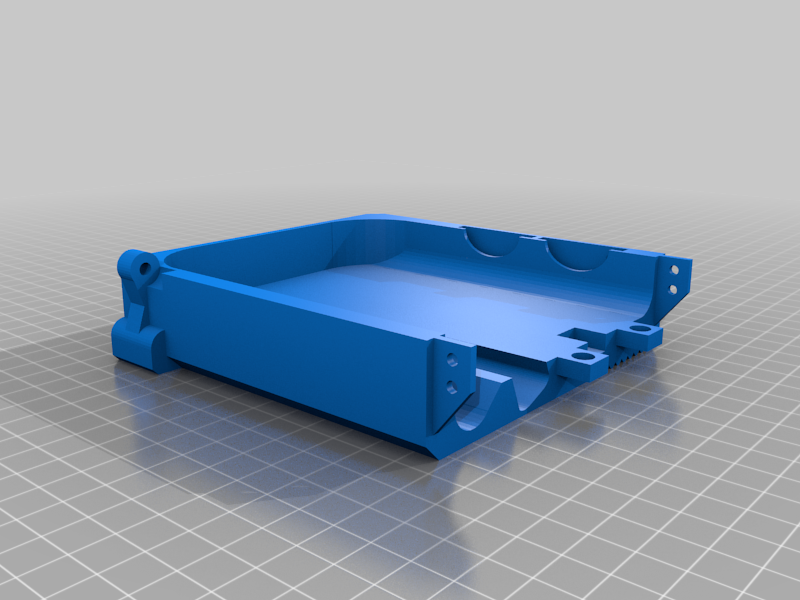

stlBase_Left_V5.stl
131 Ko · 9 403 téléchargements
-

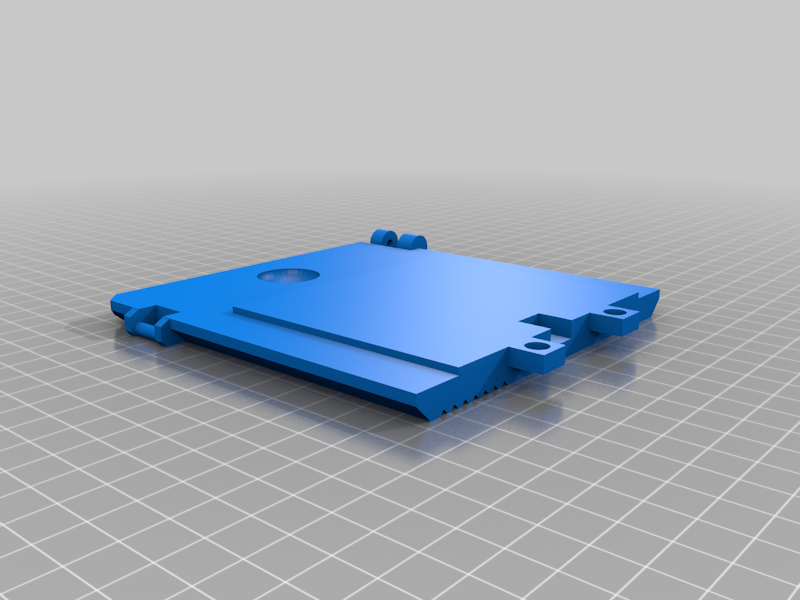

stlLid_Left_V5.stl
155 Ko · 9 380 téléchargements
-

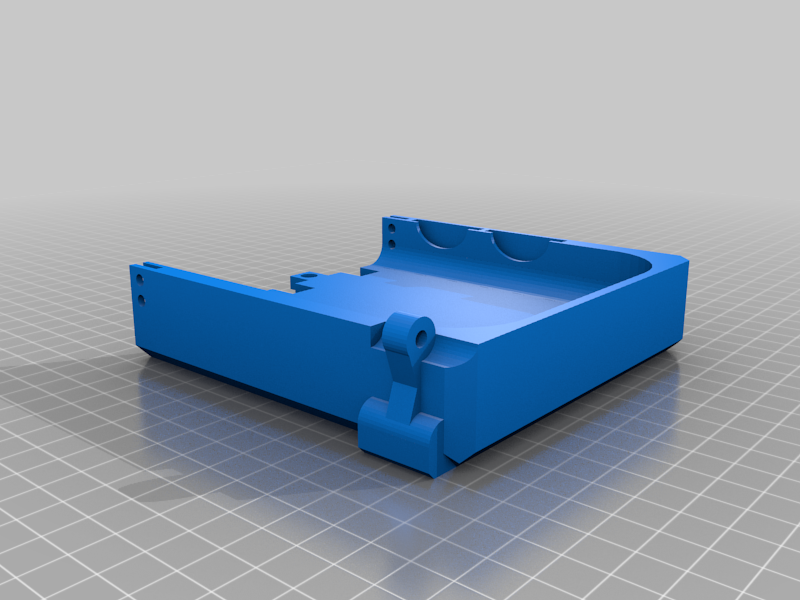

stlBase_Right_V5.stl
160 Ko · 9 377 téléchargements
-

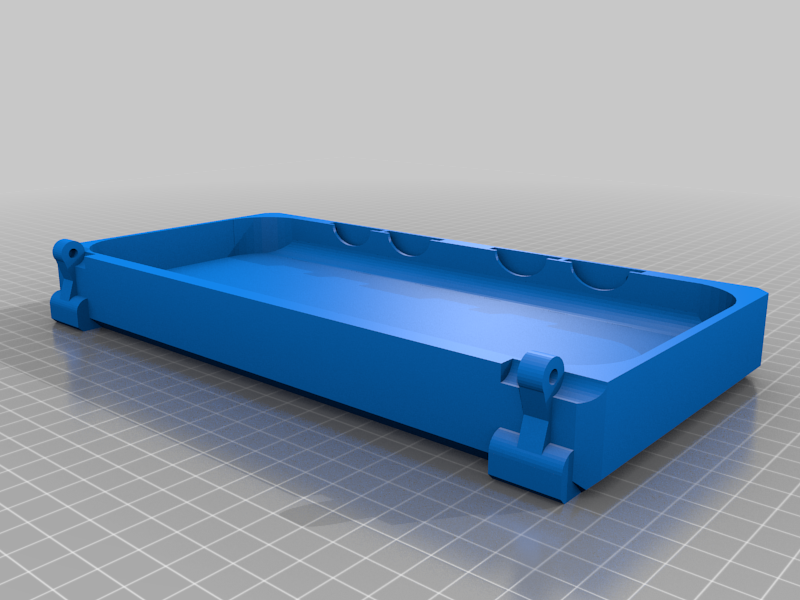

stlHinged_Switch_Case_V5_Joined_Base_2.stl
235 Ko · 9 500 téléchargements
-
stlHinged_Switch_Case_V5_Joined_Base_1.stl
141 Ko · 9 519 téléchargements
-

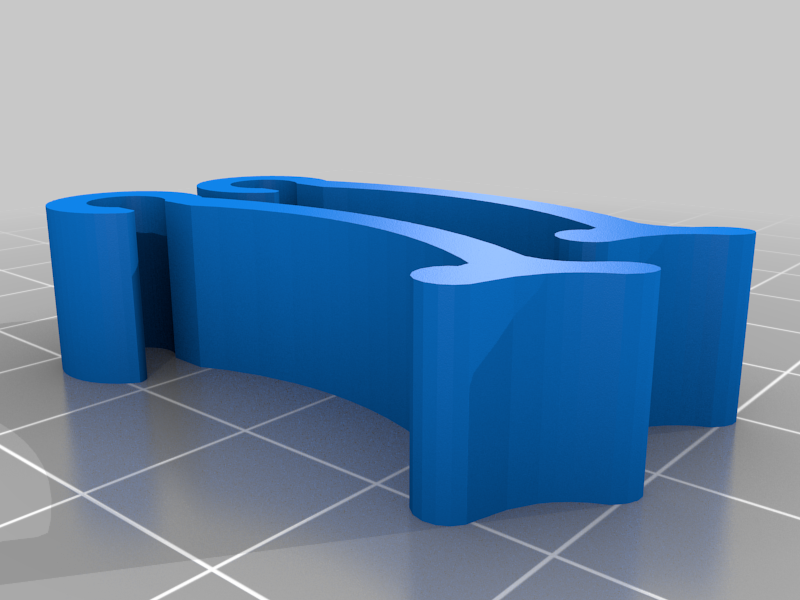

stlHinged_Switch_Case_V5_Clasps.stl
54 Ko · 9 465 téléchargements
Description
*Update 2019/04/08: Check out my new version that holds 4 controllers! https://www.thingiverse.com/thing:3550691
Update 2017/12/12: Added version of files for large printer beds (250mm or greater) with the base and lids fused
After using my V4 Switchbox (https://www.thingiverse.com/thing:2239949) for a while I decided the sliding mechanism, though cool, needed work. This is essentially the same on the outside, but now has a hinged lid to allow access to the Switch from the top. It's much more secure-- less likely to drop your Switch or game cartridges. It also has a slot built in to stand up the screen during play.
I've revised the clasp since the photos here. Check out the rendered versions for the new look.
This version prints on a 200x200mm bed. You will need:
- M3 screws, 5mm x 10 for assembly
- M3 screws, 20mm x 2 for the hinges
- glue, CA or other. I use contact cement. I recommend gluing the shell halves together, not relying just on the screws.
- thin foam sheets from any craft store to make the cushions.
