PICKit3 StrongBox

par freshnelly

Fichiers imprimables (1)

Description

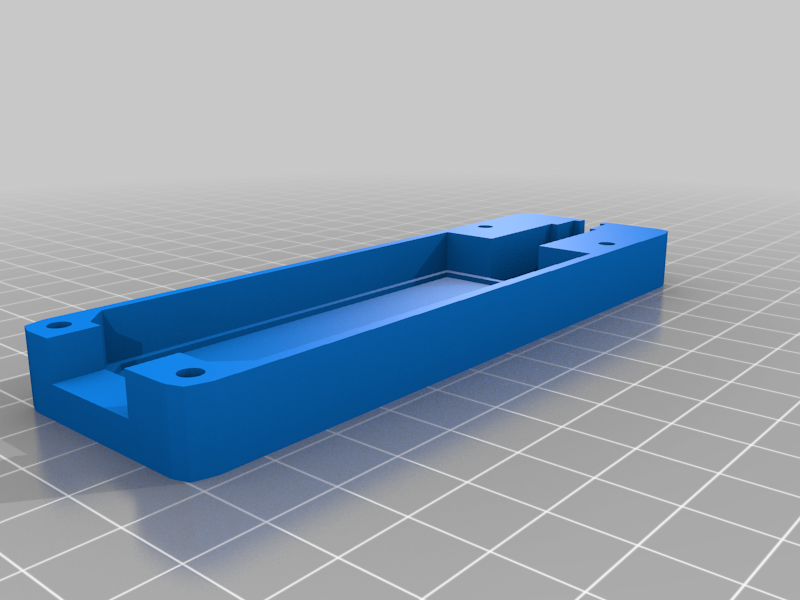

I was tired of breaking these boards with the crappy case the PICKit3 comes inside of (mostly the USB end) so I designed this case. Also the GREEN LED will shine through the "Not Red" bezel (Idiots!) which I had never seen before!
If you don't want to print this with transparent PLA, just drill the LED holes after.
The field programming button is accessible, and soldering a male pin header to exit via the slot on top has also been useful.
