Audio Switch V1

par dklon

Fichiers imprimables (3)

  • stl

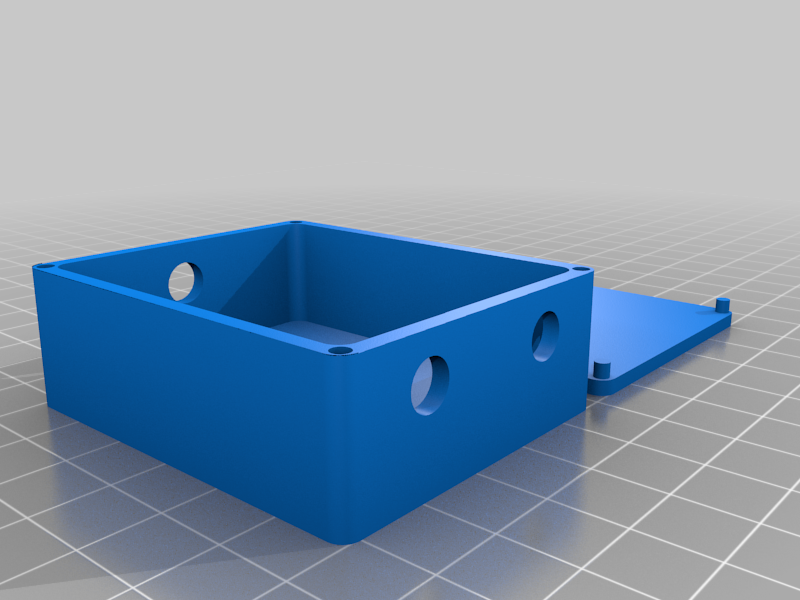

    Audio_Switch_all.stl

    829 Ko · 293 téléchargements

    Télécharger
  • stl

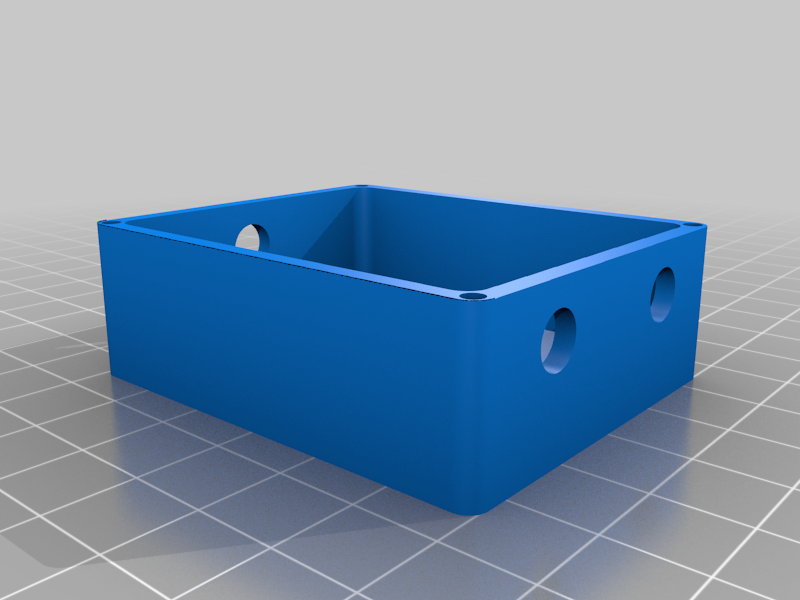

    Audio_Switch_case_only.stl

    509 Ko · 287 téléchargements

    Télécharger
  • stl

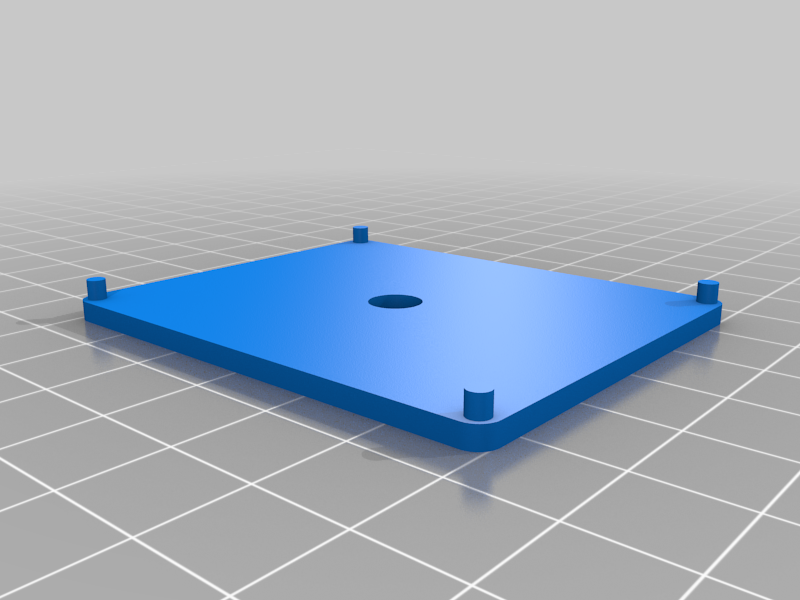

    Audio_Switch_lid_only.stl

    320 Ko · 290 téléchargements

    Télécharger

Description

I had wanted and needed an audio source switch. So, I decided to make one and learn something rather than buy something off-the-shelf.

This particular case is designed for 3.5mm diameter female audio jacks and a single DPDT switch on top. Other than that, all you need is some wire, soldering, and a little patience.

The case can be modified in OpenSCAD with the variables at the top. I ended up going through a couple of revisions because I needed more room to get my big fingers in. The height of the case is about as small as you can go with a DPDT switch and all of the accompanying wires.

Tags

#audio switch #DPDT
