Delta Printer
par ossantiago
Fichiers imprimables (14)
-
stlt1_v1.stl
70.6 Mo · 4 768 téléchargements
-
stlt1-hotbed-base.stl
440 Ko · 4 728 téléchargements
-
stlt1-electronics-p2.stl
446 Ko · 4 727 téléchargements
-
stlt1-electronics-p1.stl
956 Ko · 4 706 téléchargements
-
stlt1-electronics-p3.stl
1.1 Mo · 4 704 téléchargements
-

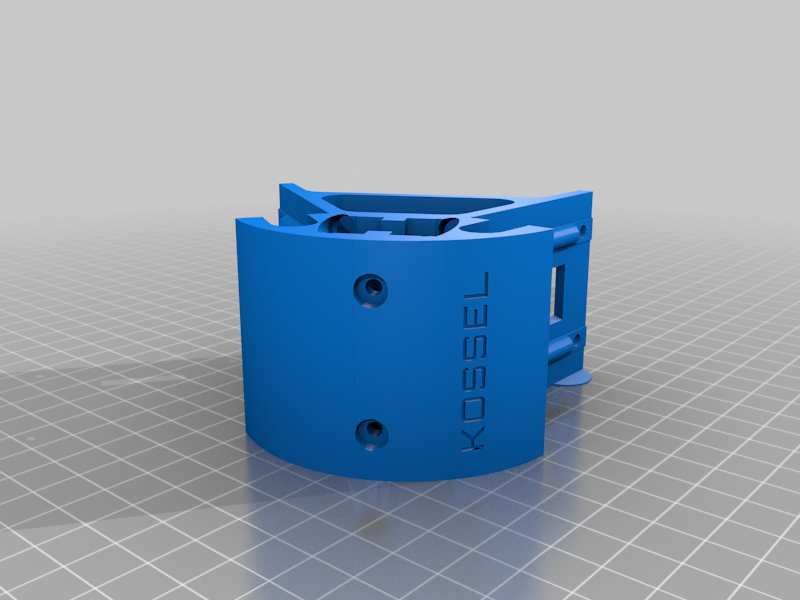

stlt1-base-corner.stl
2.7 Mo · 4 752 téléchargements
-
stlt1_carriage_belt.stl
418 Ko · 4 718 téléchargements
-
stlt1_carriage_front.stl
1.9 Mo · 4 717 téléchargements
-
stlt1_carriage_back.stl
1.9 Mo · 4 713 téléchargements
-
stlExtruder_holder_-_left_side.STL
136 Ko · 4 685 téléchargements
-
stlEnd_Stop_Bracket_2020_M4.stl
111 Ko · 4 611 téléchargements
-
stlCarriage_Straight_Teeth_from_original.stl
371 Ko · 4 677 téléchargements
-
stlDeltaArmAllighmentPlate.stl
1.9 Mo · 4 666 téléchargements
-
stlframe_top.stl
2.9 Mo · 4 700 téléchargements
Description
This is my current project, after a failure with the purchase of a T1 I have decided to set up my own printer.

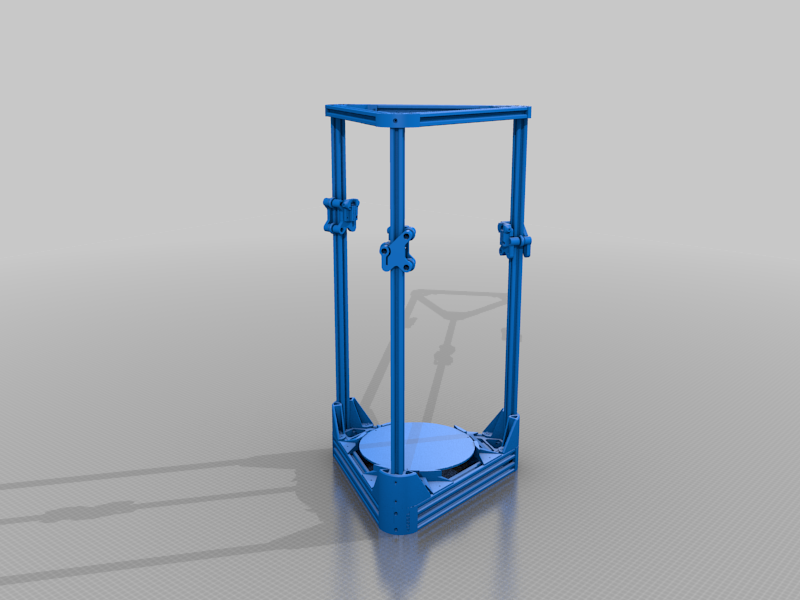

It is based on a frame of 300mm of side and 700mm of height, a warm bed of 220mm, and in the part of electronics I have used arduino + ramps + mosfet and the original power supply.
At this moment I am in the process of assembling the hot bed and everything points quite well. I will have to look for rods slightly longer than usual, about 250mm, but for the rest they are all standard components.
V1:
All parts finished, marlin latest 1.1.x firmware with autocalibrate and ubl, all works ok
