PCB Plotter Addon with variable spring load

par sidecarfalcon

Fichiers imprimables (3)

  • stl

    Plotter_duct.STL

    203 Ko · 473 téléchargements

    Télécharger
  • stl

    Plotter_spring_tightener_.STL

    2.5 Mo · 481 téléchargements

    Télécharger
  • stl

    Plotter_spring_bearing.STL

    1.5 Mo · 474 téléchargements

    Télécharger

Description

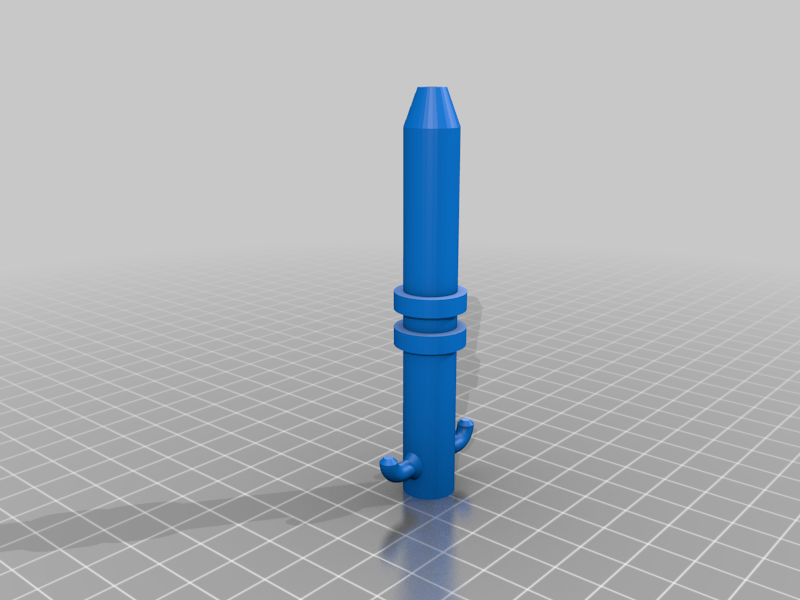

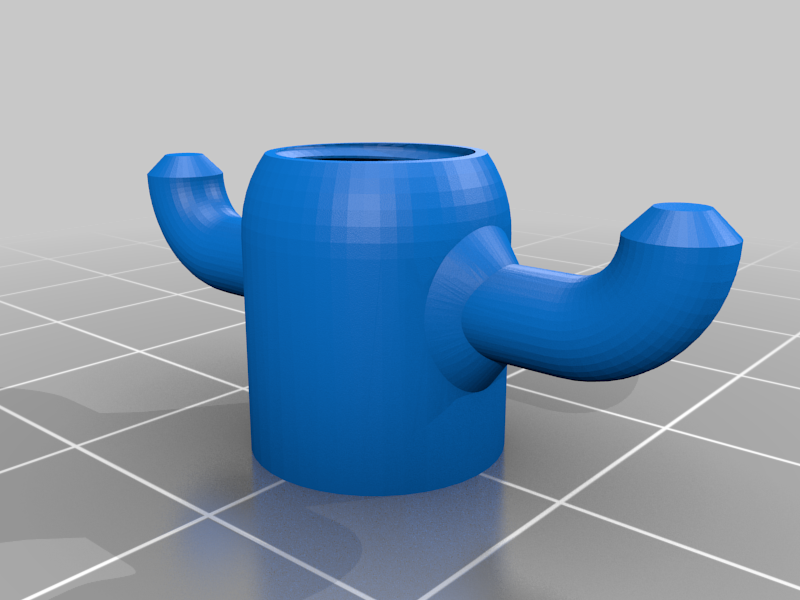

A remix of the original 3Dator idea. I adapted it to the 3Dator E3D printhead and added a mechanism to increase/decrease the spring load on the tip.

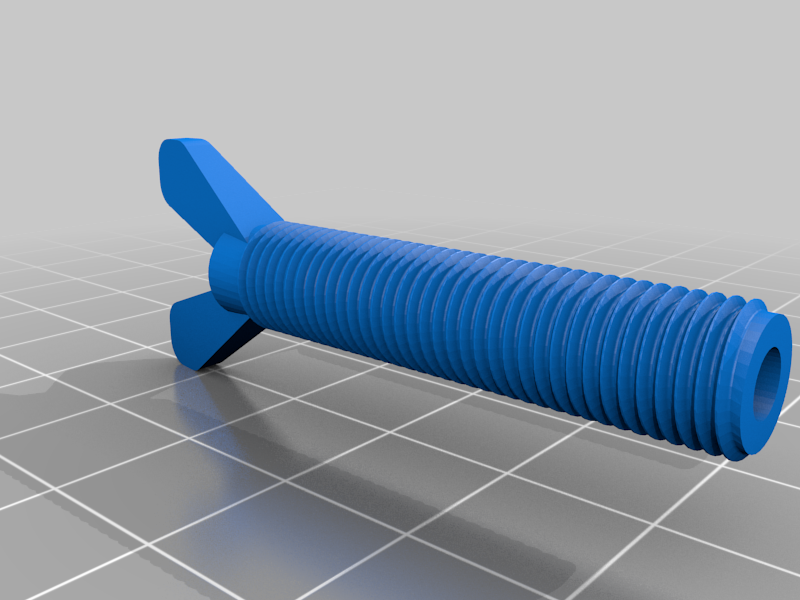

I used a 3,5mm diameter rod with a threaded end to screw it into the spring bearing, the springs are 5,5mm x 20,2mm.
