Raspberry Pi 3 B+ Case

par Teknosherpa

Fichiers imprimables (2)

  • stl

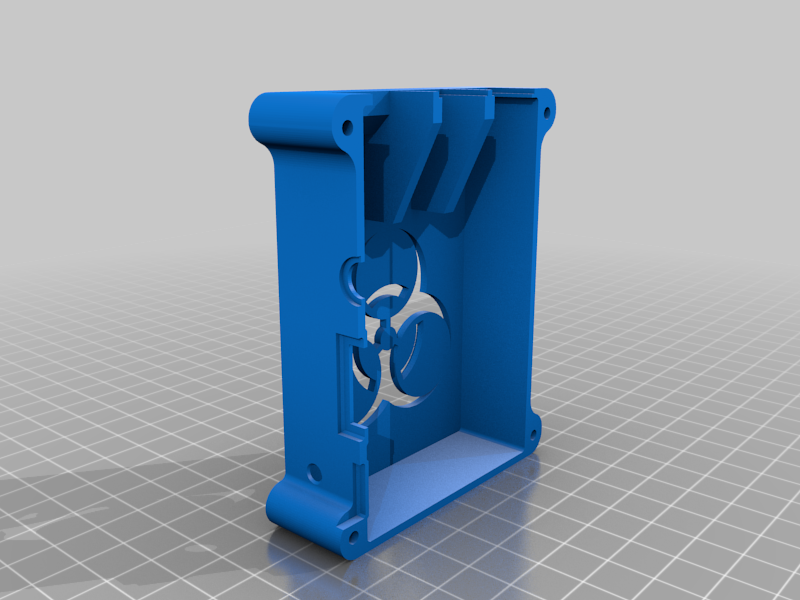

    RPi3_Case_Bottom.stl

    341 Ko · 6 484 téléchargements

    Télécharger
  • stl

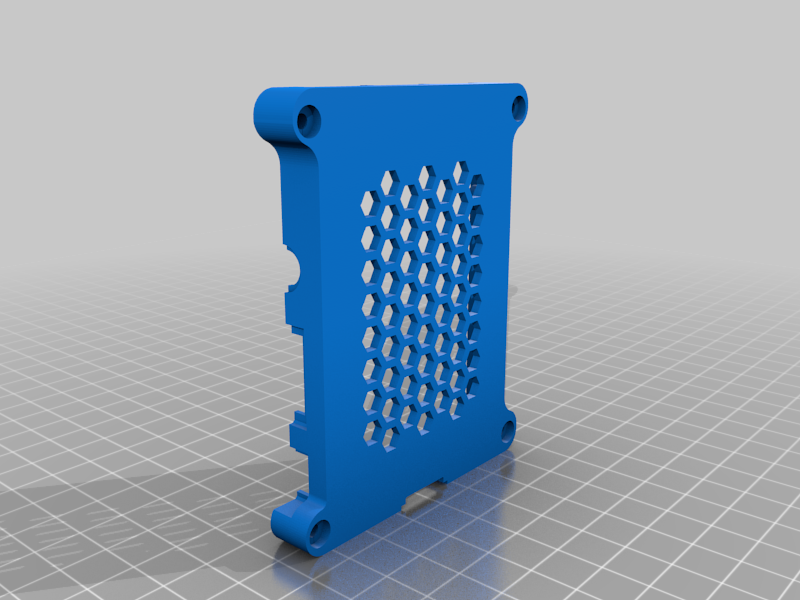

    RPi3_Case_Top.stl

    346 Ko · 6 460 téléchargements

    Télécharger

Description

This is a clean RPi 3 B+ case. I created it taller to make room for a on/off switch and custom LEDs.

I used 20mm M3 bolts for the case and 6mm M3 bolts to secure the RPi inside the case.

EDIT 8/30/18: I switched the side the bolts are installed. This way you can use shorter bolts and then the heads double as feet for air circulation.
