Load cell testbed
par RRacer
Fichiers imprimables (3)
-
stlLoad_cell_base_01.stl
311 Ko · 5 993 téléchargements
-
stlLoad_cell_plate_01.stl
617 Ko · 6 622 téléchargements
-
stlLoad_cell_base_5kg_01.stl
178 Ko · 6 298 téléchargements
Description
Update 2018-10-02

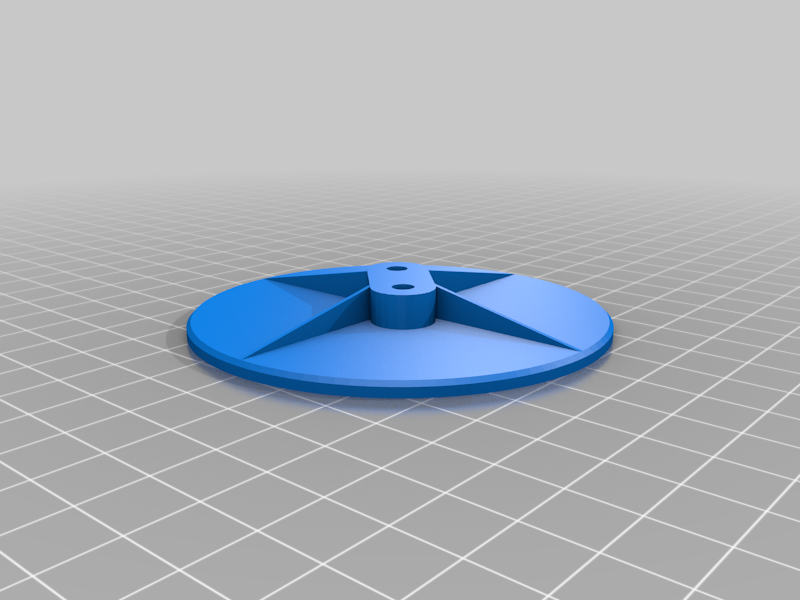

The base was a bit weak so I added a new one that will handle up to 5 kg if printed in PLA - more if you use stronger plastics.
When prototyping a project that includes a weight sensor, building a mock-up for the sensor is often difficult, time consuming and low precision.

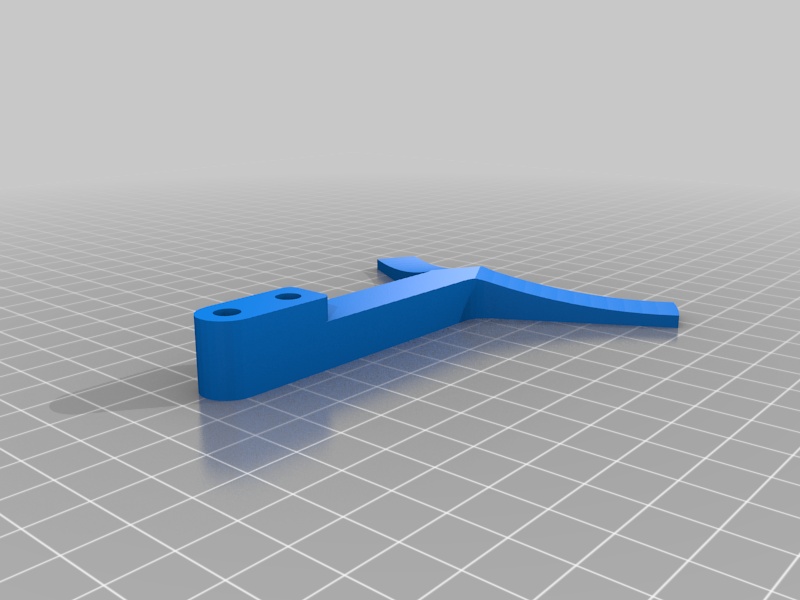

These two prints make up a simple test bed for low load prototyping.
Printed in PLA it's good for at least 1 kg, more if you use more exotic filaments.
This is designed to match a very common type of load cell, 80x12,7x12,7 mm, hole spacing 15 mm.
If you have a load cell of a different size I would be happy to make a version to that specification. Get in touch.

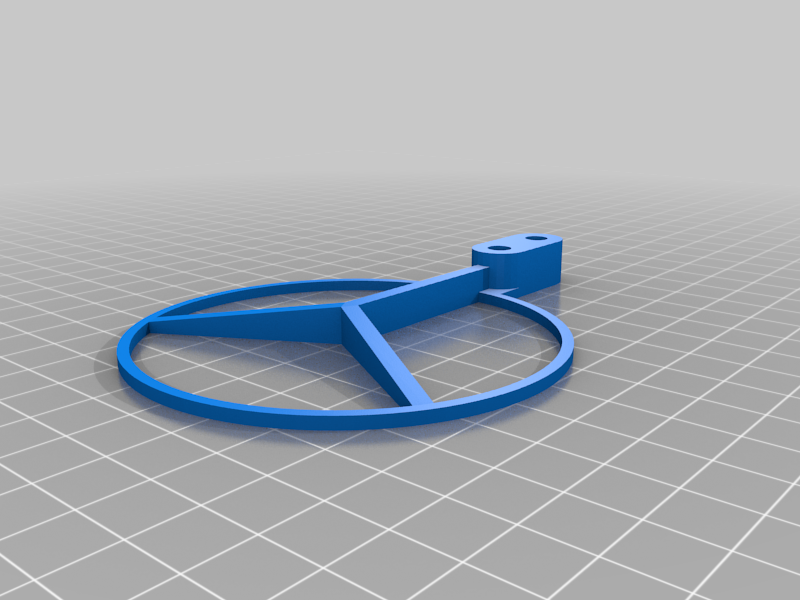

The bottom part looks like the Mercedes star, but that's purely coincidental.
