Modular Bit Storage (Bosch/Sortimo compatible)
par RickHuisman
Fichiers imprimables (20)
-
steprouterl_bit_holder_small.stp
126 Ko · 3 487 téléchargements
-
step
bitholder_wide.stp
925 Ko · 3 482 téléchargements
-
step
door_2.stp
274 Ko · 3 465 téléchargements
-
step
hinge.stp
12 Ko · 3 460 téléchargements
-
stldoor_1.stl
260 Ko · 9 251 téléchargements
-
stldoor_2.stl
314 Ko · 9 201 téléchargements
-
stlhinge.stl
232 Ko · 9 160 téléchargements
-
stlclasp.stl
177 Ko · 9 172 téléchargements
-
stlPegs.stl
97 Ko · 9 121 téléchargements
-
stlbitholder_wide.stl
121 Ko · 9 171 téléchargements
-
stlbitholder_small.stl
112 Ko · 9 136 téléchargements
-
stlangled_bitholder_wide.stl
46 Ko · 9 143 téléchargements
-
stlrouter_bit_holder_wide.stl
84 Ko · 9 120 téléchargements
-
stlrouter_bit_holder_small.stl
55 Ko · 9 090 téléchargements
-
step
bitholder_small.stp
857 Ko · 3 435 téléchargements
-
step
door_1.stp
261 Ko · 3 442 téléchargements
-
step
clasp.stp
45 Ko · 3 424 téléchargements
-
step
Assembly_bit_case.stp
2.7 Mo · 3 448 téléchargements
-
step
routerl_bit_holder_wide.stp
172 Ko · 3 428 téléchargements
-
step
angled_bitholder_wide.stp
350 Ko · 1 907 téléchargements
Description
This bit holder case is entirely customizable to the amount and type of bits you want to store in the case.

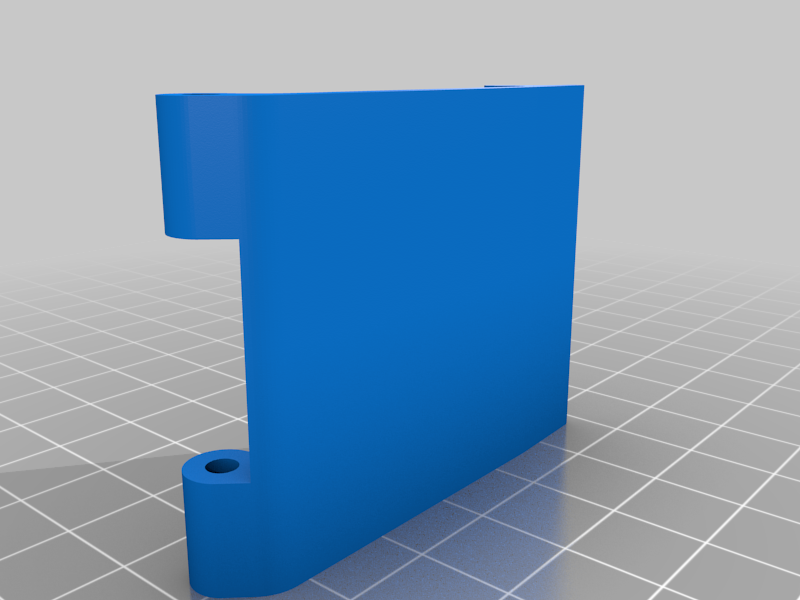

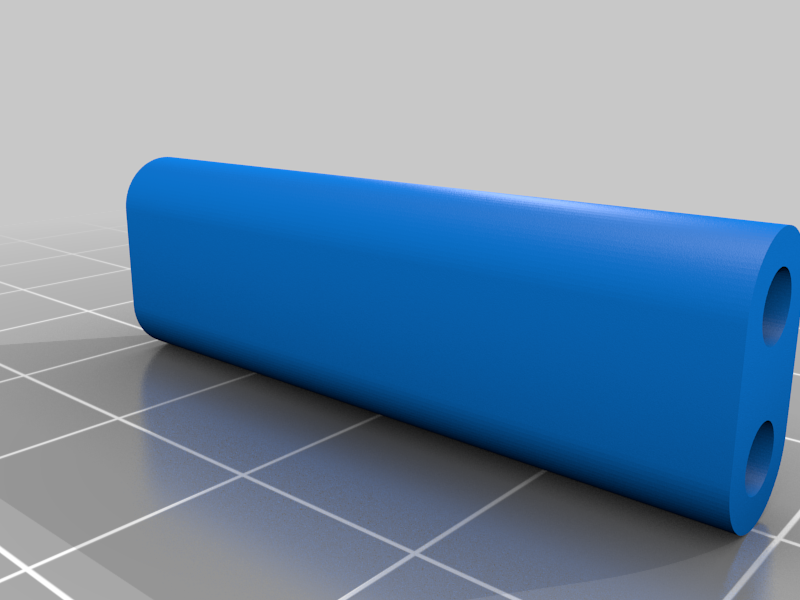

The case consists of two doors with slots that are connected by two hinge pieces and two 150mm x 3mm threaded rods. The clasp is attached using a 50mm x 3mm threaded rod.

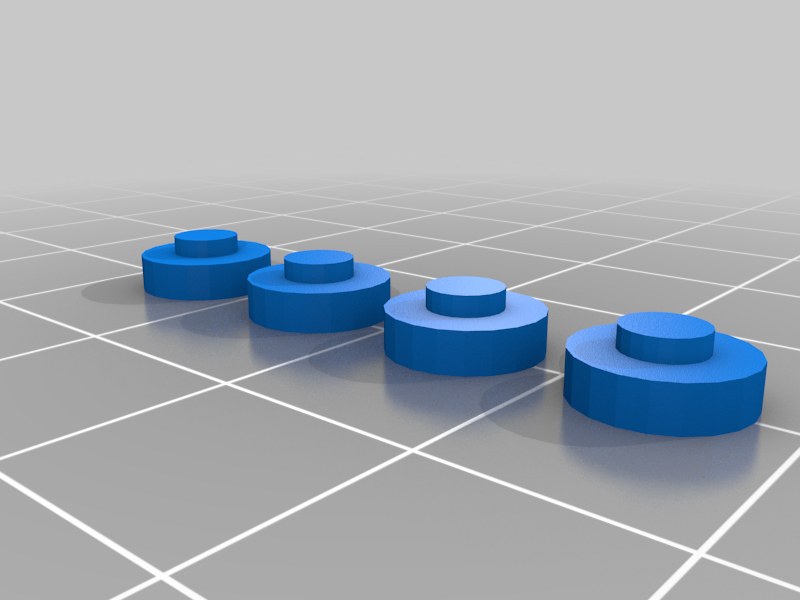

no nuts are needed as the threaded rods thread the holes inside of the door parts.The bit holders slide inside of the slots. pegs can be added to the bottom in order to make the cases stackable.

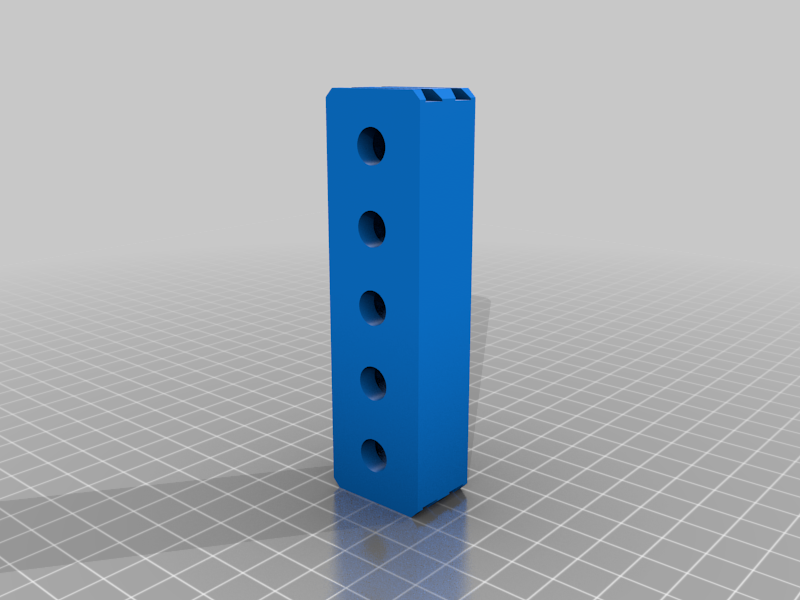

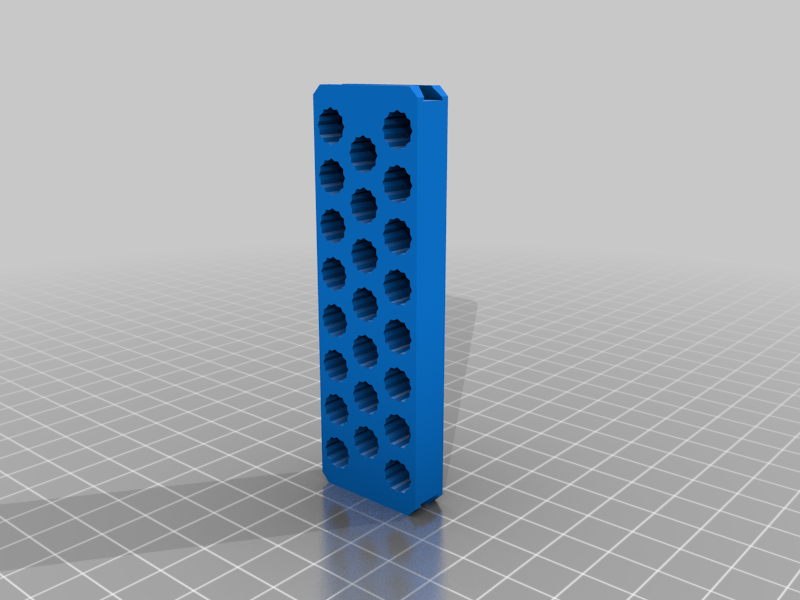

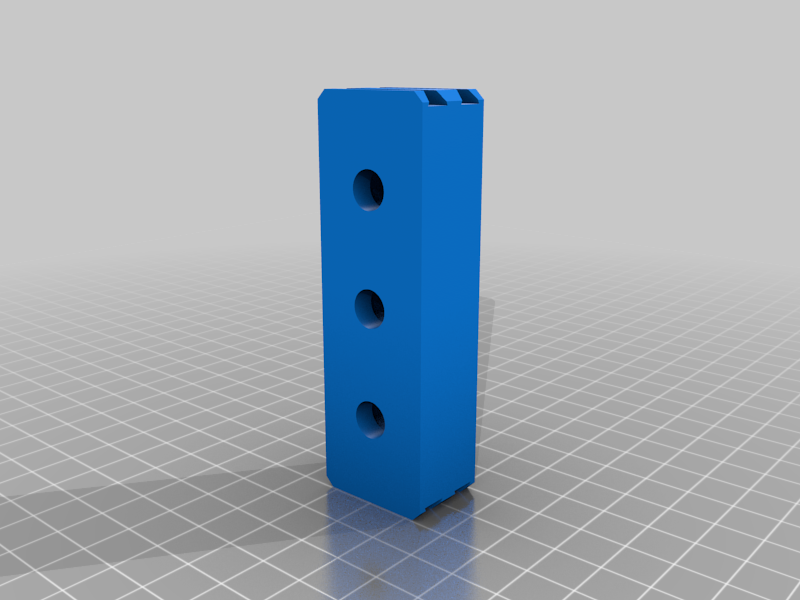

the bit holder STL's are for standard 1/4 inch hex bits.

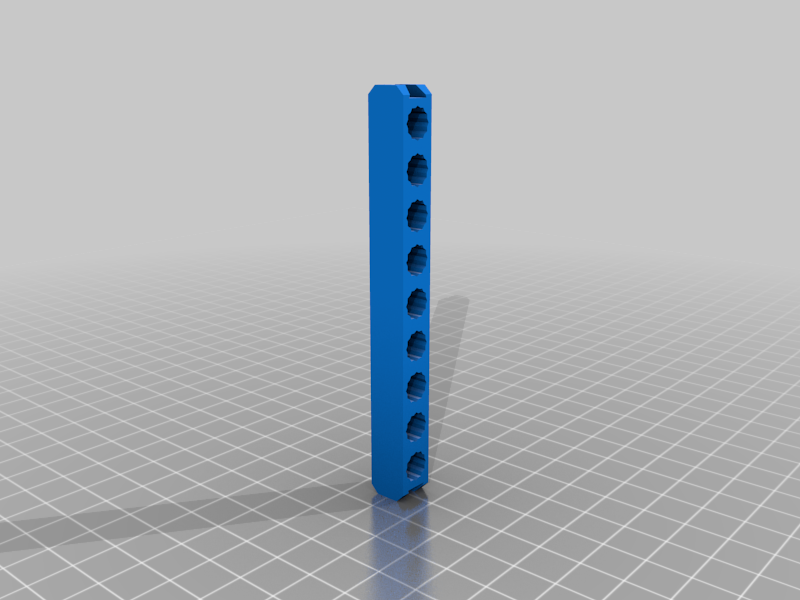

the router bit holders are for 8mm router bits.

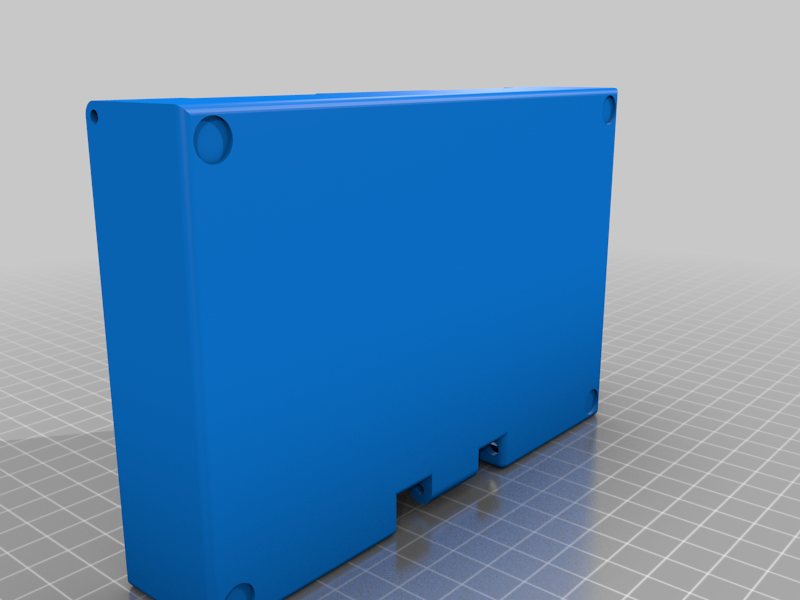

The bit case is compatible with the sortimo system, fits inside a L-boxx and should also fit inside other boxxes since it has the shape of a 2x3 sortimo insert.
the inventor files are also included for those that want to make their own inserts and parts
Note: some bit holders might need some minor readjustments which I plan to make once I've tested the case over the coming days.
I'm also thinking about adding inserts for SDS drill bits and jigsaw saws. so let me know if anyone might be interested in this.
