Baseball Bat Wall Mount; Stack-able
par Bombsurace
Fichiers imprimables (6)
-
stlHandleTopWallthing.stl
449 Ko · 932 téléchargements
-
stlBarrelMiddelWallthing.stl
455 Ko · 879 téléchargements
-
stlHandleMiddleWallthing.stl
423 Ko · 868 téléchargements
-
stlBarrelBottomWallthing.stl
511 Ko · 889 téléchargements
-
stlHandleBottomWallthing.stl
483 Ko · 882 téléchargements
-
stlBarrelTopWallthing.stl
415 Ko · 923 téléchargements
Description
Stack-able Baseball Bat mount, to extend to multiple bats for displaying.
Each piece can be used on the left or right side of the mount, pending on which way you need to display your bat, or signatures and the like.

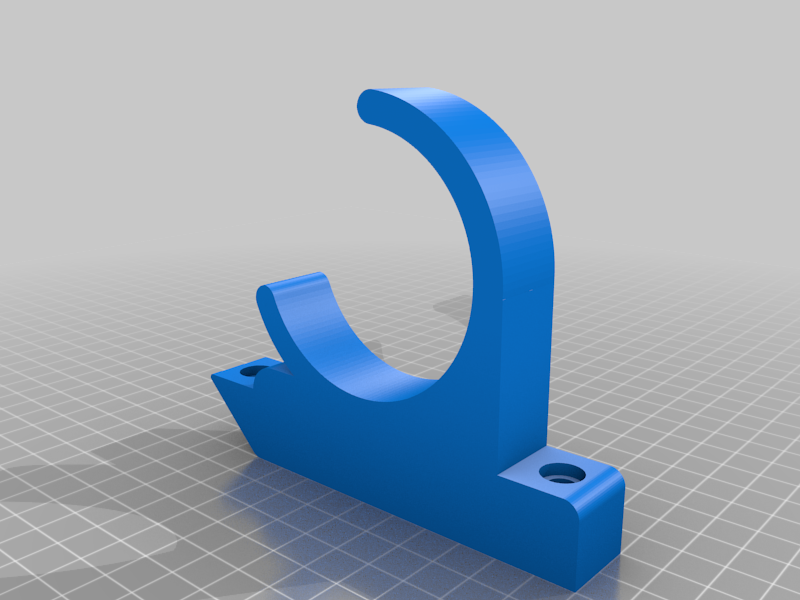

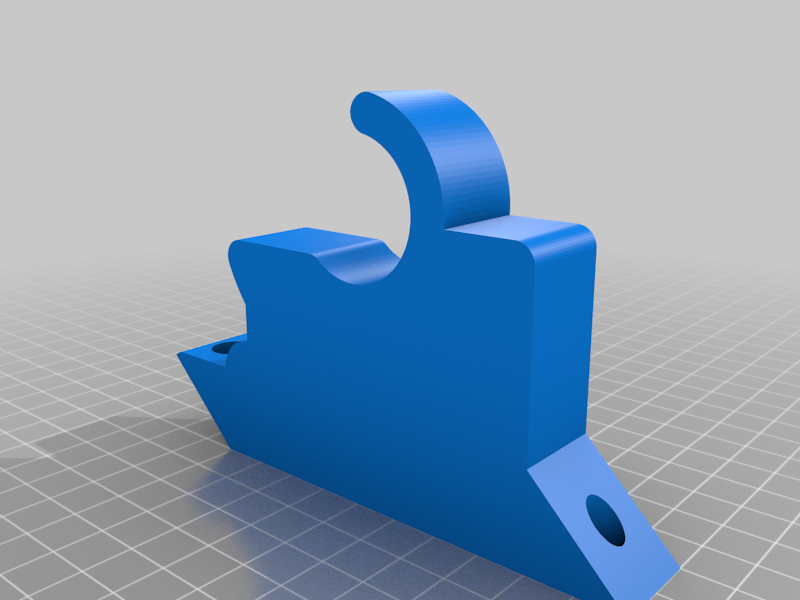

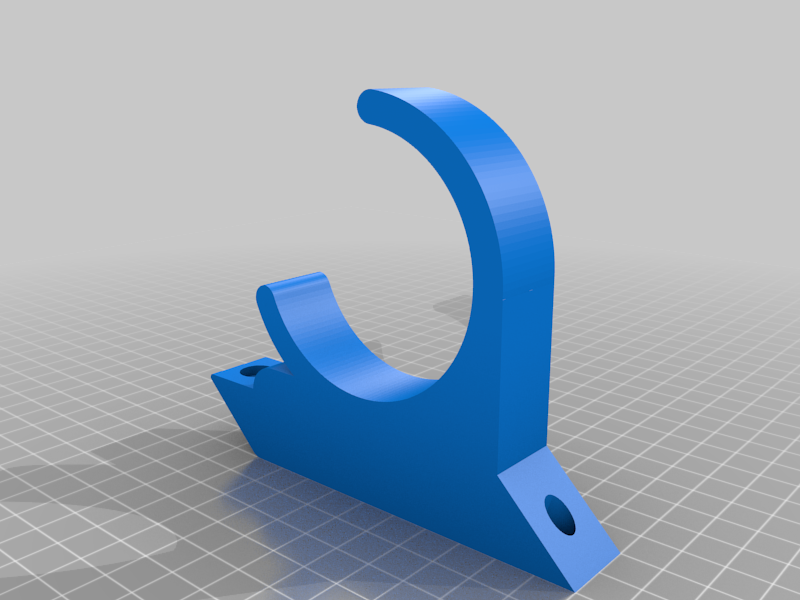

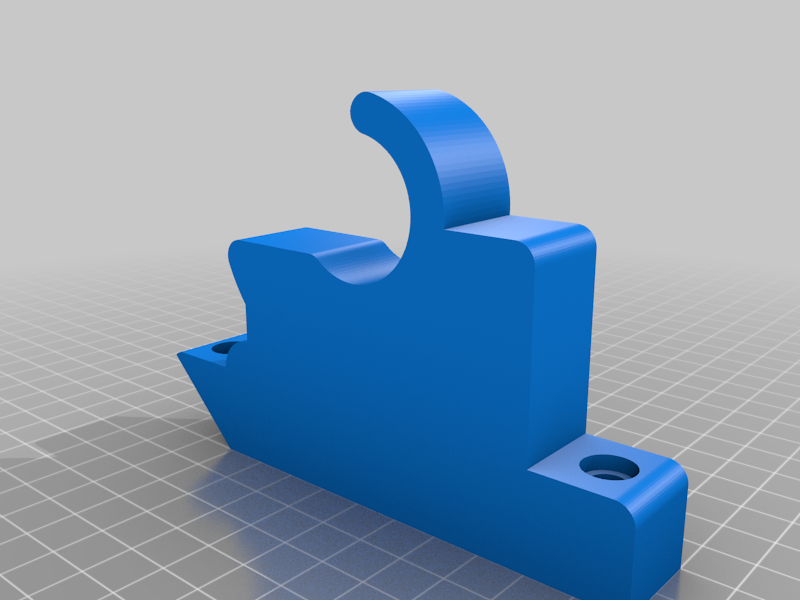

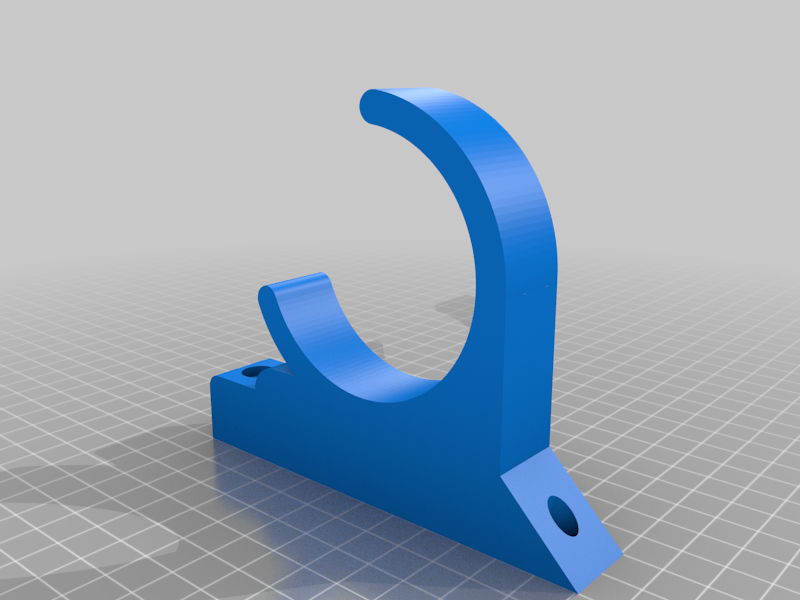

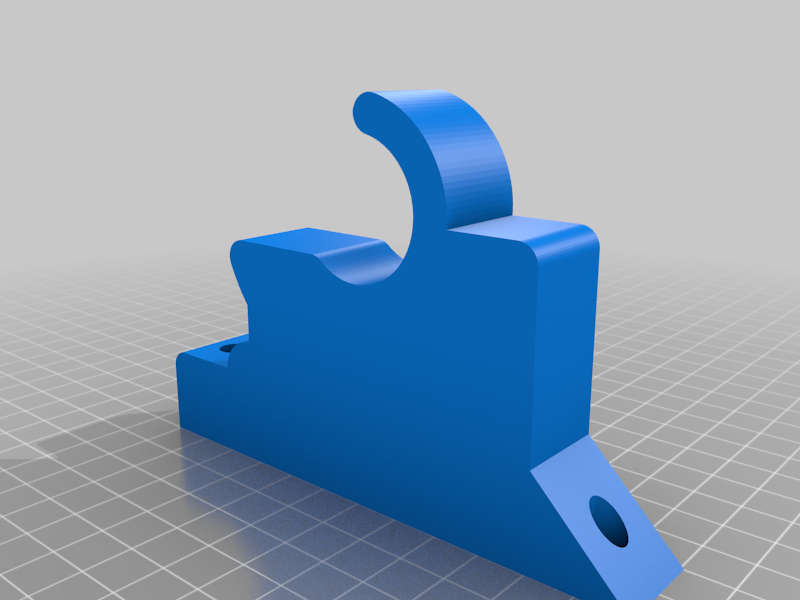

There are 3 of each sides, one Top, one middle and one bottom, designated by Barrel (fat end) or Handle (skinny end). If you only want to print the Barrels, that will work just fine, but the handle sides are meant for better leveling purposes.
Print 1 top, 1 bottom, then as many middles as you need to get the desired amount of bats stacked with each other.
I designed this for a MLB autographed bat size (34" long), with the space between the two sides being right about 28" apart.
Screw base is 20 mm long, so 1" screws or longer will be needed to mount into wall. Hole is 7mm wide and can handle most mounting screws. 3mm indent to get screw heads flush with mount itself
Update: Been asked by a buddy to make a single mount that is non-stack able: will add when I get a second
