Linear Servo Actuators
par potentprintables
Fichiers imprimables (8)
-

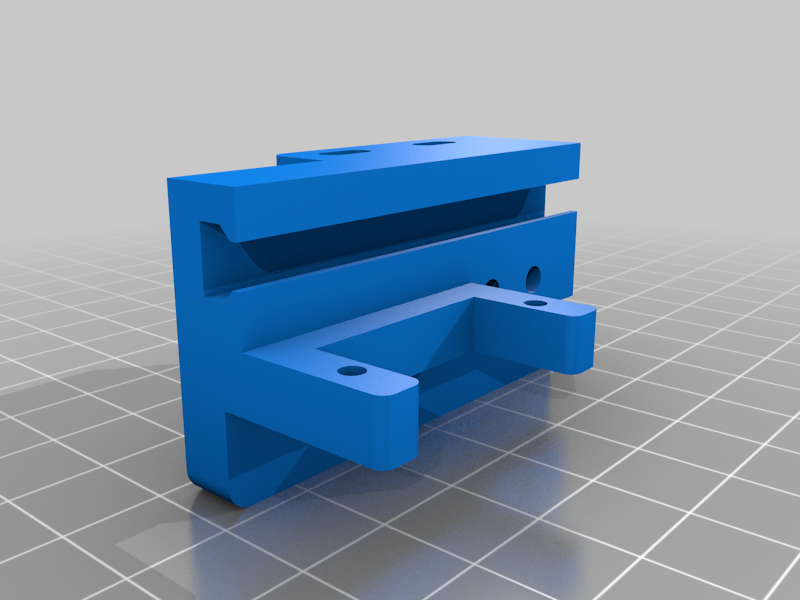

stlMotor_Bracket_Mini_Version.STL
91 Ko · 159 343 téléchargements
-

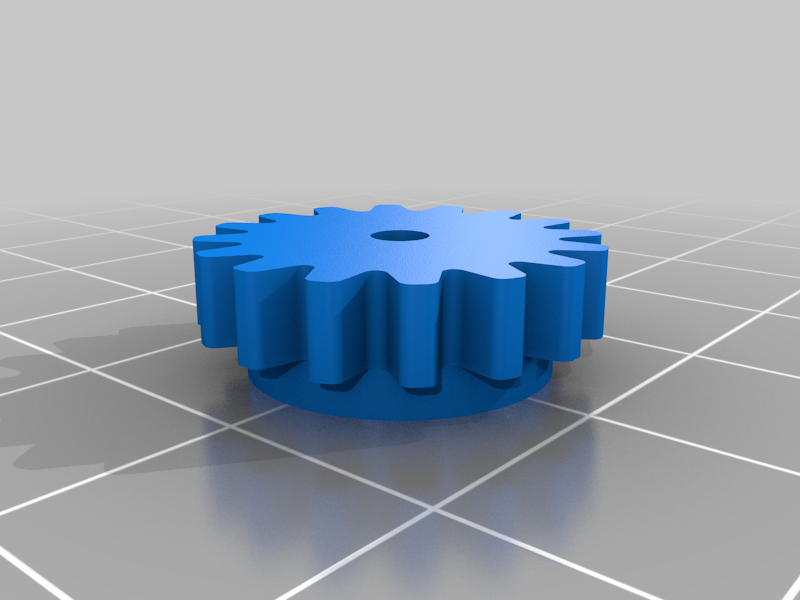

stlPinion_Gear_Mini_Version.STL
129 Ko · 159 604 téléchargements
-

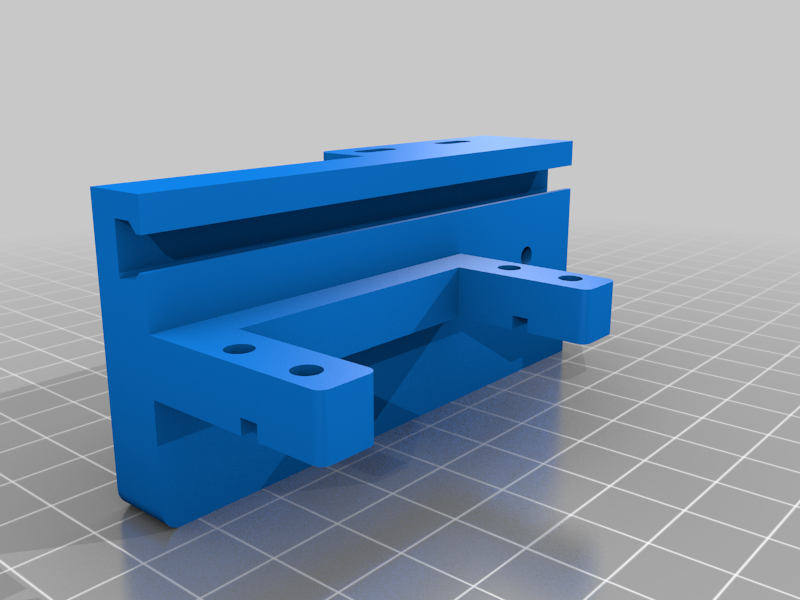

stlMotor_Bracket_Large_Version.STL
106 Ko · 156 431 téléchargements
-

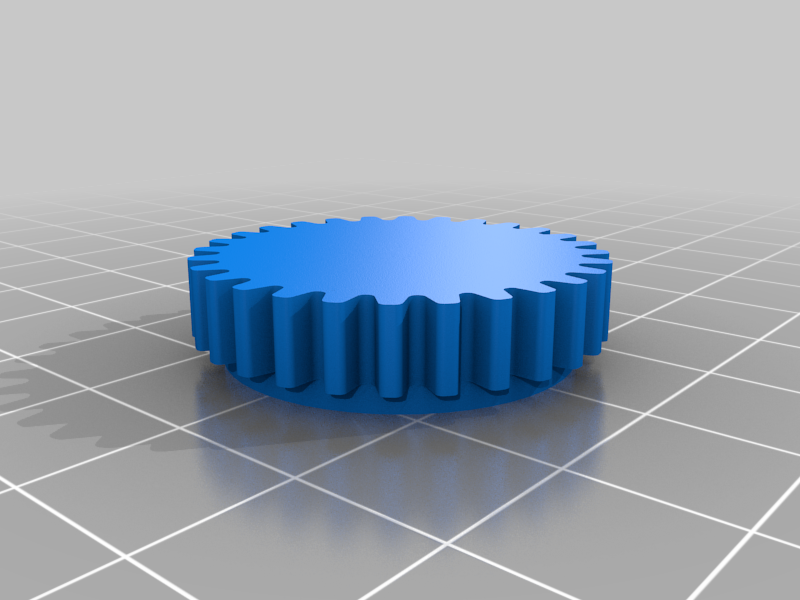

stlPinion_Gear_Large_Version.STL
224 Ko · 156 640 téléchargements
-
stlPusher_75mm_Long.STL
157 Ko · 157 100 téléchargements
-
stlPusher_100mm_Long.STL
213 Ko · 155 746 téléchargements
-
stlPusher_125mm_Long.STL
262 Ko · 154 699 téléchargements
-
stlPusher_150mm_Long.STL
319 Ko · 155 865 téléchargements
Description
This is a general purpose linear servo actuator (pusher style). Two sizes have been designed, for different space constraints and force outputs.
These use continuous rotation servos which helps keep the cost very low. Off the shelf actuators of this type can cost around $70 USD.
The “mini” version will fit in smaller spacers, but has a much lower force output. The “large” version has a higher force output, but is...larger in size than the “mini”.
Here is a video that shows how to assemble and run both sizes:
https://youtu.be/2vAoOYF3m8U
If you like this design, you may also like my Motorized Turntable with Magnetic Attachment Plates:
https://www.thingiverse.com/thing:3353201
Please note that the best way to show your appreciation and keep up to date on my latest 3D printing projects is to head over to my YouTube channel and subscribe!
https://www.youtube.com/potentprintables
Some inspiration for this design came from:
https://hackaday.com/2016/03/31/3d-printed-case-turns-servo-into-quality-linear-actuator/
Included in the files are a list of materials for each size, as well as affiliate links for the non 3D printed parts.
STL quantities to print:
Mini version-
Motor Bracket, Mini Version {QTY 1x}
Pinion Gear, Mini Version {QTY 1x}
Large version-
Motor Bracket, Large Version {QTY 1x}
Pinion Gear, Large Version {QTY 1x}

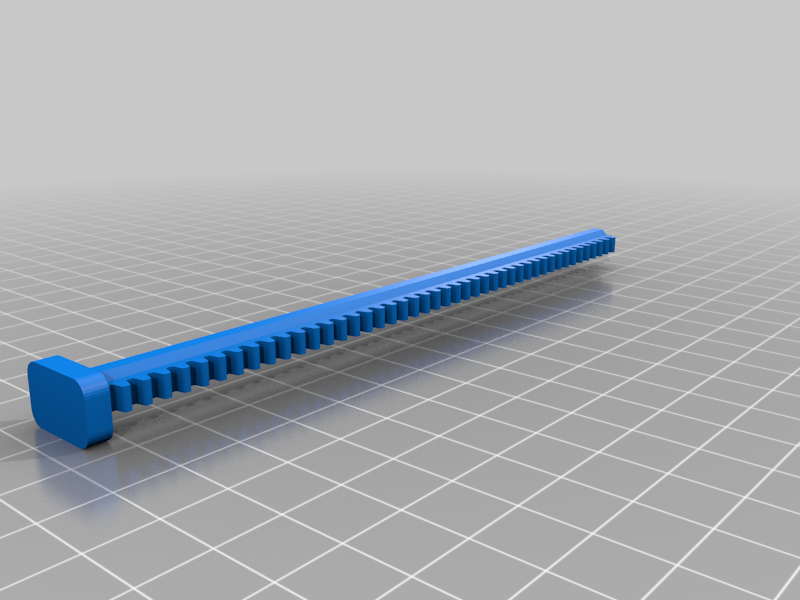

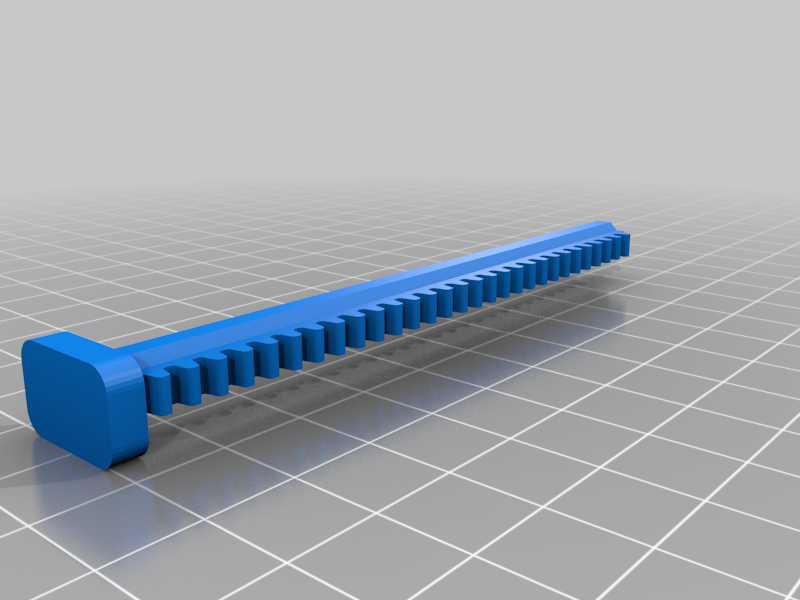

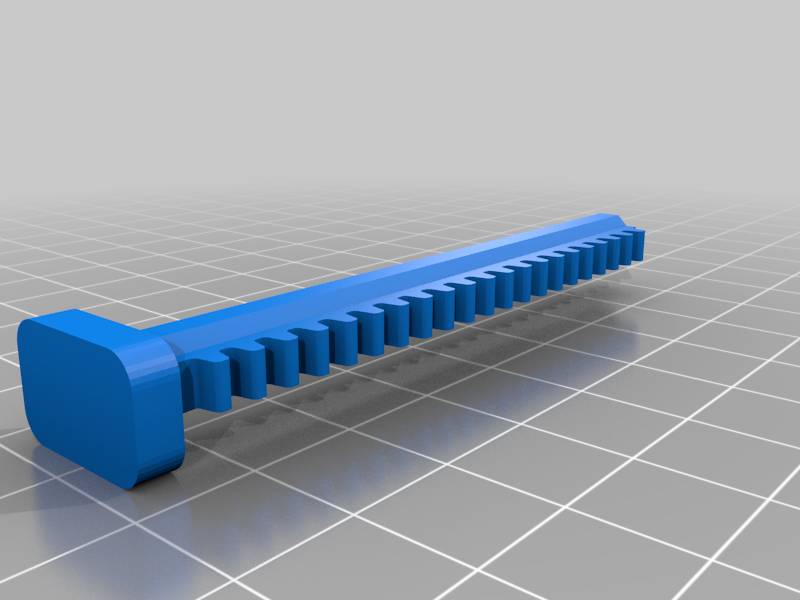

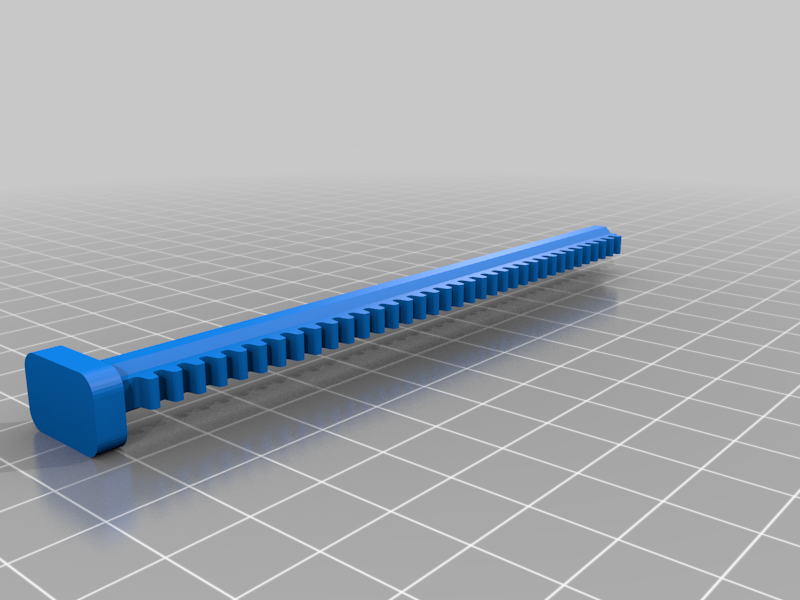

Pusher- (works for both types, choose only the desired length and print QTY 1x)
75mm Long [gives stroke of ~50mm]
100mm Long [gives stroke of ~75mm]
125mm Long [gives stroke of ~100mm]
150mm Long [gives stroke of ~125mm]
