GCode Generator with Python

I developed an easy to use gcode generator for CNC machines. It's possible to create a couple of geometrical shapes.

Current version is running under Python 2.7

comments are welcome :-)

Changelog

V0.08 - 27-10-18 new: milling a rectangle pocket
V0.09 - 02-11-18 new: drilling holes in a grid
V0.10 - 11-11-18 new: smooth a rectangle surface in parallel lines
V0.11 - 12-11-18 new: smooth a round surface in a spiral
V0.12.4 - 01.12.18 bugfix release, new : ToolID, SpindleSpeed, SpindleDir(CW/CCW) available
V0.12.5 - 27.02.19 bugfix and new improvements: material choose, spindle speed, son-material file, json-config file

Most of below shapes can be used with cutter compensation

Material list

• material choosing for all (most) milling stuff
• material details inside JSON-File
• Choose a material, some fields are autofilled

Contour millings

• contour circle
• contour rectangle
• contour round rectangle
• contour holes in a circle
• contour holes in a grid

Pocket millings

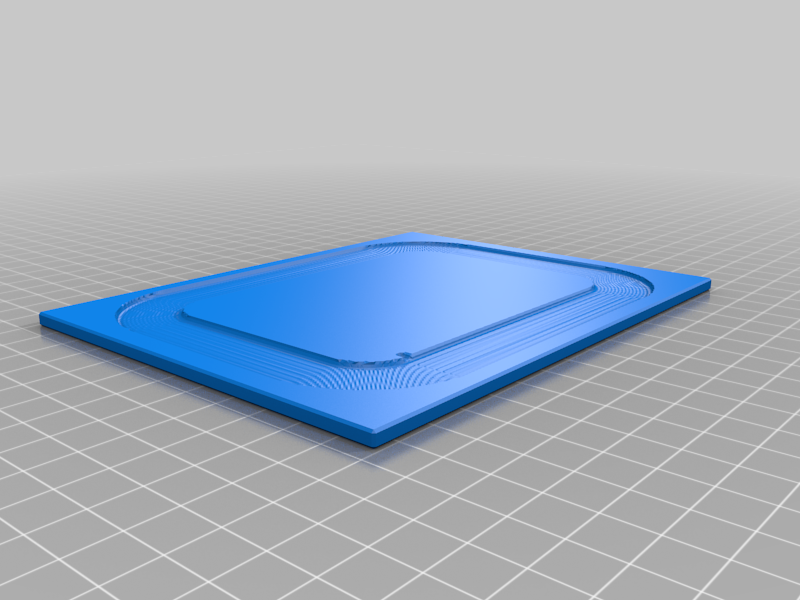

• pocket a round rectangle
• new 27.10.18 pocket a rectangle

Drilling holes

• new 02.11.18 drilling holes in a grid

Surface

• new 11.11.18 smooth a rectangle surface in parallel lines
• new 12.11.18 smooth a round surface in a spiral line

Other base functionalites

• GCode preview window
• save gcode to file
• save gcode to clipboard
• save gcode to LinuxCNC AXIS software
• V0.12.4 using of toolID, spindle speed, spindle direction
• V0.12.5 using a config-file and material configuration

Download

Follow this link to GitHub
https://github.com/mrRobot62/GCodeGenerator_Geometricals/blob/master/README.md

Please note

This generator is under construction. If you find bugs, please open an issue on github

Interesting GCode simulators are

Browser based (on- and offline !)
https://ncviewer.com

Software package
https://camotics.org

Contour milling

Pockets

Drillings

Surface
