Shapeoko 2 Electronics Enclosure
par Scott216
Fichiers imprimables (5)
-

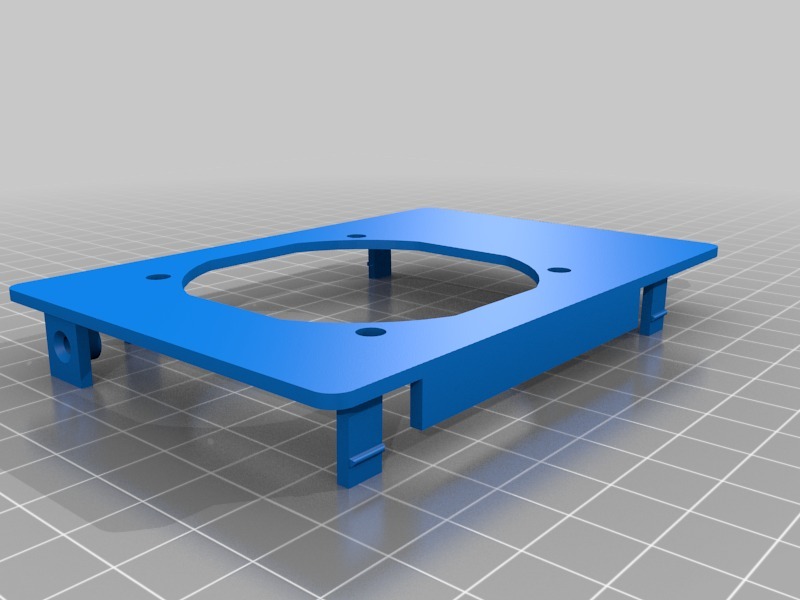

stlShapeoko_Electronics_Lid.stl
219 Ko · 945 téléchargements
-

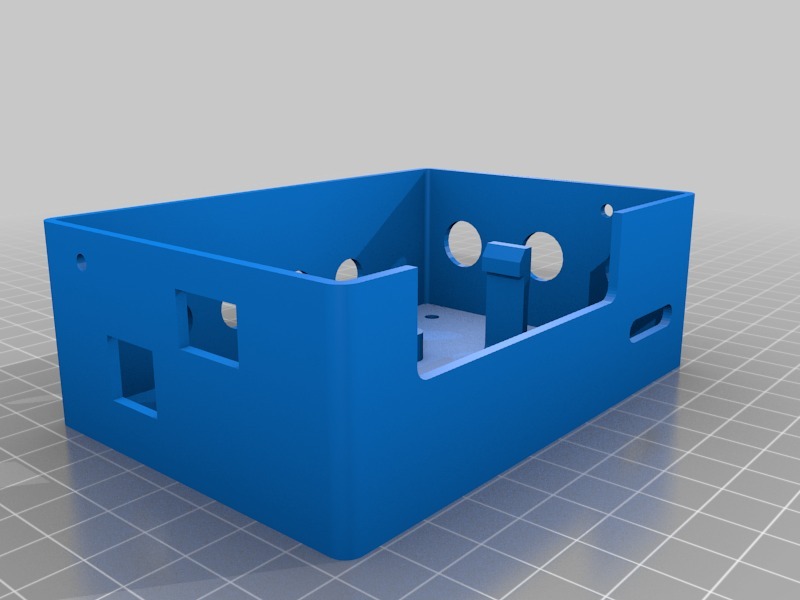

stlShapeoko_Electronics_Case.stl
293 Ko · 977 téléchargements
-

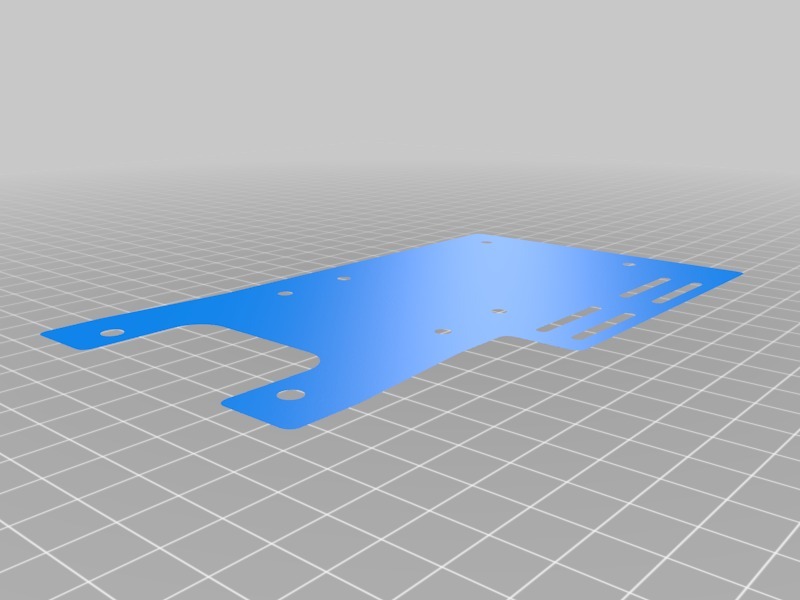

stlShapeoko_Electronics_Mounting_Plate.stl
111 Ko · 957 téléchargements
-

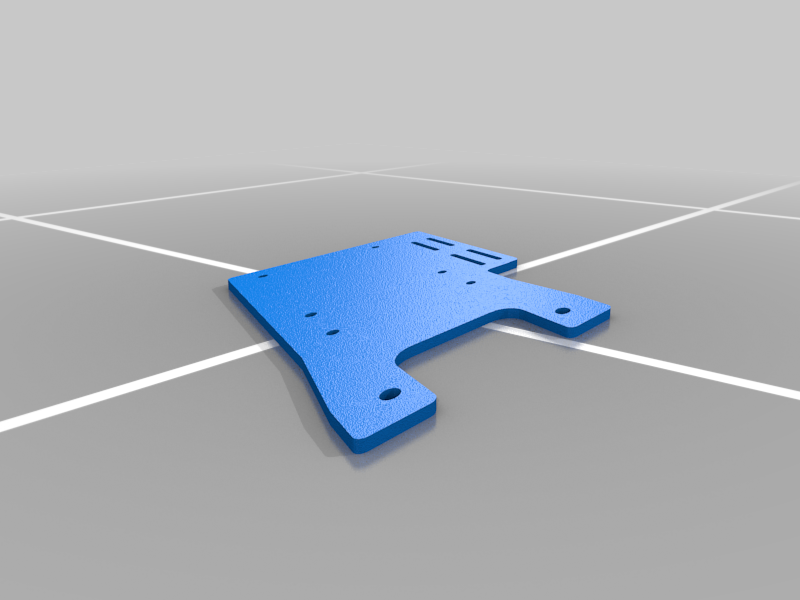

stlShapeoko_Electronics_Mounting_Plate_Plate_v2.stl
74 Ko · 218 téléchargements
-

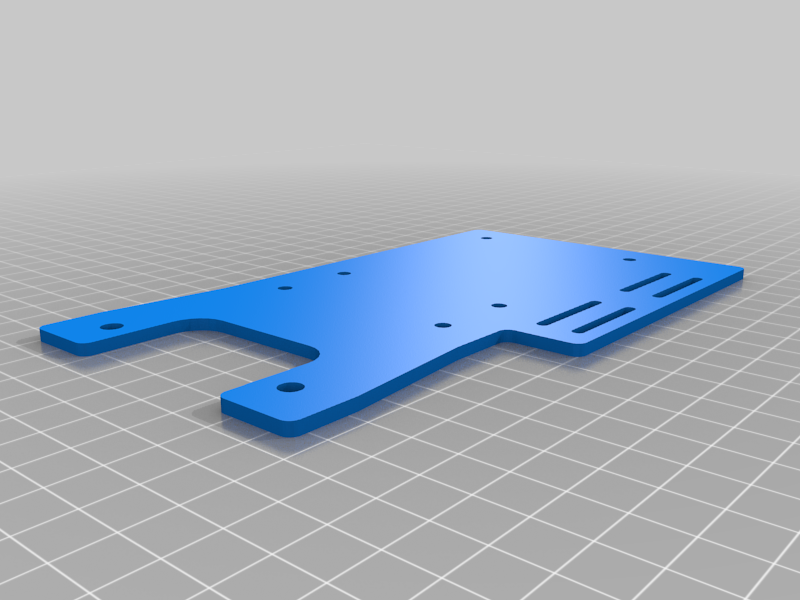

stlShapeoko_Electronics_Mounting_Plate_Plate_v3.stl
458 Ko · 220 téléchargements
Description
I started with http://www.thingiverse.com/thing:224356 and made a few changes:
- Made it bigger so I could mount a push-button on top.
- Raised the mounting posts a bit so there would be more room for a longer screw
- Moved the mounting holes to the inside of the enclosure
- Made the retaining clip beefier - it broke too easily
I've installed mine on the y-axis motor mounting plate so it moves along with the plate. Theres a lot less wiring this way.
