Hypercube Evolution Z Axis Upgrade
par turbojutta
Fichiers imprimables (4)
-
stlZ_Top_Rail_Mount.stl
129 Ko · 2 973 téléchargements
-
stlZ_LM8UU_Clamp.stl
53 Ko · 2 960 téléchargements
-
stlZ_Nut_Mount.stl
151 Ko · 2 965 téléchargements
-

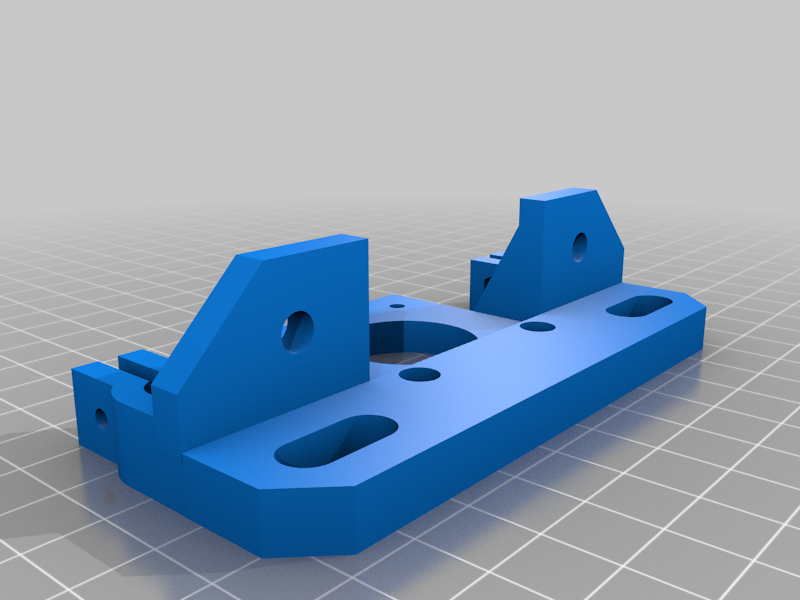

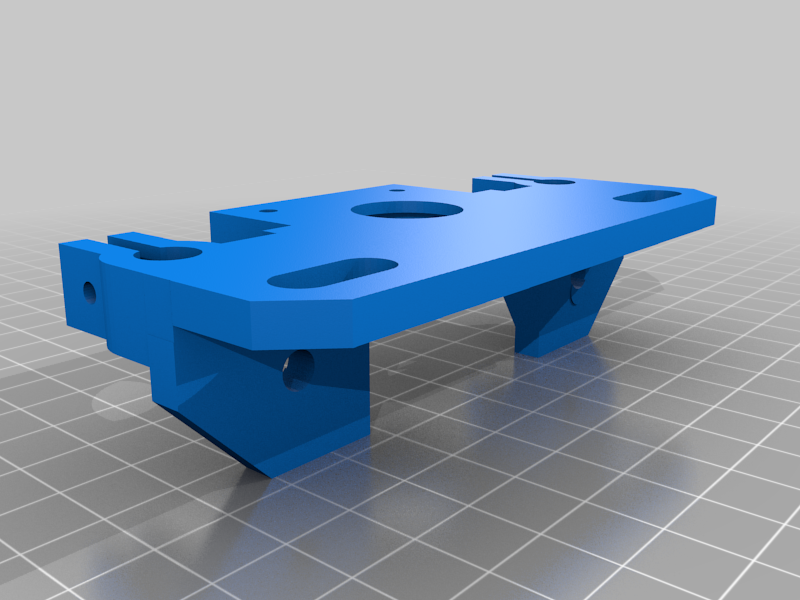

stlZ_Motor_Mount_.stl
118 Ko · 2 969 téléchargements
Description
I built the HyperCube Evolution from SCOTT 3D (https://www.thingiverse.com/thing:2254103) and used parts of my anet a8. That's why I opted for a double axle with 8 mm and was able to reuse many parts. the hypercube evolution is a great printer and especially the parts of SCOTT 3D work great. But because I'm an impatient person, I've never managed to align the axis properly. For all who want to save time while aligning and are fine with a little more printing time, I have here a z axis upgrade. I'm very happy with the installation and how it works. if you have decided on a double axis with 8 mm this upgrade can be helpful for you. Have fun with it and if something should not fit let me know.
Made for 2020 profile
