Scoreboard with ESP32 microcontroller
par ZDC
Fichiers imprimables (7)
-

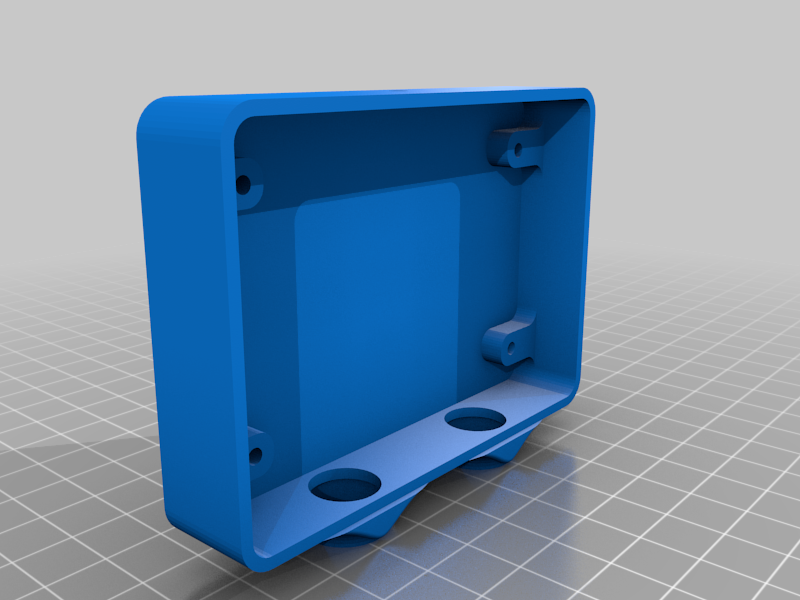

stlSB_bottom.stl
261 Ko · 416 téléchargements
-

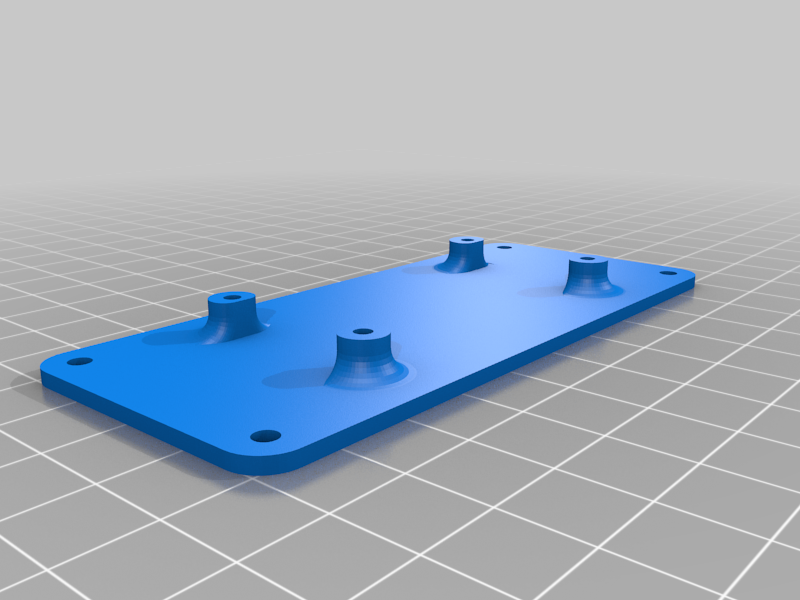

stlSB_bottom-plate.stl
229 Ko · 412 téléchargements
-

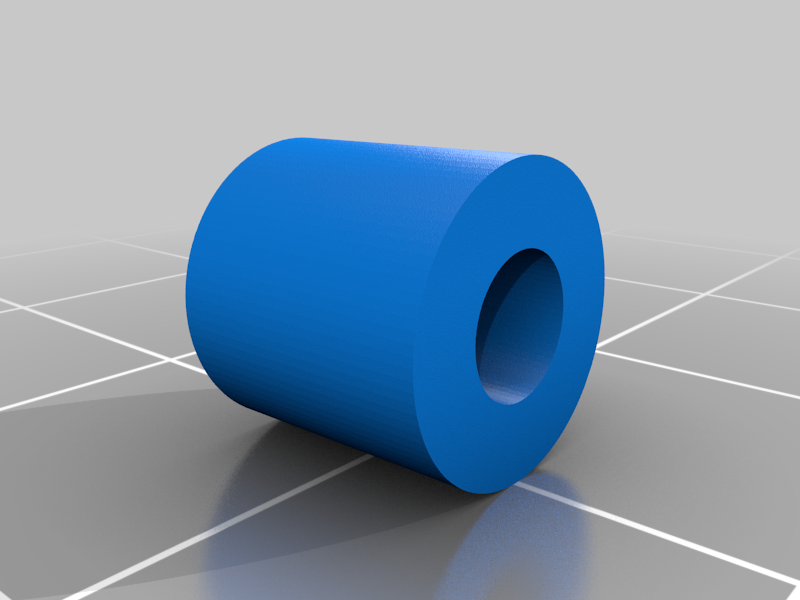

stlspacer1.stl
54 Ko · 415 téléchargements
-
stlSB_frontButtons.stl
19 Ko · 418 téléchargements
-

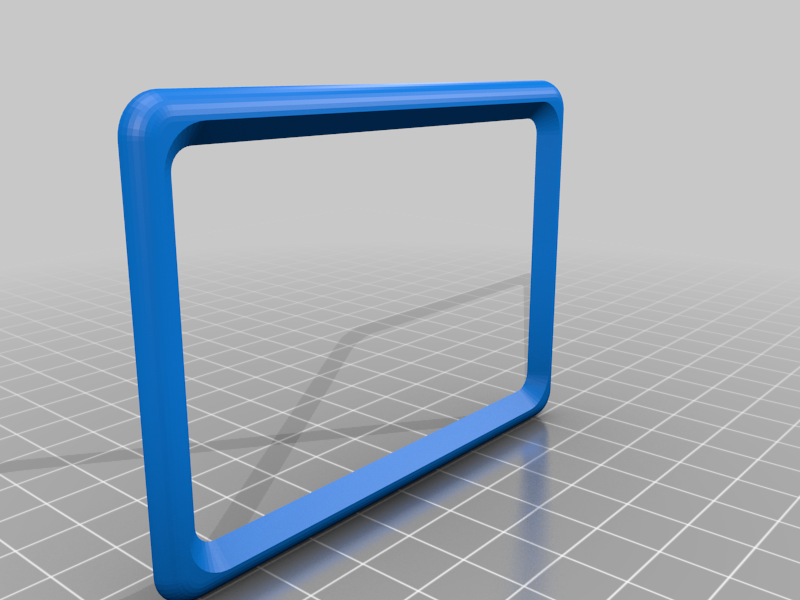

stlSB_frontBevel.stl
56 Ko · 423 téléchargements
-

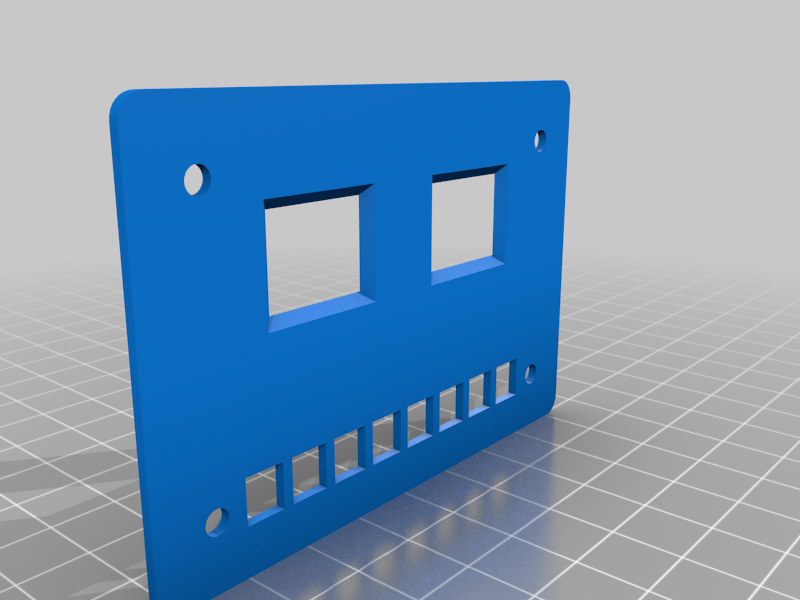

stlSB_facePlate.stl
36 Ko · 413 téléchargements
-

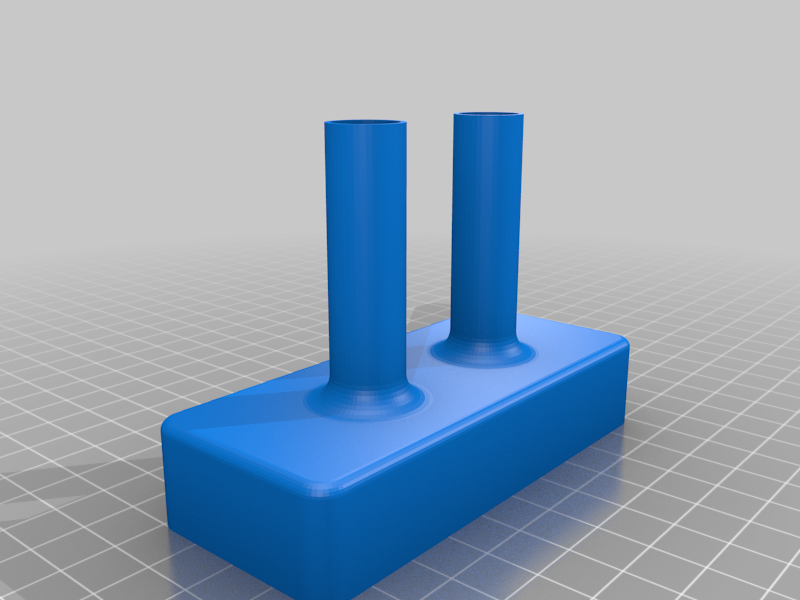

stlSB_center.stl
240 Ko · 420 téléchargements
Description
Scoreboard with ESP32 and TM1638 can be controlled with BLE Android app
x4 spacers to print

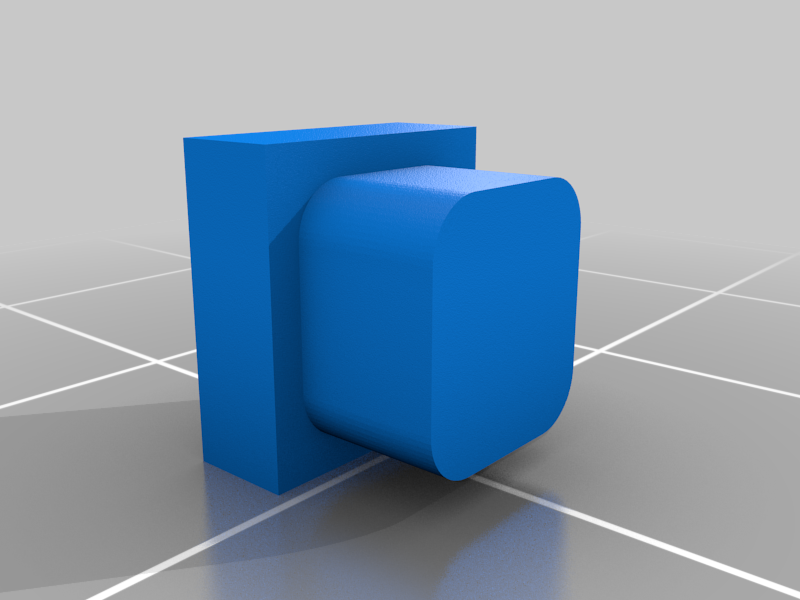

x8 buttons to print
Setup for easy no support printing
- Glue Bevel to face plate
- Glue spacers to other side of the face plate.
- M3 screws to mount ESP to bottom plate and connect face plate
- 3mm LED
For electronic & wiring details they can be found here:
https://www.hackster.io/jlorentz/scoreboard-with-esp32-and-tm1638-with-ble-android-app-e38cc7
