ToyREP 2
par thorgal
Fichiers imprimables (28)
-

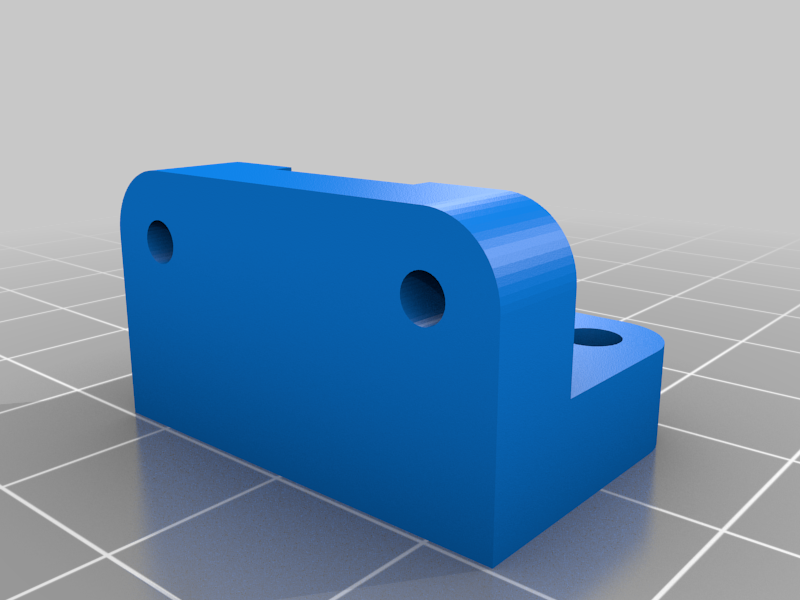

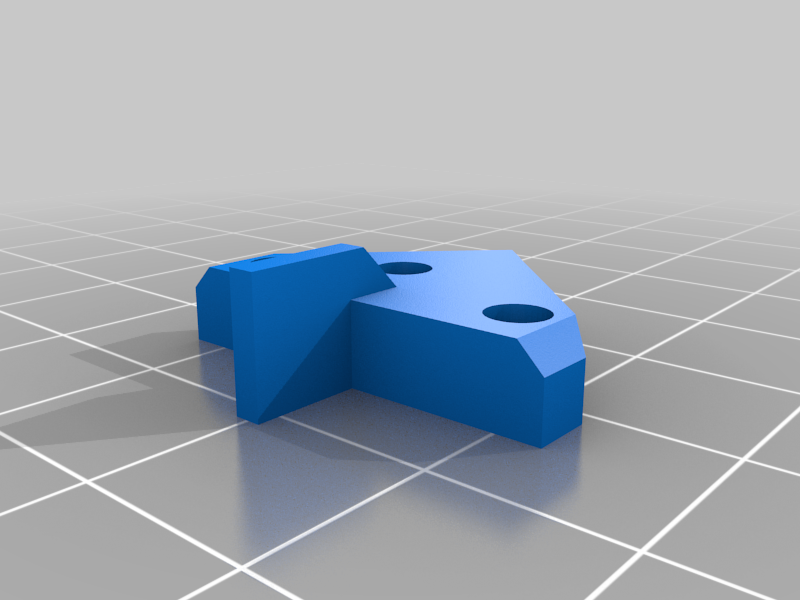

stlToyREP2-Stop_Mechanical_V2.06.stl
62 Ko · 2 251 téléchargements
-

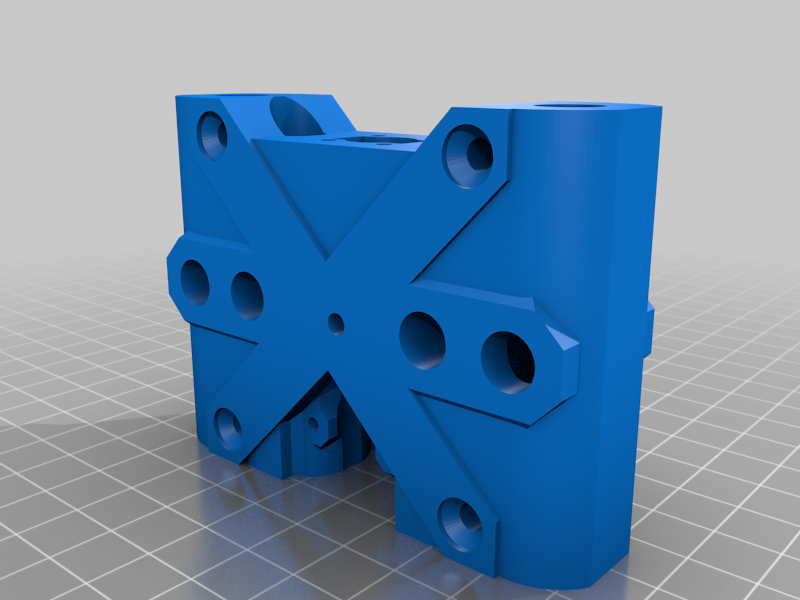

stlToyREP2-Carriage_Perpendicular_V2.06.stl
504 Ko · 2 255 téléchargements
-

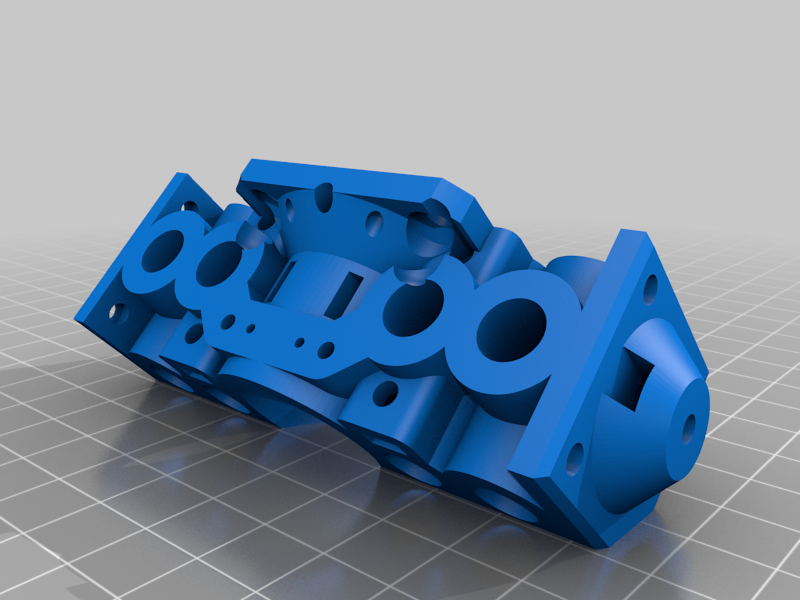

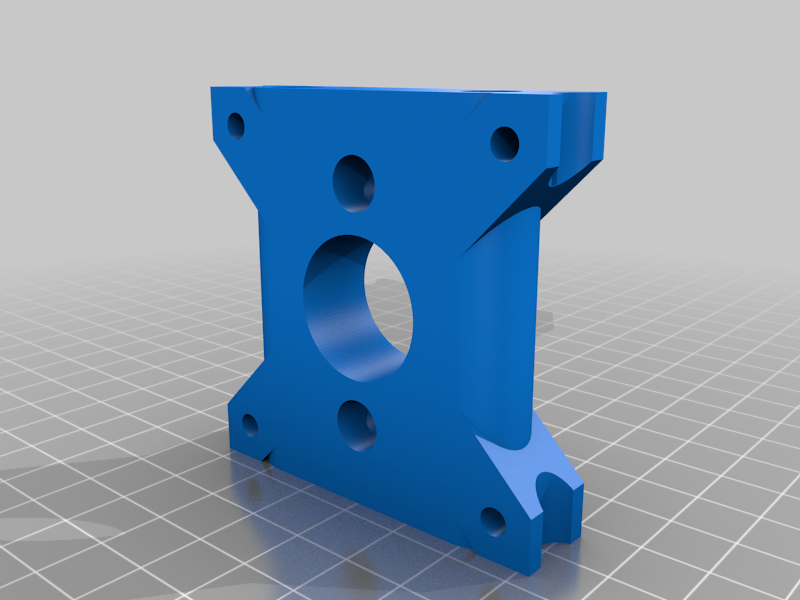

stlToyREP2-Bearing_Axis_End_T8_V2.06.stl
813 Ko · 2 248 téléchargements
-

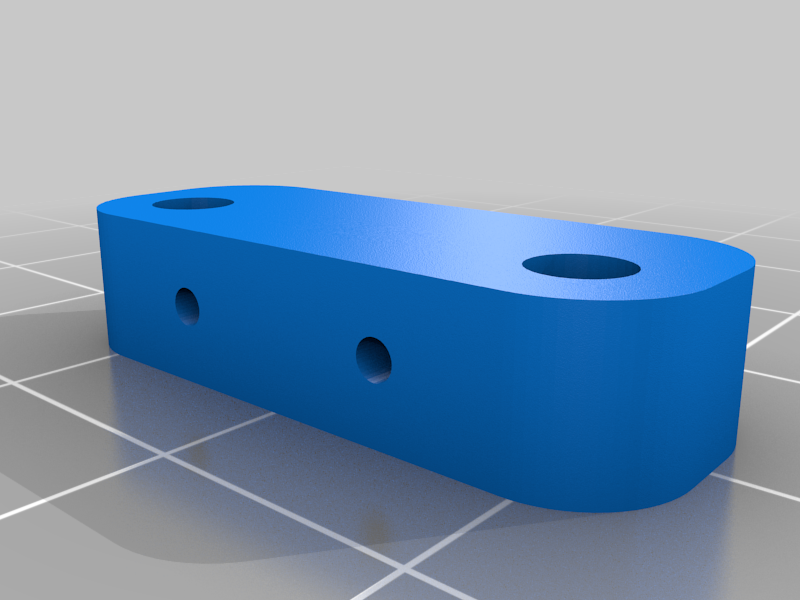

stlToyREP2-Extender_Belt_Optical_V2.06.stl
41 Ko · 2 248 téléchargements
-

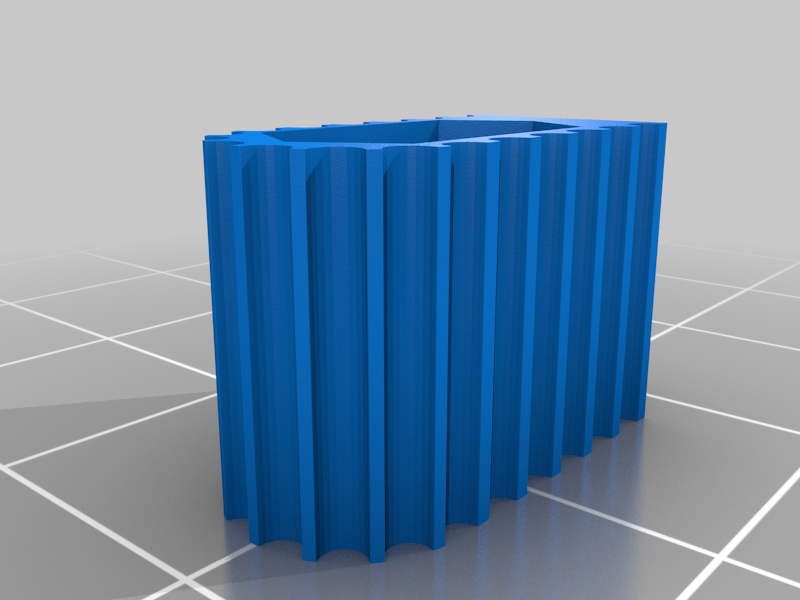

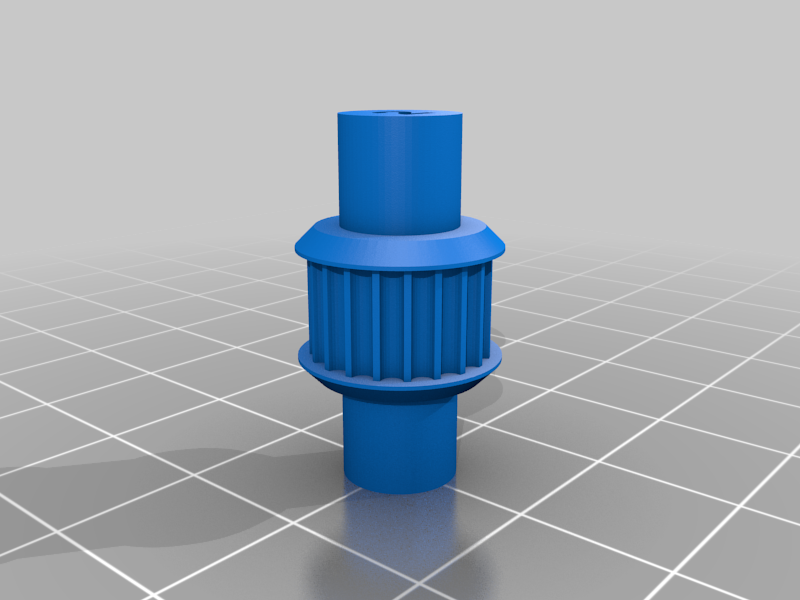

stlToyREP2-Pulley_Bearing_GT2_V2.06.stl
189 Ko · 2 247 téléchargements
-
stlToyREP2-Bearing_Axis_End_T6_V2.06.stl
797 Ko · 2 261 téléchargements
-

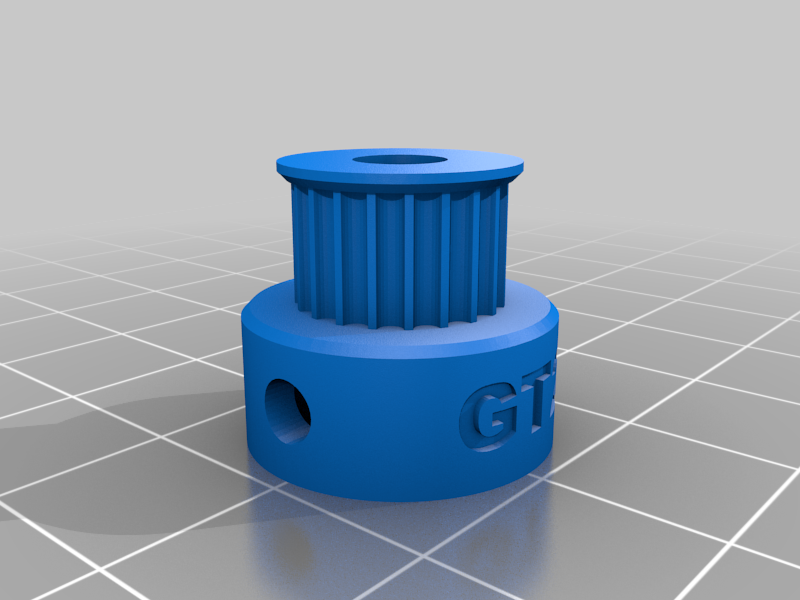

stlToyREP2-Pulley_Motor_28BYJ-48_GT2_V2.06.stl
201 Ko · 2 251 téléchargements
-

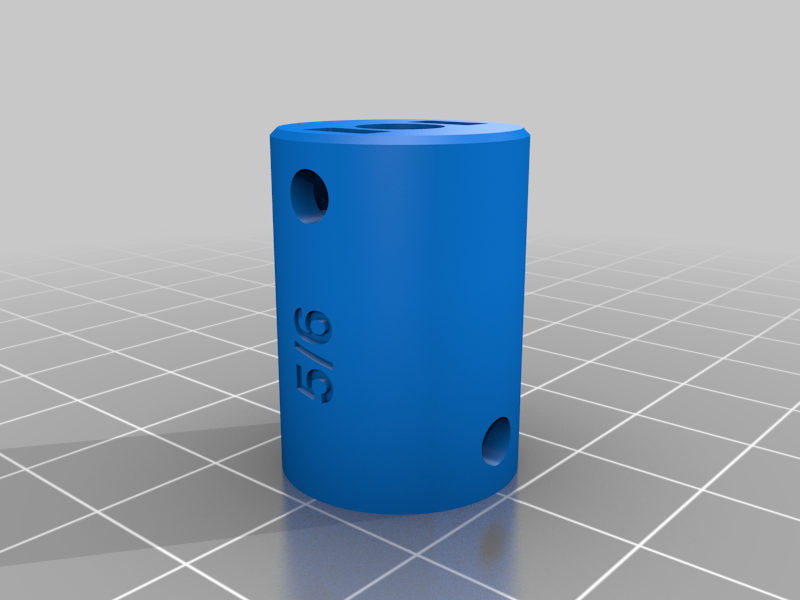

stlToyREP2-Coupler_5-6_V2.04.stl
478 Ko · 2 241 téléchargements
-

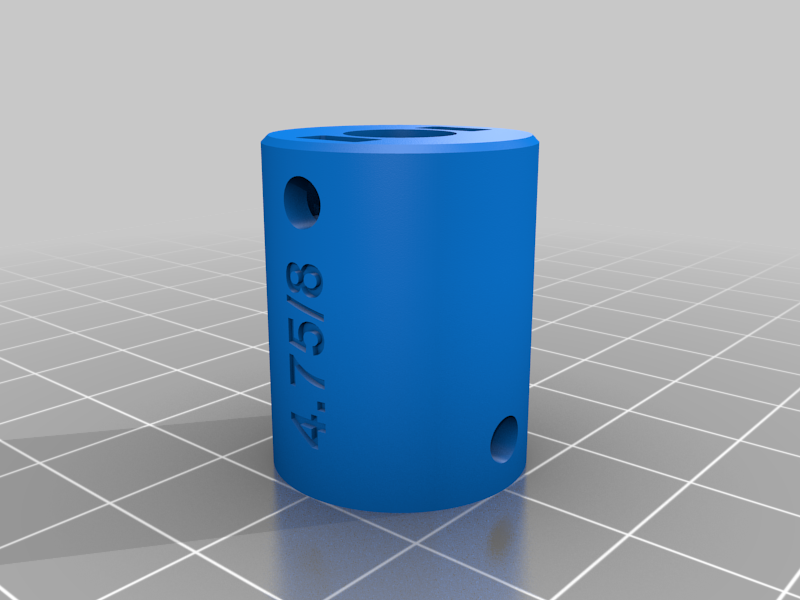

stlToyREP2-Coupler_4.75-8_V2.04.stl
513 Ko · 2 254 téléchargements
-

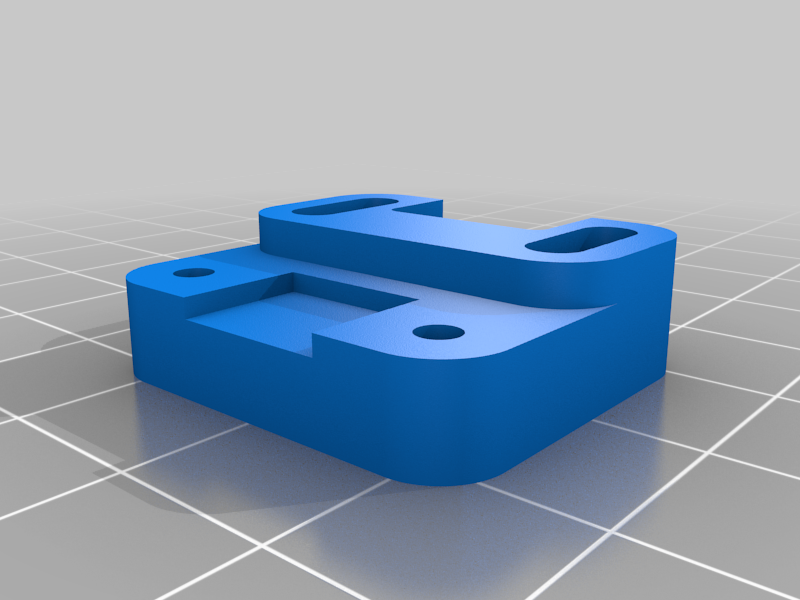

stlToyREP2-Extender_Trapezoid_Optical_V2.05.stl
369 Ko · 2 241 téléchargements
-
stlToyREP2-Coupler_5-8_V2.04.stl
494 Ko · 2 241 téléchargements
-

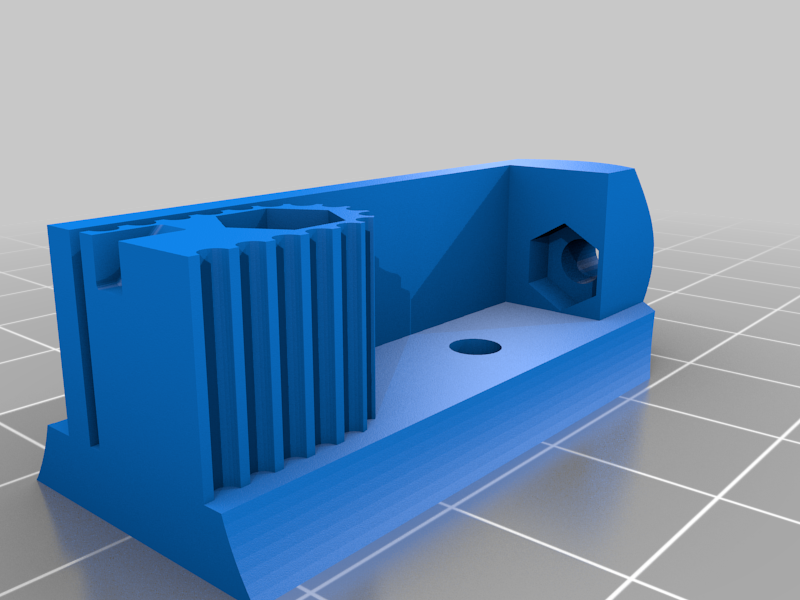

stlToyREP2-Carriage_Belt_GT2_V2.06.stl
185 Ko · 2 241 téléchargements
-
stlToyREP2-Extender_Belt_Mechanical_V2.06.stl
39 Ko · 2 229 téléchargements
-

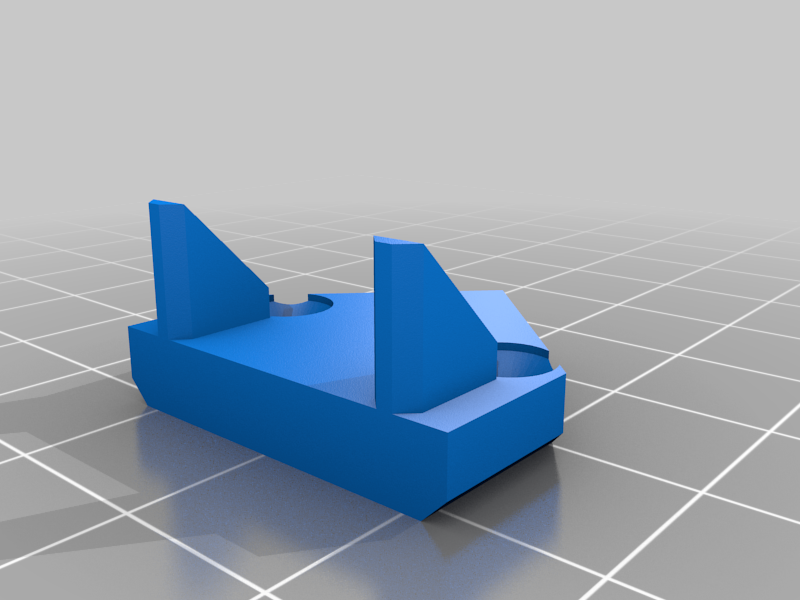

stlToyREP2-Stop_Optical_V2.06.stl
60 Ko · 2 239 téléchargements
-
stlToyREP2-Pulley_Motor_5_GT2_V2.06.stl
270 Ko · 2 237 téléchargements
-

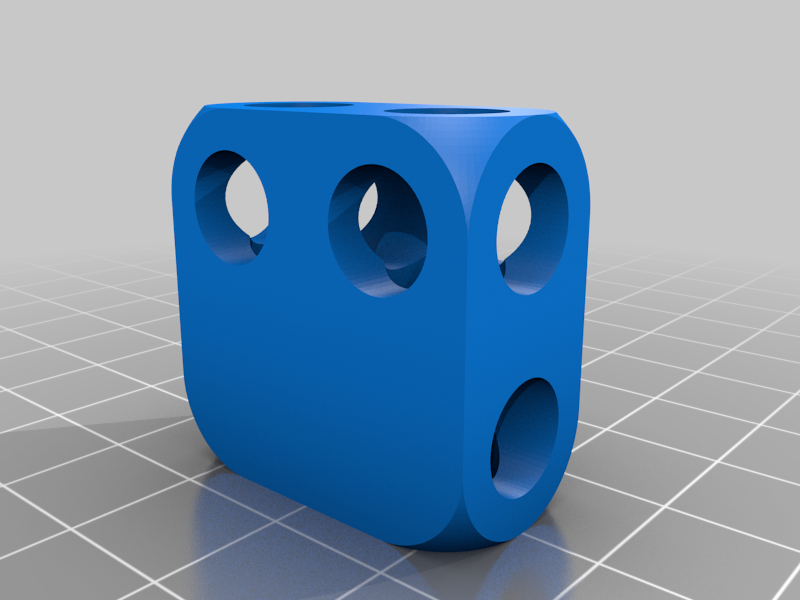

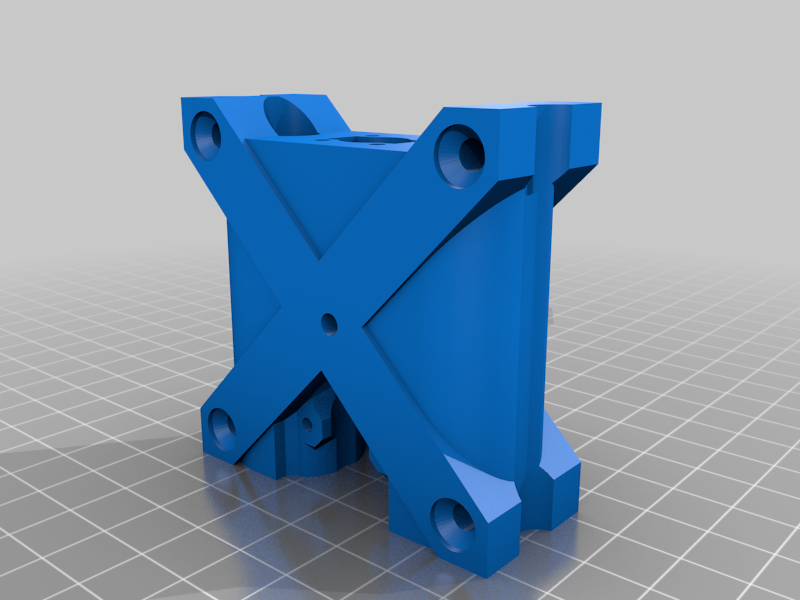

stlToyREP2-Carriage_Narrow_V2.06.stl
367 Ko · 2 243 téléchargements
-

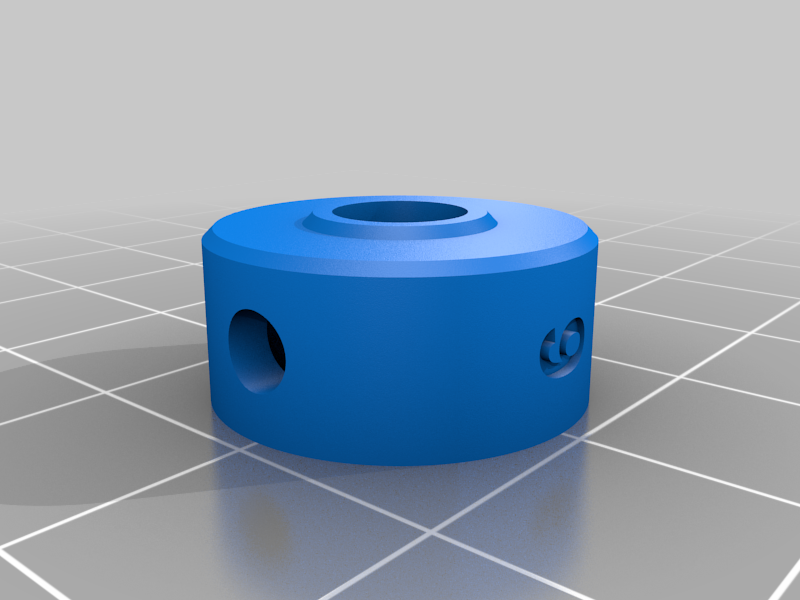

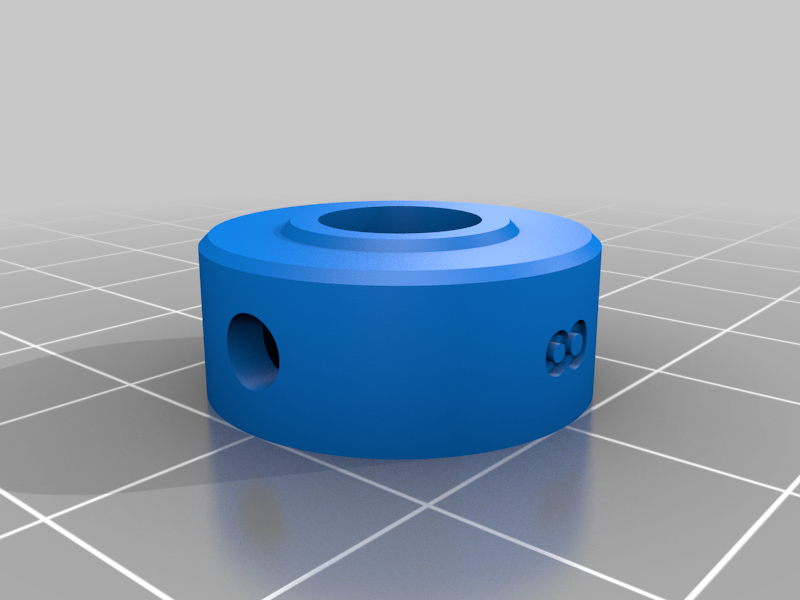

stlToyREP2-Lock_Collar_T8_V2.05.stl
408 Ko · 2 238 téléchargements
-
stlToyREP2-Lock_Collar_T6_V2.05.stl
333 Ko · 2 237 téléchargements
-

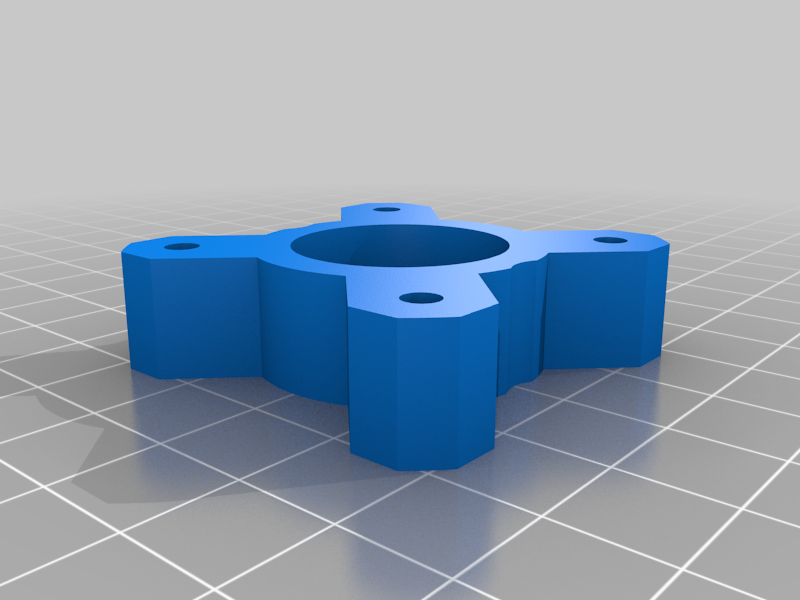

stlToyREP2-Extender_NEMA17_V2.04.stl
219 Ko · 2 236 téléchargements
-

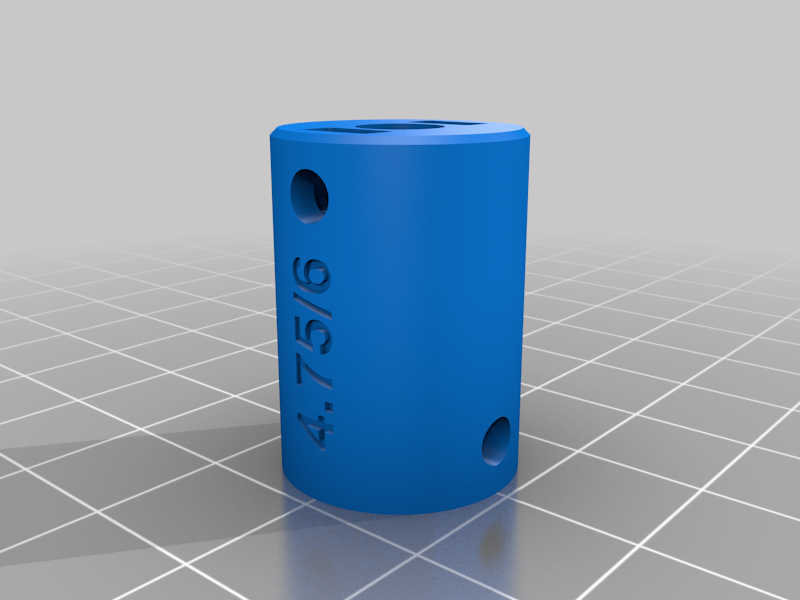

stlToyREP2-Coupler_4.75-6_V2.04.stl
531 Ko · 2 225 téléchargements
-

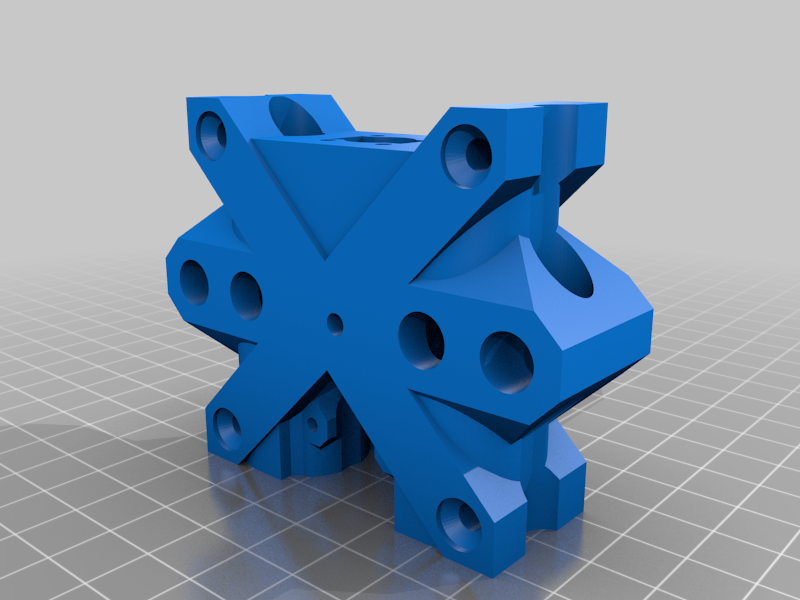

stlToyREP2-Carriage_Wide_V2.06.stl
490 Ko · 2 242 téléchargements
-
stlToyREP2-Pulley_Motor_4.75_GT2_V2.06.stl
289 Ko · 2 227 téléchargements
-
stlToyREP2-Carriage_Tensioner_GT2_V2.06.stl
112 Ko · 2 232 téléchargements
-

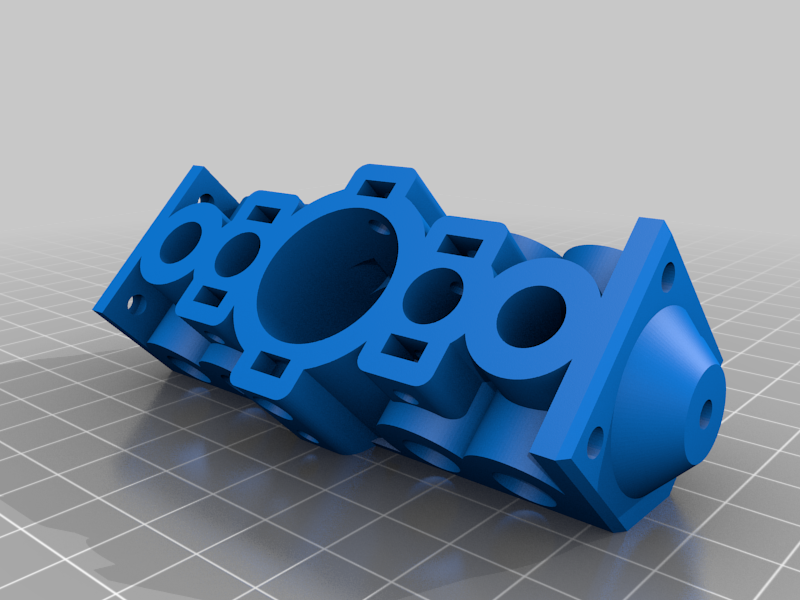

stlToyREP2-Motor_Axis_V2.06.stl
1.1 Mo · 2 230 téléchargements
-

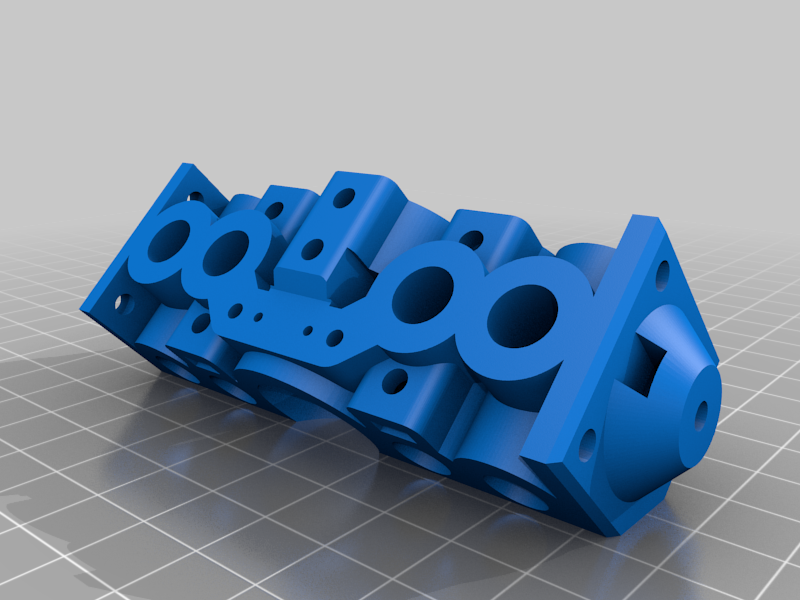

stlToyREP2-Frame_Carriage_V2.06.stl
175 Ko · 2 130 téléchargements
-

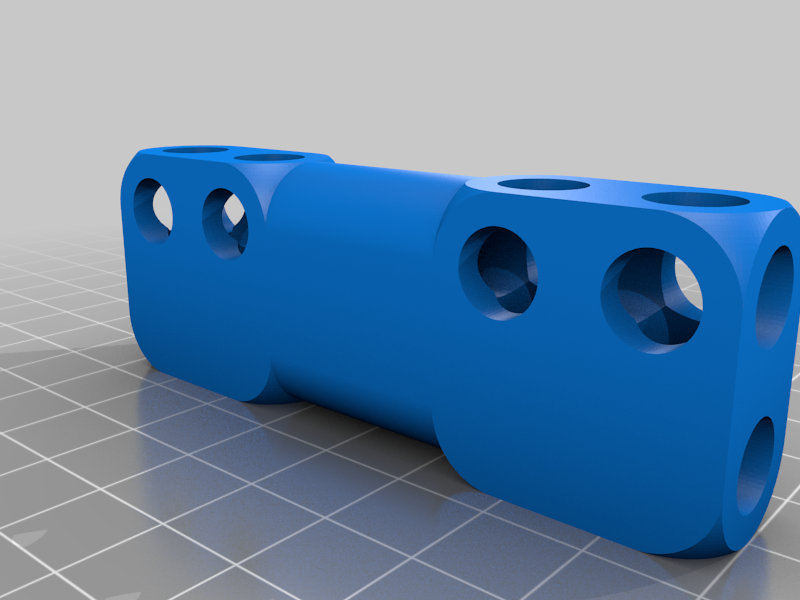

stlToyREP2-Frame_Single_V2.06.stl
281 Ko · 2 134 téléchargements
-

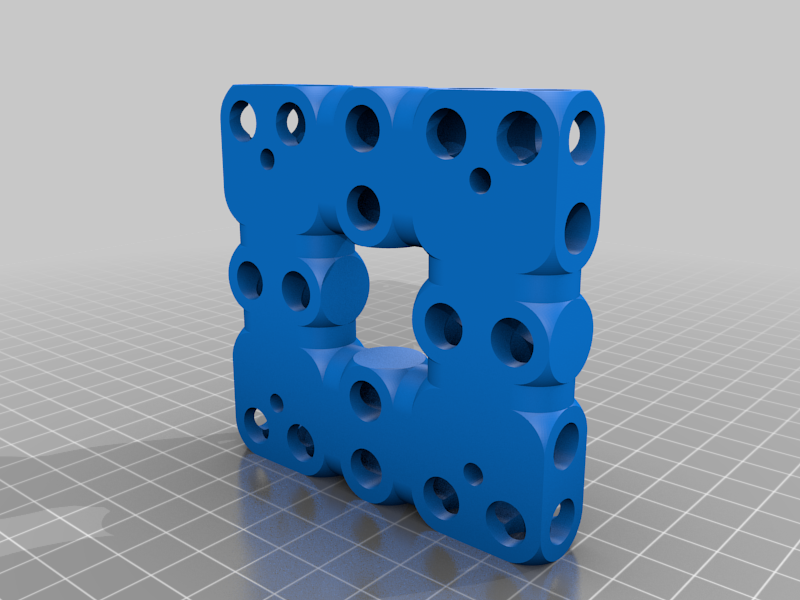

stlToyREP2-Frame_Double_V2.06.stl
537 Ko · 2 125 téléchargements
-
stlToyREP2-Frame_Quad_V2.06.stl
2 Mo · 2 135 téléchargements
Description
ToyREP 2 is modular design, based on REPRAP ideas. It allows to print parts suitable for 3D printers, CNC, engravers and other 3 axis machines with stress on simplicity, low cost, usage of many different types of motors, sturdiness and ease of build and alignment.
Superseeds original ToyREP in many aspects and using more up-to-date parts and technologies to make it more reliable, customizable and provides better user experience and accuracy. By preparing indepented axis, that can be joined together, it will allow to design more than just one kind of a machine and type of kinematics that will let you experiment with mechanics and shortens your designing stage.
Disclaimer
All of the information provided about ToyREP 3D Printer is provided as-is and with no warranties. Author assumes or undertakes no liability for any loss or damage suffered as a result of the use, misuse or reliance on the information and content on this project.
License
Please follow the CC-BY-SA terms.
- Share freely but give credit or link to the source.
- You can alter this design with attribution to the original. All subsequent designs have to be released under the same license.
- Commercial use only with the consent of author.
Work in Progress Stage
For now only parts for trapezoidal rods Tr6 and Tr8 and GT2 timing belt are published, that will let you build the basic 3 axis CNC machines. No detailed build instructions, BoQ or pretested machines will be published until the project is finished. Feel free to submit your ideas and improvements or submit your requests in comments.
Right now, I have one axis printed to test the accuracy of printed parts, assembly, alignment and movement precision. More will follow soon.
Planned Improvements (no promises :D):
- Timing belt parts for T2.5
- Extruders
- Mount for electronics
- Mount for PSU
- Mount for heatbeds
- Mount for other tools like engraver, laser, pastestruder, etc.
- Delta kinematics
- Core XY kinematics
- Mount for two endstops
- Laser cuted covers and frames
Change Log
2019-02-14
- Published preliminary parts V2.06 for M8 threaded rod frame plus renders for 3 axis CNC and cartesian printer mechanics
2019-02-09
- Published preliminary parts V2.06 with support for GT2 timing belt
2019-02-05
- Published preliminary parts V2.05 for optical end mechanical endstops
2019-01-31
- Published preliminary parts v2.04 and V2.05 for Trapezoidal rods and optical endstops only
