Knife sharpener
par Rcmn
Fichiers imprimables (10)
-
stlHolder_sten_front.stl
110 Ko · 3 583 téléchargements
-
stl
Holder_sten_bag.stl
110 Ko · 3 583 téléchargements
-
stlBag_bund.stl
668 Ko · 3 508 téléchargements
-
stlFront_bund.stl
579 Ko · 3 513 téléchargements
-
stlHolder_sten_front.stl
154 Ko · 3 506 téléchargements
-
stlHolder_sten_bag.stl
153 Ko · 3 489 téléchargements
-

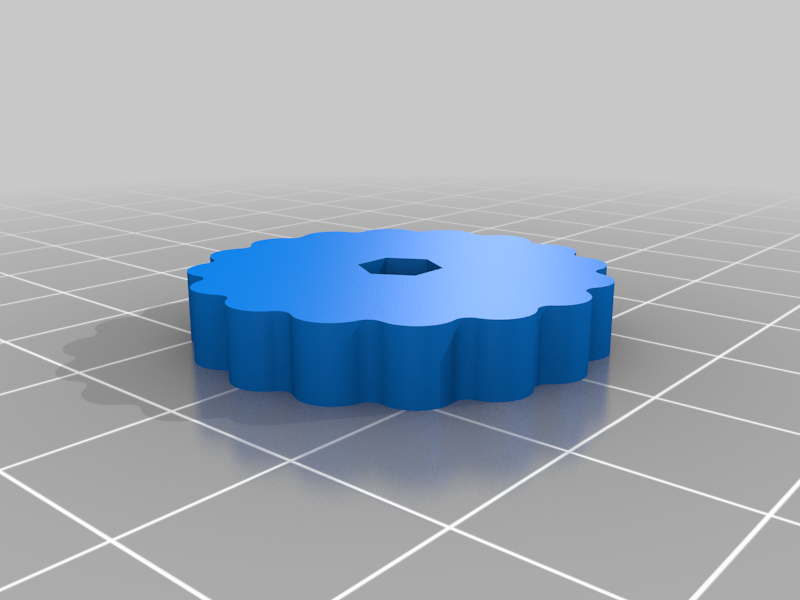

stlknop.stl
180 Ko · 3 363 téléchargements
-
stlLED2.stl
514 Ko · 3 356 téléchargements
-
stlLED3.stl
994 Ko · 3 354 téléchargements
-
stlLED1.stl
597 Ko · 3 346 téléchargements
Description
I really liked all the sharpening jigs out there.
I had just 1 major problem, non fitted for a standart 50X150 MM sharpening stone.
So here we go. Made this with bearing and smooth steelrods, to keep it as regid/precise as possible.
The planner board is angled at 17 degrees.
Layer height 02
Layer width 05
2 outlines
Infill 35 % grid
BOM.
1 x LM8UU
2 X 608RS bearings
2 X 20X3 mm screw
1 X 25x3 mm screw
3 X 3 mm nuts
3 X 20X3 mm round magnets
3 X 175X8 mm smooth rods (length doesn't matter just make sure the upper rod is long enough)
1 X 500X8 mm smooth rod
and of course a 50X150MM std grinding stone
