Heat Set Insert Press
par adafruit
Fichiers imprimables (13)
-

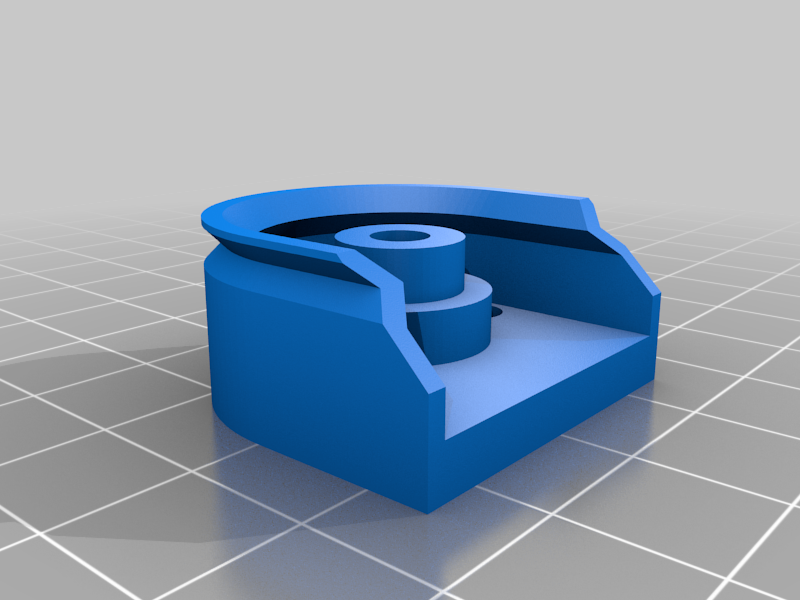

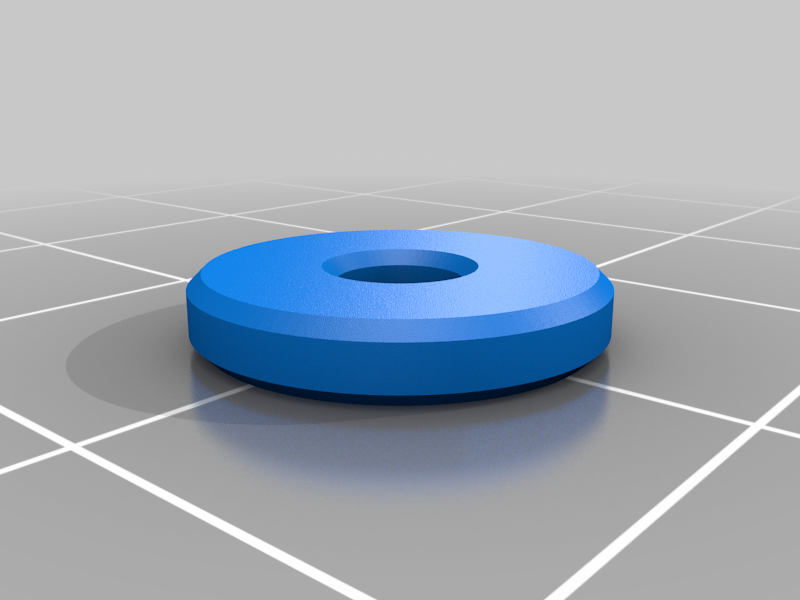

stlidler-cover.stl
64 Ko · 13 638 téléchargements
-

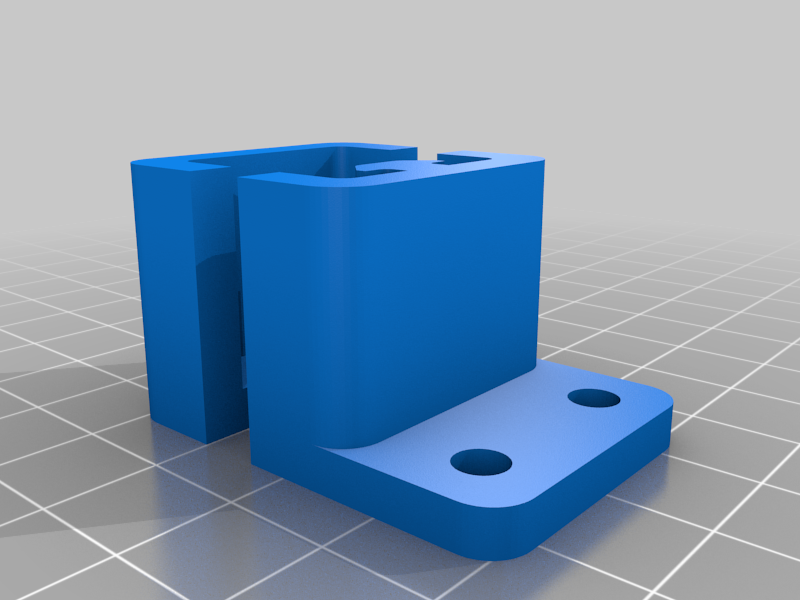

stlidler-holder.stl
97 Ko · 13 601 téléchargements
-

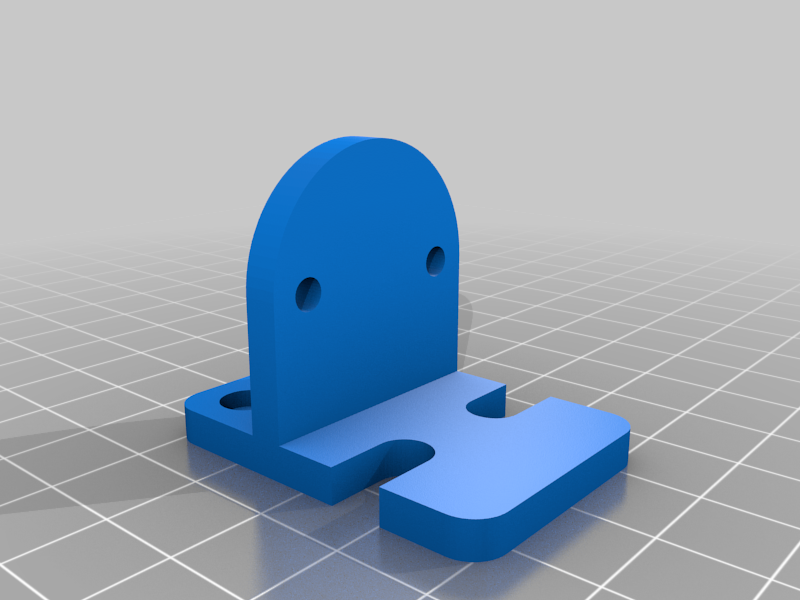

stlidler-mount.stl
67 Ko · 13 595 téléchargements
-
stlidler-coupler.stl
143 Ko · 13 610 téléchargements
-

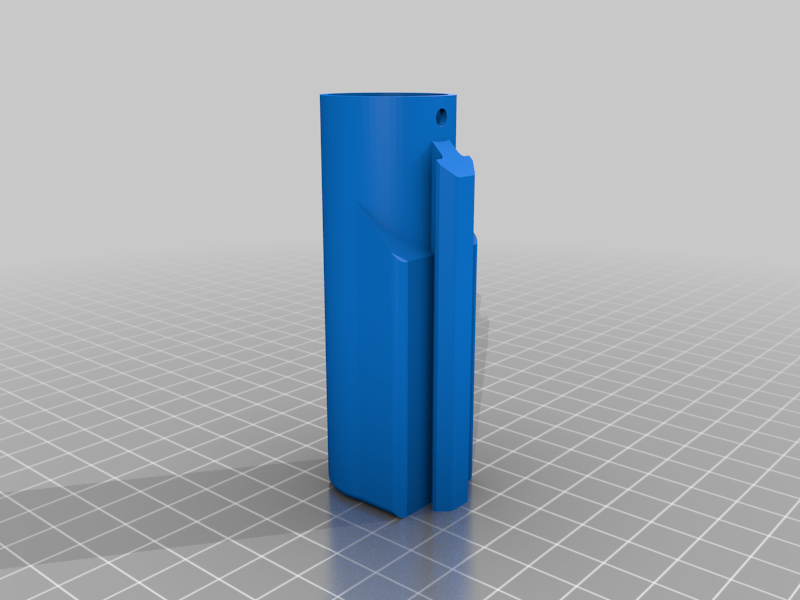

stlweight-holder.stl
167 Ko · 13 606 téléchargements
-

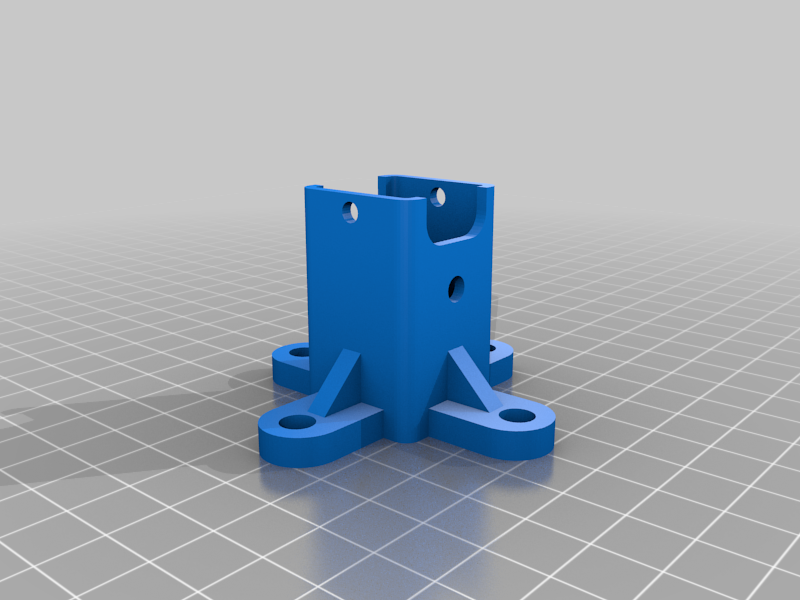

stlmount.stl
222 Ko · 13 698 téléchargements
-

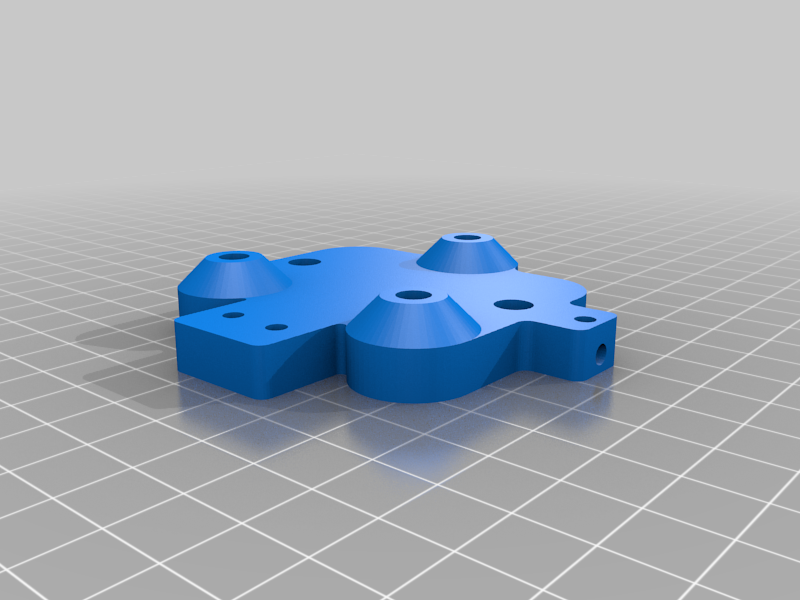

stlroller-plate.stl
156 Ko · 13 617 téléchargements
-

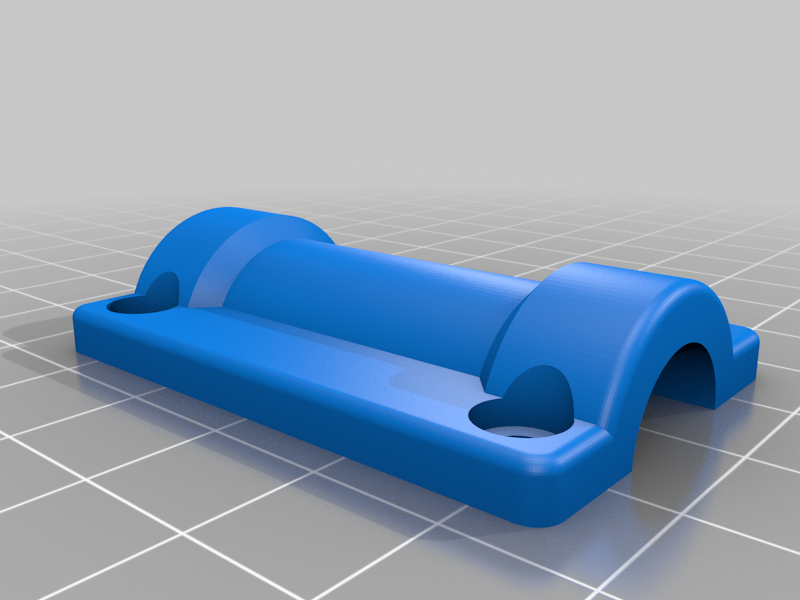

stlclamp-cover.stl
393 Ko · 13 625 téléchargements
-

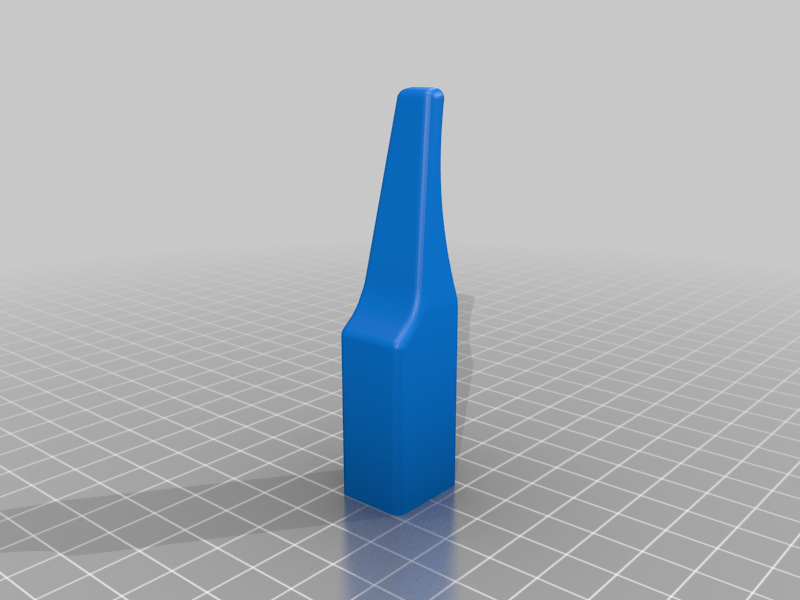

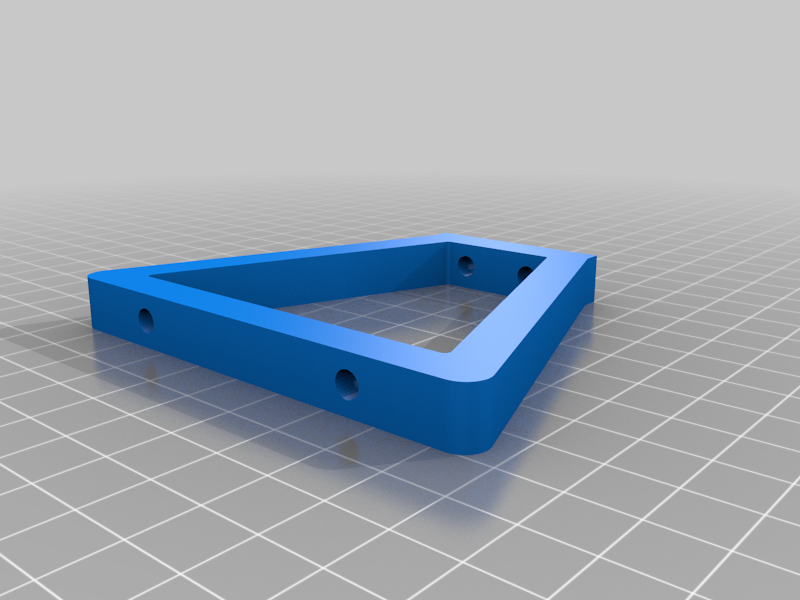

stlarm.stl
34 Ko · 13 593 téléchargements
-
stlroller-handle.stl
129 Ko · 13 552 téléchargements
-

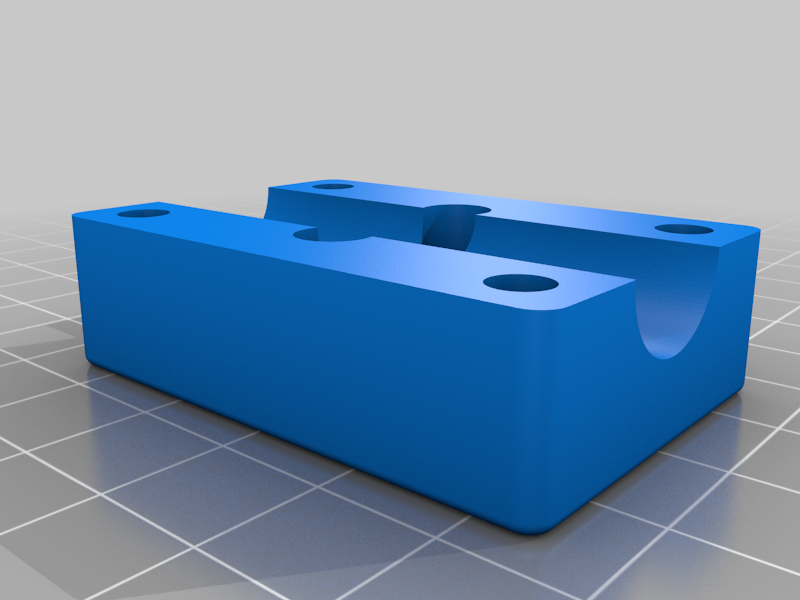

stlclamp-mount.stl
358 Ko · 13 602 téléchargements
-

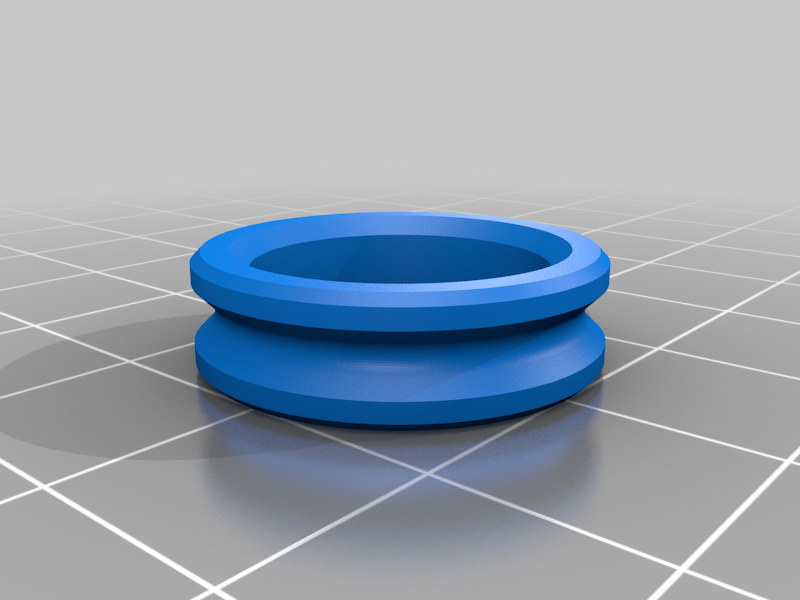

stlpulley-wheel.stl
504 Ko · 13 530 téléchargements
-
stepheat-press-rig.step
12.4 Mo · 5 276 téléchargements
Description
In this project we're building a rig for installing heat set inserts. Use 3D printed parts and hardware to build a solder rig with smooth linear roller action! Make perfectly straight inserts with precision using a tip for installing inserts.
Learn guide: https://learn.adafruit.com/heat-set-rig/
Fusion 360 Share Link: https://a360.co/2H4439W
Project video https://youtu.be/bbsD-3_AP_0
3D Hangouts https://youtu.be/AJ9JT_pHqAw
Layer by Layer https://youtu.be/Yrz57TUeFzI
When working with 3D printed parts, a press can help you install inserts. This holds a soldering iron vertically and allows you to press down, perfectly straight. The tip of the iron heats up the brass and softens the plastic. Pressing down pushes the insert into the part and once it cools down, it’s locked in place. This could be handy for folks doing a small production run or if you're looking for a tool to make this easier.
This rig makes installing inserts feel like pressing a hot knife through butter – The linear motion on this build feels smooth. This is definitely over engineered and we spent way too much time on it but we think folks will find it useful. The rig is modular and uses common hardware – The 3d printed parts can be remixed and modified to work with other components. There’s a learn guide for this project so folks can build their own.
Holding the iron straight seems simple enough and works fine most of the time but the conical shape of a regular soldering iron tip can catch the insert and accidentally pull it out while melting the plastic – And that can sometimes ruin parts.
Soldering Iron 60W
https://www.adafruit.com/product/3685
Heat-Set Installation Tips
https://www.adafruit.com/product/4239
2020 Aluminum Extrusion
https://www.adafruit.com/product/1221
M4 button head screws
https://www.adafruit.com/product/1160
M4 Slim T-Nuts
https://www.adafruit.com/product/1157
Stickvise PCB vise
https://www.adafruit.com/product/3197
Soldering Tips for Heat Set Inserts
https://www.adafruit.com/product/4239
Inventor II 3D Printer
https://www.adafruit.com/product/3897
Filament for 3D Printers
https://www.adafruit.com/product/2080
