SMD Sample Book

par ksuszka

Fichiers imprimables (3)

  • stl

    smd_book_187x140x26_edge.stl

    172 Ko · 444 téléchargements

    Télécharger
  • stl

    smd_book_187x140x26_cover.stl

    260 Ko · 446 téléchargements

    Télécharger
  • stl

    smd_book_187x140x26_hook.stl

    381 Ko · 437 téléchargements

    Télécharger

Description

This is a book for SMD sample components. It requires SMD sample pages like those.

For a complete book you need:

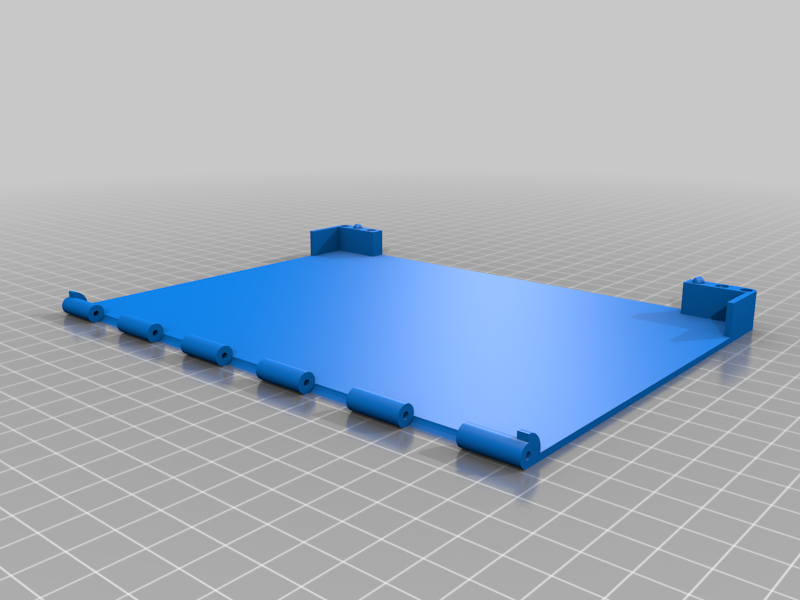

  • 2 cover pieces

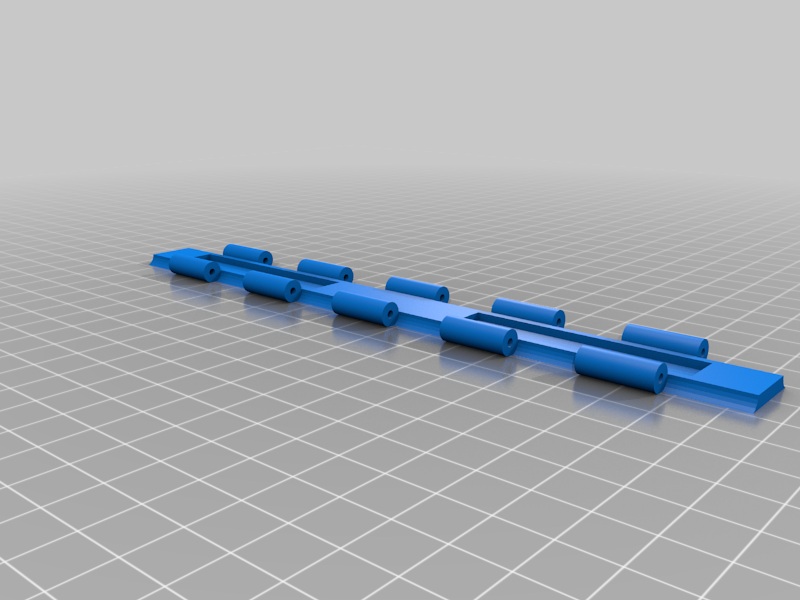

  • 1 edge piece

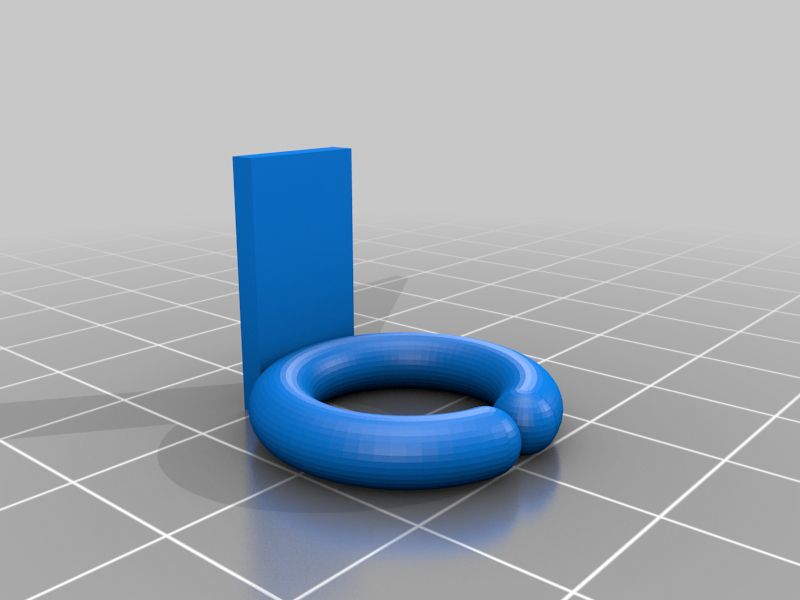

  • 6 hook pieces

Hooks need to be separated with a knife after printing.

I printed it in PETG. I joined cover pieces using a piece of d=1.5mm steel wire and I glued hooks using super glue. I put 4 4x3mm round magnets in corners as a lock.
