PCB Holder
par wokylord
Fichiers imprimables (10)
-
stl1.STL
8 Ko · 3 916 téléchargements
-
stl4.STL
597 Ko · 3 812 téléchargements
-
stl7.STL
200 Ko · 3 818 téléchargements
-
stl2_2.STL
626 Ko · 3 794 téléchargements
-
stl6.STL
779 Ko · 3 797 téléchargements
-
stl2_1.STL
626 Ko · 3 758 téléchargements
-
stl3.STL
312 Ko · 3 789 téléchargements
-
stl9.STL
371 Ko · 3 785 téléchargements
-
stl5.STL
254 Ko · 3 786 téléchargements
-
stl8.STL
497 Ko · 3 795 téléchargements
Description
All pcb holder parts are printed on the printer (plastic only).
Can hold PCB 140 mm
Also u can download SOLIDWORKS files.

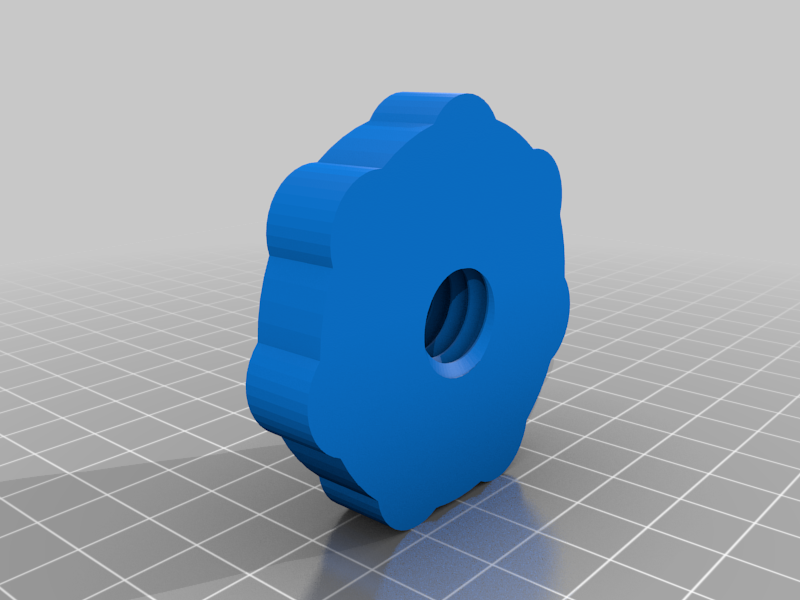

Thread print without support.
When designing the thread took into account the shrinkage of plastic 0.4mm

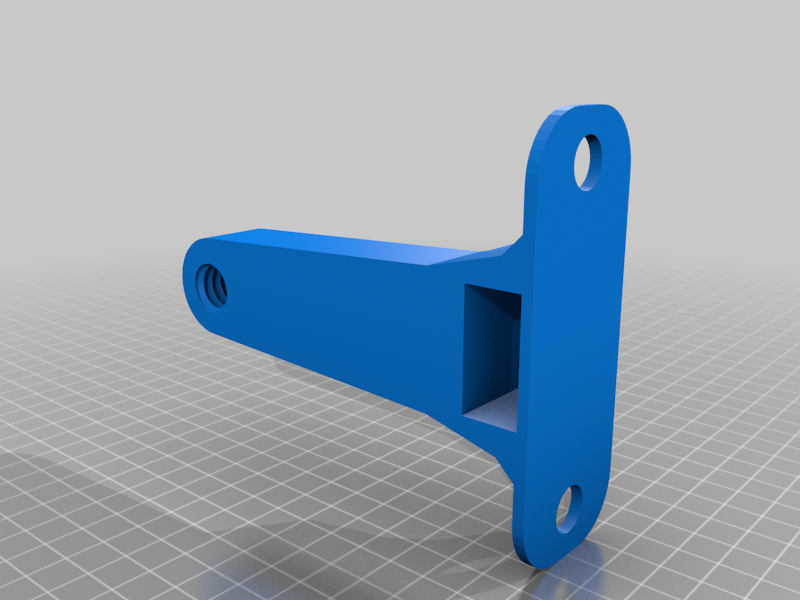

Details 1, 2.1, 2.2 print vertically.
Support is needed only on parts 4 and 5. Support is needed for the hole for part 1.

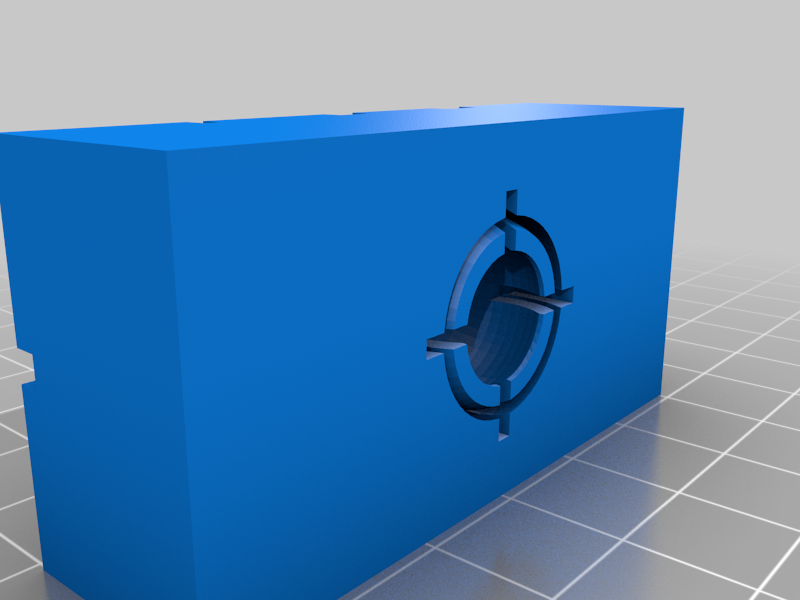

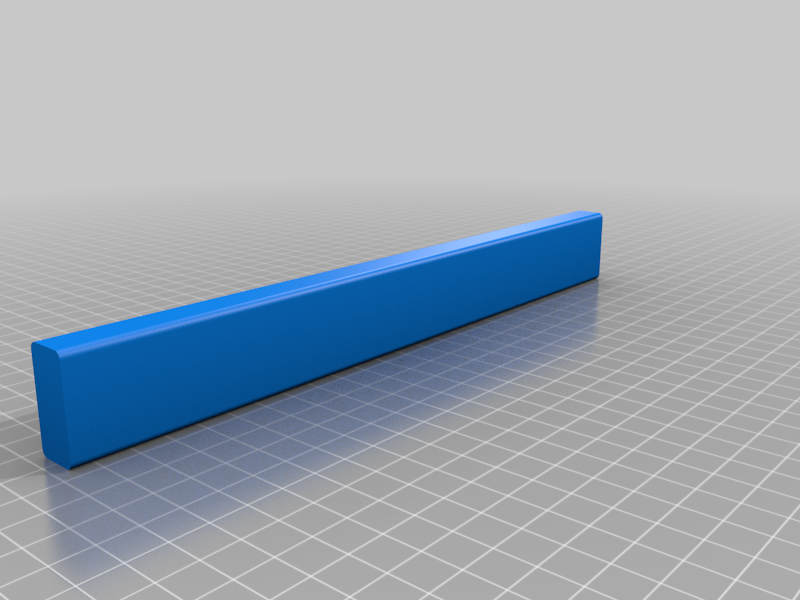

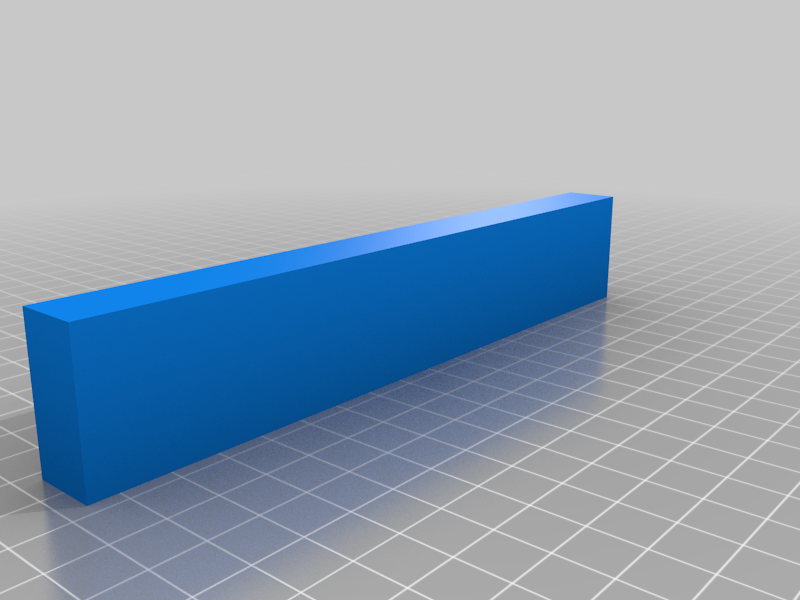

Parts 7 and 8 hold the board and have slots for different pcb board thickness.

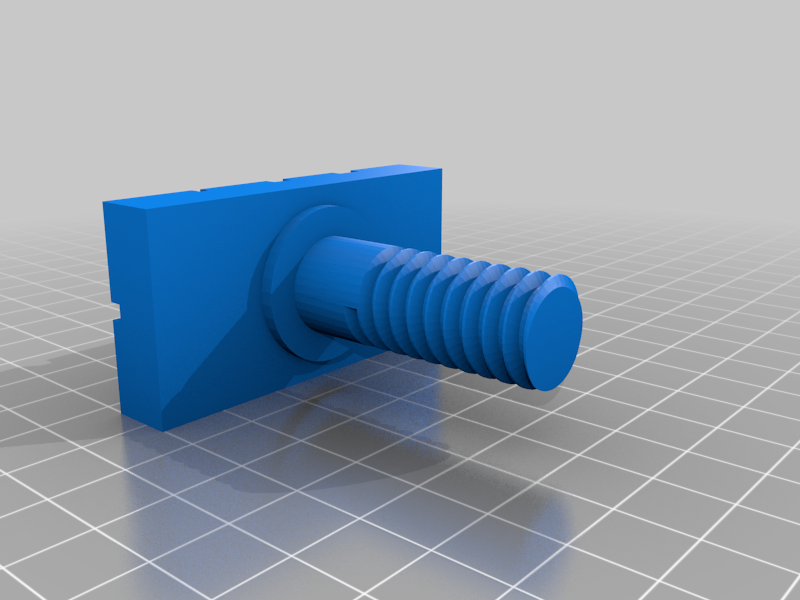

Part 7 is mounted on part 6 with a hinge (ball).
6 and 7 press the pcb. 8 and 9 do not allow to rotate.

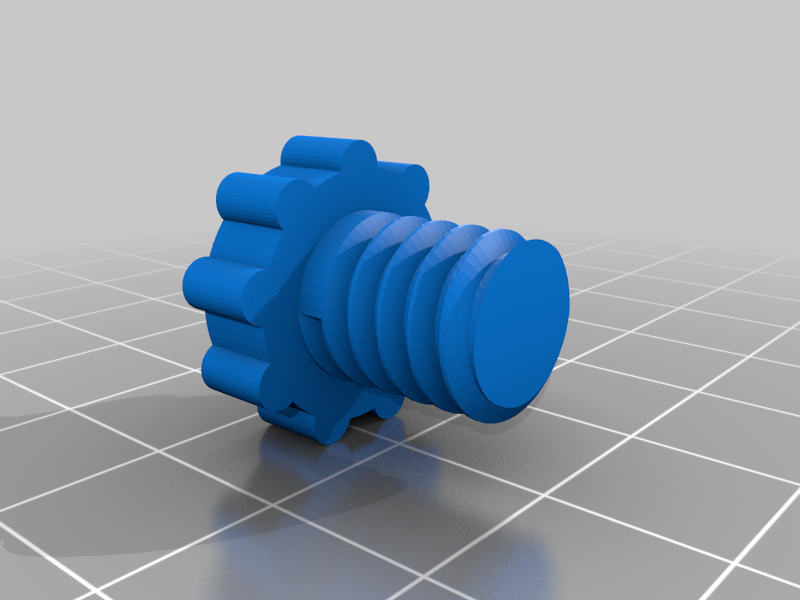

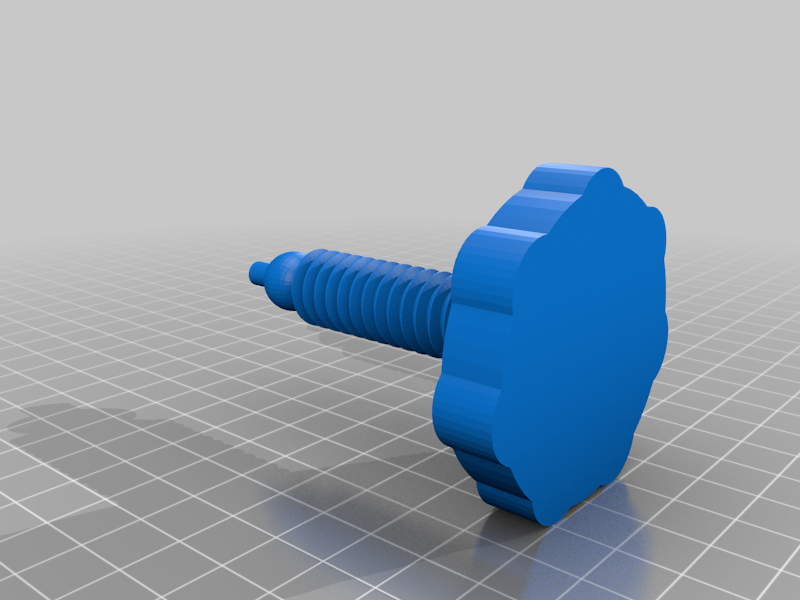

If the bolts (3) do not screw into the thread badly, then gently heat the threads with a hairdryer and then tighten the bolt.
