Modular Tool Rail System
par bitsplusatoms
Fichiers imprimables (21)
-
stlRail-280mm.stl
24 Ko · 7 883 téléchargements
-
stlSingle_Plier_Holder.stl
31 Ko · 7 888 téléchargements
-

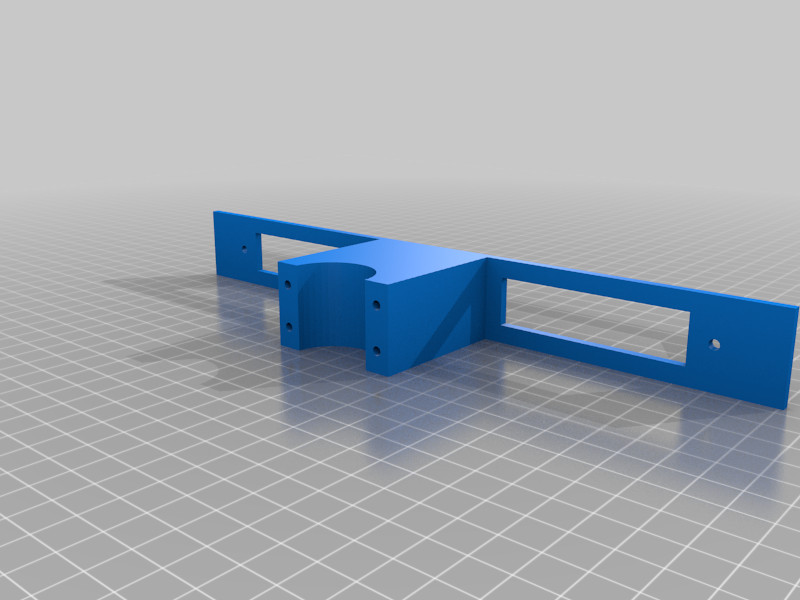

stlFront_Plate-240.stl
50 Ko · 7 678 téléchargements
-

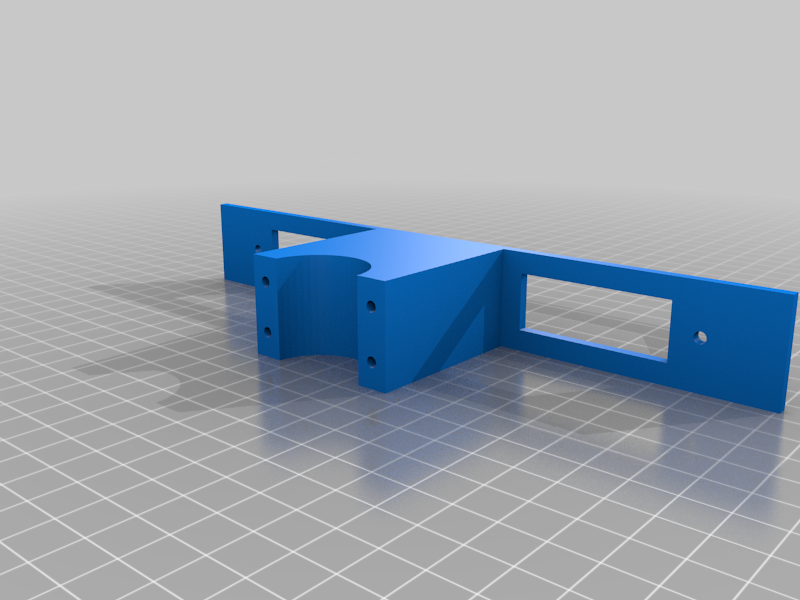

stlFront_Plate-200.stl
51 Ko · 7 702 téléchargements
-
stlSpatula_Holder.stl
12 Ko · 7 814 téléchargements
-
stlRail-240mm.stl
24 Ko · 7 798 téléchargements
-
stlRear_Hub.stl
79 Ko · 7 695 téléchargements
-
stlCaliper_Holder.stl
3 Ko · 7 815 téléchargements
-

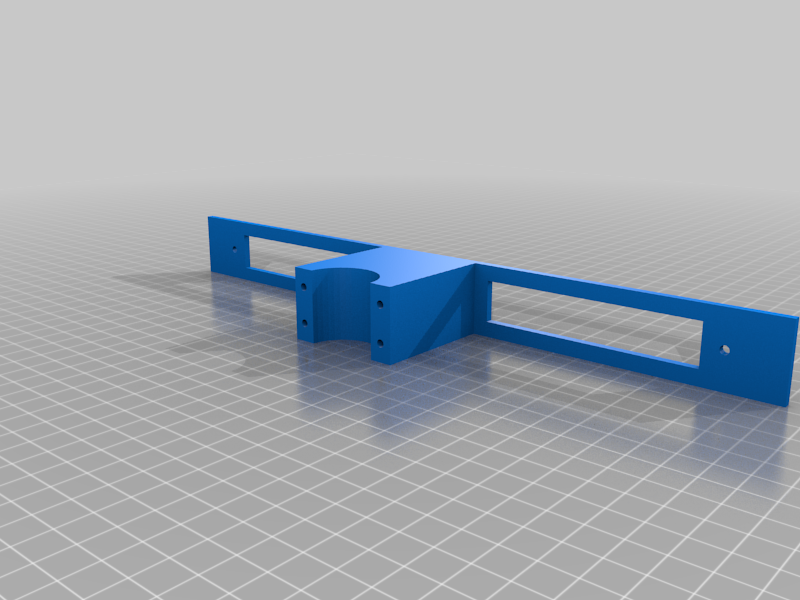

stlFront_Plate-280.stl
50 Ko · 7 677 téléchargements
-

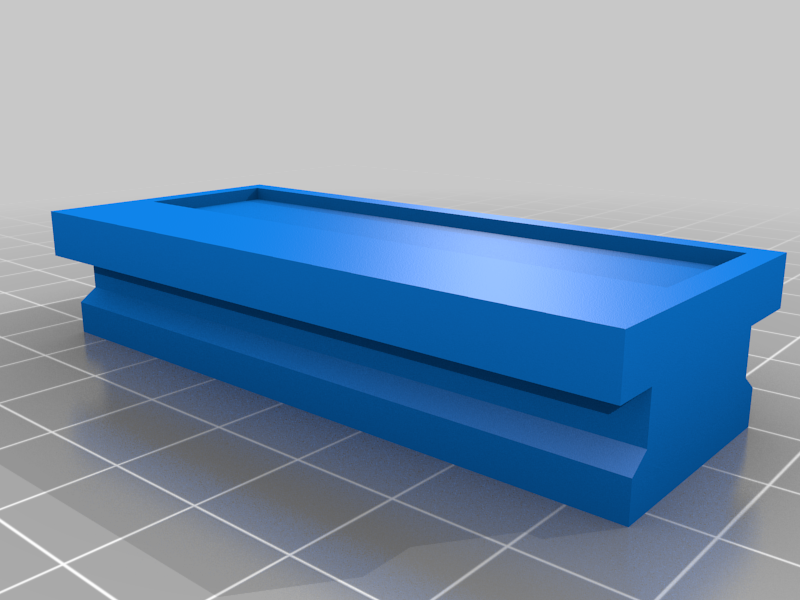

stlMagnetic_Base.stl
3 Ko · 7 718 téléchargements
-

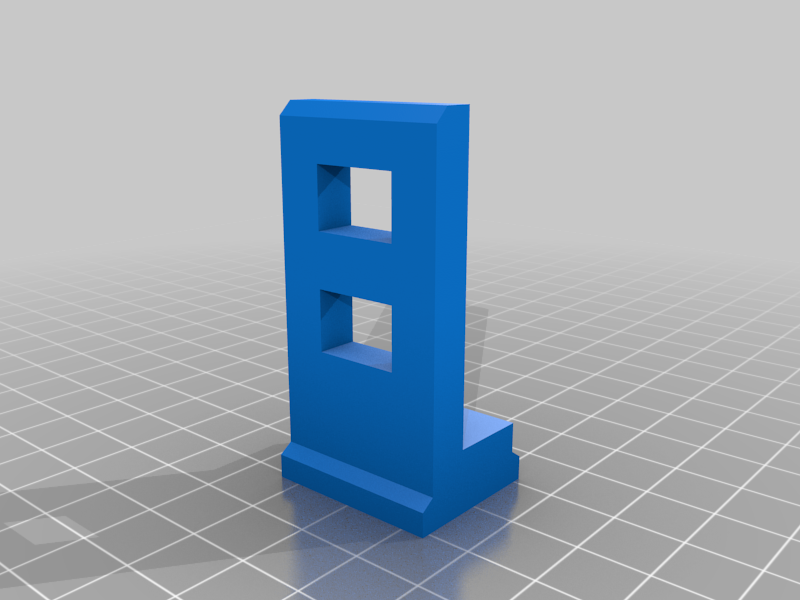

stlTweezers_Holder.stl
4 Ko · 7 831 téléchargements
-
stlMulti_Plier.stl
3 Ko · 7 897 téléchargements
-
stlRail-200mm.stl
25 Ko · 7 907 téléchargements
-

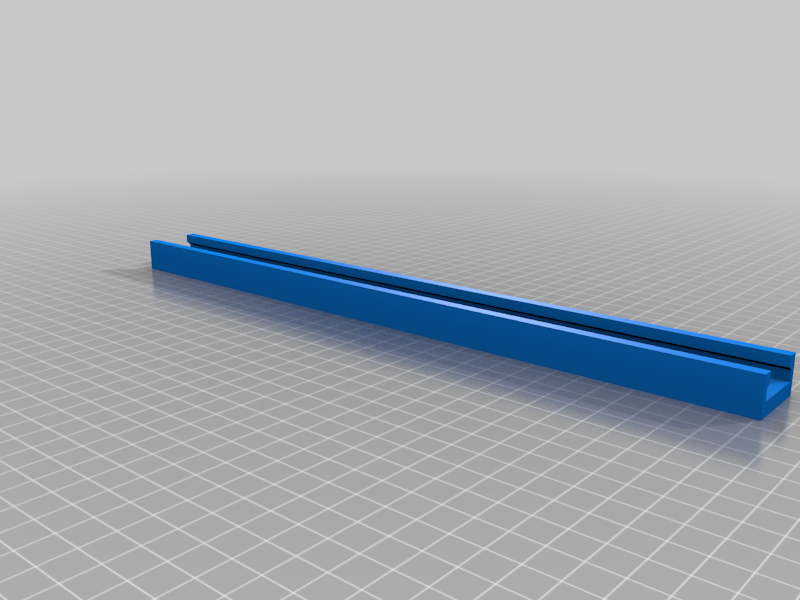

stlRail-320mm.stl
24 Ko · 7 702 téléchargements
-
stlFront_Plate-320.stl
50 Ko · 7 677 téléchargements
-
stlDriver_Holder.stl
163 Ko · 7 886 téléchargements
-

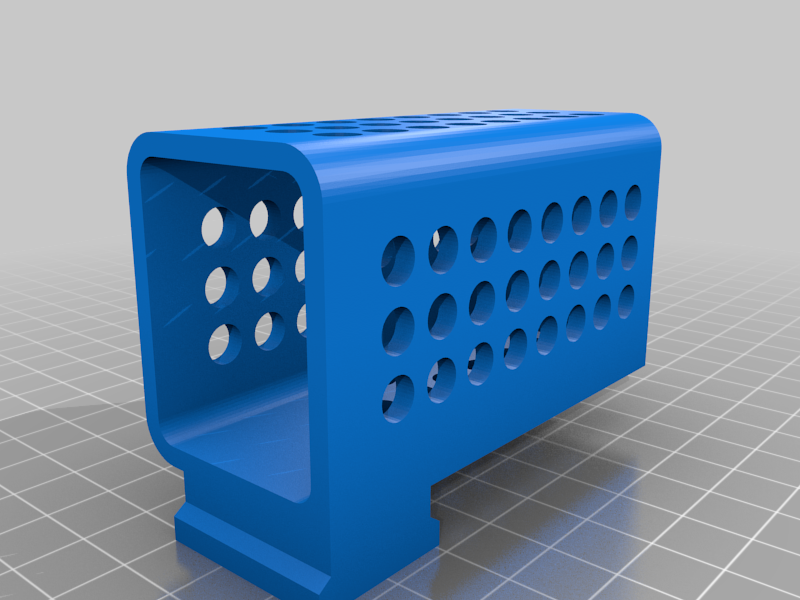

stlPencil_Cup.stl
704 Ko · 7 976 téléchargements
-
stlDeburring_Tool_Holder.stl
25 Ko · 6 975 téléchargements
-
stlEnd_Cap.stl
8 Ko · 5 911 téléchargements
-
stlPC2P_Attachment.stl
22 Ko · 3 131 téléchargements
-

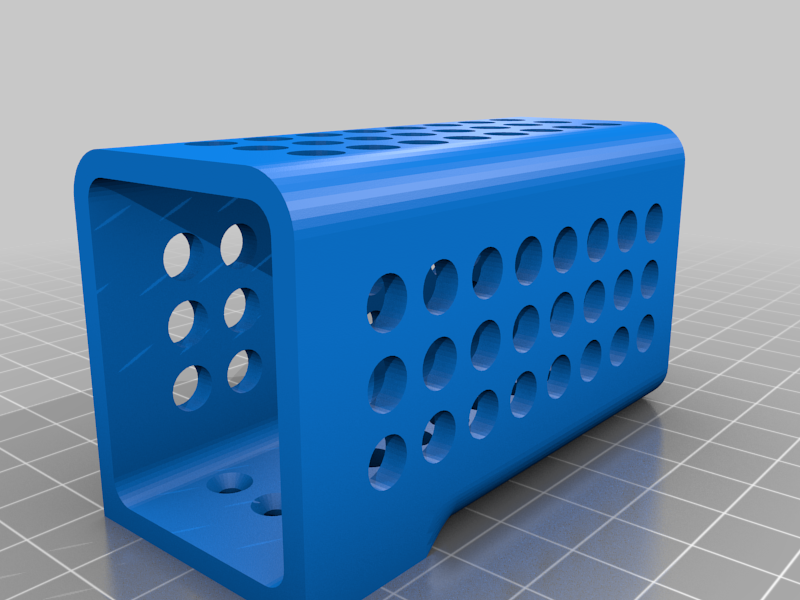

stlPC2P_Cup.stl
663 Ko · 3 145 téléchargements
Description
This is modular rail system that allows you to organize small tools for easy access. Tool holders of various types slide into the rail. Choose which holders you want based on your tool needs. I have four of these sprinkled around at various workstations and I choose the tool holders based on what tools I need most in that area.
Update 2021-03-11: Link added to compatible parts by coaster36
Update 2020-07-29: Link added to a compatible oil bottle holder

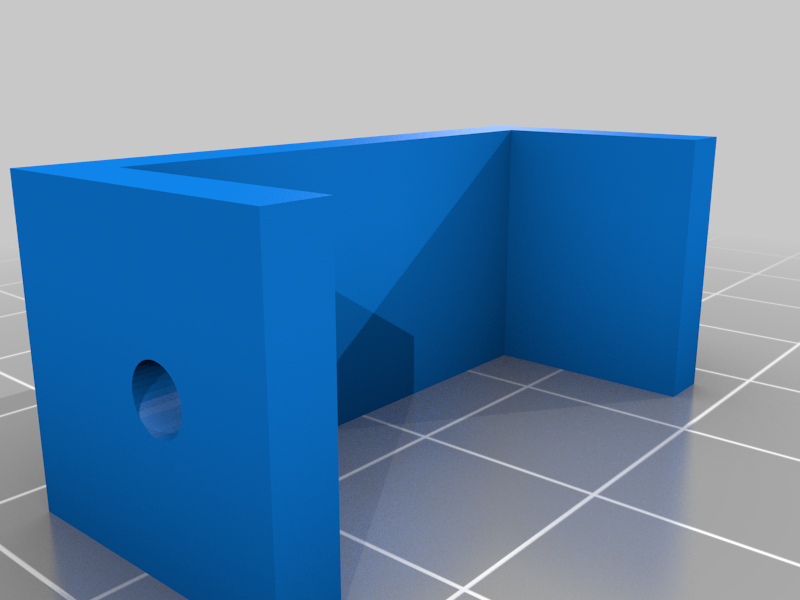

Update 2020-06-13: I added an endcap for the rail
Update 2020-03-20: I added a holder for a deburring tool. See the table below.
Mounting the rail system

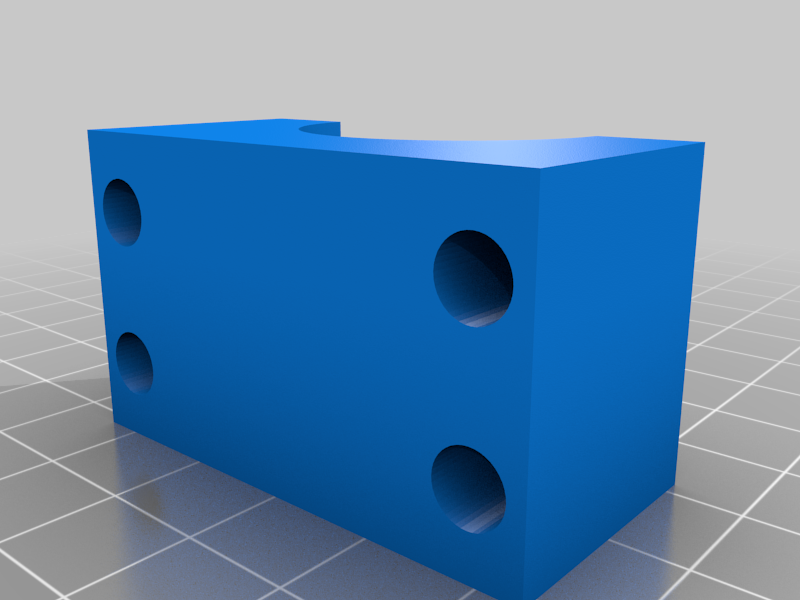

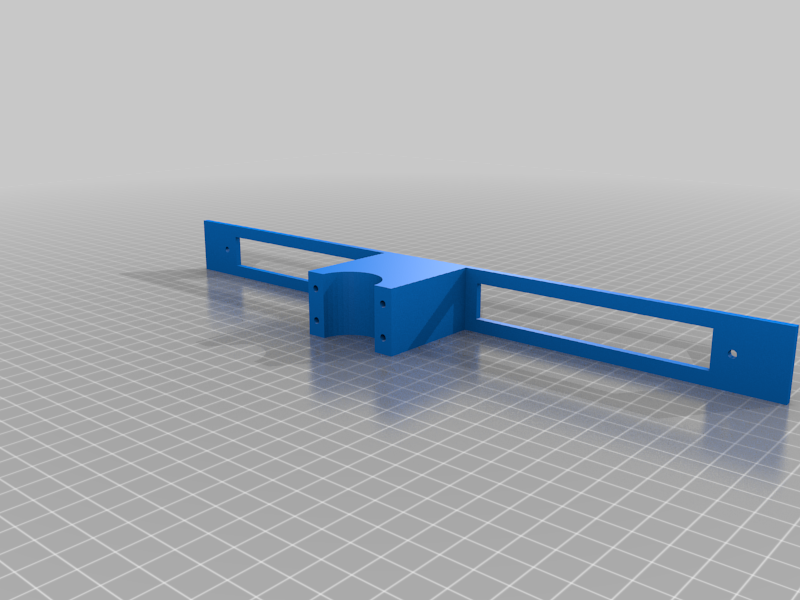

The rail that can be attached using screws through the provided holes to a wall, cabinet, or other surface. You could also use adhesives depending on how permanent you want it to be. I found at least one case where I wanted to mount the unit to a tube (a metal table leg), so I also made a tubular mounting system. There are many variations that could be needed for that including the diameter of the tube and how far the mount should protrude. I provided the STL that I used, but you will probably need to go into the model and change parameters to suite your need.
The Components

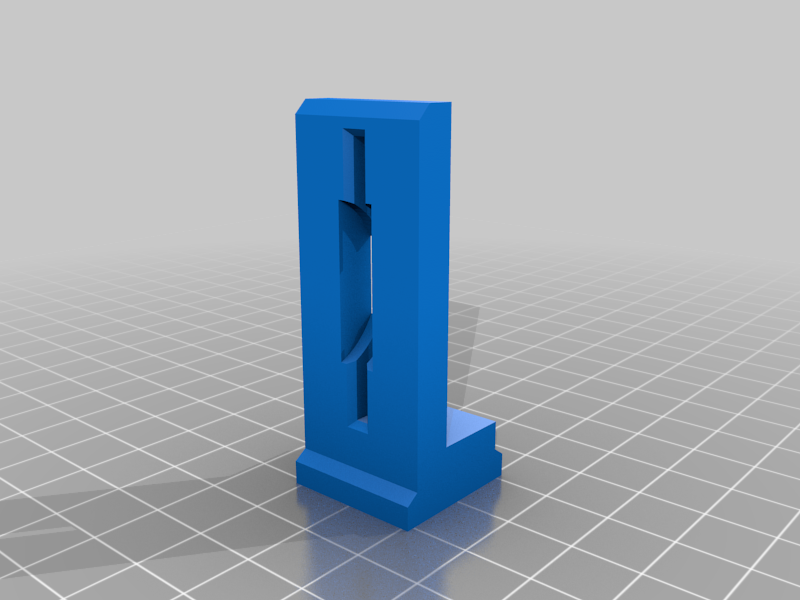

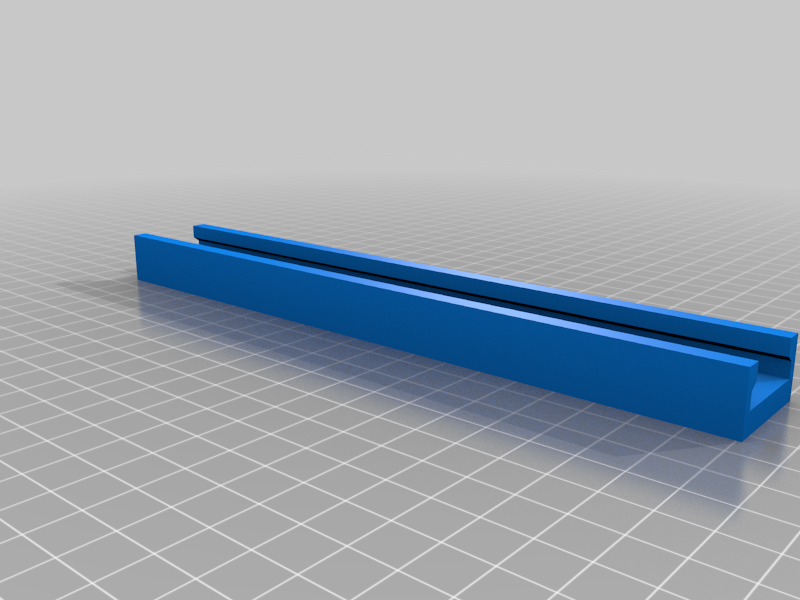

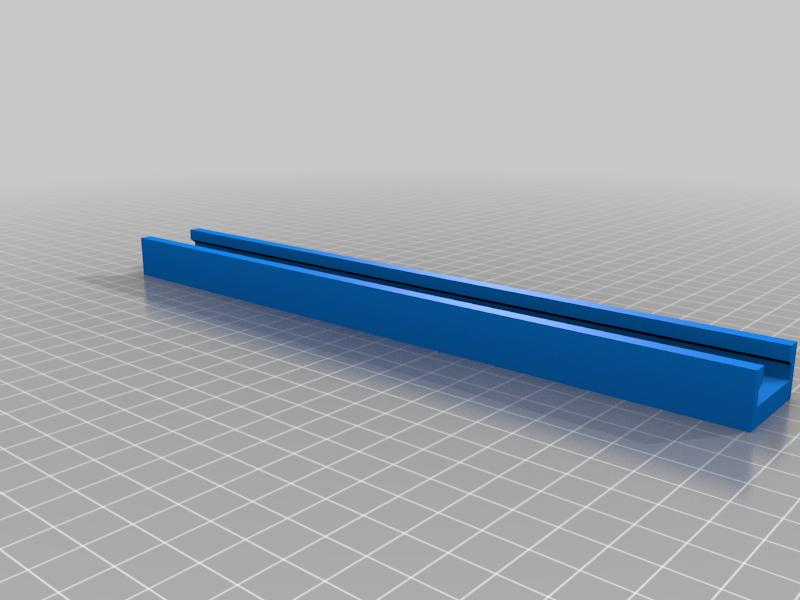

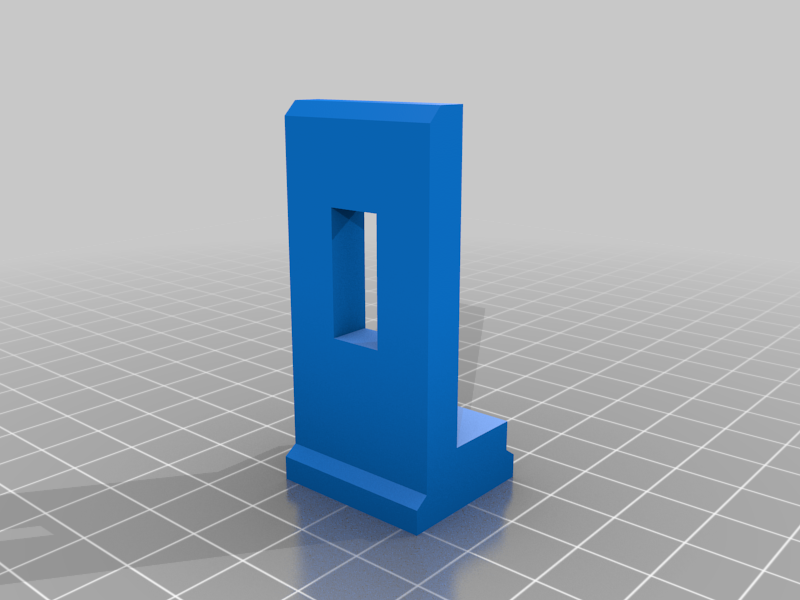

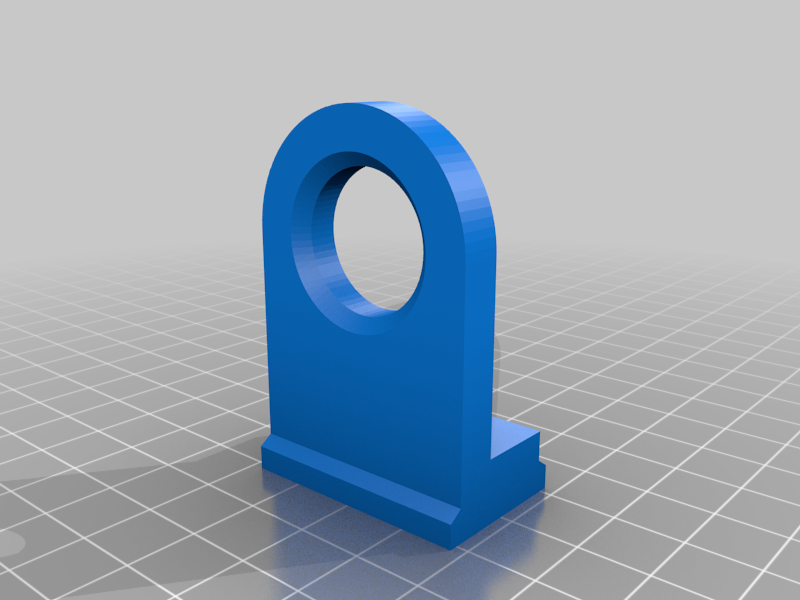

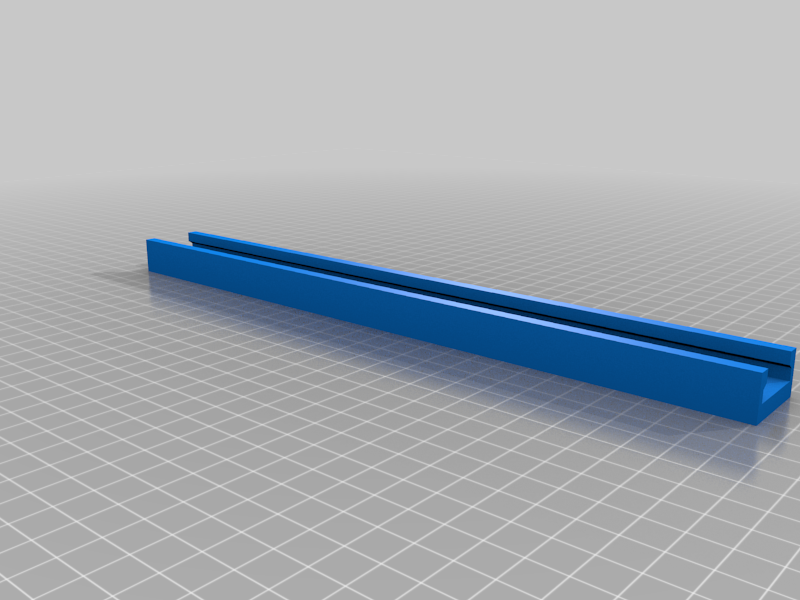

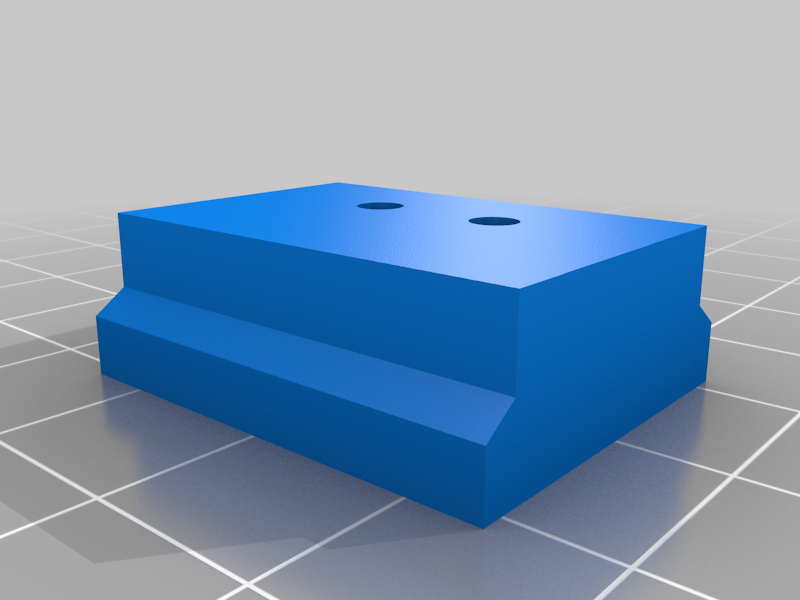

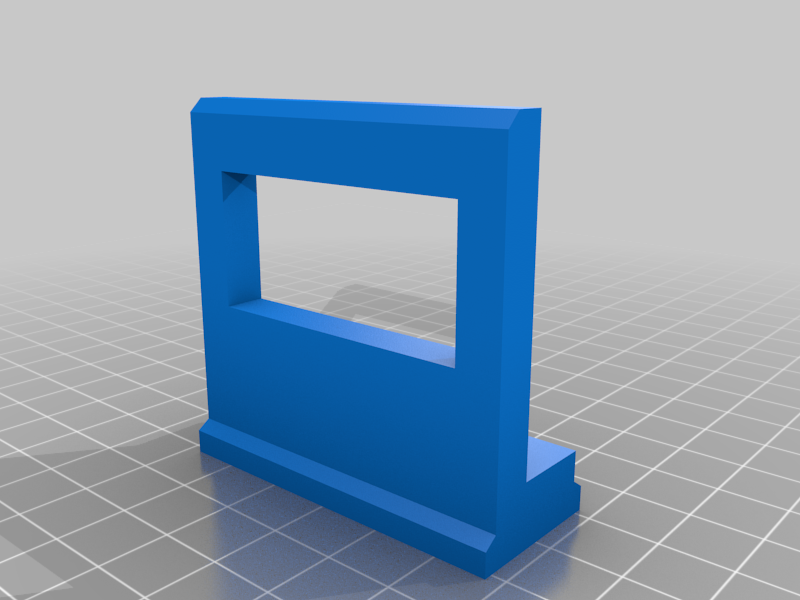

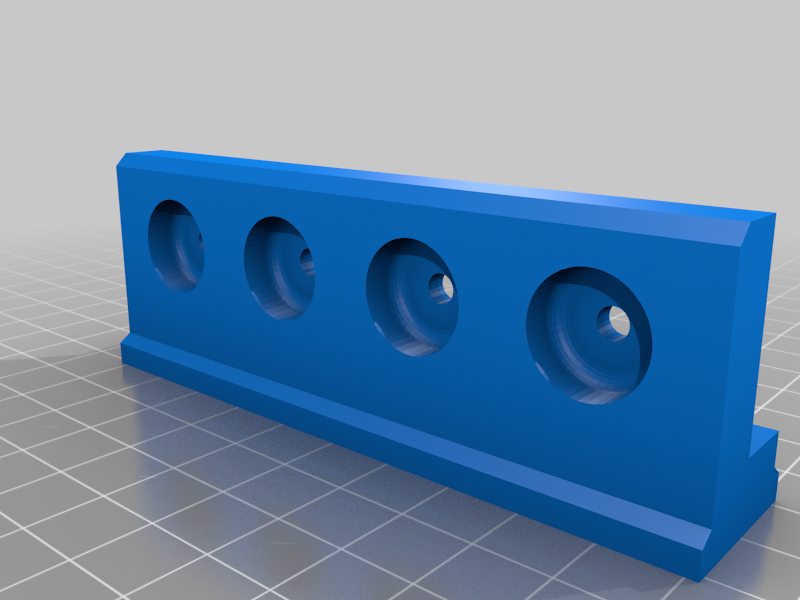

CategoryNameDescriptionRailThe rail itself. Choose the length that suits your needs.Rail-200mm.stl200mm RailRail-240mm.stl...Rail-280mm.stl...Rail-320mm.stl...Endcap.stlAfix to the end of the rail to keep the holders from sliding out.HoldersPrint the ones that are useful to youCaliper Holder.stlHolds inexpensive digital calipers such as these.Driver Holder.stlHolds a set of 4 Hex Key drivers such as theseMagnetic Base.stlProvides a base for my magnetic hex key holder. To use this, glue metal washers, or some other ferrous material, into the recess. The magnet on the hex key holder will attach to it. See pictures.Multi Plier.stlHolds multiple pliers such as needle nose, wire cutters, etc.Pencil Cup.stlHolds pencils, pens, and other small items. Printed without supports with long face on bed. Requires bridging.PC2P_Cup.stl, PC2P_Attachment.stlAnother version of the pencil cup that prints in 2 parts that screw together. Does not require supports or bridging.Single Plier Holder.stlHolds one larger pliersSpatula Holder.stlHolds the sort of small spatula that comes with many 3D PrintersTweezers Holder.stlHolds one or 2 tweezersDeburring Tool Holder.stlHolds a demurring tool such as this oneOil Bottle HolderA compatible design by @guidomz which can be found hereHex driver setA compatible design by @coaster36Solder sucker snap mountA compatible design by @coaster36Caliper mountA compatible design by @coaster36Tube ClampOptional: Use to mount the rail system to a tube. Two parts that clamp together around a tube.Rear Hub.stlFront Plate-200.stlUse with the 200mm railFront Plate-240.stl...Front Plate-280.stl...Front Plate-320.stl...Customization and the Model
I have provided a Fusion 360 file with the rail, all the holders, the tube clamp, and various sketches to use as the basis for new components. You can easily add new holders using the components and sketches provided. Also, check the User Parameters (Modify -> Change Parameters) to easily update key settings like the length of the rail.
if you create new components that you post on thingiverse, please let me know and I will link them from here so others can find all the holders that work with this system.
Note: there is a component in the model named "Dovetail Attachment". I provided that s a jumping-off point for holders that you want to be removable, but not mount with magnets. It uses a dovetail mounting system that allows the holder to slide up and off the rail.
Related: If you are using this tool holder, you may be interested in this vise. The original design is really cool and I remixed it to open/close quickly using multi-start threads.
Acknowledgement:
Update: I'm 99.999% sure that this is the model that inspired this design. I changed my model to be a "remix". Thanks to s_kohls for finding it and to LAY3RWORKS for the great original design.
