OpenAstroTracker UNO Case

par theaftab

Fichiers imprimables (3)

  • stl

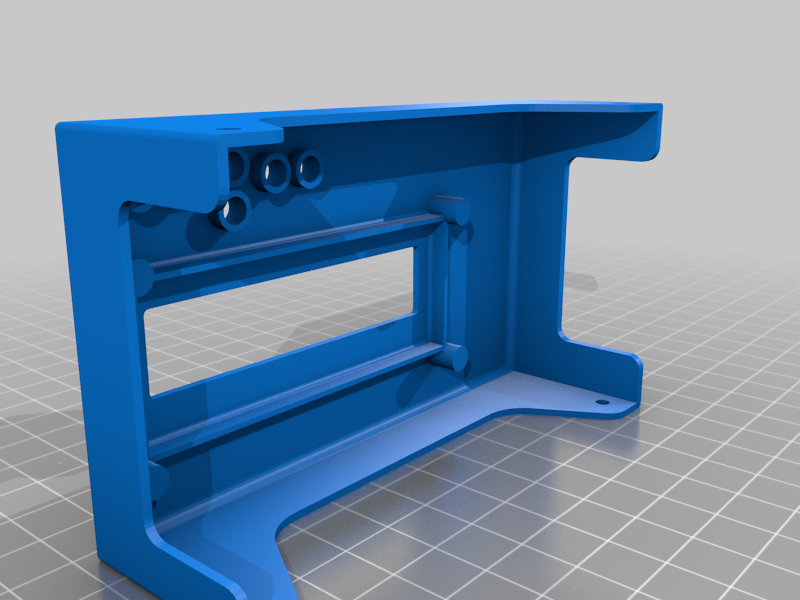

    OpenAstroTracker_Wide_UNO_Case_Top_v2.stl

    260 Ko · 456 téléchargements

    Télécharger
  • stl

    OpenAstroTracker_Wide_UNO_Case_Bottom_v2.stl

    269 Ko · 458 téléchargements

    Télécharger
  • stl

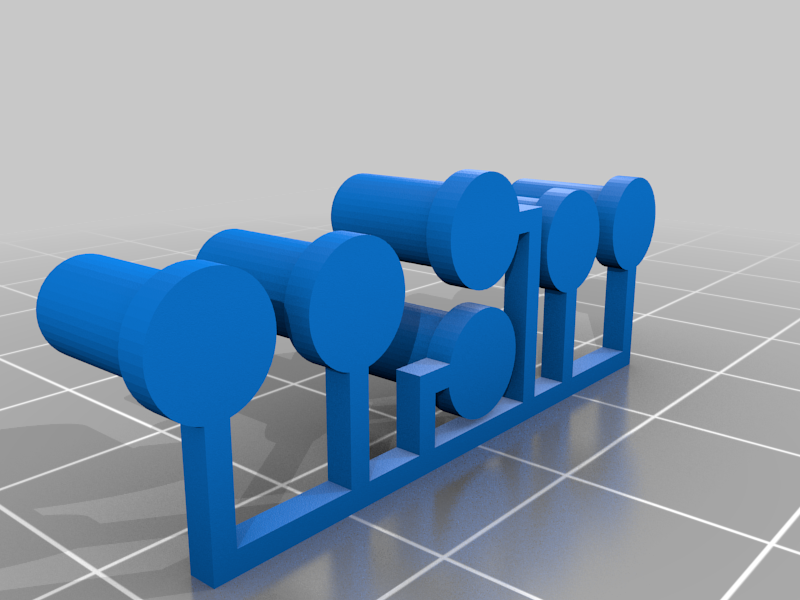

    OpenAstroTracker_Wide_UNO_Case_Buttons_v1.stl

    283 Ko · 455 téléchargements

    Télécharger

Description

Case for the electronic components of the OpenAstroTracker (https://www.thingiverse.com/thing:4167783)
Has room to place the HC-06 BT Module.

Connectors are JST-SMs - I used these: https://www.amazon.co.uk/dp/B0716JMHNJ/
Connectors need to be crimped. I used this one: https://banggood.app.link/3m8zMSCBS4

If you want to use the Arduino MEGA, try this case: https://www.thingiverse.com/thing:4241346

Tags

#OpenAstroTracker
