Automatic Nozzle Cleaner
par Perinski
Fichiers imprimables (8)
-
stlTrash.STL
83 Ko · 2 761 téléchargements
-
stl
O-Ring-Support-Shaft.STL
49 Ko · 2 754 téléchargements
-
stl
Pulley_Motor.STL
120 Ko · 2 757 téléchargements
-
stl
Pulley.STL
151 Ko · 2 751 téléchargements
-
stl
Brush_Support.STL
336 Ko · 2 754 téléchargements
-

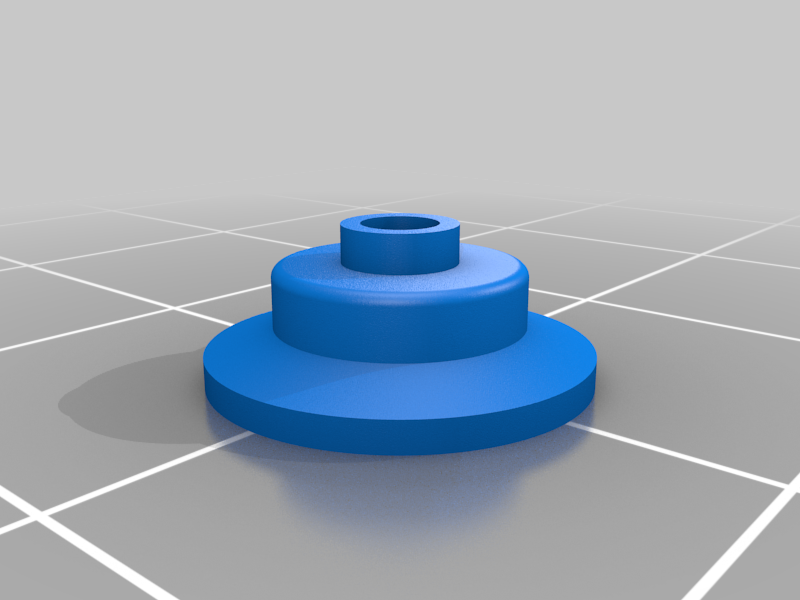

stlBrush_Support_Short.STL
400 Ko · 2 235 téléchargements
-
stl
Case_Front.STL
1.5 Mo · 2 750 téléchargements
-
stl
Case_Back.STL
1.2 Mo · 2 321 téléchargements
Description
Automatic Nozzle Cleaner
While I was doing other projects my friend, Ruvim Kub made a lifting mechanism for Automatic Nozzle Cleaner. You can download all files on his Lifting Gear For Automatic Nozzle Cleaner page. Now we are engaged in the software part and soon the project will be fully completed. You can start printing details now!See the video for details:
Parts links below:
- Motor 24R18TRVB (from CD-ROM DVD)
- Brass Tube OD 4mm ID 3mm
- Bearings - MR84ZZ 483
- Screws M3
- Insert Nuts M3
- Spiral Twisted Brass Wire Tube Brush (Easy to make by yourself)
Links to used tools:
- Pipe Cutter
- Belt Sander
- Mini Wireless Grinder
- Polishers Buffers Abrasive
- Reamers
- Dremel Tools
- NOGA deburring tool and Blades
- AB Glue Epoxy
- Super Glue 502
- E8000 Strong Liquid Glue
