Touch probe

par luben111

Fichiers imprimables (3)

  • step

    Touch_Porbe_V3A.STEP

    1.4 Mo · 840 téléchargements

    Télécharger
  • stl

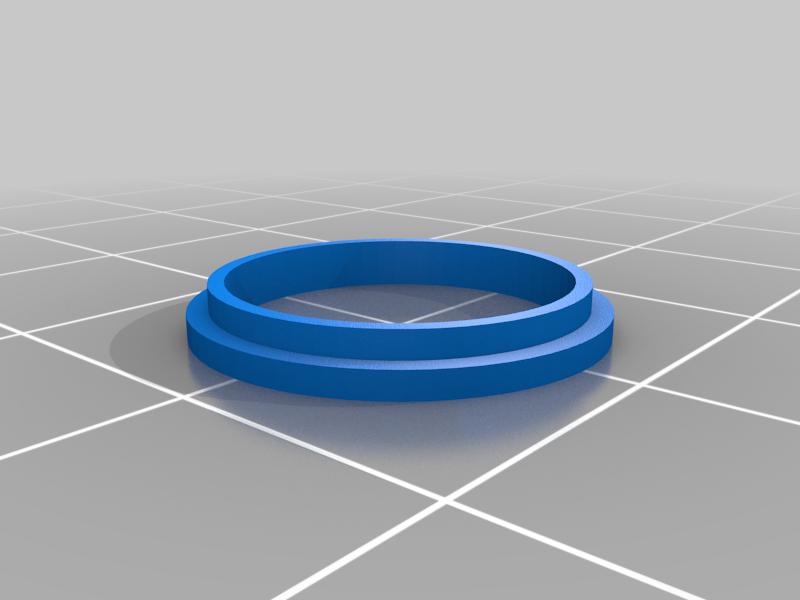

    Isolating_ring.STL

    34 Ko · 738 téléchargements

    Télécharger
  • stl

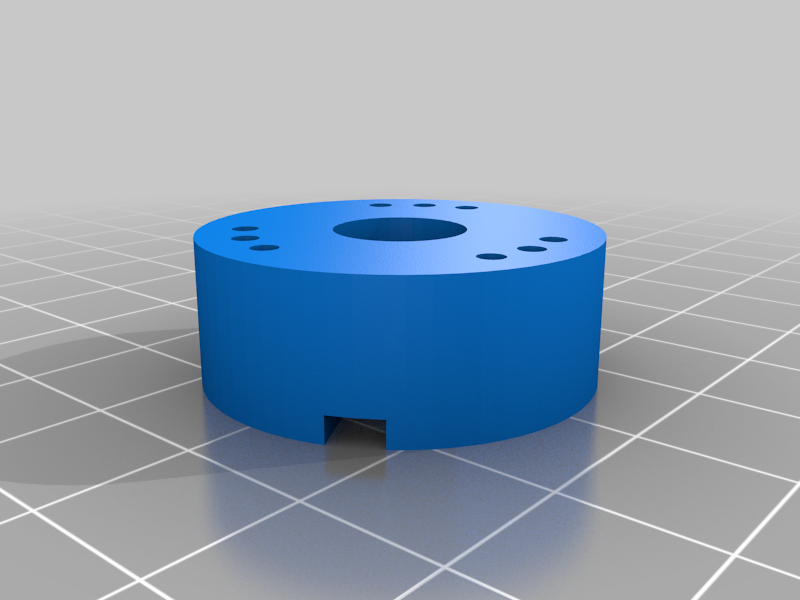

    Top_part.STL

    102 Ko · 736 téléchargements

    Télécharger

Description

Here is the design of the touch probe I made two and half years ago. Ideally the parts should be made on lathe and milling machine from metal but also they can be 3D printed (less precision).

Compared to the previous design this probe is more compact and if manufactured properly it should yield precision / repeatability better than 0.01mm.

Tags

#cnc #touch probe
