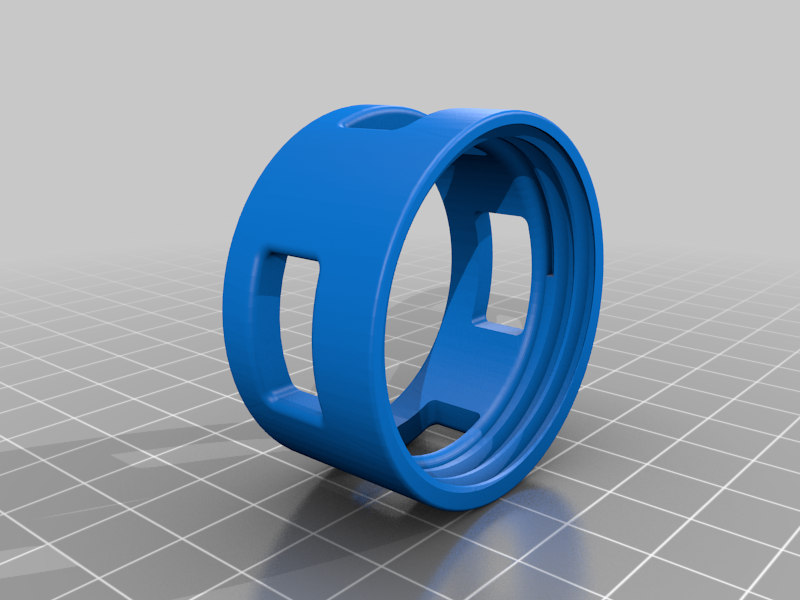

stl38mm_Shade.STL
1012 Ko · 689 téléchargements
-
stl41mm_Body.STL
708 Ko · 720 téléchargements
-

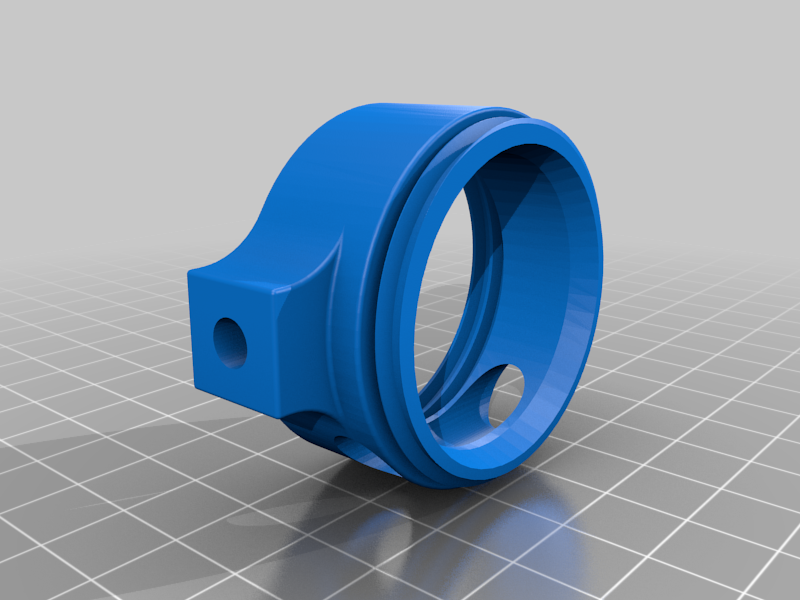

stl38mm_Body.STL
701 Ko · 689 téléchargements
-
stl41mm_Shade.STL
1005 Ko · 704 téléchargements
-

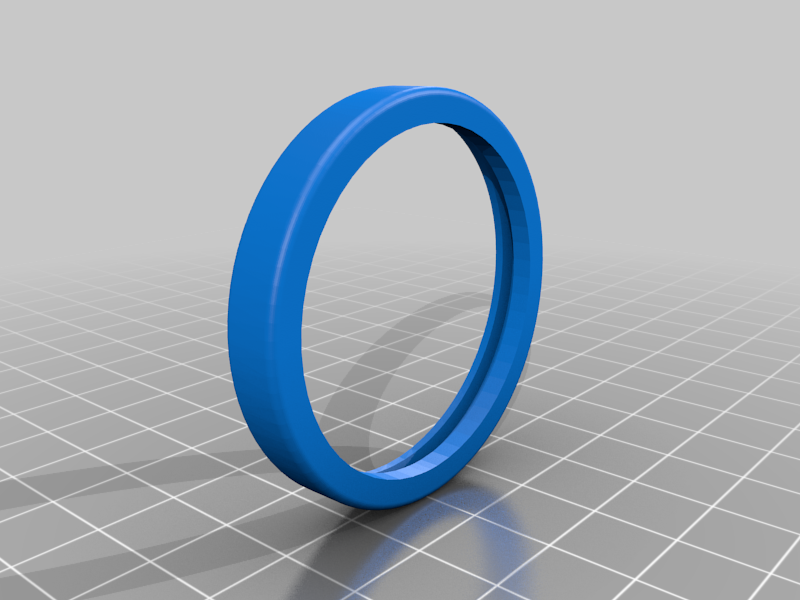

stl41mm_colourRing.STL
359 Ko · 699 téléchargements
-
stl34mm_LenseClamp_Colour.STL
391 Ko · 682 téléchargements
-
stl34mm_Body.STL
701 Ko · 696 téléchargements
-
stl34mm_Shade.STL
1024 Ko · 687 téléchargements
-
stl29mm_LenseClamp_Colour.STL
388 Ko · 675 téléchargements
-
stl31mm_LenseClamp_Colour.STL
386 Ko · 666 téléchargements
-
stl31mm_Body.STL
681 Ko · 682 téléchargements
-
stl30mm_.STL
677 Ko · 669 téléchargements
-
stl30mm_Shade.STL
1 Mo · 684 téléchargements
-
stl31mm_Shade.STL
1 Mo · 666 téléchargements
-
stl31_colourRing.STL
358 Ko · 664 téléchargements
-
stl29mm_colourRing.STL
357 Ko · 677 téléchargements
-

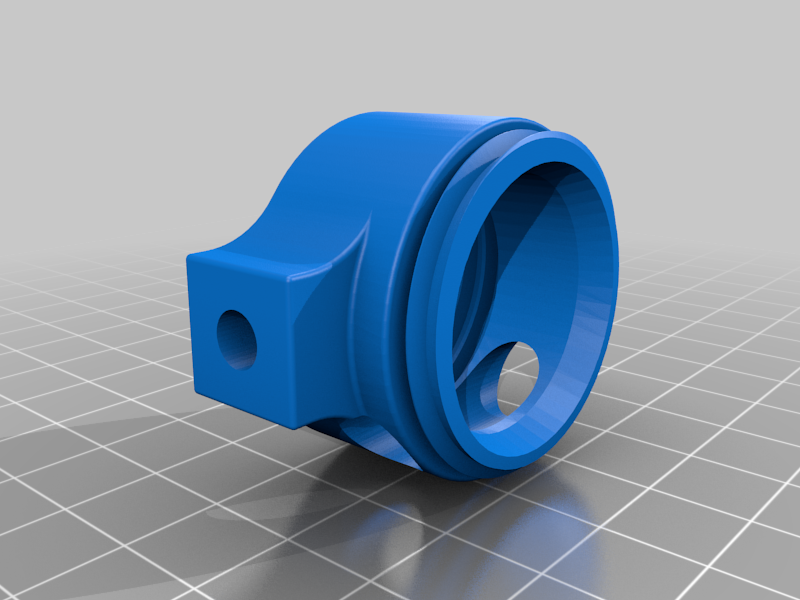

stl29mm_Body.STL
667 Ko · 677 téléchargements
-
stl30mm_colourRing.STL
357 Ko · 671 téléchargements
-
stl30mm_LenseClamp_Colour.STL
388 Ko · 677 téléchargements
-

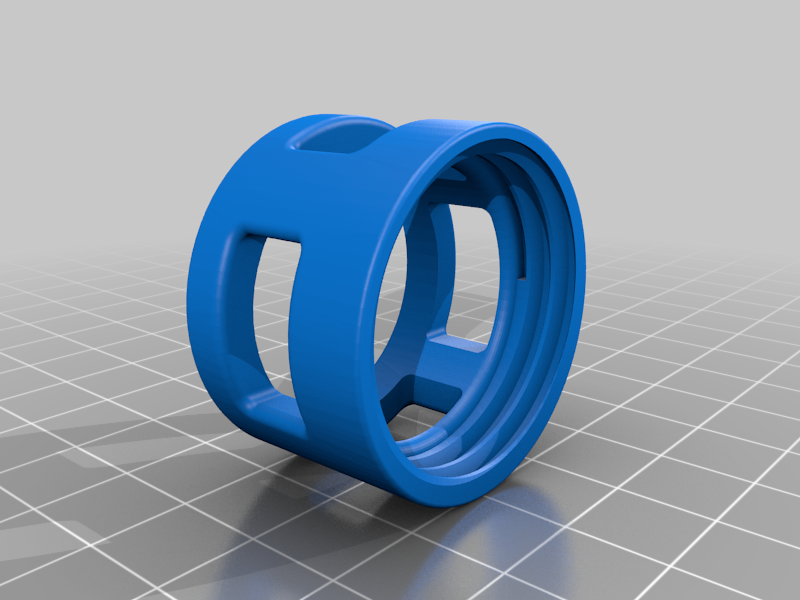

stl29mm_Shade.STL
1 Mo · 678 téléchargements
Description
Wow i've been gone quite a while. I'll be honest, mechanical design is my day job and sometimes you just come back home and really really don't want to jump back onto CAD, however this is a project i've had in mind for a while.
Archery Scopes for compound are really expensive for what they are, a bit of metal that holds a lense! How innovative can you get? Well I leave that up to you, my beautiful downloader, do you want to add some images to it. go faster stripes, print it in multi colour? not print all of it? Build a Custom Shade?
So here it is, finally
OpenArchery: TrueCentre ScopeSo many scopes on the market have the lenses offset from mounting, I asked the question why? if its offset, if you twist the lense then you are Moving the sight mark, are you twist it to the same place everytime? it leads to inconsitencies and inconsistencies lead to less points. I don't know how much of an issue this is really but its something I've felt like, why can't I do that?
The scope is fully modular and customisable. What a diffrent colour ring and retainer? print it diffrent. want a longer shade, modify it to be longer, don't want a shade? don't use one.
I hope you like this as much as i do.
Note this is a first release just to get it out there and get feedback on any week points that are causing issues, if your scope breaks on you please drop me a message on my facebook page with a photo of the break, an approx arrow count would be great as well so I know how much I need to stiffen it up and where to stiffen it up. (fb link on my profile)
designed as left handed, please mirror all parts to print a right handed version!Includes the following sizes as standard:
29mm lenses
30mm lenses
31mm lenses
34mm lesnes
38mm lenses
41mm lenses
Additional Parts required!
Required:
M5 Half Nut 1x
M5 washer (recommended)
8mmx35mm Spirit level bubble https://www.amazon.co.uk/Color-Spirit-Level-Bubble-Round/dp/B07Q2ZGM86
Optional (if you don't already own a sight, print the 38mm version and use)
Cheap lense: https://www.merlinarchery.co.uk/mybo-blackhawk-replacement-lens.html
O-Ring: https://www.merlinarchery.co.uk/mybo-ten-zone-replacement-o-ring.html
mounting stud: https://www.merlinarchery.co.uk/mybo-replacement-scope-thread-nut.html
